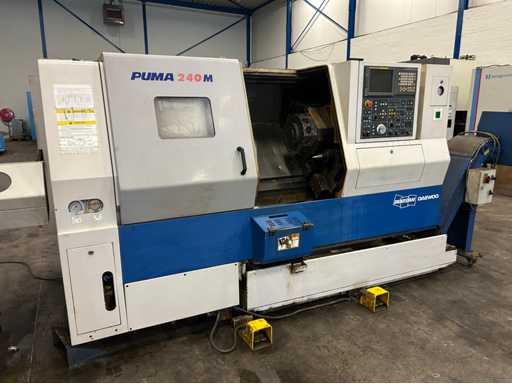

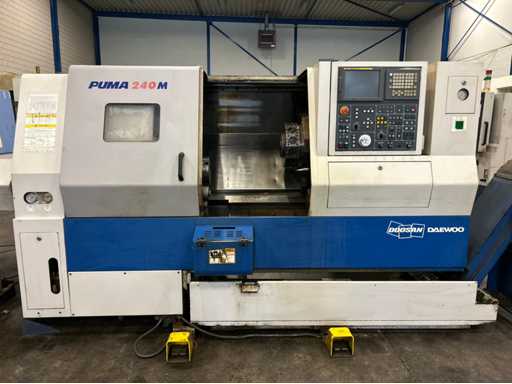

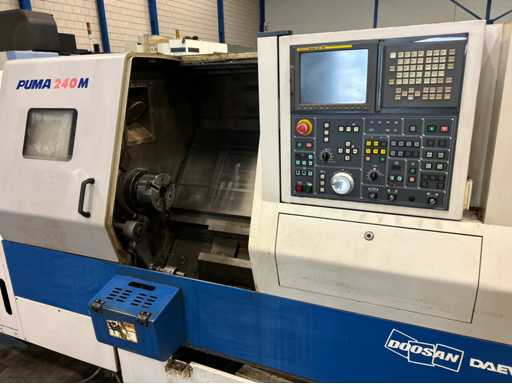

2006 Doosan Puma 240M CNC lathe
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Doosan
- Type
- Puma 240M
- Year of build
- 2006

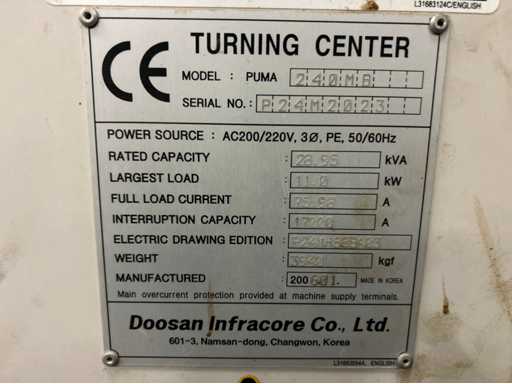

- Serial number
- P24M2023
- Turning Ø
- 300mm
- Turning length
- 513mm
- Spindle boring Ø
- 65mm
- Speed from n=
- 1rpm
- Speed till n=
- 3500rpm

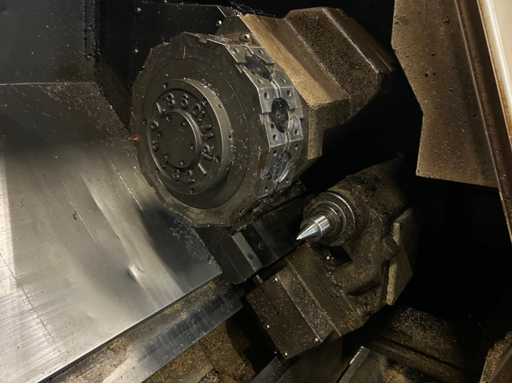

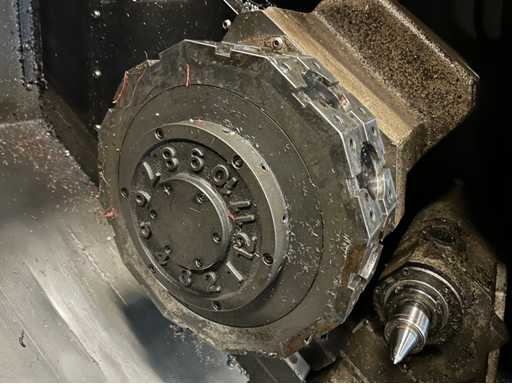

- Number of tool changer stations
- 12
- Coolant pump
- Yes
- Chip conveyor
- Yes

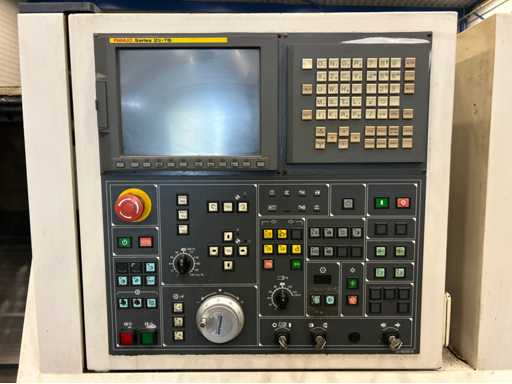

- CNC control, brand, type
- Fanuc Series 21i-TB
- Engine power (kW)
- 18.5kW
- Electric connection
- 400V
- Machine weight
- 4000kg
- Dimension l
- 3000mm
- Dimension w
- 1600mm
- Dimension h
- 1740mm
Description
X-axis: 205mm
Z-axis: 580mm
C-axis: 0,001°

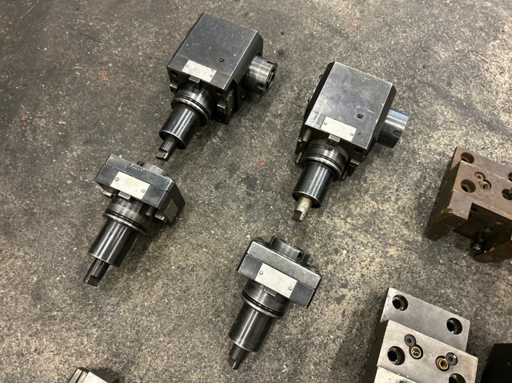

Live tooling: yes
Live tooling speed: 5000rpm
Live tooling power: 3,7kW
Machine is equipped with:
- chip conveyor

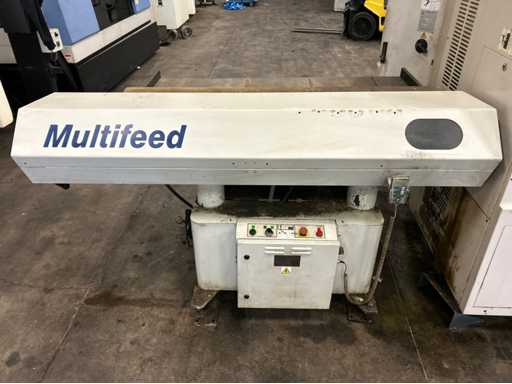

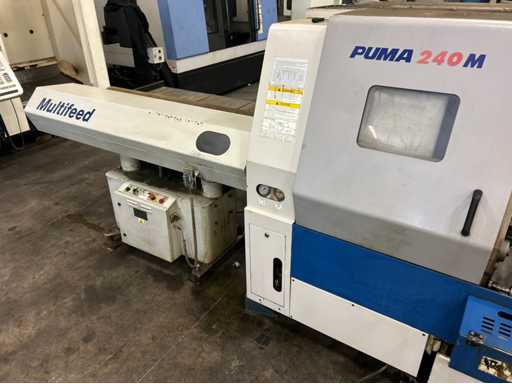

- bar feeder
- tool pre-setter

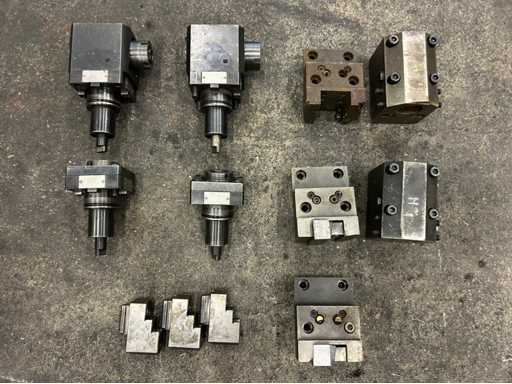

- live tooling
Additional details
Please note! The viewing day is on registration via aanmelden@troostwijkauctions.com.
The date of the viewing day is November 17 from 09:00 to 12:00.
The address of the plots at the Varsseveld location is: Sinderenseweg 45, 7051 HH Varsseveld.
The address of the plots at the Zutphen location is: Holtmede 2, 7207 BX Zutphen.
There is no right of withdrawal.
The minimum age for visiting the viewing and collection days is 18 years. Visitors must be able to identify themselves.
The lots are loaded by the seller on the transport you organize. The costs for this have been added to the bidding process.
