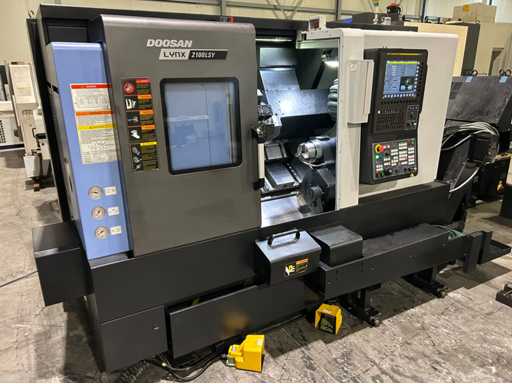

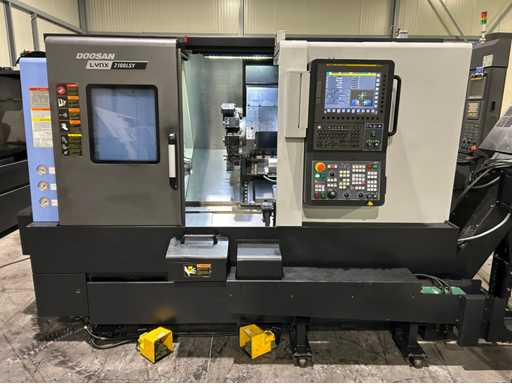

2021 Doosan Lynx 2100LSY CNC lathe
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Doosan
- Type
- Lynx 2100LSY
- Year of build
- 2021

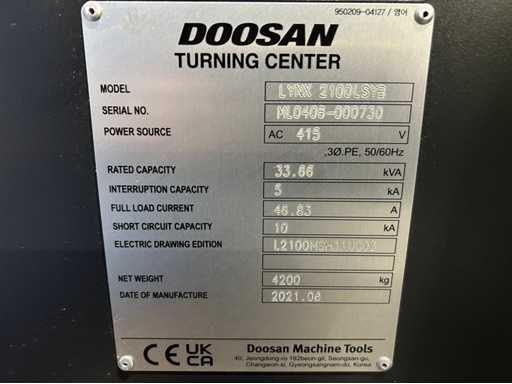

- Serial number
- ML0406-000730
- Turning Ø
- 170mm
- Turning length
- 600mm
- Spindle boring Ø
- 51mm
- Speed from n=
- 1rpm
- Speed till n=
- 6000rpm
- Number of tool changer stations
- 12
- Coolant pump
- Yes

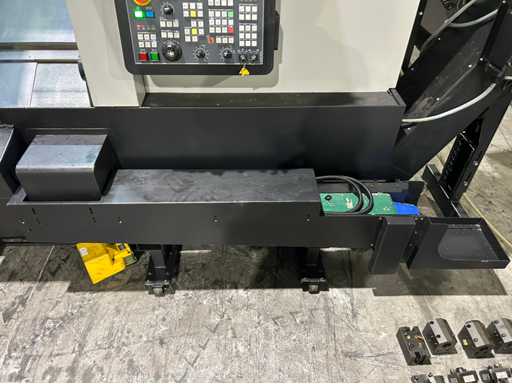

- Chip conveyor
- Yes

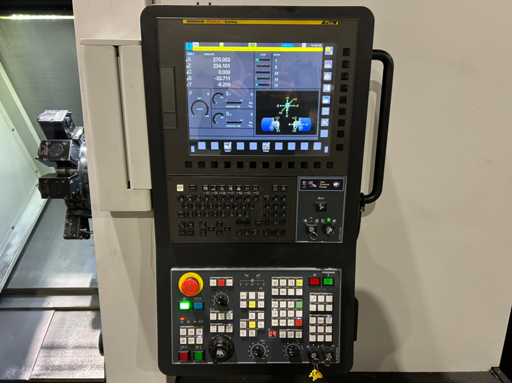

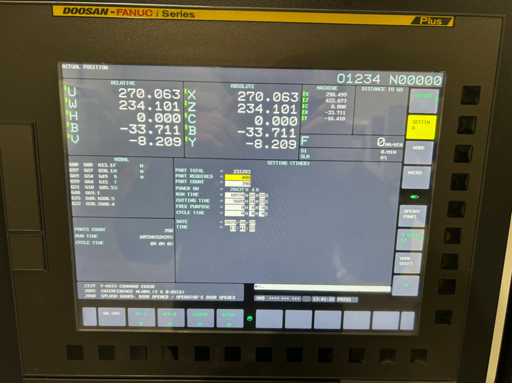

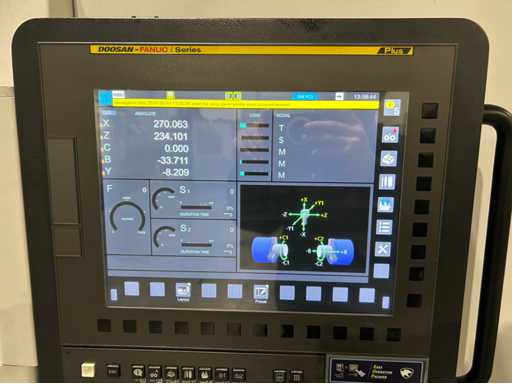

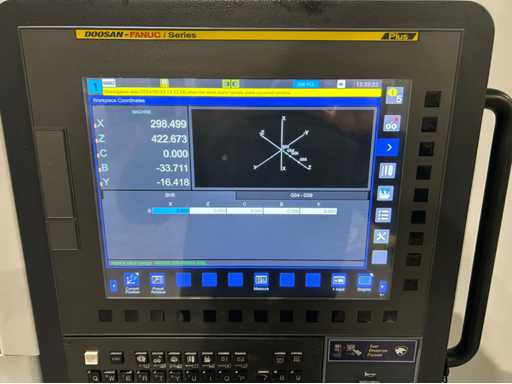

- CNC control, brand, type
- Fanuc i Series

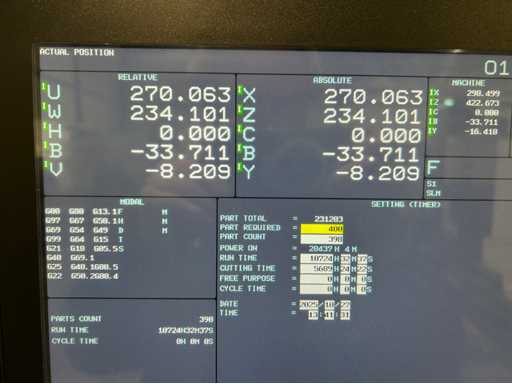

- Hours on display
- 5689
- Engine power (kW)
- 15kW
- Electric connection
- 400V

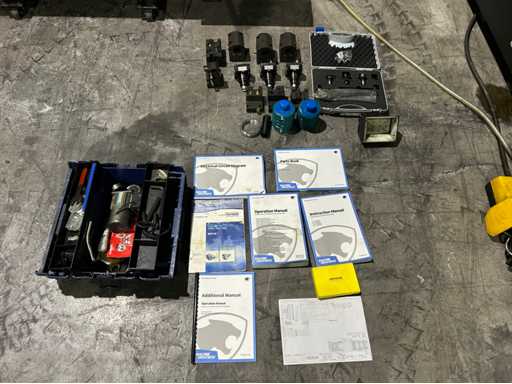

- Manual present
- Yes
- Machine weight
- 4150kg
- Dimension l
- 2880mm
- Dimension w
- 1711mm
- Dimension h
- 1921mm
Description
X-axis: 205mm
Z-axis: 560mm
Y-axis: -52,5mm ~ +52,5mm
C-axis: 0,001°

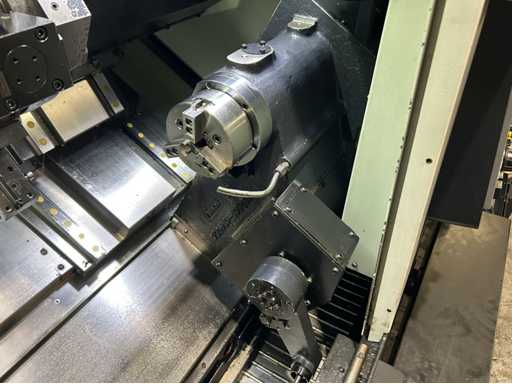

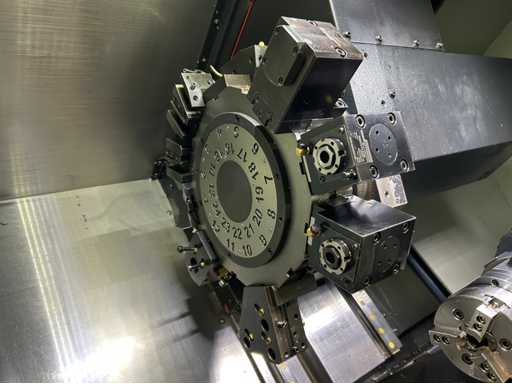

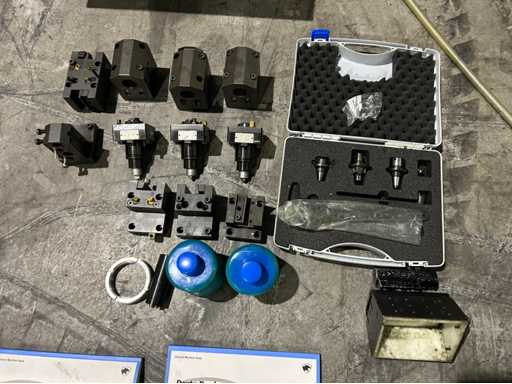

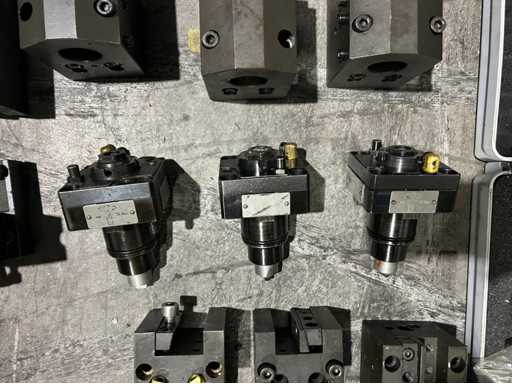

Live tooling: yes
Live tooling speed: 6000rpm
Live tooling power: 3,7kW

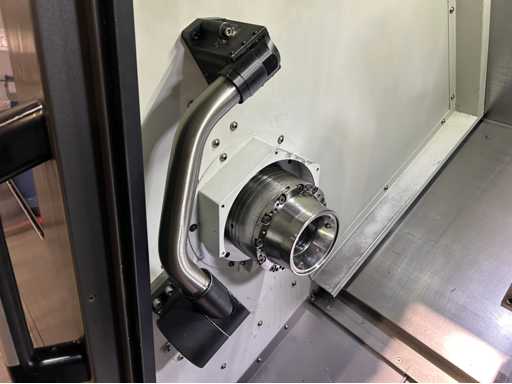

Sub spindle: yes
Sub spindle size: 5”
Sub spindle speed: 6000rpm
Sub spindle power: 5,5kW
Machine is equipped with:
- EZ Guide
- easy operation package
- part catcher
- tool pre-setter

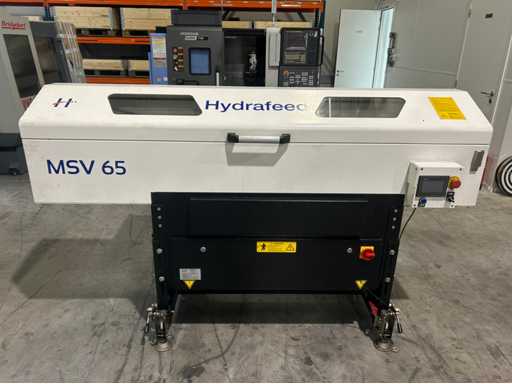

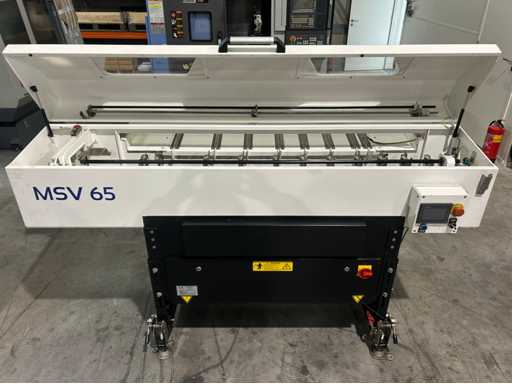

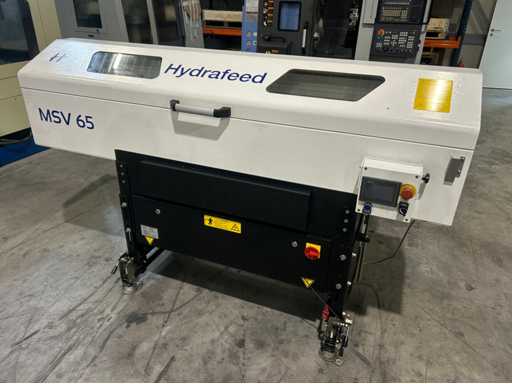

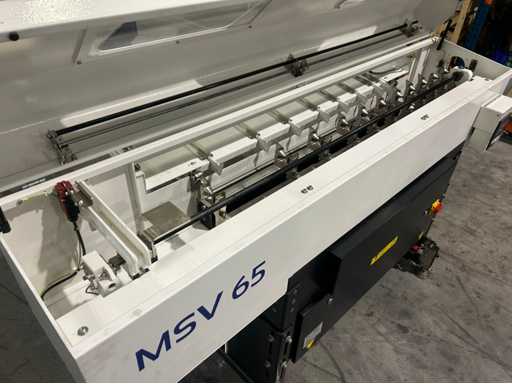

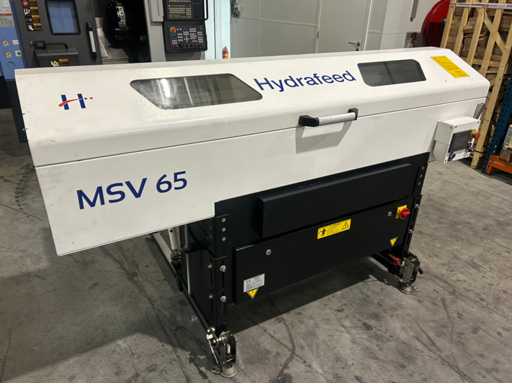

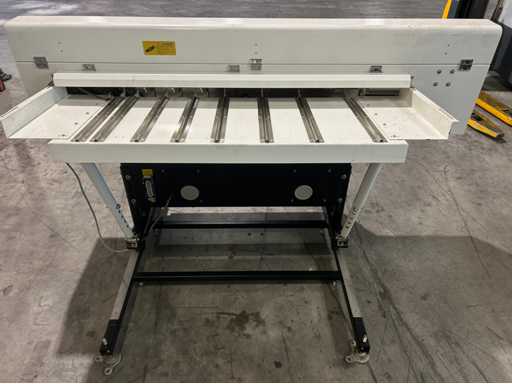

- bar feeder
- Doosan tool load monitoring
- 128 pairs of tool offsets
- helical interpolation
Remarks
Sub spindle, live tooling, bar feeder, excellent condition.
Additional details
Please note! The viewing day is on registration via aanmelden@troostwijkauctions.com.
The date of the viewing day is November 17 from 09:00 to 12:00.
The address of the plots at the Varsseveld location is: Sinderenseweg 45, 7051 HH Varsseveld.
The address of the plots at the Zutphen location is: Holtmede 2, 7207 BX Zutphen.
There is no right of withdrawal.
The minimum age for visiting the viewing and collection days is 18 years. Visitors must be able to identify themselves.
The lots are loaded by the seller on the transport you organize. The costs for this have been added to the bidding process.

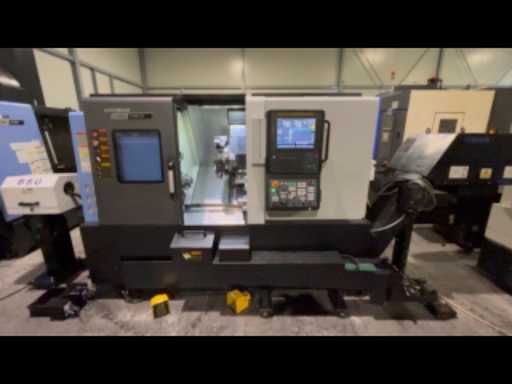

Video
