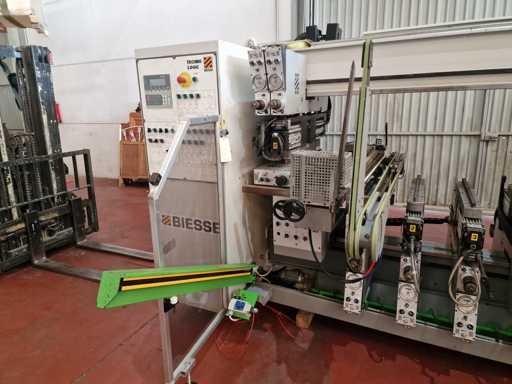

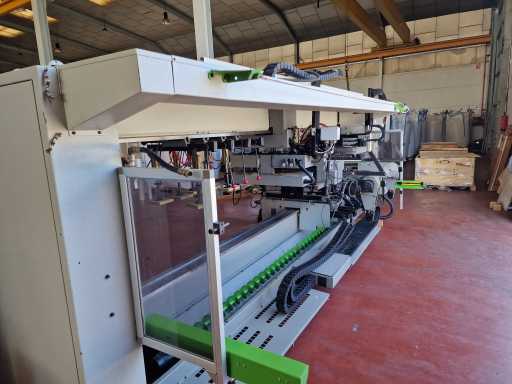

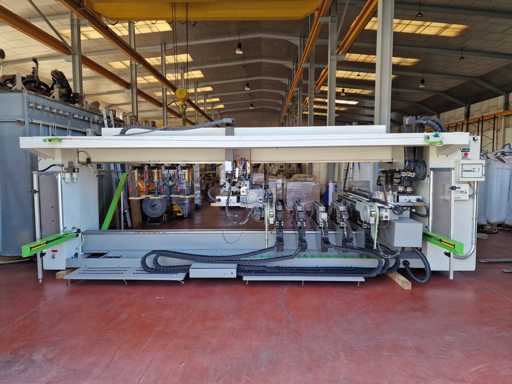

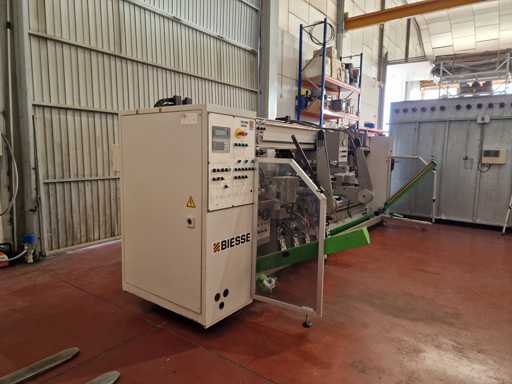

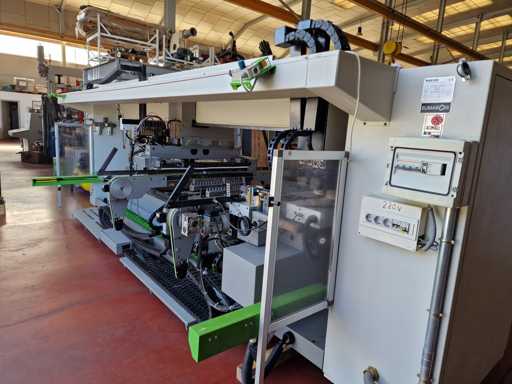

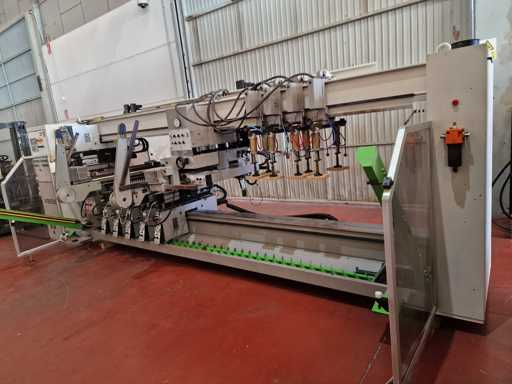

BIESSE TECHNO LOGIC Automatic Line Drill - 1997
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- BIESSE
- Type
- TECHNO LOGIC
- Year of build
- 1997
- Serial number
- 70155
- Electric connection
- 380V
- Manual present
- Yes
- Machine weight
- 5000kg
- Dimension l
- 5600mm
- Dimension w
- 2300mm
- Dimension h
- 2000mm
- Terms of delivery
- Loaded on truck
Description
- Total installed power 29.60 KW.
- Part width from 205 mm to 3200 mm.
- Piece length from 100 mm to 1200 mm.
- Part thickness from 10 mm to 70 mm.
- Belt feed, feed speed 52 m/min.
- 2 loading arms with belt feed of approx. 670 mm length.
- 2 unloading arms with belt feed of approx. 315mm length.

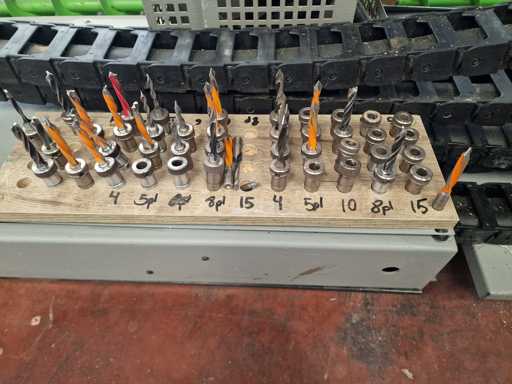

- Distance between drill bits: 32 mm.
- Drill bit rotation speed 4000 rpm.

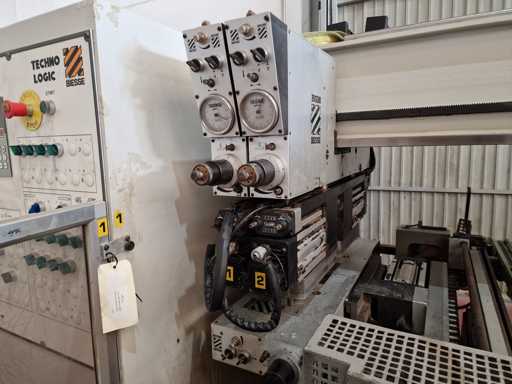

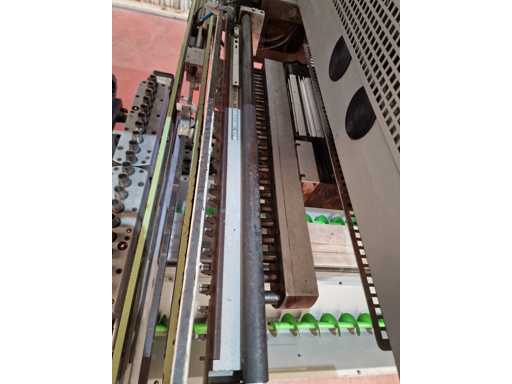

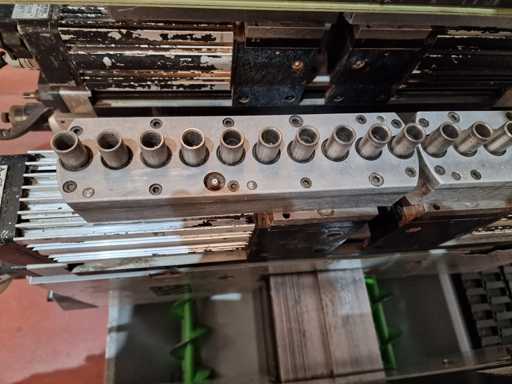

- 1 x horizontal drilling group working from the right side with 20 drill bits.
- 1 x horizontal drilling group working from the left side with 20 drill bits.
- 2.20 KW-2700 rpm motor in each horizontal group.

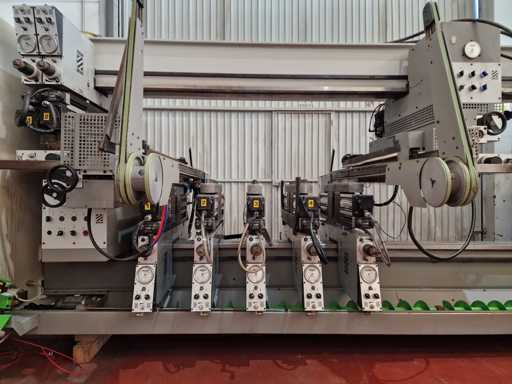

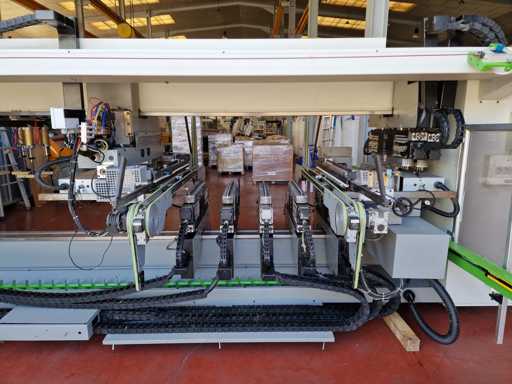

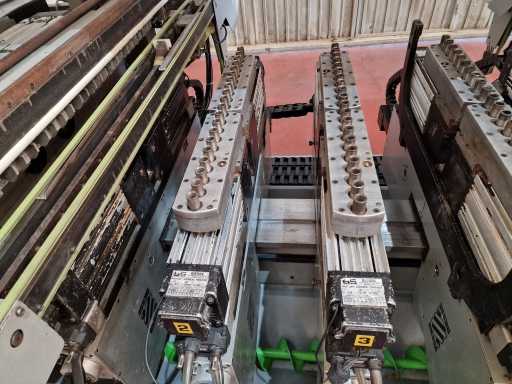

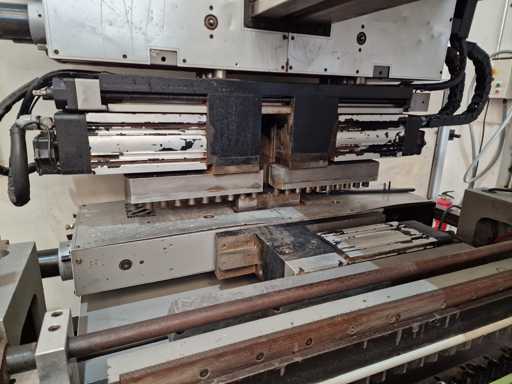

- 5 x vertical drilling groups working from below, 2 rotating heads 0°-90° in each group, 10 drill bits each head, 1.32 KW-2700 rpm motor in each head.
- 2 x vertical drilling groups working from above, 2 heads each group, 10 drill bits each head, 1.32 KW-2700 rpm motor on each head.
- Minimum drilling distance between vertical groups 96 mm.

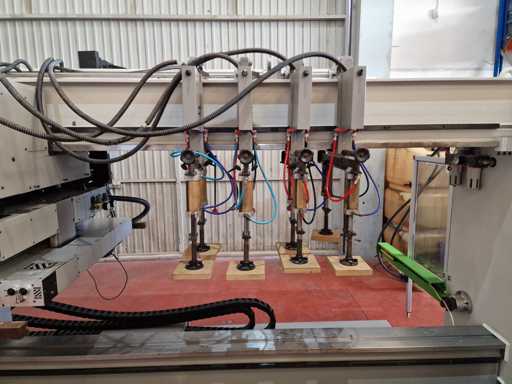

- 4 double vertical pneumatic folding grippers (one grip missing).

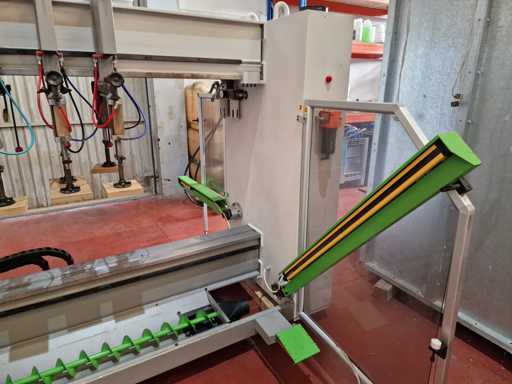

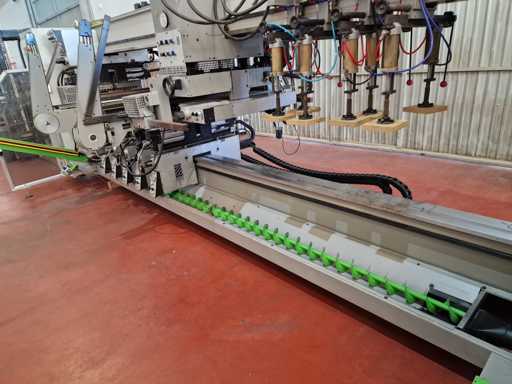

- Chip evacuation system with double worm screw.

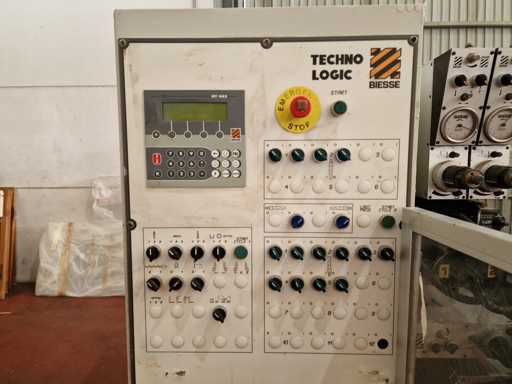

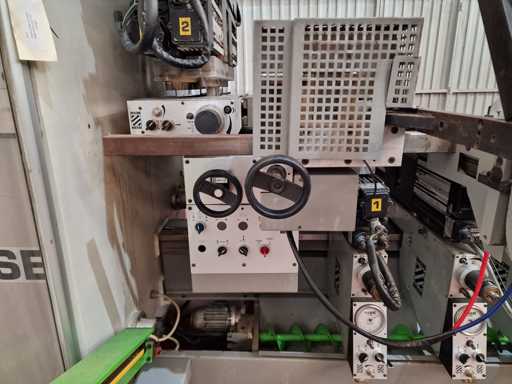

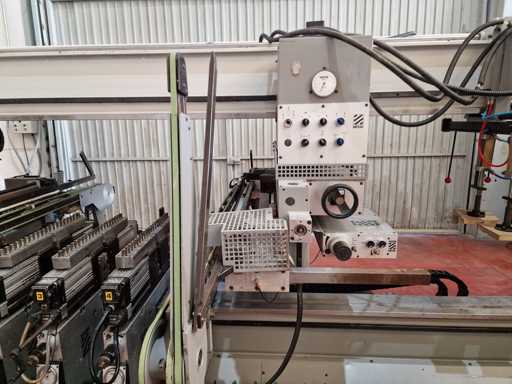

- CNI RT 483 electronic positioner.
- Operating conditions of this machine: unchecked.
- This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs.
- Part width from 205 mm to 3200 mm.
- Piece length from 100 mm to 1200 mm.
- Part thickness from 10 mm to 70 mm.
- Belt feed, feed speed 52 m/min.
- 2 loading arms with belt feed of approx. 670 mm length.
- 2 unloading arms with belt feed of approx. 315mm length.
- Distance between drill bits: 32 mm.
- Drill bit rotation speed 4000 rpm.
- 1 x horizontal drilling group working from the right side with 20 drill bits.
- 1 x horizontal drilling group working from the left side with 20 drill bits.
- 2.20 KW-2700 rpm motor in each horizontal group.
- 5 x vertical drilling groups working from below, 2 rotating heads 0°-90° in each group, 10 drill bits each head, 1.32 KW-2700 rpm motor in each head.
- 2 x vertical drilling groups working from above, 2 heads each group, 10 drill bits each head, 1.32 KW-2700 rpm motor on each head.
- Minimum drilling distance between vertical groups 96 mm.
- 4 double vertical pneumatic folding grippers (one grip missing).
- Chip evacuation system with double worm screw.
- CNI RT 483 electronic positioner.
- Operating conditions of this machine: unchecked.
- This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs.
Additional details
All items are sold as used and unchecked.
For more detailed information, please refer to the auction terms and conditions.
Contact for technical inquiries and appointment request for visits:
Emilio Sobrado
Email: e.sobrado@tbauctions.com
Pick-up is only possible on the following dates and by appointment: from 20.10.2025 to 24.10.2025 from 9:00 a.m. to 1:00 p.m. and from 3:30 p.m. to 6:00 p.m.
