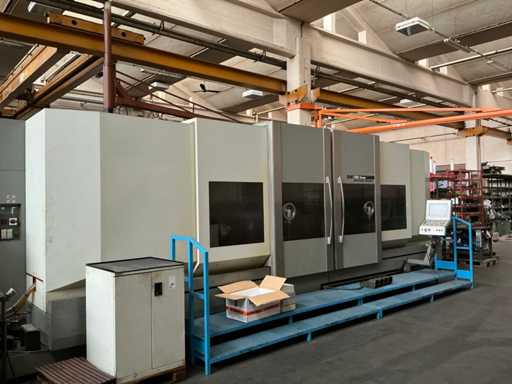

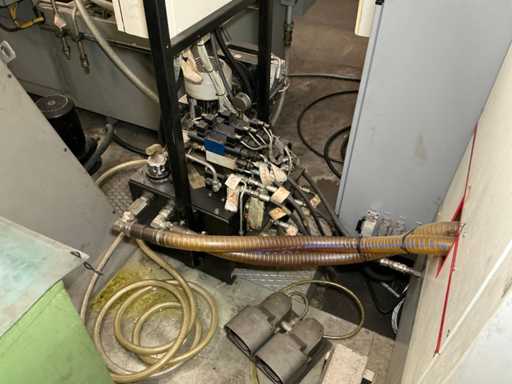

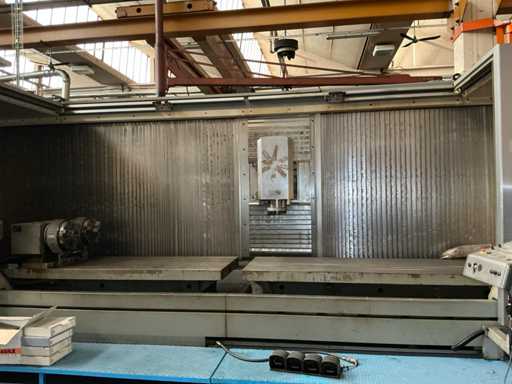

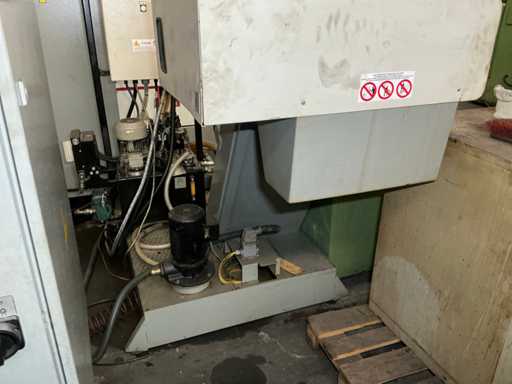

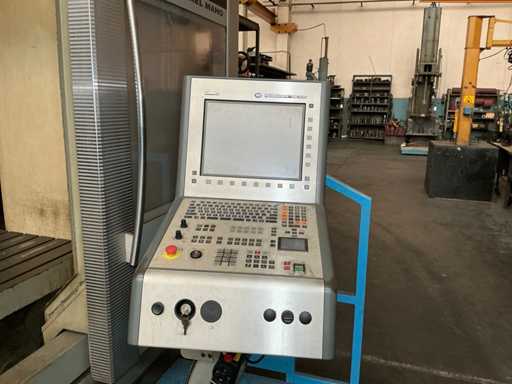

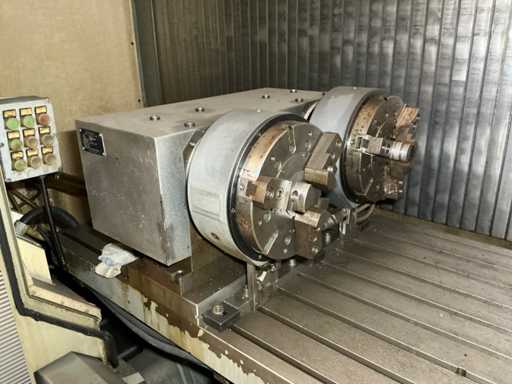

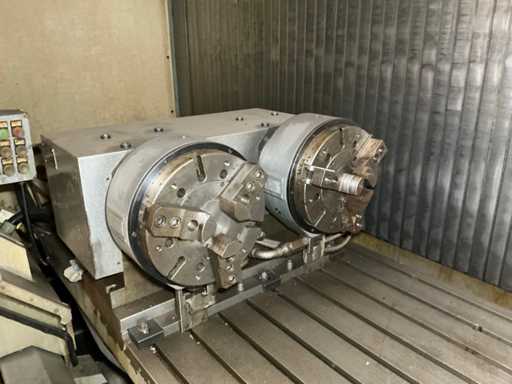

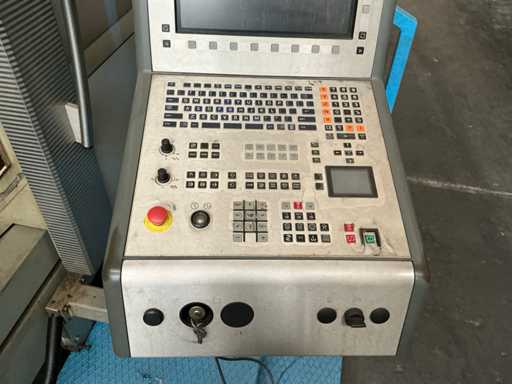

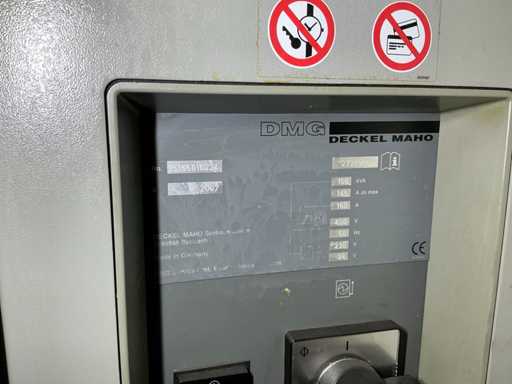

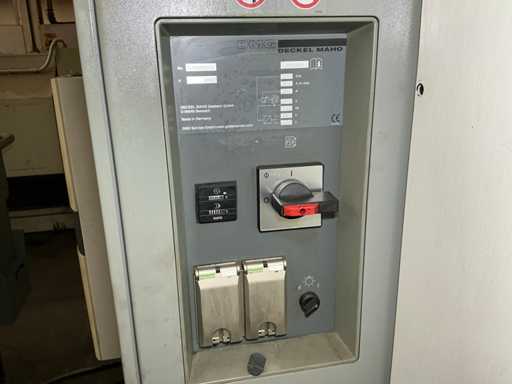

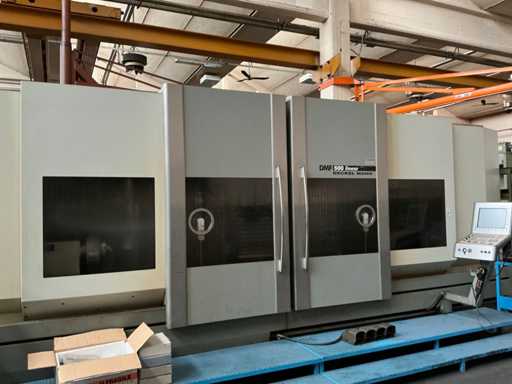

DECKEL MAHO - DMF 500 linear - 4+1 axis vertical machining centre - 2007

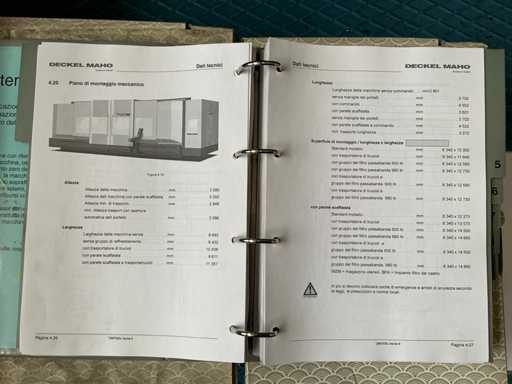

Exceptional transport in height, weight and width

Path

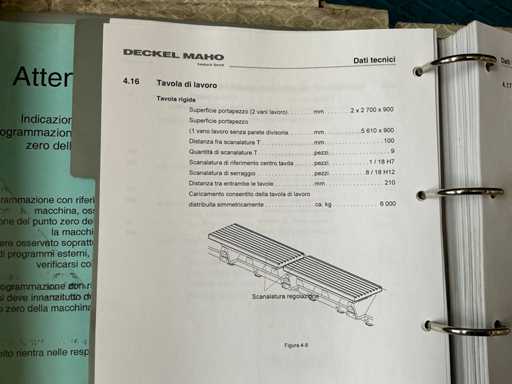

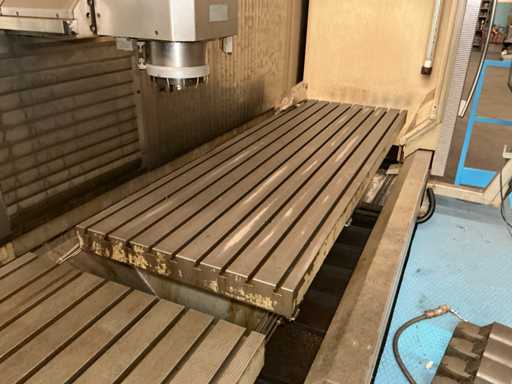

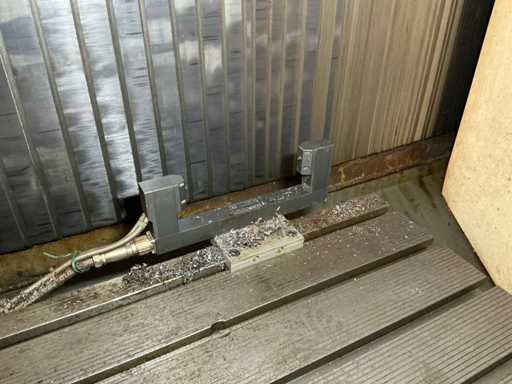

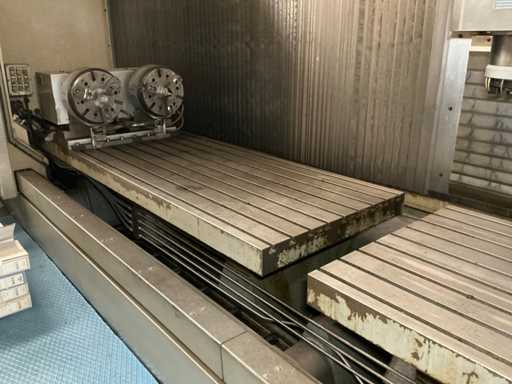

Measurement System Table dimensions 5610 x 900 mm
Resolution
X, Y, Z axis: mm 0.001
Position
tolerance Y-, Z-Axis
with direct measuring system: 0.010
mm X-Axis
with direct measuring system: 0.015

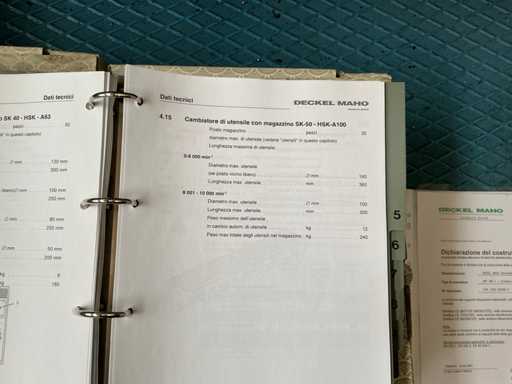

mm Tool Changer with Magazine SK-50 / HSK-A100
Storage space: 30 pieces
0–8000 min⁻¹
Max. tool diameter (if placed near free): Ø 160 mm
Max. tool length: 360 mm
8001–10000 min⁻¹
Max. tool diameter: Ø 100 mm
Max. tool length: 300 mm
Maximum weight of the tool in automatic change: 12 kg
Max. total weight of tools in the magazine: 240 kg

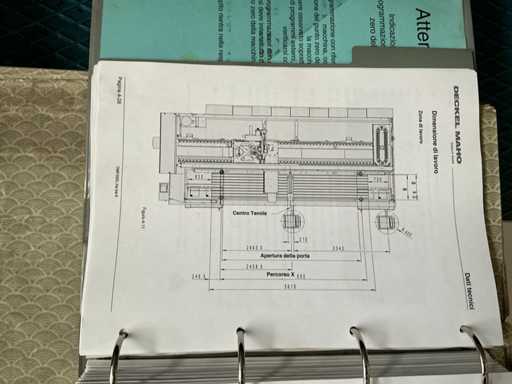

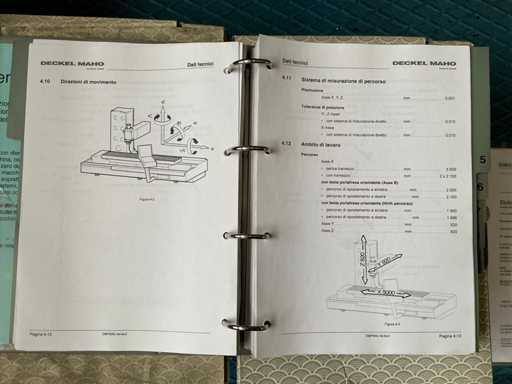

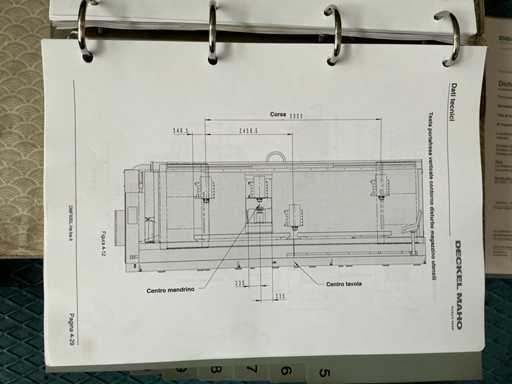

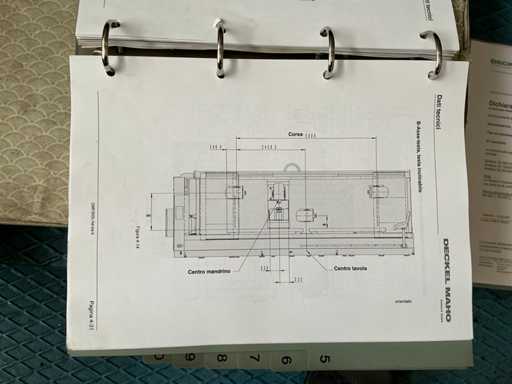

Scope of work — Path
X-axis
without partition: mm 5 000
with partition: 2 mm × 2 100
with swivel cutter head (B-axis)
Left travel path: 2 005
mm Right-hand travel path: 2 100
mm with swivel cutter head (Hirth path)
Left travel path: 1 900
mm Right-hand travel path: 1 996
mm Y-axis: 920
mm Z axis: mm 820

SK 50 / HSK 100

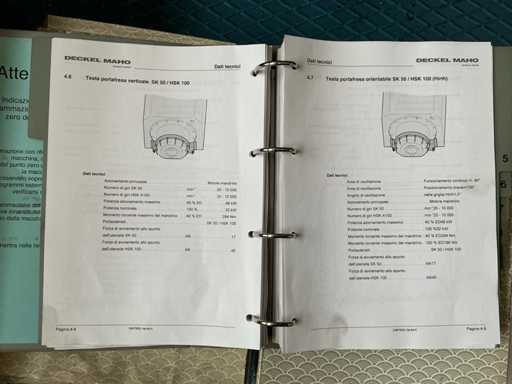

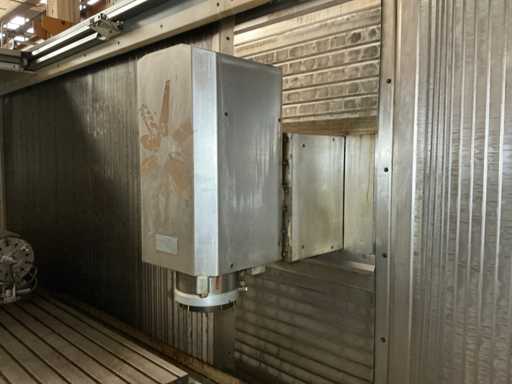

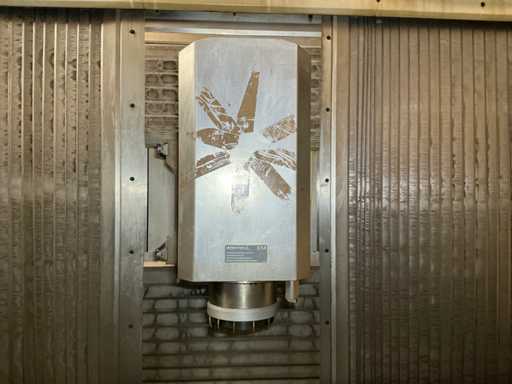

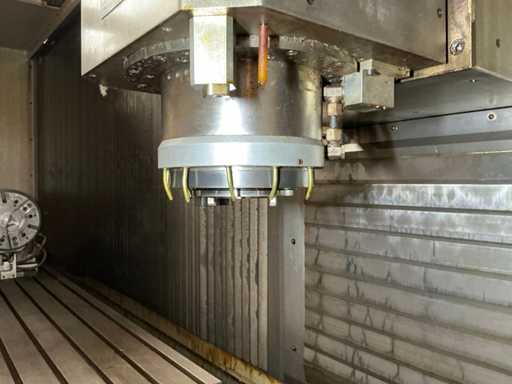

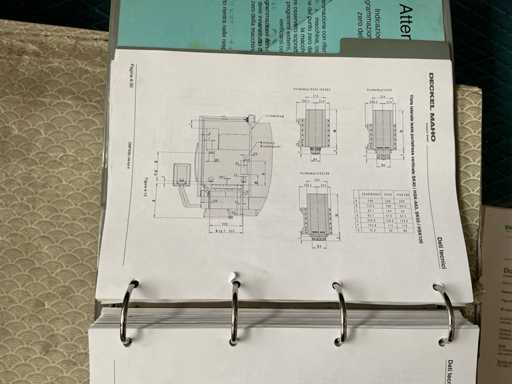

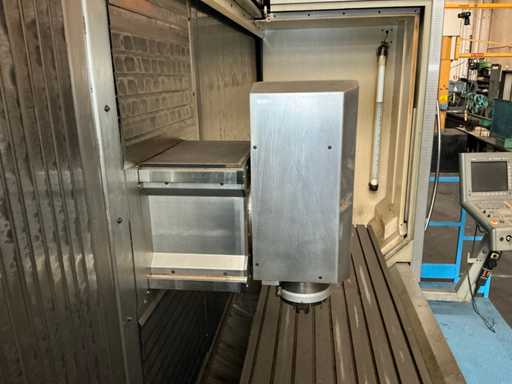

vertical cutter head Technical

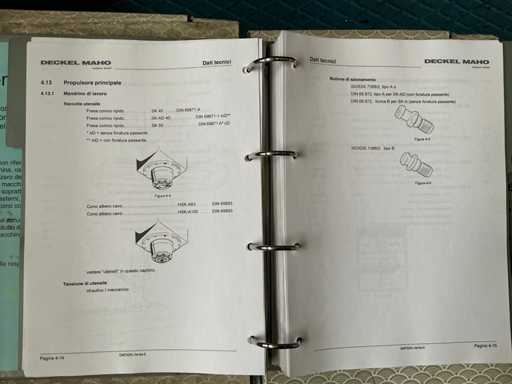

data Main Drive: Spindle

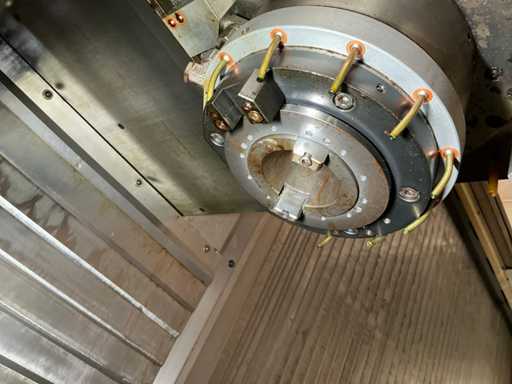

Motor SK 50 speed: 20 – 10,000 min⁻¹
HSK A100 speed: 20 – 10,000 min⁻¹
Nominal power: 100 % ED → 32 kW
Tool holder: SK 50 / HSK 100

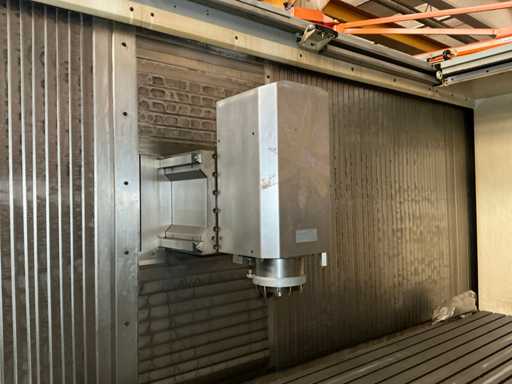

Swivel cutter head SK 50 / HSK 100 (Hirth)
Technical
data Oscillation Area: Continuous operation ±90°
Oscillation area: Short positioning ±100°
Main Drive: Spindle
Motor SK 50 speed: min⁻¹ 20 – 10,000
Speed HSK A100: min⁻¹ 20 – 10,000
Nominal power: 100 % ED → 32 kW
Tool holder: SK 50 / HSK 100
