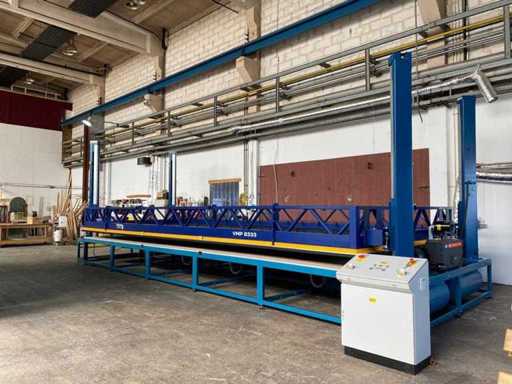

MSM Vacuum press 2021 8300 x 3300mm press area
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- MSM Maschinebau GmbH
- Type
- VMP 8333
- Year of build
- 2021
- Machine weight
- 2700kg
- Dimension l
- 10200mm
- Dimension w
- 3700mm
- Dimension h
- 3000mm
- Terms of delivery
- Ex foundation-unpackaged
Description
Table inner dimensions 8300 x 3300mm (press surface)
Table load capacity 500kg (surface load)
Total installation dimensions of the baler 10.2 x 3.7 x 3.0m
Total weight of the press approx. 2700kg
Connected load 9 KW
400 Volt All parts powder-coated
Table RAL 7035
Membrane frame RAL 7011
Pressure differential switch for displaying and adjusting the negative pressure system and pressing pressure
Vacuum press VMP 8333 consisting of: Table base made of welded
Tubular steel construction consisting of 5 bolted lightweight segments with adjustable feet for height adjustment,
Table covering made of 22mm grey on both sides coated MDF board with 8 Suction Holes 19mm,
Slotted board made of 10mm MDF raw with Grid grooves 80x80mm on the underside for air distribution, (protection + wear plate)
Vertically opening membrane frame made of Welded tubular steel construction with Diaphragm quick-change device (quick release for diaphragm clamping), Natural rubber membrane 2mm, 700% Elongation, Color Black,
membrane frame with four screw stroke columns mounted on the short side,
Lifting height maximum 1500mm,
Lifting speed open/close 40/40 Sec.,
Circumferential safety contact strip with Safety relays as crush protection,
4 pieces of NOT STOP switch on the Table corners,

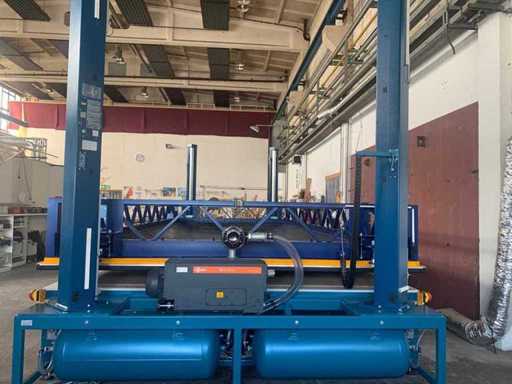

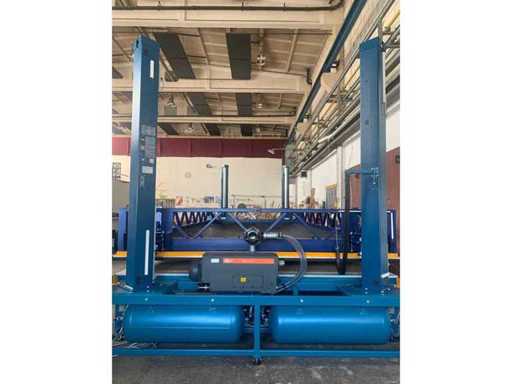

Vacuum supply by oil-lubricated Vacuum pump with 250m³ suction power, Maximum vacuum -0.99 bar Vacuum control with 3-way solenoid valve,
Digital pressure differential switch for Vacuum control,
2 pieces 250 liter vacuum storage tank,

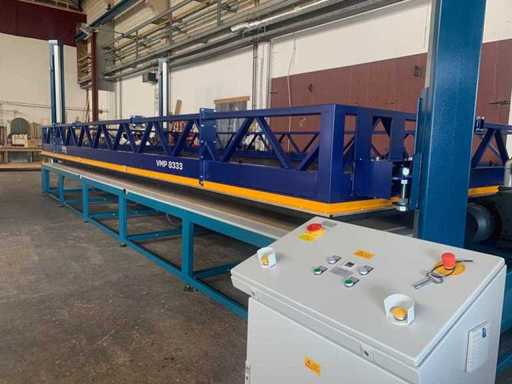

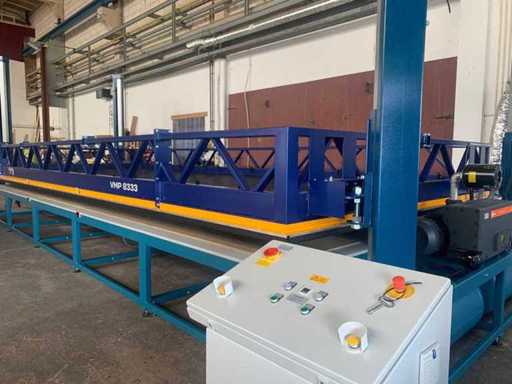

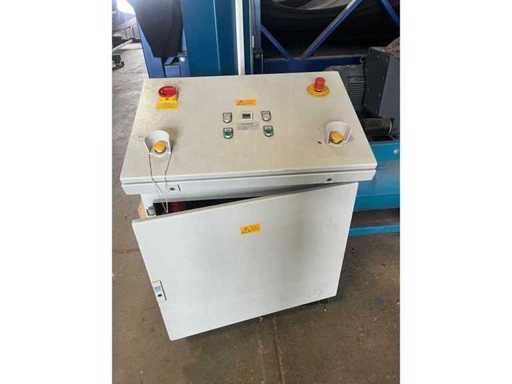

Operation of the vacuum press on the free-standing Control panel,
Main switch for switching on,
NOT STOP switch,
2-hand operation for opening and closing of the membrane frame,
Push button for vacuum and ventilation
Table load capacity 500kg (surface load)
Total installation dimensions of the baler 10.2 x 3.7 x 3.0m
Total weight of the press approx. 2700kg
Connected load 9 KW
400 Volt All parts powder-coated
Table RAL 7035
Membrane frame RAL 7011
Pressure differential switch for displaying and adjusting the negative pressure system and pressing pressure
Vacuum press VMP 8333 consisting of: Table base made of welded
Tubular steel construction consisting of 5 bolted lightweight segments with adjustable feet for height adjustment,
Table covering made of 22mm grey on both sides coated MDF board with 8 Suction Holes 19mm,
Slotted board made of 10mm MDF raw with Grid grooves 80x80mm on the underside for air distribution, (protection + wear plate)
Vertically opening membrane frame made of Welded tubular steel construction with Diaphragm quick-change device (quick release for diaphragm clamping), Natural rubber membrane 2mm, 700% Elongation, Color Black,
membrane frame with four screw stroke columns mounted on the short side,
Lifting height maximum 1500mm,
Lifting speed open/close 40/40 Sec.,
Circumferential safety contact strip with Safety relays as crush protection,
4 pieces of NOT STOP switch on the Table corners,
Vacuum supply by oil-lubricated Vacuum pump with 250m³ suction power, Maximum vacuum -0.99 bar Vacuum control with 3-way solenoid valve,
Digital pressure differential switch for Vacuum control,
2 pieces 250 liter vacuum storage tank,
Operation of the vacuum press on the free-standing Control panel,
Main switch for switching on,
NOT STOP switch,
2-hand operation for opening and closing of the membrane frame,
Push button for vacuum and ventilation
Remarks
Like new, untested.
Additional details
Payment term:
within three days
Pick-up:
Collection is possible up to four weeks after the end of the auction, unless otherwise stated in the article. (By appointment only)
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
Note:
In the event of a late collection, additional costs may arise for dismantling, loading and unloading, transport and storage rental in an external warehouse, which must be borne by the buyer.
If a BAFA permit is required for export, additional costs may also be incurred for storage, handling or dismantling.

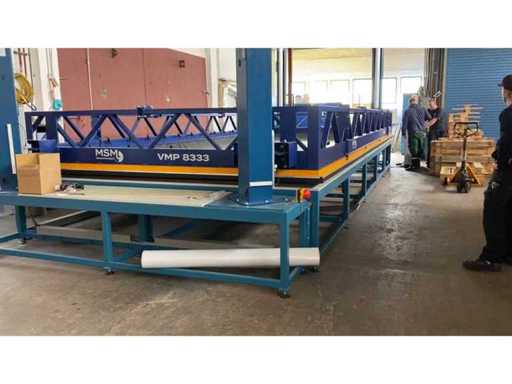

Video
