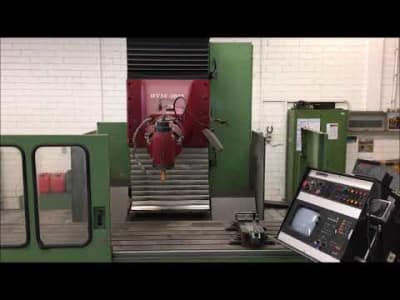

ANAYAK HVM 3800 CNC Bed Type Milling Machine

ANAYAK HVM 3800 CNC Bed Type Milling Machine i_03490712
ANAYAK HVM 3800 CNC BED TYPE MILLING MACHINE
SOLD


Sorry, this machine has already been sold

Discover similar available machines

Machine details

Name   ANAYAK HVM 3800 CNC Bed Type Milling Machine
Item No.   497925
Manufacturer   ANAYAK
Model / Type   HVM 3800
Year of manufacture   1990
Machine available from   immediately
Machine location   Germany, 89160 Dornstadt
Machine condition   uncheckedSome of our machines cannot be tested by our project managers since they are not in a position to power the device. In cases such as these, we will be unable to guarantee the functionality of the item.

Description

ANAYAK HVM 3800 CNC Bed Type Milling Machine
- serial no.: HVM-7330
- operating voltage: 380 V, 50 Hz
- milling head power: 22/30 kW (37 kW)
- with infrared measuring probe
- inclusive approximately 70 items of KELCH tool holders, measuring taster, collets and documentation
- transportation dimensions: 7000 x 2900 x 3400 mm + table 5000 x 2000 x 2000 mm

Technical details

x-travel   3,200 mm
y-travel   1,000 mm
z-travel   1,050 mm
control   HEIDENHAIN TNC 355
table surface area l x w   3800 x 1000 mm
turning speed range   60 - 3000 (4000) rpm
feed range   6,000 mm/min
rapid travel range   10 m/min
Weight approx.   30,000 kg
Dimensions (l x w x h) approx.   7,000 x 4,300 x 3,400 mm

Costs and benefits

auction fee   15%
VAT   *plus VAT
Delivery terms   FCA Dornstadt, loaded on truck
Cost Dismantling & Loading   5,000.00 € (binding)
Shipping costs   not included
Payment terms   100% payment prior to collection

Inspection

Location   No fixed date. The items are in different locations (see item
description). Viewing by appointment only!

Pick up

Date   Monday, 04/03/2019 to Friday, 08/03/2019, from 09:00 to 16:00

Monday, 25/02/2019 to Friday, 01/03/2019, from 09:00 to 16:00
