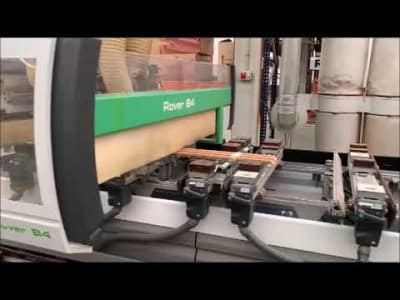

BIESSE ROVER B 4.65 CNC Machining Centre

BIESSE ROVER B 4.65 CNC Machining Centre i_03495458
BIESSE ROVER B 4.65 CNC MACHINING CENTRE
SOLD


Sorry, this machine has already been sold

Discover similar available machines

Machine details

Name   BIESSE ROVER B 4.65 CNC Machining Centre
Item No.   498389
Manufacturer   BIESSE
Model / Type   ROVER B 4.65
Year of manufacture   2008
Machine available from   immediately
Machine location   Spain, 18100 Armilla
Machine condition   uncheckedSome of our machines cannot be tested by our project managers since they are not in a position to power the device. In cases such as these, we will be unable to guarantee the functionality of the item.

Description

• CNC machining center
• Serial number 69571
• Total installed power approx. 21.10 kw
• Working area approx. 6450 x 1342 mm
• Panel passage height 180 mm
• Maximum speed in axes direction x-y-z: 80-80-30 m/min
• C-Axis, with air blower, floating probe for operator head
• Tool changer with 12 positions
• Main spindle power 12 kw with connection ISO 30
• Saw unit to groove in X-axis direction, maximum blade saw diameter 120 mm
• Drilling head vertical X-axis: 14
• Drilling head vertical Y-axis: 10
• Drilling head horizontal X-axis: 3 + 3
• Drilling head horizontal Y-axis: 2 + 2
• Chip collection system
• Automatic lubrication
• Numerical control XP 600
• Software Windows/BiesseWorks for machine PC and office
• 10 consoles with 4 vacuum suction cups positions each, 30 suction cups of 132 x 146 x 48 mm, 10 suction cups of 132 x 75 x 48 mm, ATS system
• Pneumatic retractable stops: 10 rear + 10 central + 4 on the right + 4 on the left
• Special kit for fastening rods and bars: 12 units
• 8 lifting modules for heavy workpieces
• Vacuum pump with capacity 250 m3/h
• The tools that appears in the photos are NOT included

Technical details

Dimensions (l x w x h) approx.   8,000 x 2,400 x 2,300 mm
Weight approx.   6,200 kg

Costs and benefits

auction fee   15%
VAT   *plus VAT
Delivery terms   FCA Armilla, loaded on truck
Cost Dismantling & Loading   1,500.00 € (binding)
Shipping costs   not included
Payment terms   100% payment prior to collection

Inspection

Location   Viewing by appointment only!



Armilla (Granada)

Spain

Pick up

Date   Monday, 04/03/2019 to Friday, 08/03/2019, from 09:00 to 13:00

Monday, 04/03/2019 to Friday, 08/03/2019, from 15:00 to 18:30
