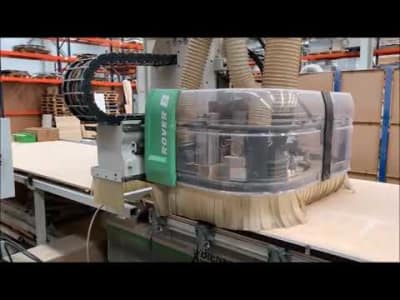

BIESSE ROVER B 7.40 FT CNC Machining Centre

BIESSE ROVER B 7.40 FT CNC Machining Centre i_03495404
BIESSE ROVER B 7.40 FT CNC MACHINING CENTRE
SOLD


Sorry, this machine has already been sold

Discover similar available machines

Machine details

Name   BIESSE ROVER B 7.40 FT CNC Machining Centre
Item No.   498386
Manufacturer   BIESSE
Model / Type   ROVER B 7.40 FT
Year of manufacture   2006
Machine available from   immediately
Machine location   Spain, 18100 Armilla
Machine condition   uncheckedSome of our machines cannot be tested by our project managers since they are not in a position to power the device. In cases such as these, we will be unable to guarantee the functionality of the item.

Description

• CNC machining center
• Serial number 69949
• Total installed power approx. 32.40 kw
• Working area approx. 3685 x 1600 mm
• Panel passage height 150 mm
• Maximum speed in the axes direction x-y-z: 80-80-30 m/min
• C-Axis
• Tool changer with 10 positions
• Main spindle power 9 kw with connection ISO 30 and air cooled
• Saw unit motor to groove in axis X direction, saw blade diameter 120 mm
• Drilling head vertical X-axis: 6
• Drilling head vertical Y-axis: 6
• Drilling head horizontal X-axis: 2 + 2
• Drilling head horizontal Y-axis: 1 + 1
• Automatic lubrication
• Numerical control XP 600
• Software Windows/BiesseWorks for machine PC and office
• Post-processor AlphaCam
• 2 x vacuum pump with capacity 300 m3/h
• Table with workpieces ejection type RV
• Pneumatic retractable stops with descent control: 6 rear + 6 front + 2 on the right + 2 on the left
• 12 clamps for narrow workpieces
• The tools that appears in the photos are NOT included

Technical details

Dimensions (l x w x h) approx.   11,000 x 2,400 x 2,200 mm
Weight approx.   5,000 kg

Costs and benefits

auction fee   15%
VAT   *plus VAT
Delivery terms   ex location
Cost Dismantling & Loading   1,500.00 € (optional)
Shipping costs   not included
Payment terms   100% payment prior to collection

Inspection

Location   Viewing by appointment only!



Armilla (Granada)

Spain

Pick up

Date   Monday, 04/03/2019 to Friday, 08/03/2019, from 09:00 to 13:00

Monday, 04/03/2019 to Friday, 08/03/2019, from 15:00 to 18:30
