DIMTER OPTICUT S 75 - 4 Optimizer

DIMTER OPTICUT S 75 - 4 Optimizer i_03104941
DIMTER OPTICUT S 75 - 4 OPTIMIZER
SOLD


Sorry, this machine has already been sold

Discover similar available machines

Machine details

Name   DIMTER OPTICUT S 75 - 4 Optimizer
Item No.   457410
Manufacturer   DIMTER
Model / Type   OPTICUT S 75 - 4
Year of manufacture   2001
Machine available from   immediately
Machine location   Italy
Machine condition   uncheckedSome of our machines cannot be tested by our project managers since they are not in a position to power the device. In cases such as these, we will be unable to guarantee the functionality of the item.

Description

Automatic cutting machine type Opticut S75-4 for cutting lengths starting from 6.3 meters; length of incoming wood min.-ma. 400-6300 mm .; width of wood min./max. 20-360 mm. Wood thickness min./max. 10-160mm. Circular blade of Ø 600 mm. Max. cutting section 240x160 mm. / 360x30 mm. Table weight about 130 kg; Accuracy +/- 0.5 mm. Workpiece outcoming length min. 50 mm. Advance speed of the saw 60 mt / min. Cutting cycle with braking, cutting and acceleration approx. 2.0 seconds. Saw unit motor 7,5 Kw. Pusher drive 2,2 Kw.

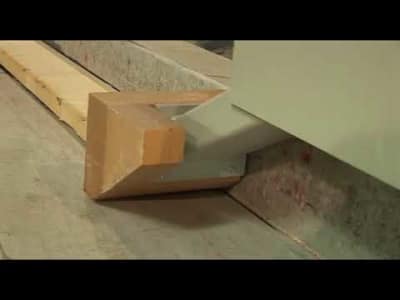

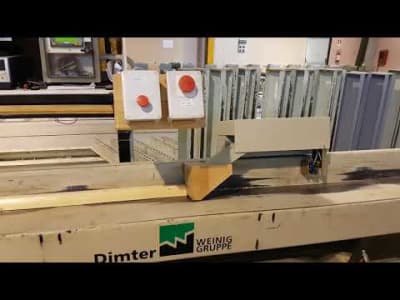

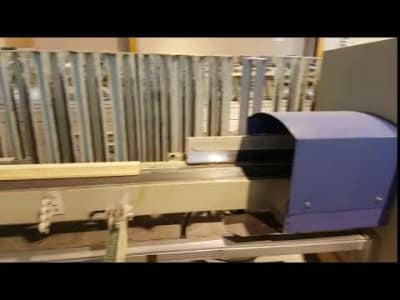

Line first element composed of lots 17, 18, 19, 20, 21, 22 and 23.OPTICOM system based on 1/4 VGA diplay graphics for manual cutting, automatic cutting, 4-quality optimization,setting up to 100 fixed lengths, production statistics for optimized cut and quality selection. Output tape length 7.5 meters; N. 3 ejectors with anti-blocking protection. Equipment for PC connection with CAN-PC interface, CAN-Dongle With a new belt as replacement and humidity control unit brand LOGICA mod.LG38FX. Input plane length 7500 mm, output 8500 mm and 3 roller feeds. With documents. Very good conditions, see phot and video.

Technical details

Dimensions (l x w x h) approx.   2,850 x 1,550 x 1,630 mm
Weight approx.   1,500 kg

Costs and benefits

auction fee   15%
VAT   *plus VAT
Delivery terms   FCA, loaded on truck
Cost Dismantling & Loading   1,000.00 € (binding)
Shipping costs   not included
Payment terms   100% payment prior to collection

Inspection

Location   Viewing by appointment only!



Southern Italy
Date   Wednesday, 12/09/2018, from 10:00 to 12:00

Pick up

Date   Monday, 01/10/2018 to Friday, 05/10/2018, from 09:00 to 18:00
