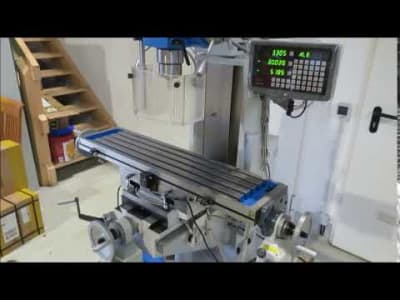

HBM BF 60 DRO Drilling and Milling Machine

Sorry, this machine has already been sold

Discover similar available machines

Machine details

Name   HBM BF 60 DRO Drilling and Milling Machine
Item No.   502955
Manufacturer   HBM
Model / Type   BF 60 DRO
Machine available from   immediately
Machine location   Germany, 46342 Velen-Ramsdorf
Machine condition   uncheckedSome of our machines cannot be tested by our project managers since they are not in a position to power the device. In cases such as these, we will be unable to guarantee the functionality of the item.

Description

Equipment: 3-axis digital display Digital depth display motor feed for X and Y Left / right run Emergency stop switch Pivot head swiveling Spindle protection. machine light Tool case with content Drilling capacity in steel 35 mm Projection 230 mm Drilling stroke 125 mm Spindle mount ISO 40 Spindle speeds 115 - 1750 rpm Table adjustment across 375 mm Table adjustment along 175 mm Table clamping surface 1000 x 240 mm Max. Distance between worktable and spindle nose 120 - 375 mm Connection voltage 400 V Total power requirement 0.85 / 1.5 kW Machine weight approx. 0.95 t Space required approx. 1.3 x 1.2 x 2.1 m

Technical details

Dimensions (l x w x h) approx.   1,300 x 1,200 x 2,100 mm
Weight approx.   950 kg

Costs and benefits

auction fee   15%
VAT   *plus VAT
Delivery terms   FCA Velen-Ramsdorf, loaded on truck
Cost Dismantling & Loading   150.00 € (binding)
Shipping costs   not included
Payment terms   100% payment prior to collection

Inspection

Location   Viewing by prior appointment only!



46342 Velen

Germany



Address on request only!
Date   Thursday, 14/03/2019, from 09:00 to 15:00

Pick up

Date   Wednesday, 20/03/2019 to Thursday, 21/03/2019, from 08:30 to 16:00

Friday, 22/03/2019 to Friday, 22/03/2019, from 08:30 to 13:00

Monday, 25/03/2019 to Thursday, 28/03/2019, from 08:30 to 16:00

Friday, 29/03/2019 to Friday, 29/03/2019, from 08:30 to 13:00

Monday, 01/04/2019 to Thursday, 04/04/2019, from 08:30 to 16:00

Friday, 05/04/2019 to Friday, 05/04/2019, from 08:30 to 13:00
