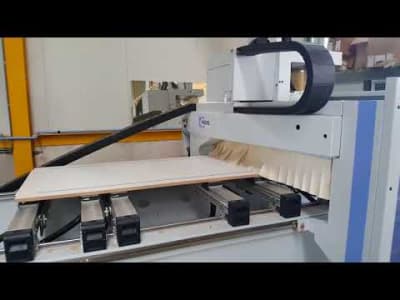

HOMAG BMG 111/Venture 108M Machining Centre with FLEX5 Interface

Sorry, this machine has already been sold

Discover similar available machines

Machine details

Name   HOMAG BMG 111/Venture 108M Machining Centre with FLEX5 Interface
Item No.   446858
Manufacturer   HOMAG
Model / Type   BMG 111  Venture 108M
Year of manufacture   2016
Machine available from   immediately
Machine location   Netherlands, 7468 DC Enter
Machine condition   uncheckedSome of our machines cannot be tested by our project managers since they are not in a position to power the device. In cases such as these, we will be unable to guarantee the functionality of the item.

Description

"Machine no.: 0-250-05-5894
Homag Power Control: PC Windows 7, Inte Core I5, 17""""TFT screen, 160 GB, USB, Ethernet 10/100 MBIT RJ45, UPS power, WOODWOP control, DXF import, Look ahead, ECO Plus E-safe

Technical data:

Travel: X: 3,995 mm
 Y: 1,976 mm
 Z1: 343 mm
 Z2: 185 mm
Net working area: Length: 3,130 mm
 Width: 1,250 mm
 Milling cutter: 1,550 mm
 Height: 100 mm
Feed speed: X 80 m/min
 Y: 80 m/min
 Z: 20 m/min
Installation dimensions: Length: ± 6,500 mm
 Depth: ± 4,000 mm
 Height: ± 2,500 mm
Weight: ± 5,000 kg


Workpiece fixation:
Vacuum pump: 70 m³/h
Vacuum: suction unit 114*140*50, suction unit 125*75*50 and 1 additional vacuum connection for mask
Beam: 6 beams (1,550mm) steplessly adjustable in X-direction
Rear stops: 6 pneumatically lowerable stops
Center stops: 6 pneumatically lowerable stops
Side stops: 2*2 pneumatically lowerable stops
Positioning aid: 4 lowerable positioning aids for easy positioning of heavy workpieces


Equipment:

Vertical drilling units (V 12):
12 drills: 6 X- and 6 Y, grid 32 mm
Motor: 2.3 kW
Speed: 1,500 - 7,500 rpm, frequency-controlled
Spindle: individual control per spindle
Drilling depth: 38 - 55 mm (Z axis 60 mm)
Bore diameter: 35 mm

Horizontal drilling unit (4 X, 2 Y):
6 drills: 2 X+, 2 X-, 1 Y+,1 Y- (grid 32 mm)
Motor: 2.3 kW
Speed: 1,500-7,500 rpm, frequency-controlled
Spindle: individual control per spindle
Drilling depth: 38 (total drilling depth: max. 70 mm)
Bore diameter: 20 mm

Grooving saw in X & Y direction:
X & Y machining: 90° Rotatable
Slot depth: max. 30 mm, max. chipping: 70 mm²
Saw blade: ø125 mm, 30 mm, thickness 5 mm
Motor: 2.3 kW
Speed: 1,500 - 7,500 rpm, frequency-controlled

Main spindle:
Motor: 9 kW
Tool holder: HSK 63 F
Speed: 1,250 - 24,000 rpm, continuously programmable
Cooling unit: air-cooled
C-axis: holder for 360° units
 C-axis drive with torque control and extension to FLEX 5

Tool changer with 8 positions
Plate changer: 8 positions for HSK holder
 Max. 130mm/1 position, ø260 mm/2 position
 chip-to-chip: approx. 12 - 18 seconds

Tool changer with 8 positions front side:
Position: right
 Max. 5 kg pertool incl. HSK holder, max. ø135 mm/1 position
 chip-to-chip: approx.10-18 seconds

Pick-Up:
 Space for automatic tool loading
 Pick-up adapter units

Security:
Floor mats: front of the machine divided into 2 fields for pendulum machining
Fence: with door



Technical details

Dimensions (l x w x h) approx.   6,400 x 4,000 x 2,500 mm
Weight approx.   5,000 kg

Costs and benefits

auction fee   15%
VAT   *plus VAT
Delivery terms   FCA Enter, loaded on truck
Cost Dismantling & Loading   1,600.00 € (binding)
Shipping costs   not included
Payment terms   100% payment prior to collection

Inspection

Location   The items are in different locations (see item description).
Viewing by appointment only!
