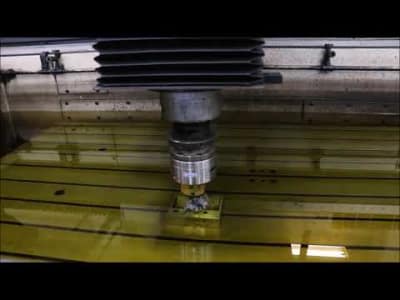

MAKINO EDNC 156 CNC Die Sinking EDM Machine

MAKINO EDNC 156 CNC Die Sinking EDM Machine i_03501168
MAKINO EDNC 156 CNC DIE SINKING EDM MACHINE
SOLD


Sorry, this machine has already been sold

Discover similar available machines

Machine details

Name   MAKINO EDNC 156 CNC Die Sinking EDM Machine
Item No.   498079
Manufacturer   MAKINO
Model / Type   EDNC 156
Year of manufacture   1990
Machine available from   only by arrangement with Surplex
Machine location   Germany, 96247 Michelau
Machine condition   uncheckedSome of our machines cannot be tested by our project managers since they are not in a position to power the device. In cases such as these, we will be unable to guarantee the functionality of the item.

Description

MAKINO EDNC 156 CNC Die Sinking EDM Machine


control: MGC-3

machine hour 21580 (january 2019)

travel path:
X: 1200 mm
Y: 600 mm
Z: 450 mm
C axis: 360°

rapid traverse: 1200 mm

table size:
2000 x 1000 mm

Max. Workpiece measurement: 2.000 x 990mm

Max. Werkstückgewicht: 5000 kg

work tank inner dimensions:
2500 x 1300 x 700

maximum fluid height:
650 mm

equipment:
Automatic fire extinguishing system
8-fold electrode changer
Since the machine is connected to a central dielectric feed, the machine is delivered without dielectric tank!!

Technical details

x-travel   1,200 mm
y-travel   600 mm
z-travel   450 mm
control   MGC-3
Weight approx.   17.000 kg
Dimensions (l x w x h) approx.   5,500 x 5,000 x 3,600 mm

Costs and benefits

auction fee   15%
VAT   *plus VAT
Delivery terms   FCA Michelau, loaded on truck
Cost Dismantling & Loading   5,500.00 € (binding)
Shipping costs   not included
Payment terms   100% payment prior to collection

Inspection

Location   No fixed date. The items are in different locations (see item description). Viewing by appointment only!

Pick up

Date   The exact collection date is available on request.
