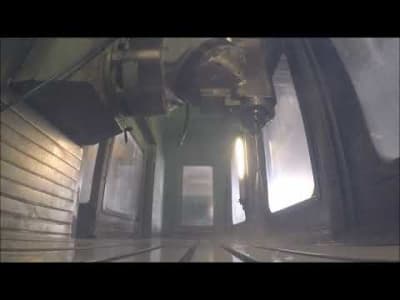

SACHMAN T 10 GP CNC Bed-Type Milling Machine

SACHMAN T 10 GP CNC Bed-Type Milling Machine i_03431115
SACHMAN T 10 GP CNC BED-TYPE MILLING MACHINE
SOLD


Sorry, this machine has already been sold

Discover similar available machines

Machine details

Name   SACHMAN T 10 GP CNC Bed-Type Milling Machine
Item No.   492810
Manufacturer   SACHMAN
Model / Type   T 10 GP
Year of manufacture   2003
Machine available from   February 2019
Machine location   Germany, 74731 Walldürn
Machine condition   uncheckedSome of our machines cannot be tested by our project managers since they are not in a position to power the device. In cases such as these, we will be unable to guarantee the functionality of the item.

Description

SACHMANN T 10 GP CNC Bed Type Milling Machine

- machine no.: 196750

- control: Heidenhain TNC 426 digital

technical data:

traverse path:
- X-axis 2000 mm
- Y-axis 1075 mm
- Z-axis 1000 mm

working table:
- dimension 2200 x 710 [mm]
- max. table load: 3000 kg

spindle:
- spindle power 17 kW
- head spindle speed 6000 n/1`
- taper DIN 69871-B50
- tension rod DIN 69872-B28(50)

tool magazine:
- tool storage capacity(CTM50) 20 N°
- max. tool diameter(CTM50) 120 mm
- max. tool length 400 mm
- max. tool weight 20 daN

- operating hours (as of december 2018): 81378
- spindle hours (as of december 2018): 28440

equipment:

- KOSMO milling head automatic slewable, rear half 2,5° steps, front half 3° steps
- with radio measurement sensor M&H INPROCESS MESSTECHNIK RWS 43
- inclusive chip conveyor, coolant unit, coolant aggregate, documentation and data back up
- without tool cabinets

important information
- The pick up of the machine has to take place in week 8 2019 on a date yet to be agreed

Technical details

x-travel   2,000 mm
y-travel   1,075 mm
z-travel   1,000 mm
control   HEIDENHAIN TNC 426 DIGITAL
table surface area l x w   2200 x 710 mm
no. of tools in magazin   20
tool taper   SK 50 / DIN 69871 B
turning speed range   0 - 6000 rpm
feed range   1 - 15000 mm/min
rapid travel range   15 m/min
total power requirement   28 kW
Weight approx.   14,700 kg
Dimensions (l x w x h) approx.   5,140 x 5,100 x 3,000 mm

Costs and benefits

auction fee   15%
VAT   *plus VAT
Delivery terms   FCA Walldürn, loaded on truck
Cost Dismantling & Loading   3,990.00 € (binding)
Shipping costs   not included
Payment terms   100% payment prior to collection

Inspection

Location   No fixed date. The items are in different locations (see item
description). Viewing by appointment only!

Pick up

Date   The exact collection date is available on request.
