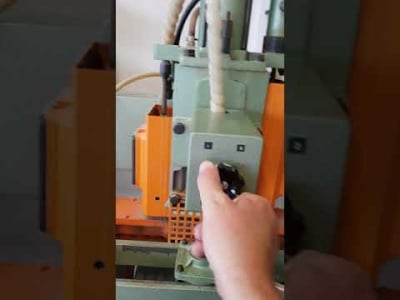

SCHEER DB3 Dowel Drilling Machine

Sorry, this machine has already been sold

Discover similar available machines

Machine details

Name   SCHEER DB3 Dowel Drilling Machine
Item No.   466608
Manufacturer   SCHEER
Model / Type   DB3
Machine available from   immediately
Machine location   Germany, 85256 Vierkirchen
Machine condition   uncheckedSome of our machines cannot be tested by our project managers since they are not in a position to power the device. In cases such as these, we will be unable to guarantee the functionality of the item.

Description

SCHEER DB3 Dowel Drilling Machine

- 2 drilling units type BM 610 | 220/380V | 2,5PS/1,8kW
- 2 multispindle header transmission
- spindle division: 32mm
- tool holder: M10
- spindle distance: min. 32mm / max. 768mm
- Portal passage: 950mm
- lift height: 0-100mm
- height adjustable drilling unit: 0-50mm
- pneumatic spanner: 2pcs. / pistondiam.: 80mm
- lot of new equipment
- very good condition

to drill corner connector, construction drilling, row drilling in 32mm grid, frame dowel holes and cabinet systems

Technical details

Dimensions (l x w x h) approx.   1,400 x 1,300 x 1,800 mm
Weight approx.   1,100 kg

Costs and benefits

auction fee   15%
VAT   *plus VAT
Delivery terms   FCA Vierkirchen, loaded on truck
Cost Dismantling & Loading   150.00 € (binding)
Shipping costs   not included
Payment terms   100% payment prior to collection

Inspection

Location   The items are in different locations (see item description).
Viewing by appointment only!

Pick up

Date   The exact collection date is available on request.
