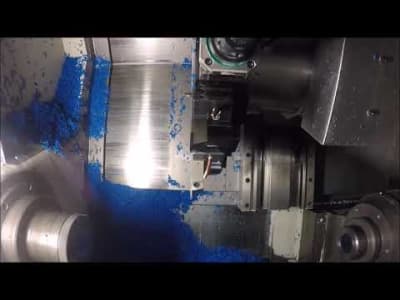

SPINNER TC 600-65 SMCY CNC Lathe

Sorry, this machine has already been sold

Discover similar available machines

Machine details

Name   SPINNER TC 600-65 SMCY CNC Lathe
Item No.   493819
Manufacturer   SPINNER
Model / Type   TC 600-65 SMCY
Year of manufacture   2007
Machine available from   WK 6 - 2019
Machine location   Germany, 82054 Sauerlach
Machine condition   uncheckedSome of our machines cannot be tested by our project managers since they are not in a position to power the device. In cases such as these, we will be unable to guarantee the functionality of the item.

Description

SPINNER TC 600-65 SMCY CNC Lathe
- swing diameter: 600 mm
- X1 / Z-axis: 275/700 mm
- Y-axis: +50/-40 mm
spindle 1:
- max. speed: 4000 rpm
- spindle nose: A8/DIN
- chuck diameter: 250 mm
- spindle bore: 65 mm
- power max.: 34 kW
- torque value max.: 325 Nm
spindle 2:
- max. speed: 6000 rpm
- spindle nose: 110 mm
- chuck diameter: 165 mm
- spindle bore: 42 mm
- power max.: 15 kW
- torque value max.: 96 Nm
turret BARUFFALDI:
- was general overhauled in 2016
- max. speed of driven tools: 6000 rpm
- power max.: 16,5 kW
- torque value max.: 35 Nm

- inclusive both collet chucks
- without tool holders
- machine was only used in single-shift and only aluminium and plastic has been processed
- see also video
- pick up has to be placed on a date to be agreed in week 6 2019

Technical details

turning length   650 mm
turning diameter   400 mm
control   FANUC 31i
toolchanger positions   16
number of places for driven tools   16
tool taper   VDI 30
turning speed range   6,000 rpm
rapid travel range   15/15/24 m/min
Weight approx.   5,800 kg
Dimensions (l x w x h) approx.   2,800 x 1,750 x 2,090 mm

Costs and benefits

auction fee   15%
VAT   *plus VAT
Delivery terms   FCA Sauerlach, loaded on truck
Cost Dismantling & Loading   1,000.00 € (binding)
Shipping costs   not included
Payment terms   100% payment prior to collection

Inspection

Location   No fixed date. The items are in different locations (see item
description). Viewing by appointment only!

Pick up

Date   The exact collection date is available on request.
