Auction 'Liquidation of a Carpentry': lot no. 10

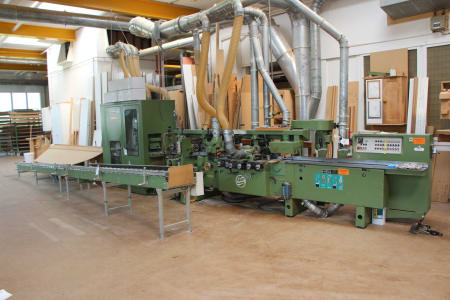

WEINIG-STÄHLE U 17 A/SATURN D Moulding and Grinding Machine

2 Roller Trestles

2 Roller Trestles

OLMA Combined Chain Mortiser and Slotted Hole Drilling Machine

OLMA Combined Chain Mortiser and Slotted Hole Drilling Machine

Please log in to accept the
terms and conditions .
Please log in
Please log in
Current highest bid:
2,900
3 Bids
Next accepted bid:
3,100 €
Bid now
Refresh
Closing time
28/08/2018 10:09 CET
(8 day(s) 8 hrs)
Bidding agent
plus auction fee and VAT
The additional cost is the sales commission, which is covered by the buyer. The surcharge will represent 15% of the final price plus VAT. The final price includes both the highest bid and commission costs.
Watch
Total Price Calculator

Machine details

Name   WEINIG-STÄHLE U 17 A/SATURN D Moulding and Grinding Machine
Item No.   468180
Manufacturer   WEINIG-STÄHLE
Model / Type   U 17 A/SATURN D
Year of manufacture   1980
Machine available from   immediately
Machine location   Switzerland, 6026 Rain
Machine condition   uncheckedSome of our machines cannot be tested by our project managers since they are not in a position to power the device. In cases such as these, we will be unable to guarantee the functionality of the item.

Description

WEINIG: working width 170 mm, working height 120 mm, joining spindle 3 kW, all other spindles 4 kW, feed infinitely variable 6 to 18 m/min, diameter of working spindles 40 mm, flight circle diameter 100 to 180 mm, joining ruler on the right 10 mm, adjustment range of vertical spindles under table 40 mm, adjustment range of horizontal spindle 30 mm, dressing table length 2000 mm, spindle arrangement bottom-right-left-right-top-bottom-right, STÄHLE: YOM 1989, electrical connected load 10 kW, 2 belt motors each 4 kW, feed motor 0.55 kW, motorized height adjustment 0.9 kW, 2 x lamella roller drive 0.37 kW each, grinding belt dimensions 200 x 1800 mm, grinding belt speed 25 m/s, feed speed fixed 10 m/min, variable 5 to 16 m/min, grinding width 180 mm, passage height 15 to 150 mm, incl. parts return and documentation

Technical details

Dimensions (l x w x h) approx.   9,000 x 2,300 x 2,000 mm
Weight approx.   6,500 kg

Costs and benefits

auction fee   15%
VAT   *plus VAT
Delivery terms   FCA Rain, loaded on truck
Cost Dismantling & Loading   600.00 € (binding)
Shipping costs   not included
Payment terms   100% payment prior to collection

Total Price Calculator

Inspection

Location   6026 Rain • Switzerland



- address on request -

Please contact us prior to inspection!

Pick up

Date   Monday, 17/09/2018 to Friday, 21/09/2018, from 09:00 to 16:00
