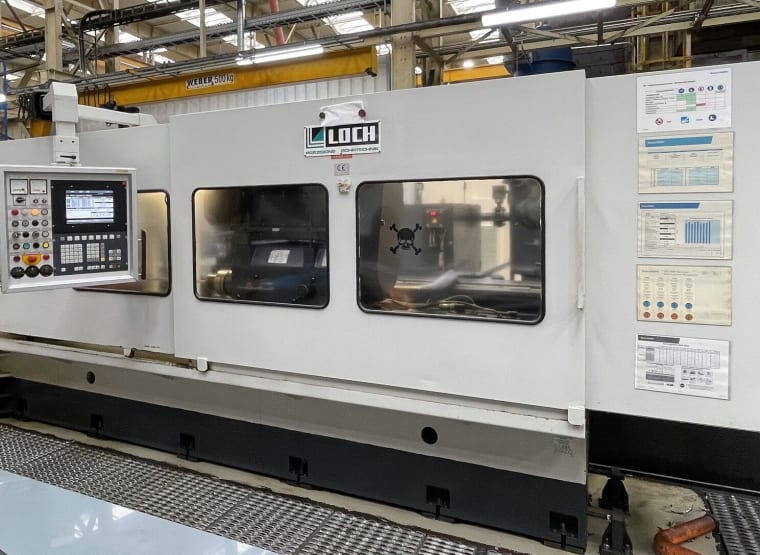

LOCH TB 4-52-2000 CNC Deep Hole Drilling Machine
Item details
- Name
- LOCH TB 4-52-2000 CNC Deep Hole Drilling Machine
- Item number
- 776223
- Manufacturer
- LOCH
- Model / Type
- TB 4-52-2000
- Documents
- Loch_TB_4-52-2000.pdf
- Videos
-
Video 1 - Year of manufacture
- 1996
- Item available from
- After consultation: expected 08/2023
- Item condition
- good, under power
- Location
-
Germany, 80997 München
- Show on map
- All items at this location
Costs and benefits
- Shipping costs
- not included
- Delivery terms
- EXW München, ex foundation, unpackaged
- Payment terms
- 100% payment prior to collection
Technical details
- core drill diameter max.
- 250 mm
- boring depth
- 2,000 mm
- turning speed range
- 96 - 1980 rpm
- total power requirement
- 118 kW
- weight approx.
- 15,000 kg
- dimensions (l x w x h) approx.
- 4,000 x 1,800 x 4,000 mm
Item description
Please pay attention to the availability period, a reservation is possible with deposit.
Control
Control
- SIEMENS Sinumerik 805M
- Drilling depth max. : 2000mm with 2 steady rests
- Workpiece length max. : 4000mm
- Table dimensions: 2700 x 2700 mm
- Table travel X-axis max.: 1500 mm
- Drilling range full drilling (steel): 20-150 mm
- Drilling range boring max.: 250 mm
- Spindle speed: 96-1980 rpm
- Feed speed: 0-500 mm/min
- Forward/reverse 7500 mm/min
- Drill bush carrier: hydr. displaceable
- Drill breakage protection 3000KP, up to 40 kN
- Coolant tank: capacity 5000 liters
- Operating voltage: 220/380 V
- Frequency: 50 Hz
- Control voltage: 220 V
- Total power supply: 118 KW
