TESA - Micro-Hite 3D - 3D coordinate measuring machine
- Oferta curentă
- Stare
Suma totală a ofertei
Vedeți detaliile totale
Suma totală a ofertei
Vedeți detaliile totale
Suma maximă a ofertei
Vedeți detaliile totale
Suma maximă a ofertei
Vedeți detaliile totale
Specificațiile lotului
- Cantitate
- 1
- Marjă
- Nu
- Marca
- TESA
- Tip
- Micro-Hite 3D
- Numarul de serie
- 11080005
- Conexiune electrica
- 230V
- Greutate proprie
- 800kg
- Dimensiunea l
- 2400mm
- Dimensiune w
- 2400mm
- Dimensiune h
- 2000mm
- Condiții de livrare
- Ex fundație-neambalat
Descriere
Manufacturer
TESA SA (Hexagon Metrology)
Type
Micro-Hite 3D
Series NR
11080005
3D coordinate measuring machine / Height measuring and measuring system
Description with scope of delivery and description of condition

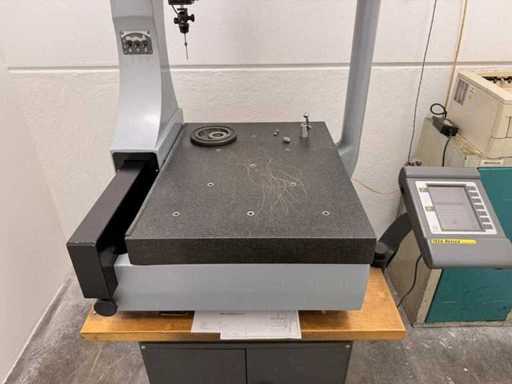

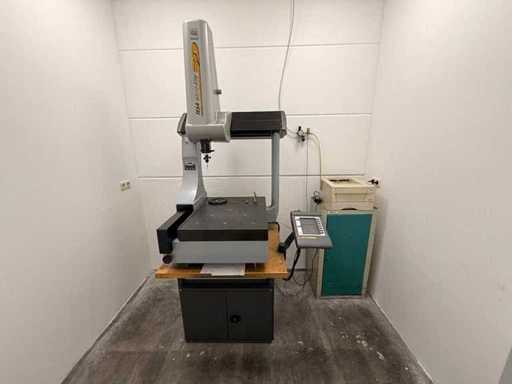

Precise 3D coordinate measuring machine for dimensionally and positionally accurate measurement of workpieces in the measuring room or in quality assurance. The system features a granite measuring plate, motorized measuring axes, a TESA-REFLEX operating computer and a Renishaw TP8 touch probe.
The system is suitable for measurement tasks such as height, diameter, bore, distance, angle and shape measurements as well as for the creation of measurement reports.
The device comes from industrial use and is in a well-maintained used condition. The system was switched on at the time of the photo documentation. Current calibration status and measurement accuracy must be checked by the buyer on site.
Scope of
delivery* TESA Micro-Hite 3D measuring system
* Granite measuring plate
* TESA-REFLEX control unit
* Renishaw TP8 measuring probe
* Base frame / measuring cabinet
TESA SA (Hexagon Metrology)
Type
Micro-Hite 3D
Series NR
11080005
3D coordinate measuring machine / Height measuring and measuring system
Description with scope of delivery and description of condition
Precise 3D coordinate measuring machine for dimensionally and positionally accurate measurement of workpieces in the measuring room or in quality assurance. The system features a granite measuring plate, motorized measuring axes, a TESA-REFLEX operating computer and a Renishaw TP8 touch probe.
The system is suitable for measurement tasks such as height, diameter, bore, distance, angle and shape measurements as well as for the creation of measurement reports.
The device comes from industrial use and is in a well-maintained used condition. The system was switched on at the time of the photo documentation. Current calibration status and measurement accuracy must be checked by the buyer on site.
Scope of
delivery* TESA Micro-Hite 3D measuring system
* Granite measuring plate
* TESA-REFLEX control unit
* Renishaw TP8 measuring probe
* Base frame / measuring cabinet

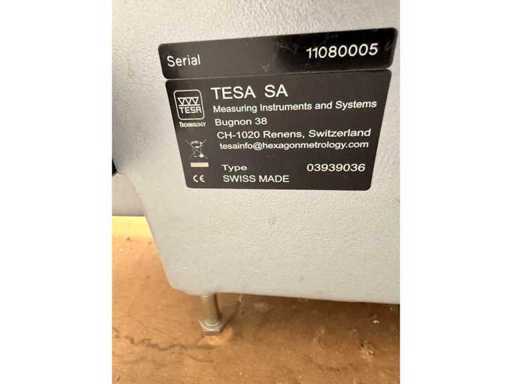

* Manufacturer: TESA SA, Switzerland
* Model: Micro-Hite 3D
* Type: 03939036
* Serial number: 11080005

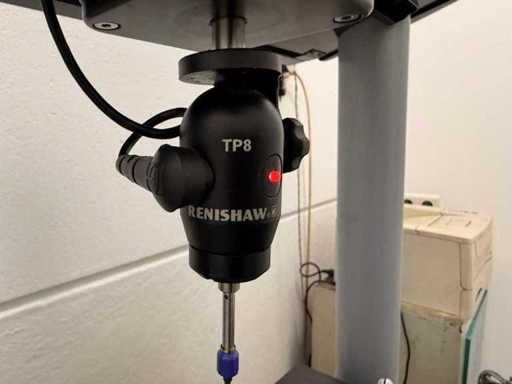

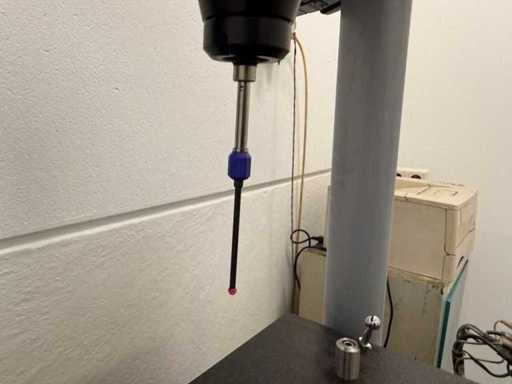

* Measuring probe: Renishaw TP8

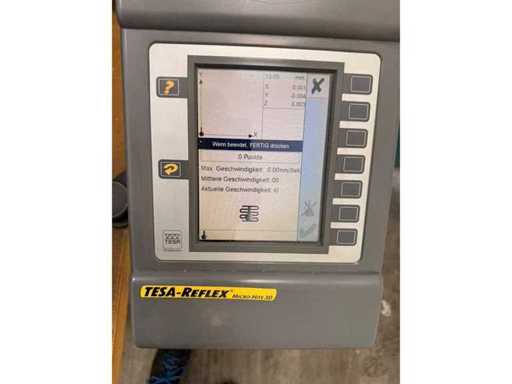

* Control: TESA-REFLEX

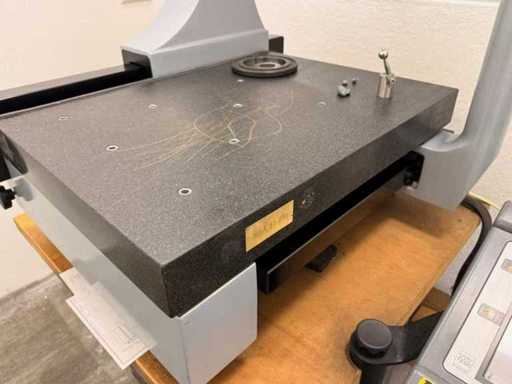

* Granite measuring plate: approx. 730 × 560 mm
* Measurement in X, Y and Z axis
* Pneumatically assisted axis guidance
* Swiss Made
Based on the size of the granite slab and the design, the following measuring range appears much more realistic:
* X-axis: approx. 700 mm
* Y-axis: approx. 500 mm
* Z-axis: approx. 350 mm
* Model: Micro-Hite 3D
* Type: 03939036
* Serial number: 11080005
* Measuring probe: Renishaw TP8
* Control: TESA-REFLEX
* Granite measuring plate: approx. 730 × 560 mm
* Measurement in X, Y and Z axis
* Pneumatically assisted axis guidance
* Swiss Made
Based on the size of the granite slab and the design, the following measuring range appears much more realistic:
* X-axis: approx. 700 mm
* Y-axis: approx. 500 mm
* Z-axis: approx. 350 mm
