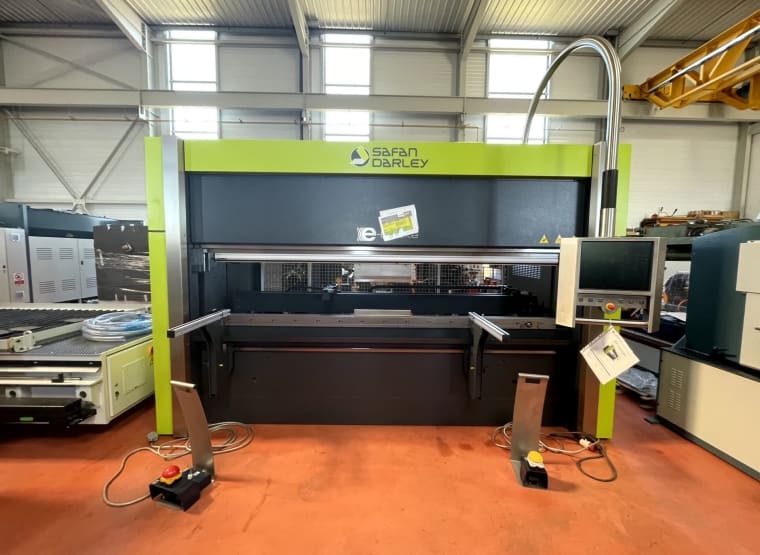

SAFAN E-BRAKE 100-3100 NS Upogibna stiskalnica

EC20 Control digital control, touch screen, 2D color graphics, automatic calculation of bending range, length of development.
Apron opening: 650mm
Distance between uprights: 3100mm (no gooseneck)
7-axis press brake managed by the NC (Y1, Y2, X, R, Z1, Z2)
Light curtain managed by the CN
Delta X: 100mm
WILA hydraulic clamping top and bottom of the tooling
2 mobile aluminum front support arms with brushes, adjustable in height to 95mm, Weight: 25kg per arm
Sheet metal thickness measuring system (mounting on the left rear stopper)
Rapid apron speed: 130mm / s.
TECHNICAL DATA
Maximum pressure 100 T.
Maximum length 3100 mm
CNC system EC20 Control - 2D Graphique couleur Tactile
Axis number 7
Distance between uprights 3100 mm
Backgauge adjustment 1000 mm
Approach speed 130 mm/s
Working speed 20 mm/s
Repeteability accuracy Axes X/Y/R : ± 0.02 / ± 0.01 / ± 0.1 mm mm
Return speed 75 mm/s
Positioning speed Axes X/R : 350 / 100 mm/s
Distance between table and ram 650 mm
Max. correction Y1, Y2 2.5 mm
Ram Strokes 300 mm
Motor 11 kw
