GUBISCH Centromat CW 3 / CW 2*F Angular Plant Machine incl. Tools

Closing time: 20/06/23 14:00

3,900 € Starting bid
5 watchers
Log in to bid
Use bidding agent
+ auction fee & VAT
GUBISCH Centromat CW 3 / CW 2*F Angular Plant Machine incl. Tools
20/06/23 14:00
Closing time
3,900 €
Starting bid
Name
GUBISCH Centromat CW 3 / CW 2*F Angular Plant Machine incl. Tools
Item number
827258
Manufacturer
GUBISCH
Model / Type
Centromat CW 3 / CW 2*F
Documents
Gubisch_Centromat_Serie_DE.pdf GUBISCH_CW_3_drawing.pdf GUBISCH_CF_2_drawing.pdf GUBISCH_CF_2.pdf
Videos
Video 1 Video 2
Year of manufacture
unknown
Item available from
immediately
Item condition
Location
Germany, 84371 Triftern
Buyer’s premium
18 %
Dismantling & loading costs (binding)
2,000.00 €
Total Price
plus VAT
Shipping costs
not included
Delivery terms
FCA Triftern, loaded on truck
Payment terms
100% payment prior to collection
dimensions (l x w x h) approx.
10,500 x 6,100 x 2,500 mm
weight approx.
9,000 kg

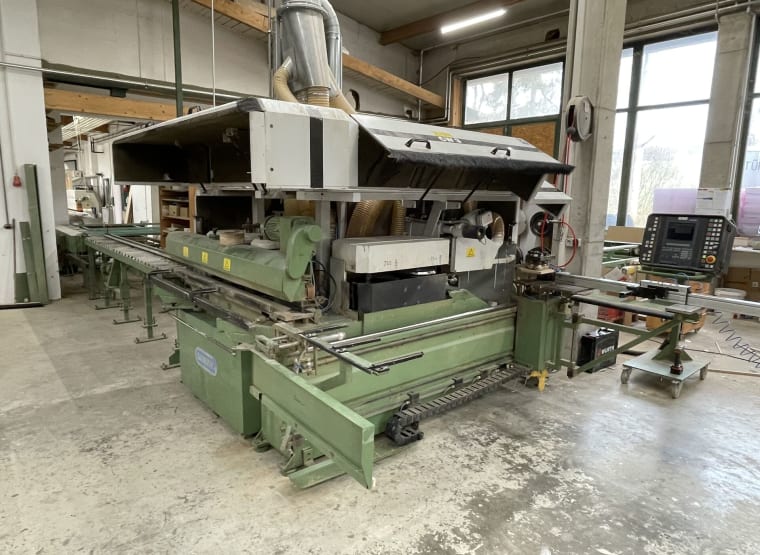

GUBISCH Centromat CW 3 Window Vending Machine with GUBISCH CF (CW 2*F) Automatic Rebating Machine

GUBISCH Centromat CW 3 Window Vending Machine
  • automatic counter wood change
  • automatic and manual feed
  • pneumatic workpiece clamping
  • swiveling device 60
  • double parts package
  • central control panel with integrated part automation for slotting and profile milling unit
  • separate control panel incl. 4-step control for folding operation
  • automatic angle transfer
Crosscut saw
  • quantity: 1
  • diameter of the branch: 100 mm
  • position: 45 degree
  • position above ground: approx. 1.300 mm (flexible)
Slitting spindle
  • quantity: 2
  • nozzle diameter: 180 mm
  • position: vertical
  • position above floor: approx. 1.350 mm
Milling unit
  • number: 6
  • nozzle diameter: 140 mm
  • position:horizontal
  • position above floor: approx. 975 mm
Glazing bead saw
  • quantity: 1
  • support diameter: 80 mm
  • position: vertical
  • position above floor: approx. 1.400 mm (flexible)
Grooving unit
  • quantity: 1
  • nozzle diameter: 100 mm
  • position: horizontal
  • position above floor: approx. 1,400 mm (flexible)

GUBISCH CF (CW 2*F) Automatic Rebating Machine
  • year 1997
  • rebating of windows and doors with automatic sequence control without tool change
  • length profiling with call-off wide tool sets
  • grooving unit vertical
  • Horizontal grooving unit
  • Glazing bead saw unit
  • SPS control, electronically freely programmable function sequences
  • additional vertical conveyor belts for workpiece transfer
Milling spindle
  • spindle diameter: 140 mm
  • position: to the rear

Operating instructions included.
