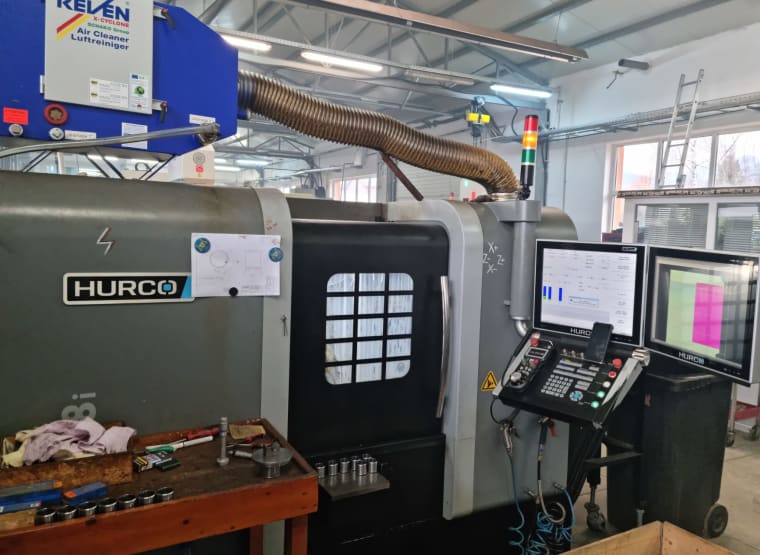

HURCO TM 8i CNC Lathe
lot no. 9
The auction has not started yet
23 watchers
Do you have any questions in relation to the item? Please contact us.
Item details
- Name
- HURCO TM 8i CNC Lathe
- Item number
- 830307
- Manufacturer
- HURCO
- Model / Type
- TM 8i
- Videos
-
Video 1 - Year of manufacture
- 2020
- Item available from
- immediately
- Item condition
- Location
-
Romania, 435100 BAIA SPRIE
- Show on map
- All items at this location
Costs and benefits
- 600.00 €
- Shipping costs
- not included
- Delivery terms
- FCA BAIA SPRIE, loaded on truck
- Payment terms
- 100% payment prior to collection
- tax / deposit
Technical details
- serial number
- ST8V2720650FKAAH
- weight approx.
- 4,220 kg
- setting measure approx (l x w x h)
- 4,500 x 2,800 x 2,200 mm
Item description
- Serial number ST8V2720650FKAAH
- Voltage 400 V, 3 phases, 50 Hz,
- Full Load 21 KVA, 30 AMP
- Max ambient temperature 35 degrees
- Max. Spindle Speed 4000 rpm
- X-Axis 203 mm,
- Z-Axis 550 mm
- Turning diameter max.256 mm
- Swing over bed diameter 525 mm
- Swing over cross slide diameter 300 mm
- Spindle Speed max.4.000 (1/min)
- Spindle Torque max. 221 (Nm)
- Chuck diameter 210 mm
- Spindle Power max. 23 kW
- Rapid traverse X / Z-Axis 30 / 30 m/min
- Type VDI 30
- Stations 12
- Boring Bar Diameter max. 32 mm
- Tool Shank Width 20 mm
- Lathe with 2 axes and spindle, and as optional, it has a second screen on which the machined part is simulated in real time.
- in good working condition, used on a daily basis
dimensions 4500 x 2800 x 2200 mm
Weight 4220 Kg
