Top lot
3,100 €
2 Bids 24 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
30/05/23 10:39
Closing time
3,100 €
Current highest bid
Item details
- Name

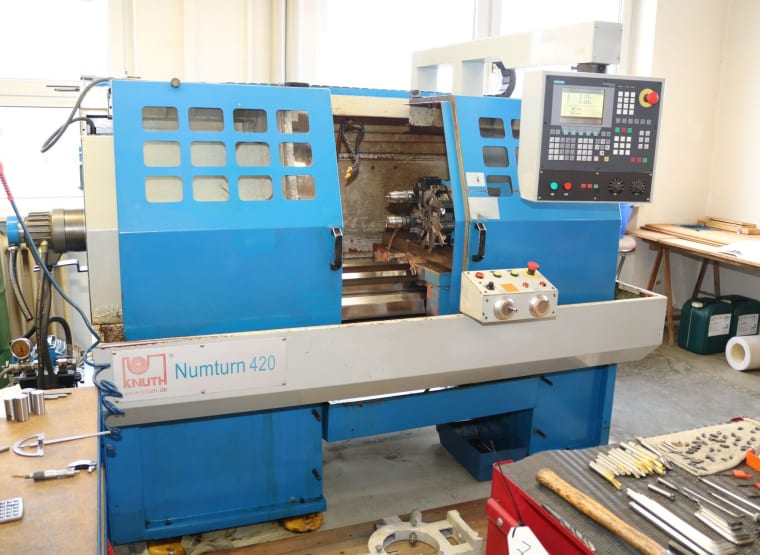

- KNUTH NUMTURN 420 CNC Lathe
- Item number
- 807790
- Manufacturer
- KNUTH
- Model / Type
- NUMTURN 420
- Year of manufacture
- 2007
- Item available from
- immediately
- Item condition
- Location
-
Germany, 72639 Neuffen
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 400.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Neuffen, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 2,600 kg
- dimensions (l x w x h) approx.
- 2,950 x 1,400 x 1,500 mm
Item description
- serial no.: 142890
- operating voltage: 400 V
- frequency: 50 Hz
- connected load: 10,8 kW
- max. turning diameter over bed: 420 mm
- max. turning diameter over support: 200 mm
- distance between centres: 820 mm
- spindle bore metrical: 70
- spindle holder: C6
- speed range continuously: 40 – 2500 rpm
- travel of X: 215 mm
- travel of Z: 820 mm
- rapid traverse: X: 2 m/min, Z: 4 m/min
- chuck diameter: 250 mm
- tool turret: 8 stations
- tool shaft: 20 x 20 mm
- drill bar diameter: 32 mm
- torque value: X: 12 Nm, Z: 12 Nm
- tailstock quill diameter: 65 mm
- quill stroke: 100 mm
- control system: SIEMENS SINUMERIK 802 S BASE LINE
- the machine is equipped with one tailstock as well as one three-jaw chuck and one steady rest
- chuck diameter: approx. 200 mm
- operating voltage: 400 V
- frequency: 50 Hz
- connected load: 10,8 kW
- max. turning diameter over bed: 420 mm
- max. turning diameter over support: 200 mm
- distance between centres: 820 mm
- spindle bore metrical: 70
- spindle holder: C6
- speed range continuously: 40 – 2500 rpm
- travel of X: 215 mm
- travel of Z: 820 mm
- rapid traverse: X: 2 m/min, Z: 4 m/min
- chuck diameter: 250 mm
- tool turret: 8 stations
- tool shaft: 20 x 20 mm
- drill bar diameter: 32 mm
- torque value: X: 12 Nm, Z: 12 Nm
- tailstock quill diameter: 65 mm
- quill stroke: 100 mm
- control system: SIEMENS SINUMERIK 802 S BASE LINE
- the machine is equipped with one tailstock as well as one three-jaw chuck and one steady rest
- chuck diameter: approx. 200 mm
Automatic translation
Auction details
- Auction name
- Closure of a Mechanical Production
- lot no.
- 40
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
72639 Neuffen, Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Tuesday, 13/06/2023 to
Thursday, 15/06/2023, from 08:00 to 16:00
