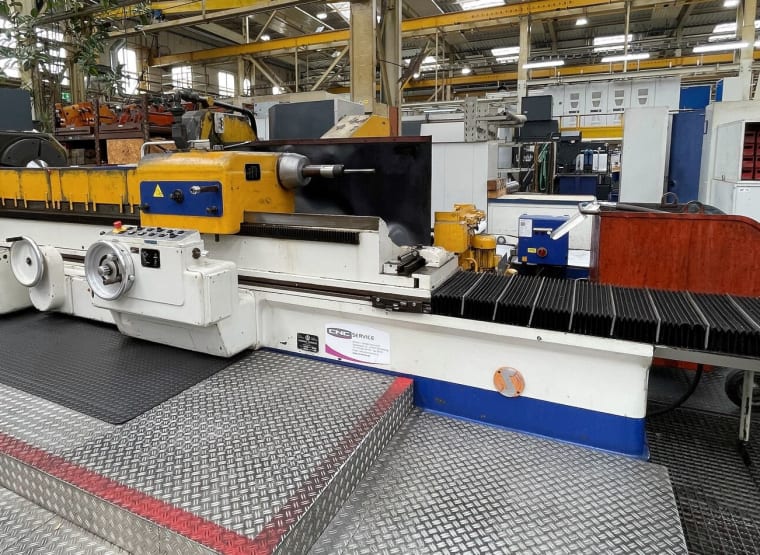

SCHMALTZ R8/2500 Cylindrical Grinding Machine
Item details
- Name
- SCHMALTZ R8/2500 Cylindrical Grinding Machine
- Item number
- 776229
- Manufacturer
- SCHMALTZ
- Model / Type
- R8/2500
- Documents
- Doku.pdf
- Year of manufacture
- 1970 | 2018
- Item available from
- After consultation: expected 05/2023
- Item condition
- good, under power
- Location
-
Germany, 80997 München
- Show on map
- All items at this location
Costs and benefits
- Shipping costs
- not included
- Delivery terms
- EXW München, ex foundation, unpackaged
- Payment terms
- 100% payment prior to collection
Technical details
- grinding diameter
- 800 mm
- grinding length
- 2,500 mm
- table slide longitudinal travel max.
- 2,750 mm
- control
- SIEMENS Simatic S7
- weight approx.
- 35,000 kg
- dimensions (l x w x h) approx.
- 12,000 x 4,500 x 2,800 mm
Item description
The FRIEDIRCH SCHMALZ Cylindrical Grinding Machine was refurbished in 2018.
Please pay attention to the availability period, a reservation is possible with deposit.
Control system
Working range
Axis movements
Grinding wheel
Please have a look at the technical data in PDF and our machine video.
Please pay attention to the availability period, a reservation is possible with deposit.
Control system
- SIEMENS Simatic S7 315-2DP
Working range
- Largest roll diameter to be ground: 800 mm
- Workpiece weight max.: 6000 kg
- Center width max.: 2500 mm
- Center height: 435 mm
Axis movements
- Longitudinal movement approx. max.: 2750 mm
- Transverse movement approx. max.: 635 mm
Grinding wheel
- Diameter: 900 mm
- Width: 80 mm
- Bore: 305 mm
Please have a look at the technical data in PDF and our machine video.
