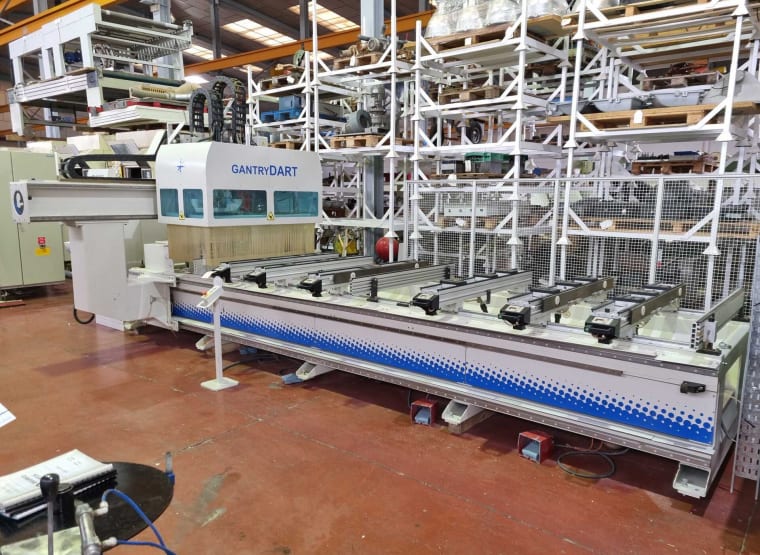

EGURKO ORTZA DART GANTRY CNC obradni centar (drvo)

• 5-axis CNC machining centre
• Serial number 8156907
• Total installed power approx. 26 KW
• Working table dimensions approx. 4400 x 1300 mm
• Panel passage height 135 mm
• Travelling way X-axis: 5280 mm, Y-axis: 1750 mm, Z-axis: 400 mm
• Maximum travel speed in the axes direction x-y-z: 75-60-30 m/min
• Tool magazine with 4 positions
• Revolver tool magazine (IT'S INCOMPLETE)
• 5-axis electrospindle: power 12 KW-max. 24000 rpm, automatic tool change, for HSK F63 tool holder, liquid cooled, A SMALL ENGINE IS MISSING ON THE SIDE (see photo nº 22)
• Saw unit to groove in X direction
• Vertical drilling spindles in X-axis direction: 6
• Vertical drilling spindles in Y-axis direction: 5
• Horizontal drilling spindles in X-axis direction: 2 + 2
• Horizontal drilling spindles in Y-axis direction: 1 + 1
• FAGOR 80-70 numerical control
• Software Windows / Editor de perfiles
• Remote control panel
• 6 consoles with 3 vacuum suction cups each
• RIETSCHLE VCE 100 vacuum pump with capacity 100 m³/h Prikaži prijevod
