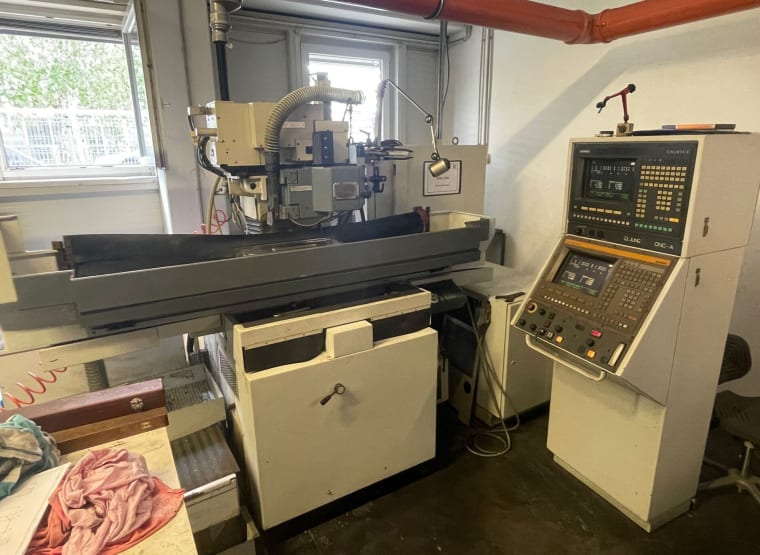

JUNG JA500CNC Vlakslijpmachine

- Grinding length: 500 mm

- Grinding width: 200 mm

- Grinding wheel diameter: 225 mm

- Grinding wheel width: 25 mm

- Grinding wheel speed: 1450 rpm

- Table size: 500 x 200 mm

- Maximum table load: 150 kg

- Grinding head movement speed: 0.001 - 30 m/min

- Vertical movement range of grinding head: 230 mm

- Vertical movement speed of grinding head: 0.001 - 3000 mm/min

- Swiveling range of grinding head: +/- 90 degrees

- Swiveling speed of grinding head: 0.001 - 1.5 degrees/min

- Power: 7.5 kW

- Weight: approximately 3,000 kg

It is important to note that the exact technical details may vary depending on the condition of the machine and any additional accessories. The above information is for reference only, and the exact technical details can be obtained from the manufacturer or supplier.
