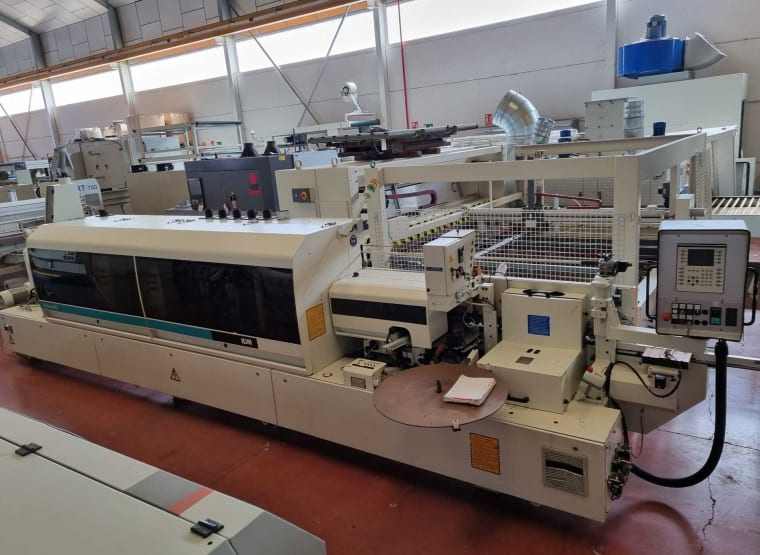

Mașină de aplicat cant IDM ACTIVA HD RT 4

• Edgebander
• Serial number AH/004191
• Edge thickness in strips from 0.40 mm up to 20 mm
• Edge thickness in roll from 0.40 mm up to 3 mm
• Worpiece thickness from 10 mm up to 60 mm
• Minimum workpiece lenght 125 mm
• Minimum workpiece width 60 mm
• Adjustable feed speed: 12 m/min - 18 m/min
• Feed motor 1.30 KW
• Motorized height positioning
• MAGELIS graphic-numerical control
• Joint trimming unit, 2 x motor
• Edge feeder for strips and roll, edge magazine for one edge coil
• Gluing unit with pot for granulated hot melt adhesive, with premelting unit
• Pressure group with (1+3) rollers
• End trimming unit, 2 x motor
• Rough trimming unit, 2 x motor 1 KW-12000 rpm
• Fine trimming unit, 2 x motor 0.55 KW-12000 rpm
• Profile trimming unit, 4 x motor
• Milling group tilting from 0° up to 90°, motor 4.04 KW-12000 rpm
• Profile scraping unit
• Flat scraping unit
• Edge buffing unit, 2 x motor (lower engine missing)
• Hot air blower unit with 2 LEISTER heaters Afișează traducerea
