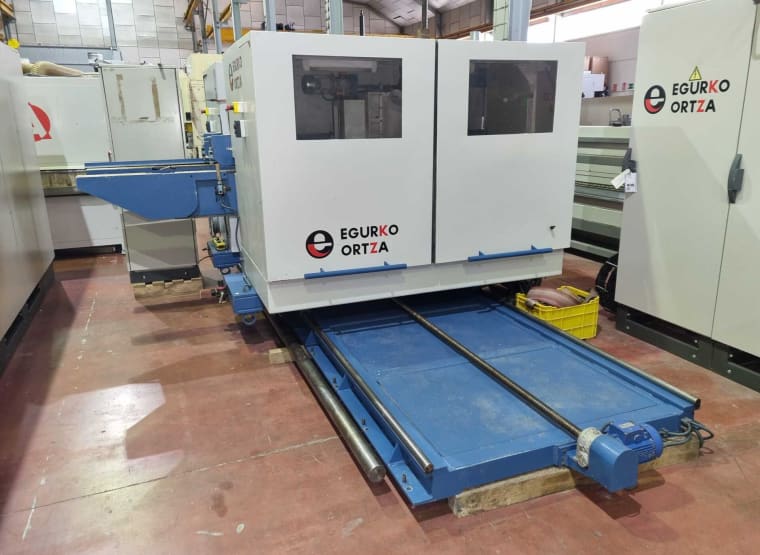

• Double end tenoner
• Serial number 83762.01
• Total installed power approx. 50 KW
• Maximum working width approx. 2500 mm
• Minimum working width approx. 200 mm
• Maximum workpiece thickness approx. 160 mm
• Chain length approx. 2800 mm
• Machine identically equipped on both sides with 3 aggregates on each side:
• 1 - Double pneumatic milling aggregate: depth, height, and angle adjustable, motorized height positioning, 2 x 4 KW motor
• 2 - Vertical multi-tool milling aggregate: spindle length approx. 600 mm, depth and height motorized positioning, motor 11 KW
• 3 - Sanding belt unit, belt width 120 mm, motor 1.50 KW
• Adjustable feed speed from 6 m/min up to 37 m/min
• Feed motor 2.20 KW
• Machine opening motor power 0.75 KW
• Control via PC in Windows environment Показать перевод
