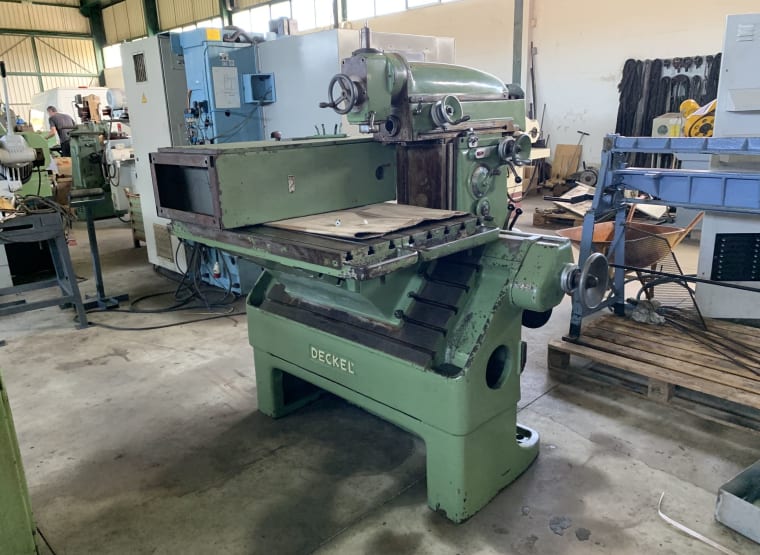

FRIEDRICH DECKEL FP 2 LB Tool Milling Machine
Serial number 0554
TECHNICAL SPECIFICATIONS
Digital display: 3 - axis digital display NEW
Travel:
X axis: approx. 800 mm
Y axis: approx. 300 mm
Z axis: approx. 400 mm
Table mounting surface: approx. 1000 x 440 mm
Spindle:
Speed range: approx. 40 - 2000 rpm
Tool holder: ISO 40
Motor power: about 2.2 kW
Tool clamping: manual
Feeds & rapid traverse: in all 3 axes
Feed range: approx. 10 - 500 mm / min
Rapid travels: approx. 1.5 m / min
EQUIPMENT
• Vertical & Horizontal milling device
• Coolant device
• angle milling head with drilling quill (stroke: approx. 100 mm)
• Complete machine documentation
• Central lubrication
• Various clamping keys
• Spindle protection cap
• Z - bellows
Approx. 1975
