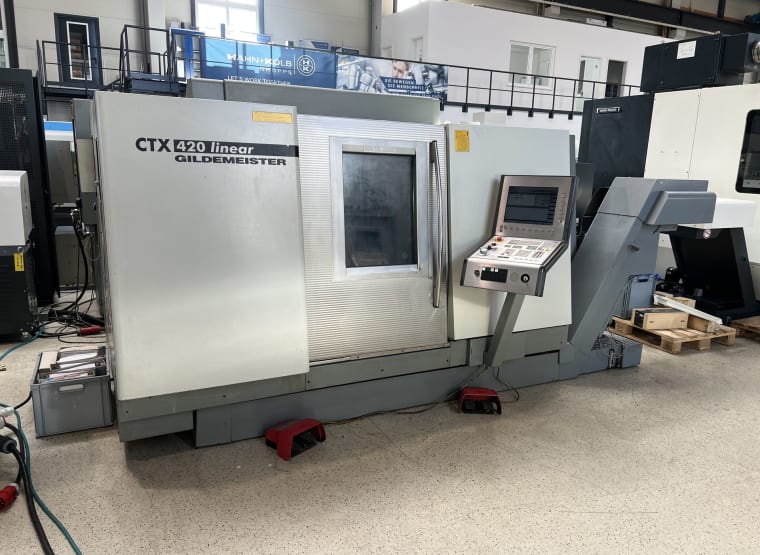

GILDEMEISTER CTX 420 linear CNC Lathe
Top lot
The auction is closed.
The auction is closed
Discover similar available items.
Item details
- Name
- GILDEMEISTER CTX 420 linear CNC Lathe
- Item number
- 810886
- Manufacturer
- GILDEMEISTER
- Model / Type
- CTX 420 linear
- Documents
- Technische_Daten_aus_Doku.pdf
- Year of manufacture
- 2002
- Item available from
- immediately
- Item condition
- Location
-
Germany, 82140 Olching
- Show on map
- All items at this location
Costs and benefits
- 950.00 €
- Shipping costs
- not included
- Delivery terms
- EXW Olching, ex foundation, unpackaged
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 6,900 kg
- dimensions (l x w x h) approx.
- 4,600 x 2,400 x 2,100 mm
Item description
- Control System: Siemens 840D - Powerline
- Turning diamater [mm]: 324
- Turning length [mm]: 600
- Spindle bores [mm]: 65
Mainspindle:
- Speed: 5.000 rpm
- Power: 25 kW
- Torque: 270 Nm
- Barcapacity: 65 mm
- Workpiececlamping: 3-Jaw chuck, SMW Autoblock KNCS-N 225-65
Toolcarrier I (X/Z):
- Technology: Turret with 12 stations
- Taper: VDI 40
- Tooldrive: 4.500 rpm, 9,7 kW, 22 Nm
- Movement in X/Z: 260/635 mm
- Rapid travers in X/Z: 60/45 m/min
Tailstock:
- Stroke: 580 mm
- Cone: MK5
Equipment/Accessory:
- Chipmanagement: Chip conveyor
- Coolingmanagement: Cooling pump
Attention: It's not possible to switch on control voltage.
Transport dimensions:
- Machine: 3.600 x 2.400 x 2.200 mm, ca. 6.400 kg
- Chip conveyor: 4.200 x 1.200 x 1.600 mm, ca. 500 kg
Automatic translation
Auction details
- Auction name
- Machines & Workshop equipment (Metalworking) 22/03
- lot no.
- 36
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
No fixed date. The items are in different locations (see item description). Viewing by appointment only!
