Item details
- Name

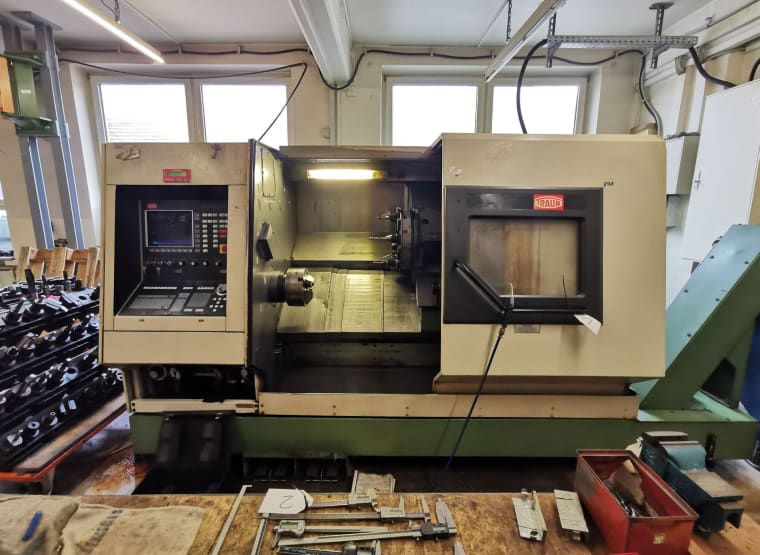

- TRAUB TND 400 CNC Lathe
- Item number
- 807751
- Manufacturer
- TRAUB
- Model / Type
- TND 400
- Year of manufacture
- 1990
- Item available from
- immediately
- Item condition
- Location
-
Germany, 72639 Neuffen
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 400.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Neuffen, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 4,500 kg
- dimensions (l x w x h) approx.
- 2,953 x 1,990 x 2,000 mm
Item description
- machine no.: 192
- operating voltage: 380 V
- frequency: 50 Hz
- control voltage: 22 V
- valve voltage: 24 V
- coupling voltage: 24 V
- total nominal current: 102 A
- total connected load: 48 kW
- read off operating hours: 48739
- control system: TRAUB SYSTEM TX 8F
- spindle passage: 65 mm
- clamping chuck diameter: 200/250 mm
- turning diameter over cross slide: 240 mm
- turning diameter over bed: 480/170
- turning length: 800 mm
- tool holders in turret: 12 pieces for cylinder shaft 40 x 63 mm
- slide travel cross: 220 mm
- slide travel length: 850 mm
- rapid traverse cross: 10000 mm/min
- rapid traverse longitudinal: 20000 mm/min
- speed at drive wheel: 4000 rpm
- ttailstock quill diameter: 85 mm
- quill stroke: 140 mm
- holder MK5
- press force of quill at 20/60 bar: 3300 N/10000 N
- the machine is equipped with one tailstock, one tool turret as well as one three-jaw chuck of manufacturer SMW
- chuck diameter: 250 mm
- operating voltage: 380 V
- frequency: 50 Hz
- control voltage: 22 V
- valve voltage: 24 V
- coupling voltage: 24 V
- total nominal current: 102 A
- total connected load: 48 kW
- read off operating hours: 48739
- control system: TRAUB SYSTEM TX 8F
- spindle passage: 65 mm
- clamping chuck diameter: 200/250 mm
- turning diameter over cross slide: 240 mm
- turning diameter over bed: 480/170
- turning length: 800 mm
- tool holders in turret: 12 pieces for cylinder shaft 40 x 63 mm
- slide travel cross: 220 mm
- slide travel length: 850 mm
- rapid traverse cross: 10000 mm/min
- rapid traverse longitudinal: 20000 mm/min
- speed at drive wheel: 4000 rpm
- ttailstock quill diameter: 85 mm
- quill stroke: 140 mm
- holder MK5
- press force of quill at 20/60 bar: 3300 N/10000 N
- the machine is equipped with one tailstock, one tool turret as well as one three-jaw chuck of manufacturer SMW
- chuck diameter: 250 mm
Automatic translation
Auction details
- Auction name
- Closure of a Mechanical Production
- lot no.
- 1
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
72639 Neuffen, Germany
- address on request -
Viewing by prior appointment only!
