2006 Tongtai TMV-850A CNC Vertical machining centre
- Oferta curentă
- Stare
Specificațiile lotului
- Cantitate
- 1
- Marjă
- Nu
- Marca
- Tongtai
- Tip
- TMV-850A
- Anul de construc?ie
- 2006
- Numarul de serie
- 019055

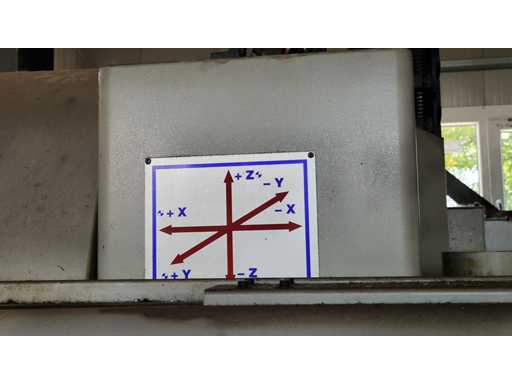

- Deplasare pe axa x
- 850mm
- Deplasare pe axa y
- 510mm
- Deplasare pe axa z
- 560mm
- Viteza de la n=
- 0rpm
- Viteza pâna la n=
- 8000rpm
- Control CNC, marca, tip
- FANUC Series Oi-MC
- Transportator de a?chii
- Da
- Pompa de racire
- Da
- Greutatea max. a piesei de prelucrat
- 500kg
- Puterea motorului (kW)
- 11kW
- Conexiune electrica
- 380V
- Greutatea utilajului
- 5000kg

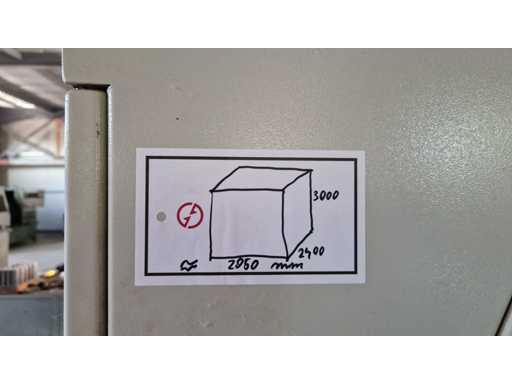

- Dimensiunea l
- 2600mm
- Dimensiune w
- 220mm
- Dimensiune h
- 3000mm
- Condiții de livrare
- Ex fundație-neambalat
Descriere

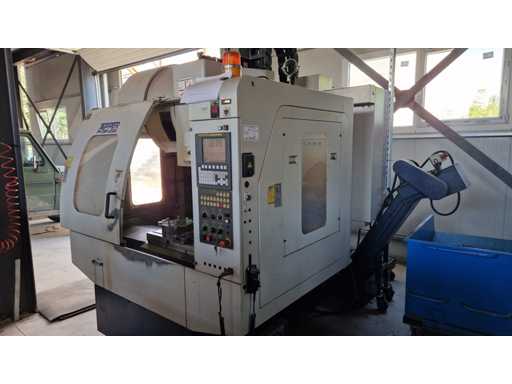

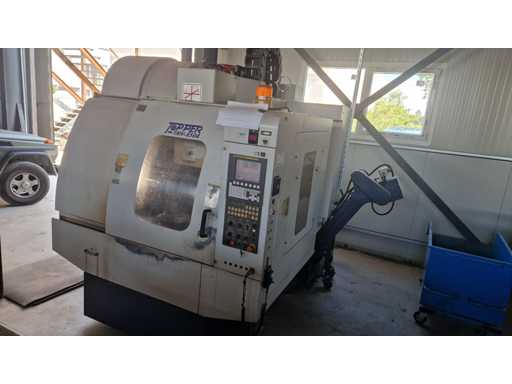

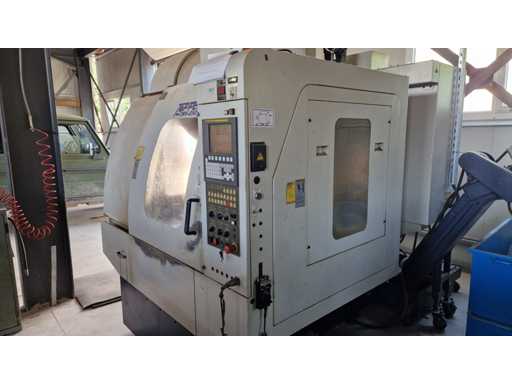

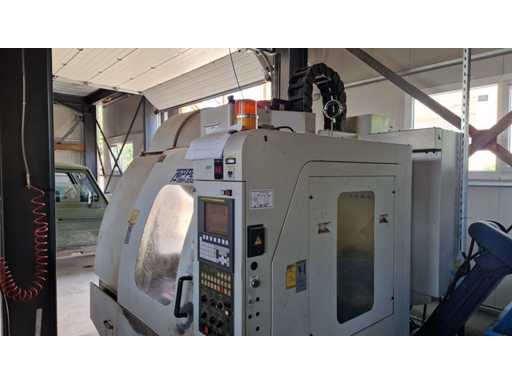

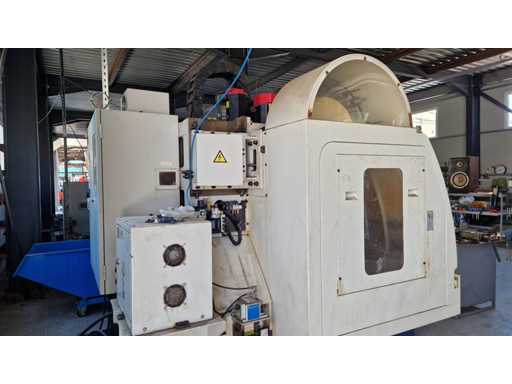

Machine: Vertical Machining Center

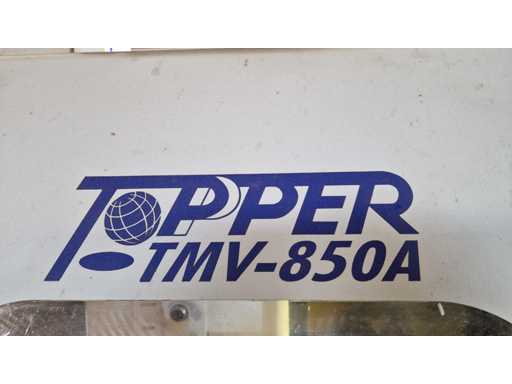

Model: TOPPER TMV-850A
Manufacturer: Tong-Tai Machine & Tool Co., Ltd
Year: 2006
Control: FANUC Series Oi-MC

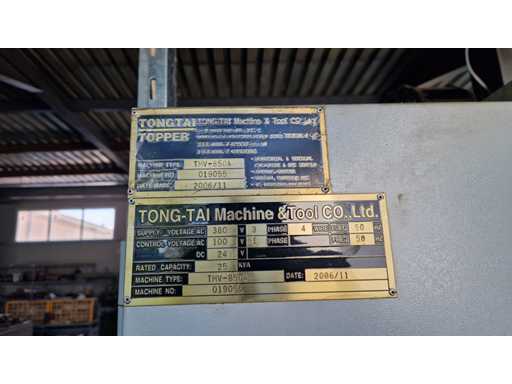

Power Supply: 380 V / 3 Phase / 50 Hz
Control Voltage: 100 V
DC Voltage: 24 V
Rated Capacity: 25 kVA
Machine No.: 019055

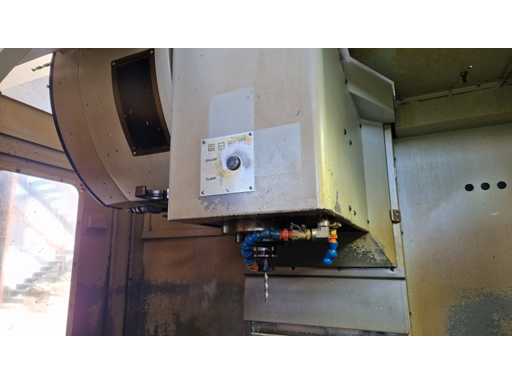

Spindle taper: BT40
Spindle speed (max): 8,000 rpm
Spindle motor power: 11 kW (approx.)
Tool changer: 24 positions (ATC)
Table size: 1000 × 500 mm
T-slot fixture table size W: 18 mm
T-slot fixture table size L: 1000 mm

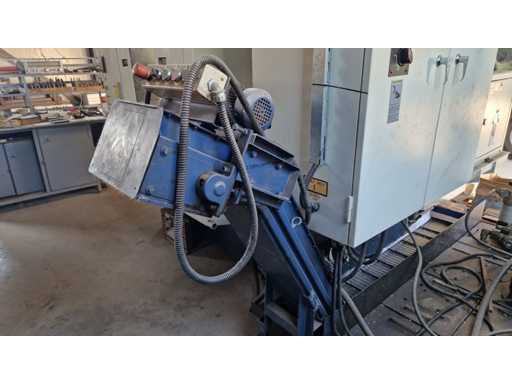

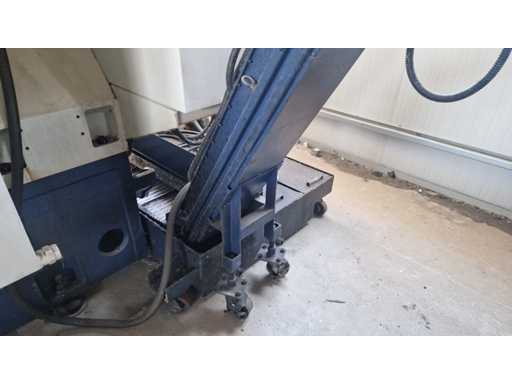

Chip conveyor: Yes (visible)

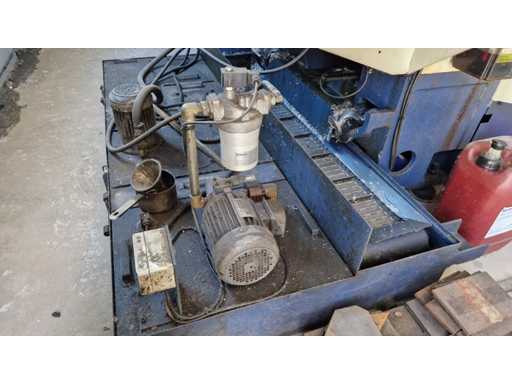

Coolant pump / system: Yes (filter unit MAHLE visible)

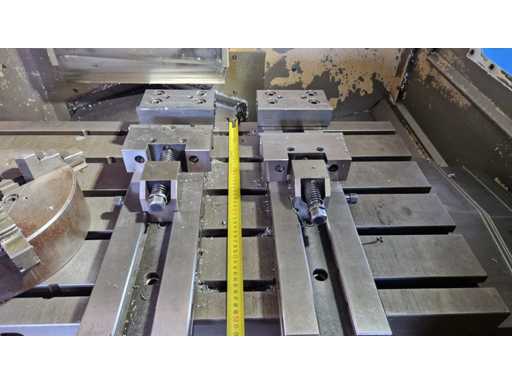

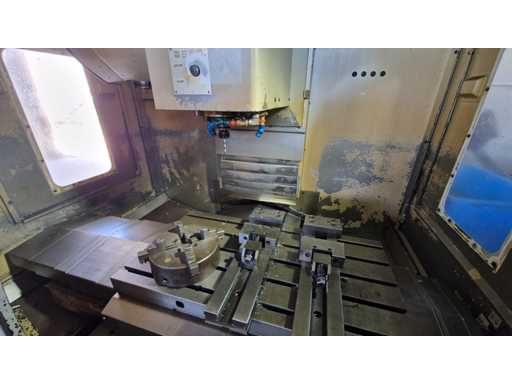

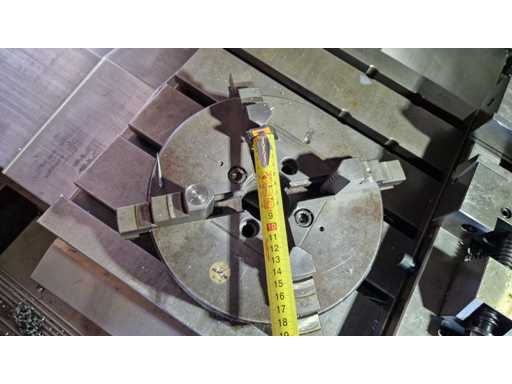

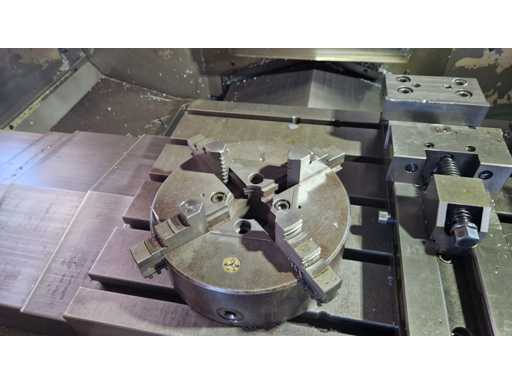

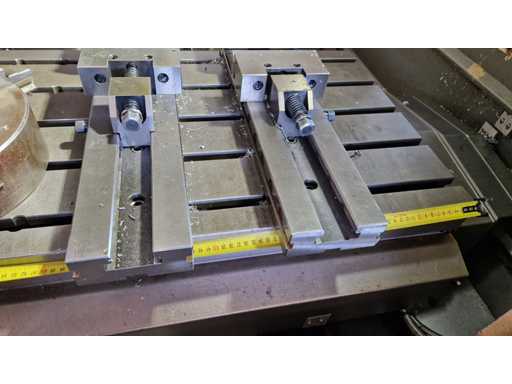

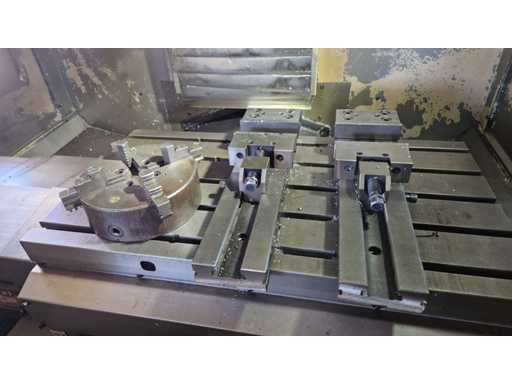

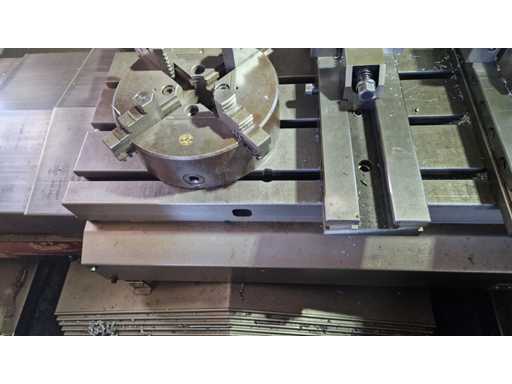

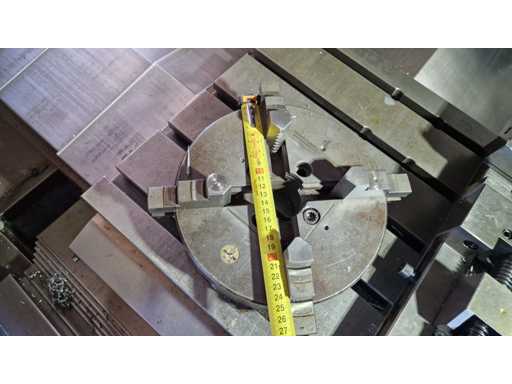

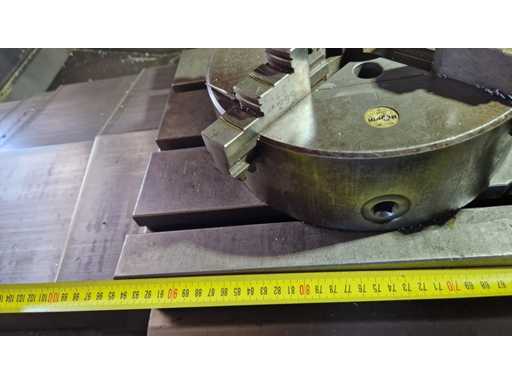

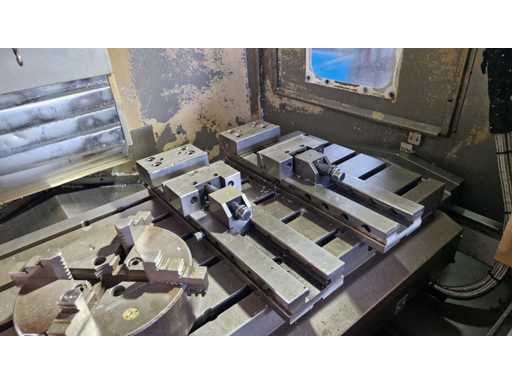

Vises / Chucks: 2 × heavy vises + 1 × 3-jaw chuck (on table, visible)

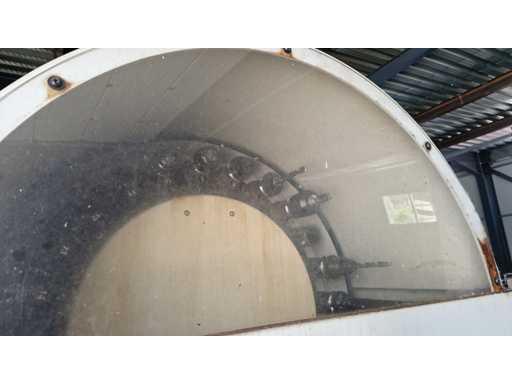

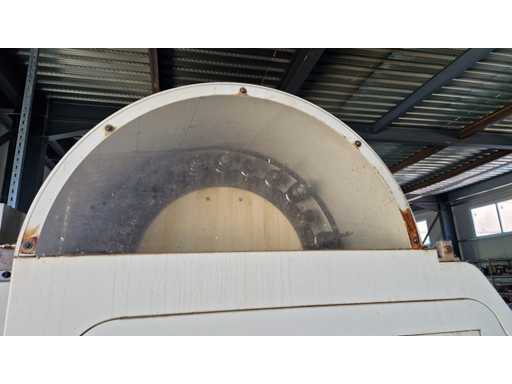

ATC cover: Transparent top cover (visible)

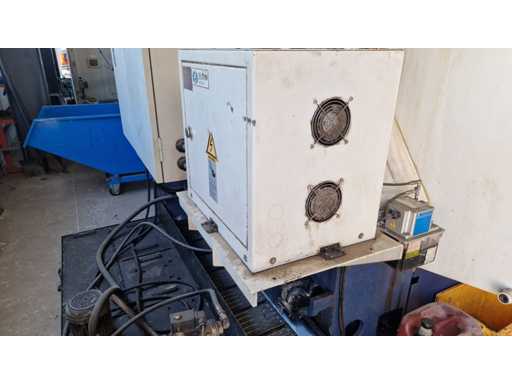

Filter / Pump: MAHLE filter unit (visible)

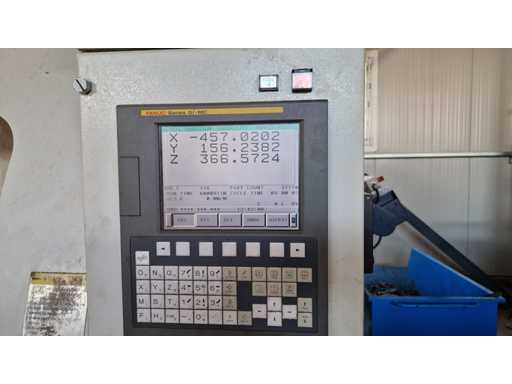

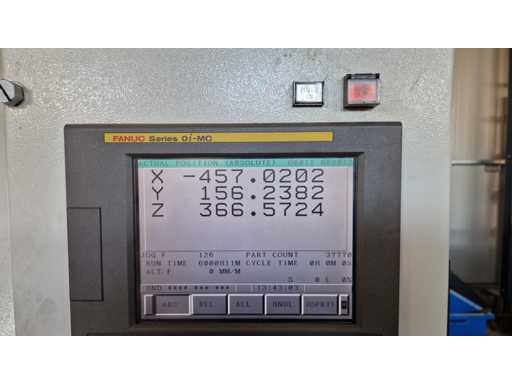

Hours on display (run time): 6000H11M (displayed on FANUC screen)
Part count (display): 37770 (displayed)
Included Components:

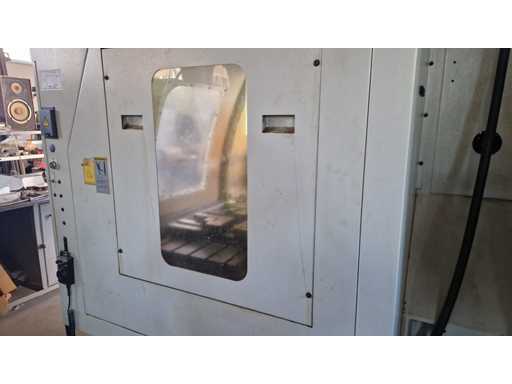

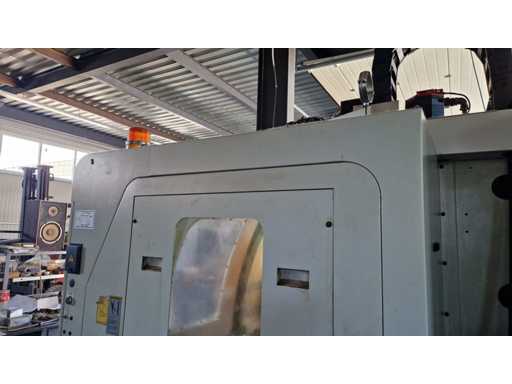

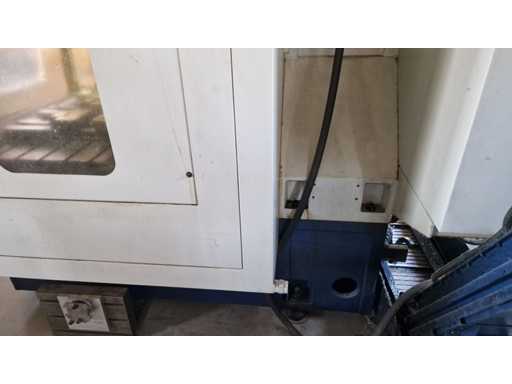

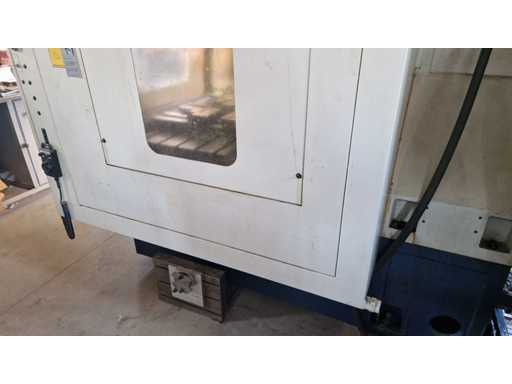

Machine enclosure
24-station tool changer (ATC) with protective cover

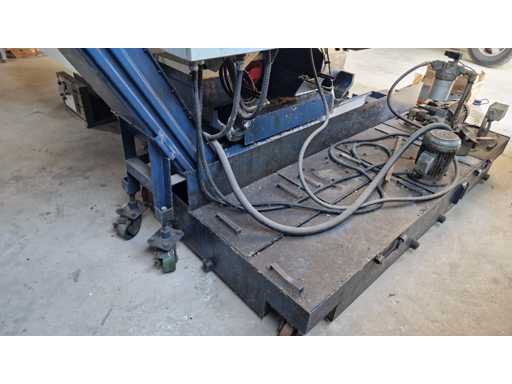

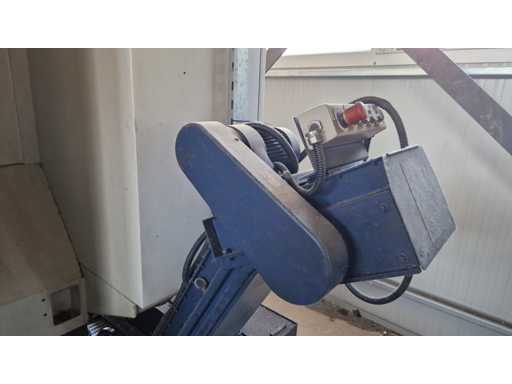

Chip conveyor
Coolant system with filter unit (MAHLE)
2 × heavy vises and 1 × 3-jaw chuck on table

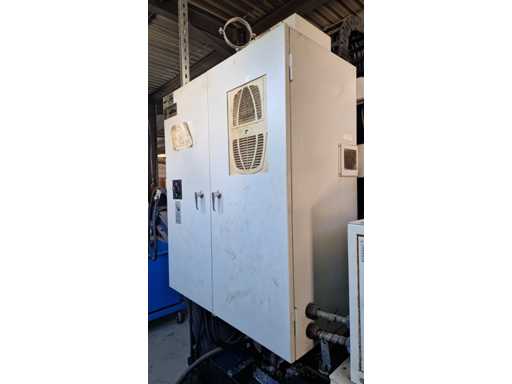

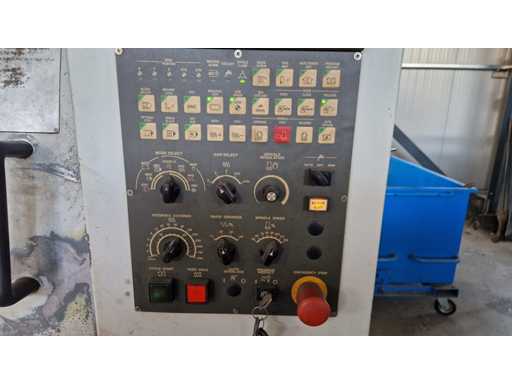

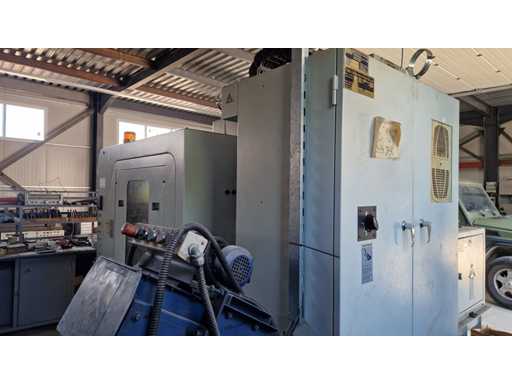

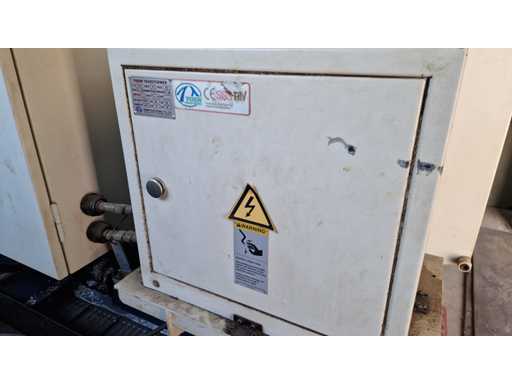

Electrical cabinet and FANUC Oi-MC control
Condition / Remarks:

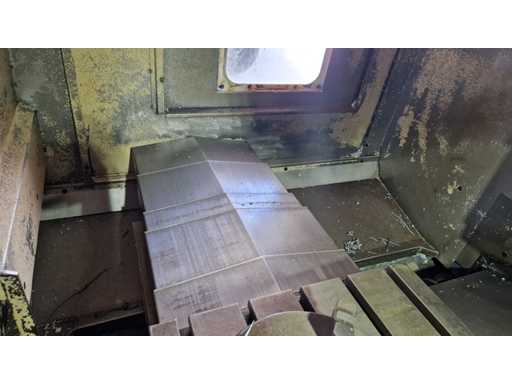

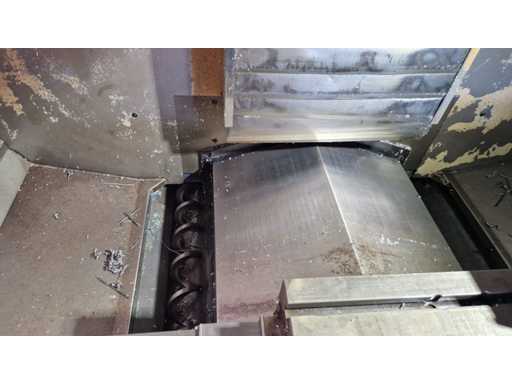

Machine is in working condition. FANUC Oi-MC control is functional and shows absolute positions and run time. Interior shows normal wear and coolant residue from machining operations;
Model: TOPPER TMV-850A
Manufacturer: Tong-Tai Machine & Tool Co., Ltd
Year: 2006
Control: FANUC Series Oi-MC
Power Supply: 380 V / 3 Phase / 50 Hz
Control Voltage: 100 V
DC Voltage: 24 V
Rated Capacity: 25 kVA
Machine No.: 019055
Spindle taper: BT40
Spindle speed (max): 8,000 rpm
Spindle motor power: 11 kW (approx.)
Tool changer: 24 positions (ATC)
Table size: 1000 × 500 mm
T-slot fixture table size W: 18 mm
T-slot fixture table size L: 1000 mm
Chip conveyor: Yes (visible)
Coolant pump / system: Yes (filter unit MAHLE visible)
Vises / Chucks: 2 × heavy vises + 1 × 3-jaw chuck (on table, visible)
ATC cover: Transparent top cover (visible)
Filter / Pump: MAHLE filter unit (visible)
Hours on display (run time): 6000H11M (displayed on FANUC screen)
Part count (display): 37770 (displayed)
Included Components:
Machine enclosure
24-station tool changer (ATC) with protective cover
Chip conveyor
Coolant system with filter unit (MAHLE)
2 × heavy vises and 1 × 3-jaw chuck on table
Electrical cabinet and FANUC Oi-MC control
Condition / Remarks:
Machine is in working condition. FANUC Oi-MC control is functional and shows absolute positions and run time. Interior shows normal wear and coolant residue from machining operations;
Observații
Unchecked;
Tools, accessories, vices, etc. are not included
Tools, accessories, vices, etc. are not included
Detalii suplimentare
Ridicarea vehiculelor este disponibilă începând cu 13 ianuarie, 26 ianuarie, pe bază de programare

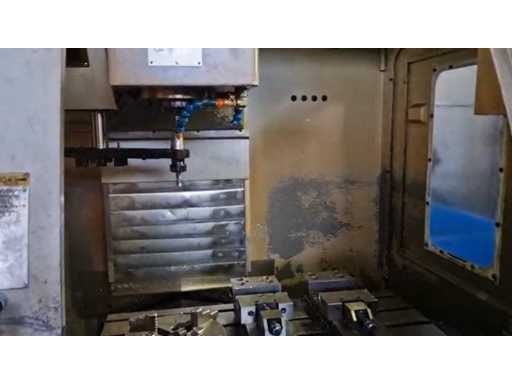

Videoclipuri
