2011 GMM INTRA 36 SFX Bridge Saw
- Oferta curentă
- Stare
EUR
Suma totală a ofertei
Vedeți detaliile totale
Suma totală a ofertei
Vedeți detaliile totale
EUR
Suma maximă a ofertei
Vedeți detaliile totale
Suma maximă a ofertei
Vedeți detaliile totale
Specificațiile lotului
- Cantitate
- 1
- Marjă
- Nu
- Marca
- GMM Intra
- Tip
- 36 SFX
- Anul de construc?ie
- 2011
- Înclinabil
- Da
- Dimensiunea mesei l
- 3500mm
- Dimensiunea mesei w
- 2000mm
- Conexiune electrica
- 400V
- Greutate proprie
- 3200kg
- Dimensiunea totala L
- 6000mm
- Dimensiunea totala W
- 3500mm
- Dimensiunea totala H
- 3000mm
- Condiții de livrare
- Ex fundație-neambalat
Descriere
• CNC bridge saw / gantry masonry saw
• Manufacturer: GMM S.p.A., Gravellona Toce (Italy)
• Type: INTRA
• Model: 36 SFX
• Year of manufacture: 2011
• CE marking available
• Solid design for natural stone and granite processing
• Bridge construction with movable cutting unit
• Rotatable and swivelling saw head

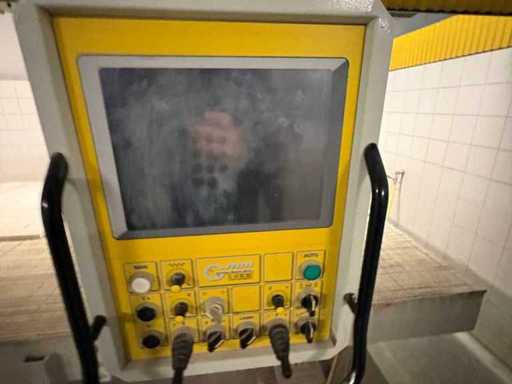

• Electronic control with control panel and screen

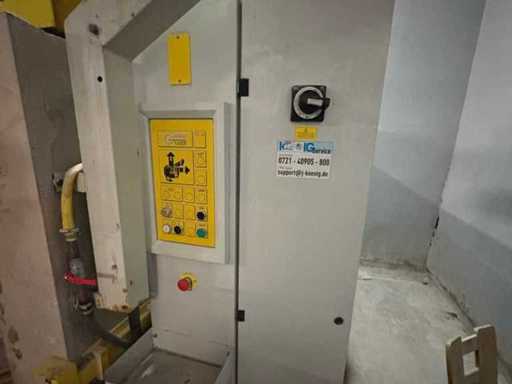

• Control cabinet mounted
on the side
Technical data (according to nameplate):
• Nominal power: 24 kW
• Nominal voltage: 400 V
• Frequency: 50 Hz
• Phases: 3
• Current consumption at full load: 40 A
• Minimum pane size: 350 mm
• Maximum lens size: 625 mm
• Total weight: approx. 3,200 kg
Dimensions (approx. information):
• Total length: approx. 6,000 mm
• Total width: approx. 3,500 mm
• Total height: approx. 3,000 mm
• Work table length: approx. 3,500 mm
• Work table width: approx. 2,000 mm
Condition:
• Used, from discontinued operation
• Soiling due to stone processing
Note:
• Sale is used
• Dismantling and loading by buyers
• Forklift / crane required for loading
• Manufacturer: GMM S.p.A., Gravellona Toce (Italy)
• Type: INTRA
• Model: 36 SFX
• Year of manufacture: 2011
• CE marking available
• Solid design for natural stone and granite processing
• Bridge construction with movable cutting unit
• Rotatable and swivelling saw head
• Electronic control with control panel and screen
• Control cabinet mounted
on the side
Technical data (according to nameplate):
• Nominal power: 24 kW
• Nominal voltage: 400 V
• Frequency: 50 Hz
• Phases: 3
• Current consumption at full load: 40 A
• Minimum pane size: 350 mm
• Maximum lens size: 625 mm
• Total weight: approx. 3,200 kg
Dimensions (approx. information):
• Total length: approx. 6,000 mm
• Total width: approx. 3,500 mm
• Total height: approx. 3,000 mm
• Work table length: approx. 3,500 mm
• Work table width: approx. 2,000 mm
Condition:
• Used, from discontinued operation
• Soiling due to stone processing
Note:
• Sale is used
• Dismantling and loading by buyers
• Forklift / crane required for loading
Observații
Note on the article description
The article description is for general orientation and was partly created automatically. The images provided are decisive for condition, design and technical data. Deviations from information in individual details are possible. If you have any questions, please contact us before submitting your bid.
