DMG Mori - CLX450 V4 - 2023 - CNC Universal Machining Centers
- Oferta curentă
- Stare
Suma totală a ofertei
Vedeți detaliile totale
Suma totală a ofertei
Vedeți detaliile totale
Suma maximă a ofertei
Vedeți detaliile totale
Suma maximă a ofertei
Vedeți detaliile totale
Specificațiile lotului
- Cantitate
- 1
- Marjă
- Nu
- Marca
- DMG Mori
- Tip
- CLX450 V4
- Anul de construc?ie
- 2023
- Numarul de serie
- 0031001658C
- Ore afi?ate
- 79
- Control CNC, marca, tip
- Siemens
- Transportator de a?chii
- Da
- Pompa de racire
- Da
- -axis
- 4
- Manual prezent
- Da
- Greutatea utilajului
- 6400kg
- Condiții de livrare
- Ex fundație-neambalat
Descriere
Technical data:
Manufacturer: DMG MORI
Model: CLX 450 V4
Year of manufacture: 2023

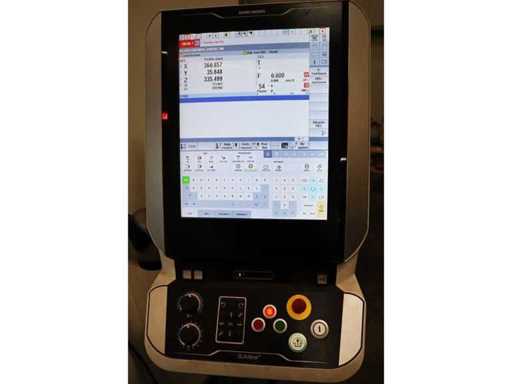

Control: SIEMENS Operate 4.7 on SLIMline® Multi-Touch (19")
Main spindle: A2-8, 17 / 25.5 kW, max. 4,000 rpm
C-axis and Y-axis (±60 mm)

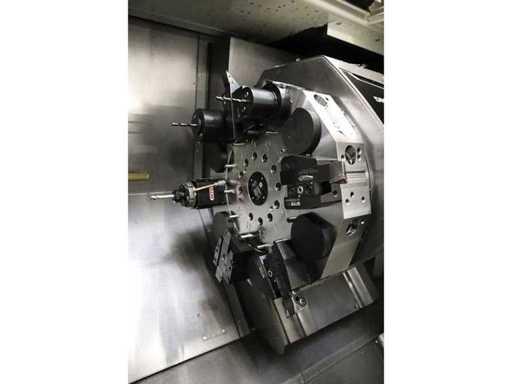

12-fold servo turret VDI 40 with 12 driven tool stations and 6 BT stations
Max. bar passage: 80 mm
Direct position measuring system in X and Y axes
Hydraulically movable tailstock
External Electronic Handwheel
DMG MORI IoTconnector
Special equipment:
Hydraulic 3-jaw chuck SMW KNCS-N 225 with quick-change system (Ø66 mm passage)
Automatic NC tailstock with programmable compression force (1.4–8.0 kN) incl. foot pedal
High-pressure coolant system 12 bar with double filter system
Coolant spray gun (5 bar)
Mechanical oil mist separator AFS 600 (600 m³/h, filter class H13)
Coolant/compressed air switchover via turret head
DXF import for SIEMENS control system
Technology cycles "Retraction Cycle" and "Keyway Broaching"
Chip conveyor with right-hand discharge
Marposs tool measuring device in the working area
Signal traffic light, differential pressure voltage for main spindle and spindle stop device
Scope of delivery:

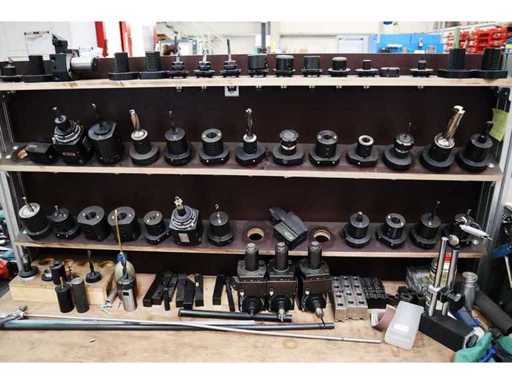

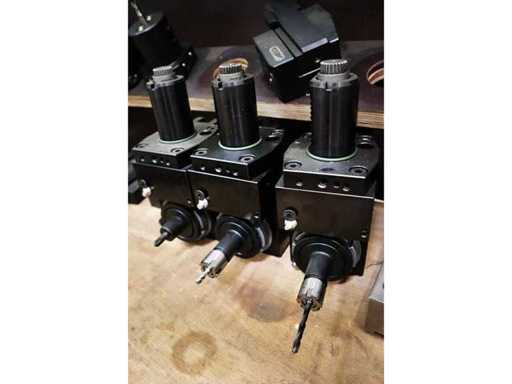

Extensive tool package worth 20000€, with various VDI tool holders, drilling and milling equipment, parter holders, ER32 adapter, mounting block and other original accessories according to the equipment list.
The machine is in very good technical and optical condition and can be viewed by appointment. Errors and prior sale excepted.
Manufacturer: DMG MORI
Model: CLX 450 V4
Year of manufacture: 2023
Control: SIEMENS Operate 4.7 on SLIMline® Multi-Touch (19")
Main spindle: A2-8, 17 / 25.5 kW, max. 4,000 rpm
C-axis and Y-axis (±60 mm)
12-fold servo turret VDI 40 with 12 driven tool stations and 6 BT stations
Max. bar passage: 80 mm
Direct position measuring system in X and Y axes
Hydraulically movable tailstock
External Electronic Handwheel
DMG MORI IoTconnector
Special equipment:
Hydraulic 3-jaw chuck SMW KNCS-N 225 with quick-change system (Ø66 mm passage)
Automatic NC tailstock with programmable compression force (1.4–8.0 kN) incl. foot pedal
High-pressure coolant system 12 bar with double filter system
Coolant spray gun (5 bar)
Mechanical oil mist separator AFS 600 (600 m³/h, filter class H13)
Coolant/compressed air switchover via turret head
DXF import for SIEMENS control system
Technology cycles "Retraction Cycle" and "Keyway Broaching"
Chip conveyor with right-hand discharge
Marposs tool measuring device in the working area
Signal traffic light, differential pressure voltage for main spindle and spindle stop device
Scope of delivery:
Extensive tool package worth 20000€, with various VDI tool holders, drilling and milling equipment, parter holders, ER32 adapter, mounting block and other original accessories according to the equipment list.
The machine is in very good technical and optical condition and can be viewed by appointment. Errors and prior sale excepted.
Observații
Unaudited
Detalii suplimentare
Ridicare: prin aranjare
Vei găsi informații despre ridicare pe factura ta după licitație
Vă rugăm să rețineți că toate articolele sunt vândute, folosite și netestate, cu excepția cazului în care se specifică altfel. Descrierea articolului respectiv este decisivă.
Pentru informații detaliate despre garanția și condițiile de garanție, vă rugăm să consultați condițiile licitației.
Notă: Preluarea întârziată sau ratată poate implica costuri suplimentare de depozitare, manipulare sau demontare, care aparțin cumpărătorului.
