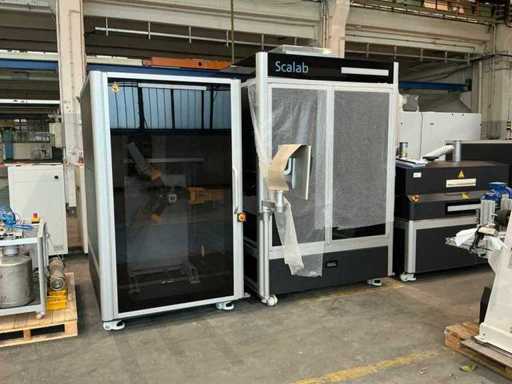

Fraunhofer - R2R - Fully automated coating system for continuous material (metal/plastic sheet for bipolar plates, membrane electrode units, pantograph films) - 2024
- Oferta curentă
- Stare
Suma totală a ofertei
Vedeți detaliile totale
Suma totală a ofertei
Vedeți detaliile totale
Suma maximă a ofertei
Vedeți detaliile totale
Suma maximă a ofertei
Vedeți detaliile totale
Specificațiile lotului
- Cantitate
- 1
- Marjă
- Nu
- Marca
- Fraunhofer
- Tip
- R2R

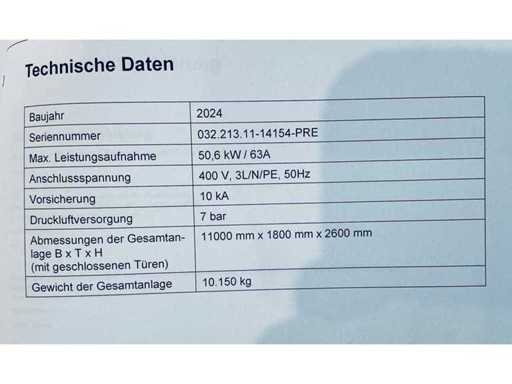

- Anul de construc?ie
- 2024

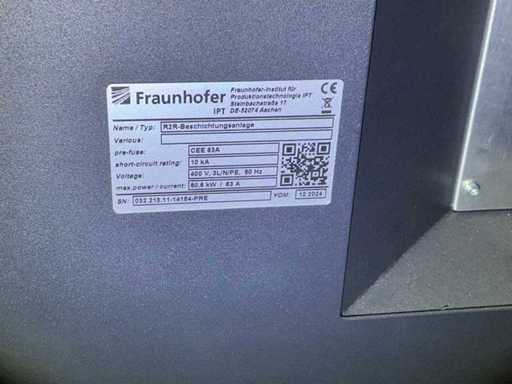

- Numarul de serie
- 032.213.11-14154-PRE
- Puterea motorului (kW)
- 50,6kW

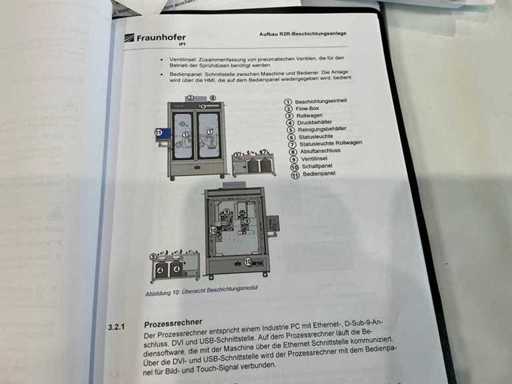

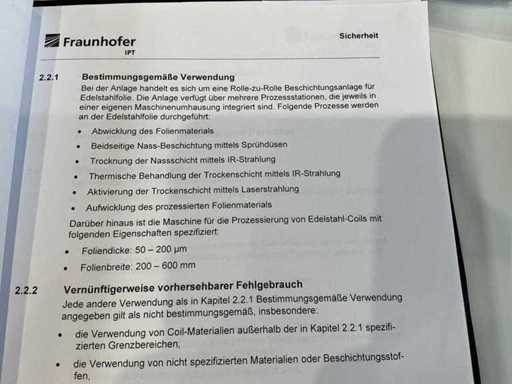

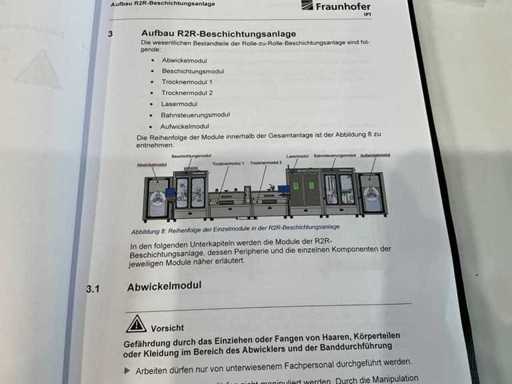

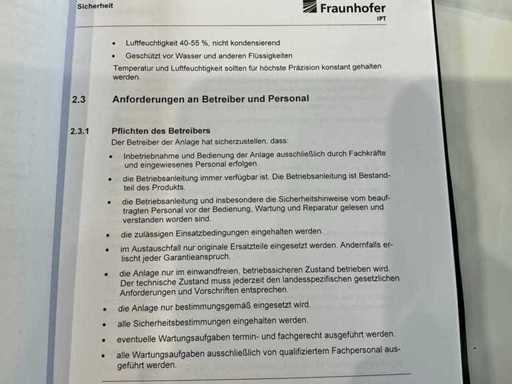

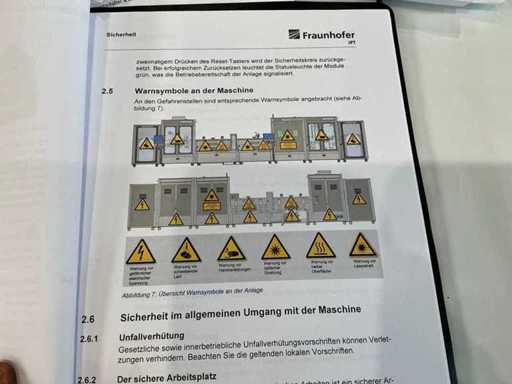

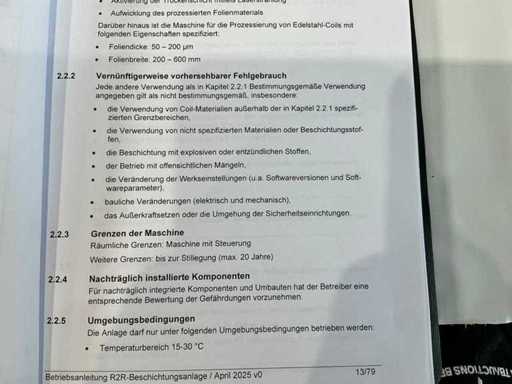

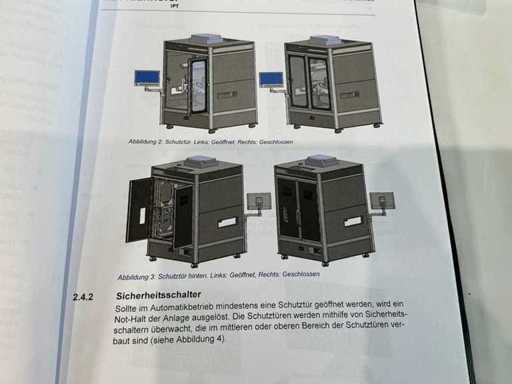

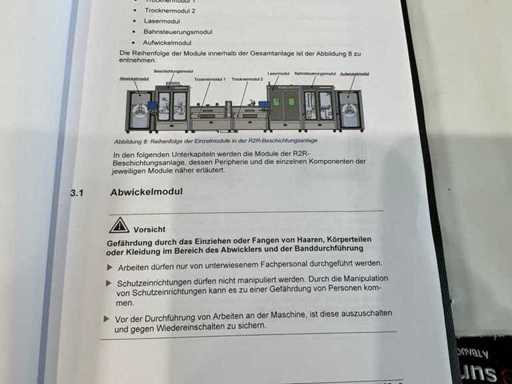

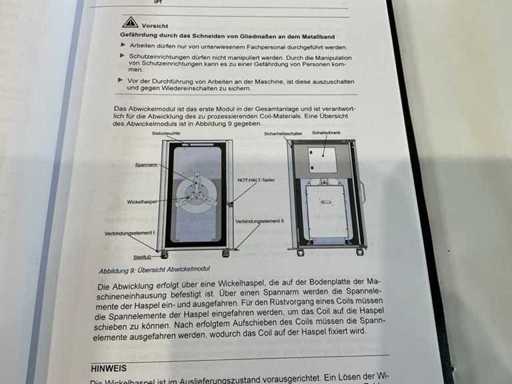

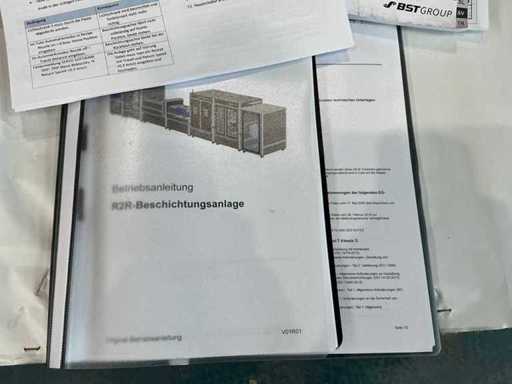

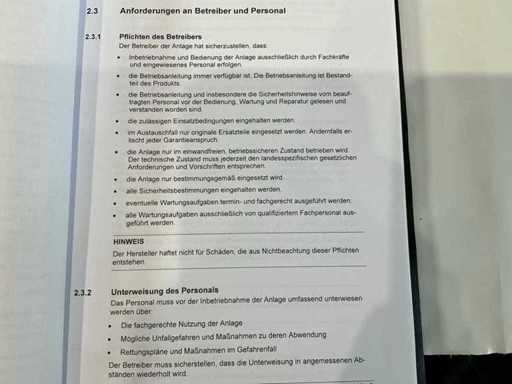

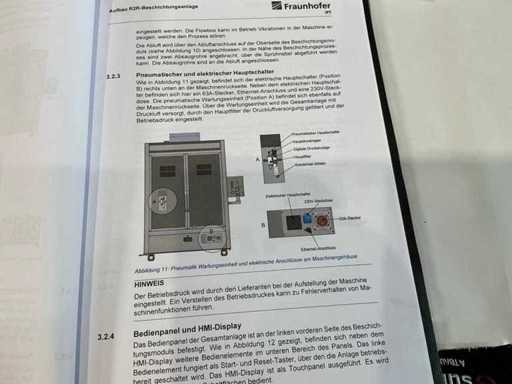

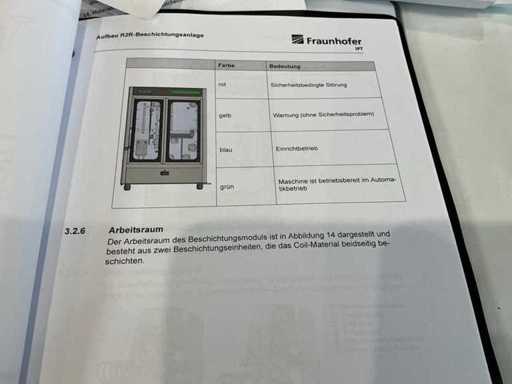

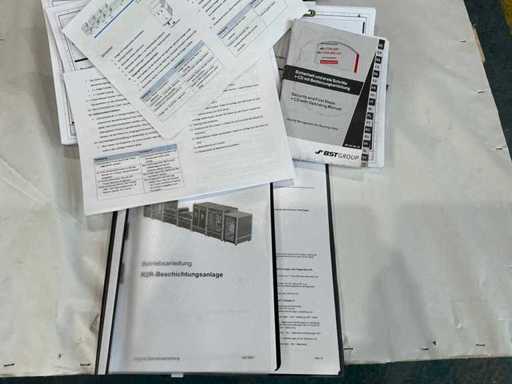

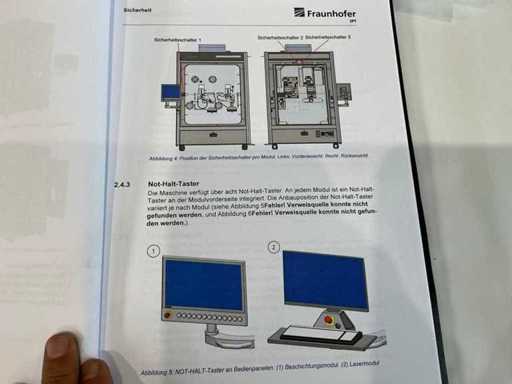

- Manual prezent
- Da
- Conexiune electrica
- 400V
- Condiții de livrare
- Încărcat pe camion
Descriere

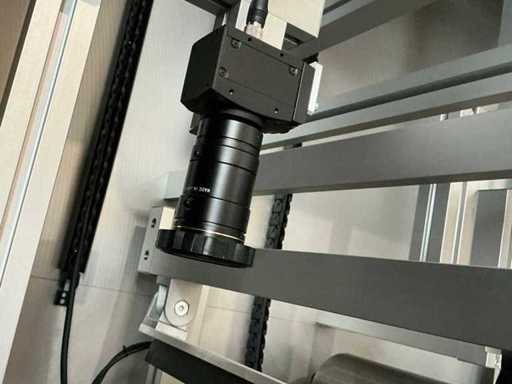

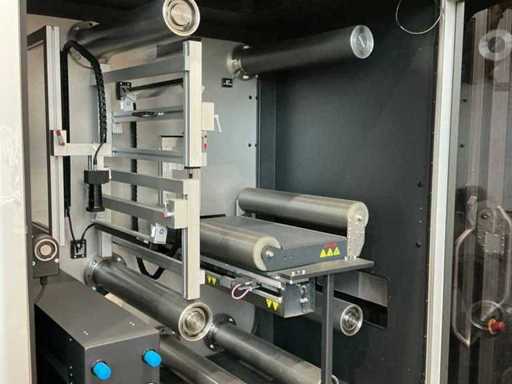

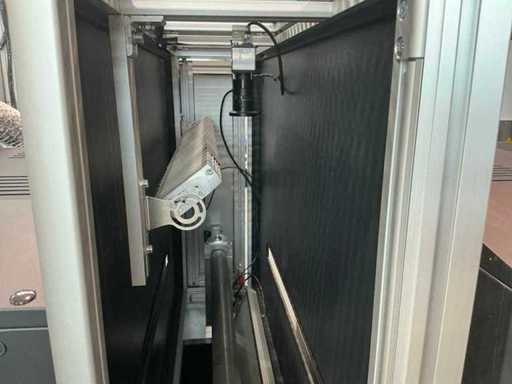

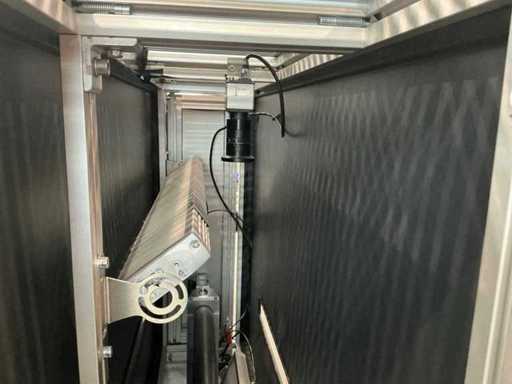

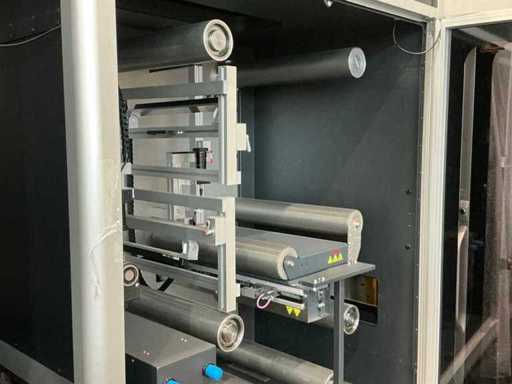

Application: The system is a roll-to-roll inspection system for stainless steel foil

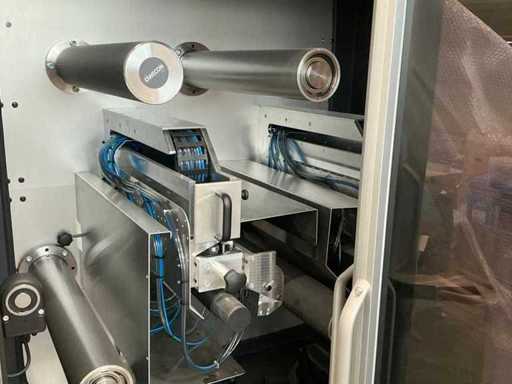

Applications: Unwinding of the foil material (foil thickness: 50-200 - foil width: 200-600 mm, wet inspection on both sides by means of spray nozzles, drying of the nose by means of IR radiation

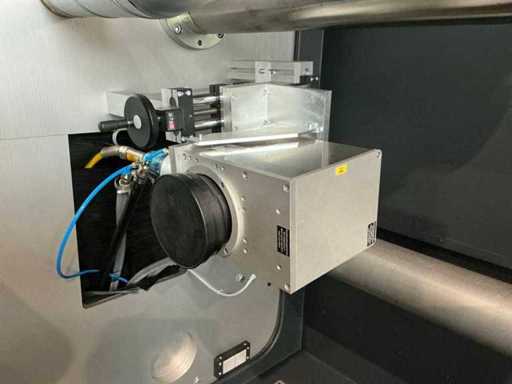

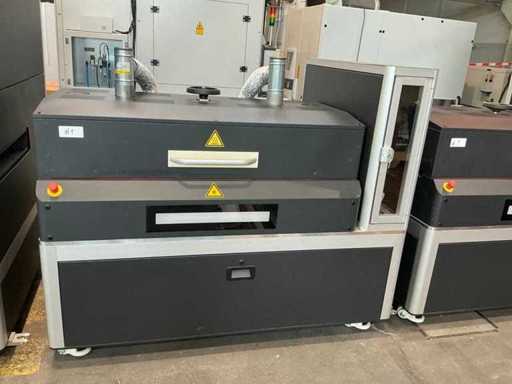

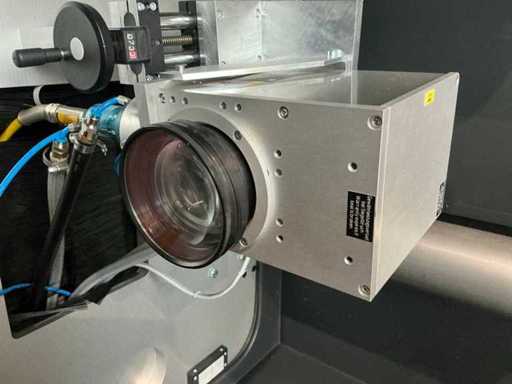

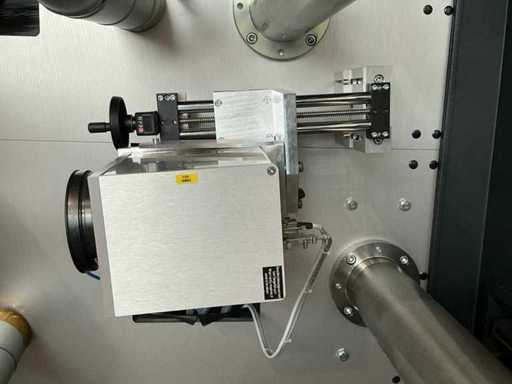

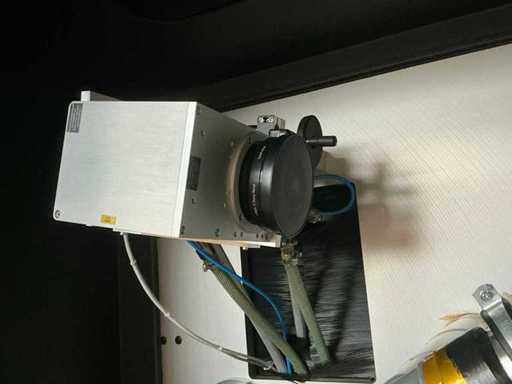

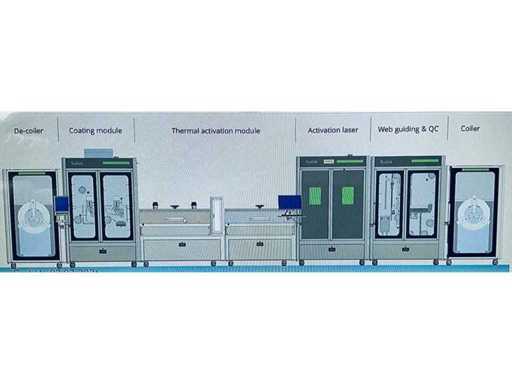

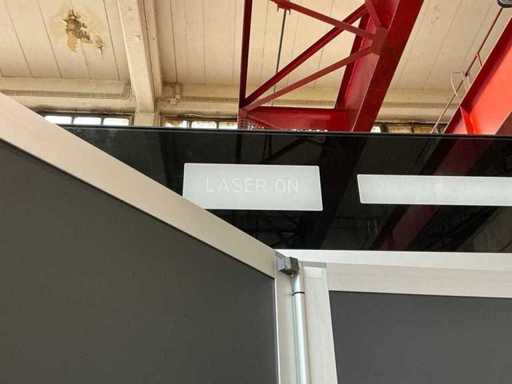

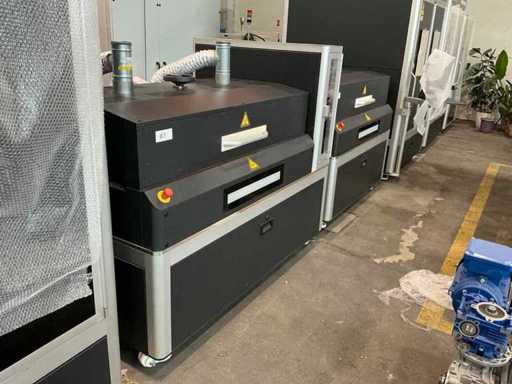

Material: continuous material (metal foil, plastic foil), consisting of spray coating, drying oven, two laser modules (2x1kW IPG laser) and process technology

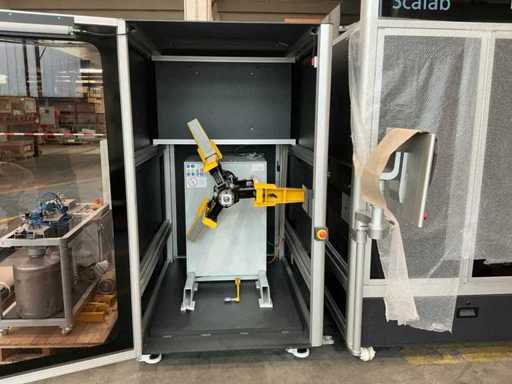

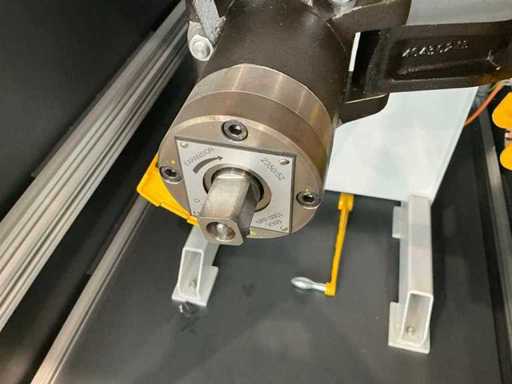

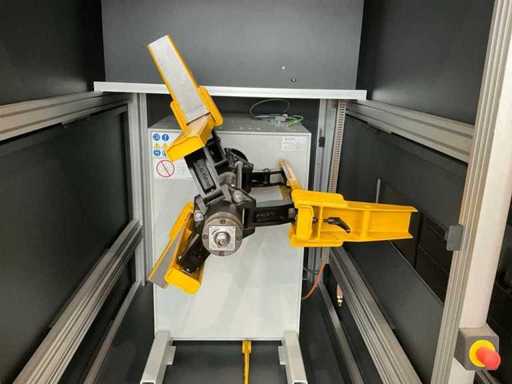

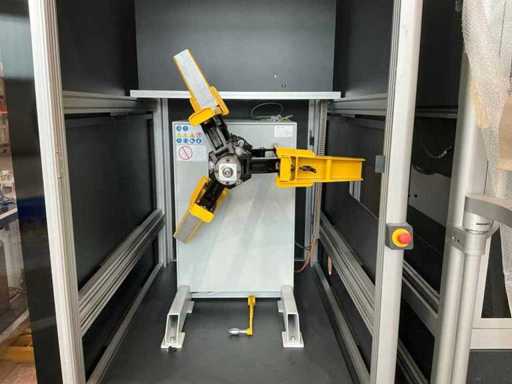

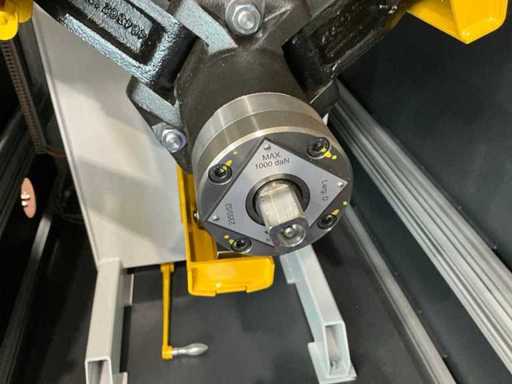

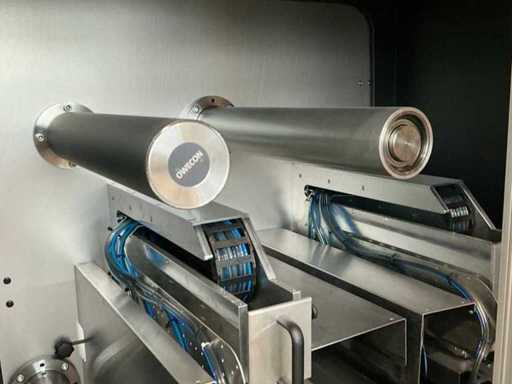

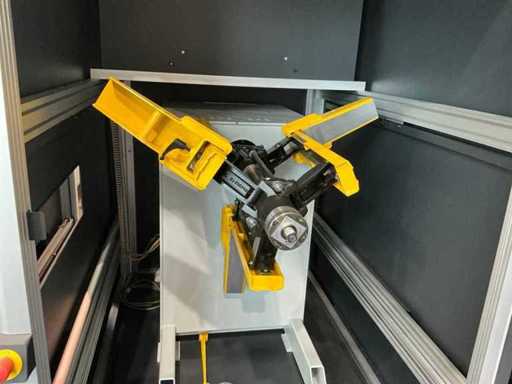

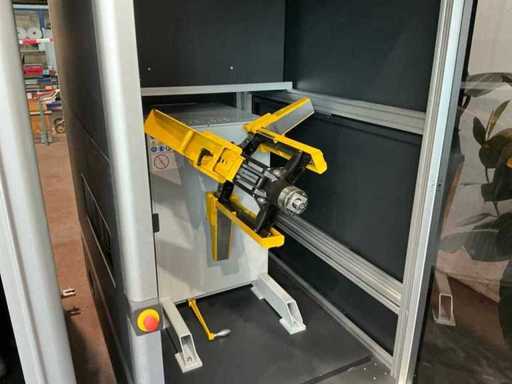

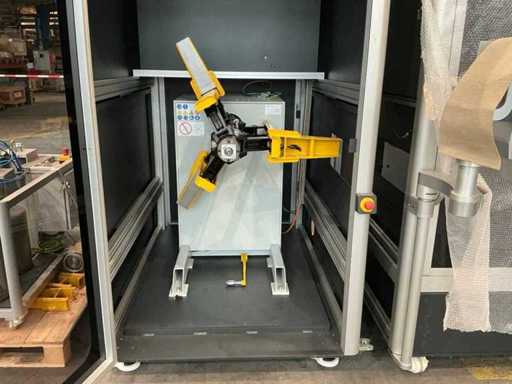

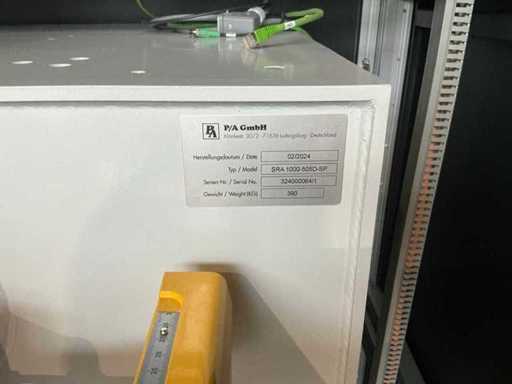

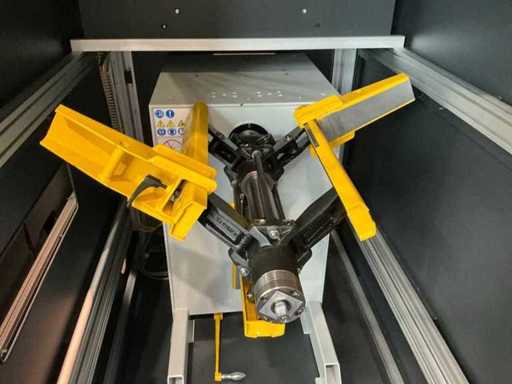

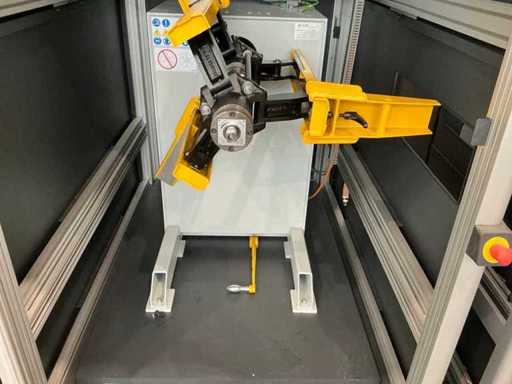

Including: 2 x decoiler/recoiler, year of manufacture: 2024, type: SRA1000-505D-SP, weight: 390 kg

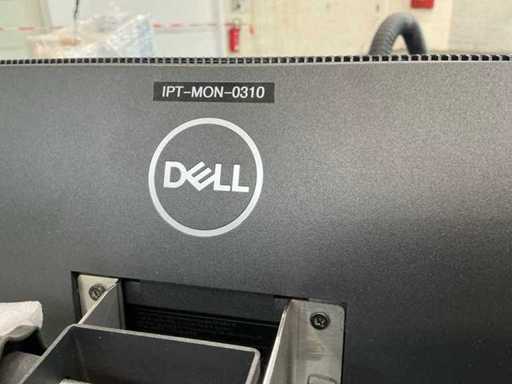

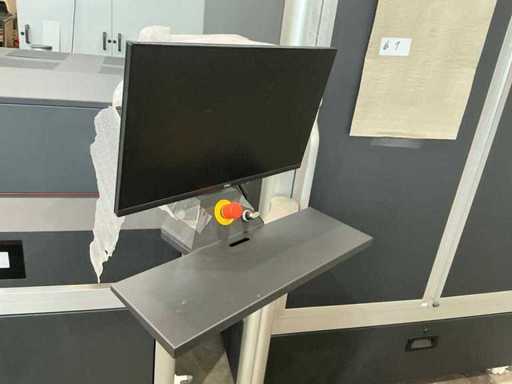

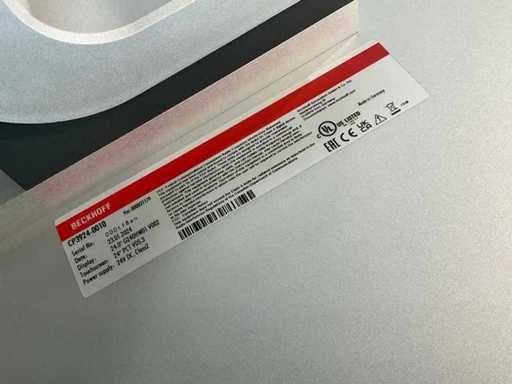

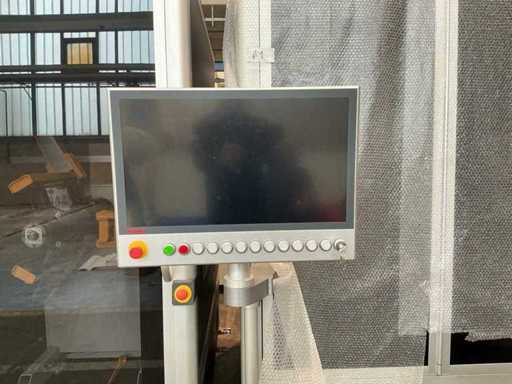

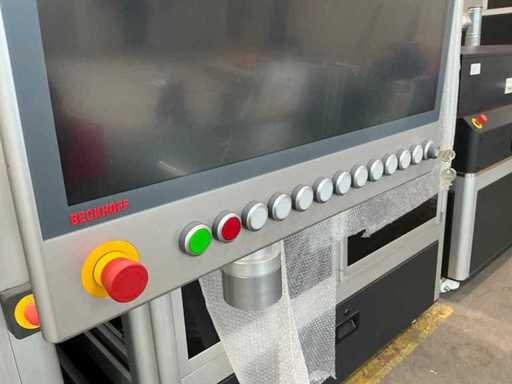

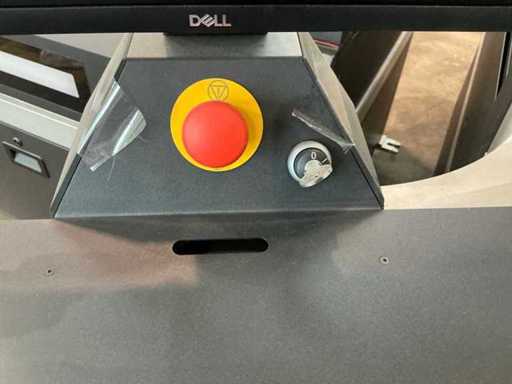

2 x control panels-Dell and Beckhof

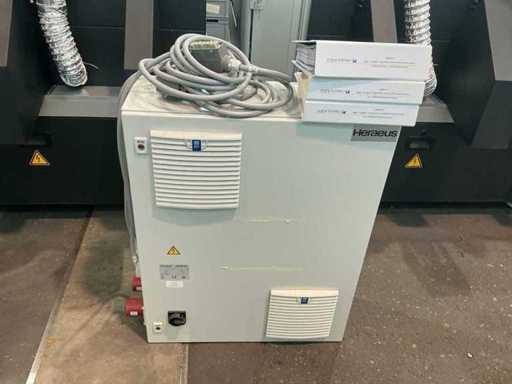

IR control, type. CX 40 with nominal power 40 kW, connected load 40 kVA-3/N/PE - AC 50 Hz-400 V

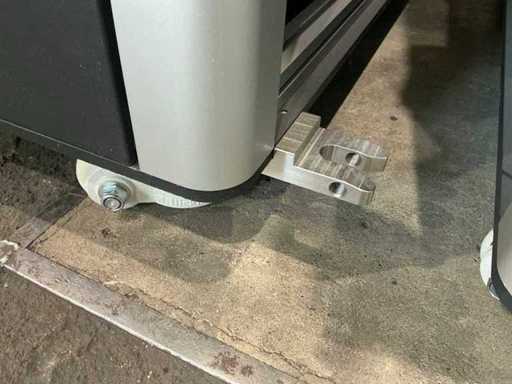

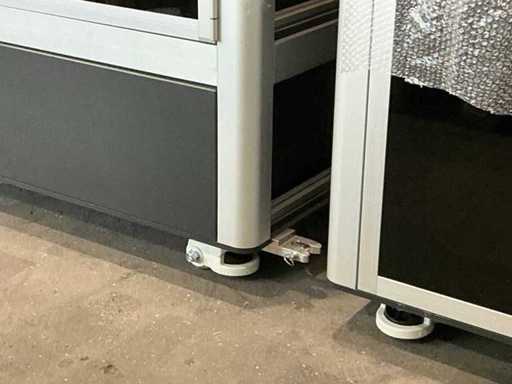

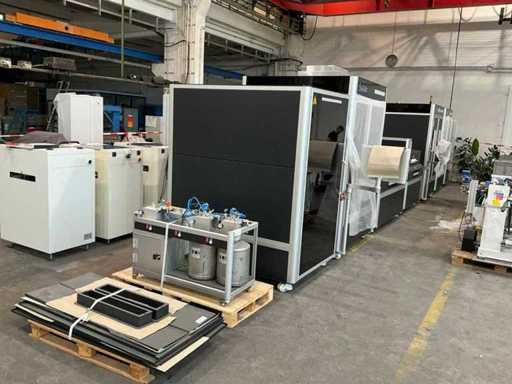

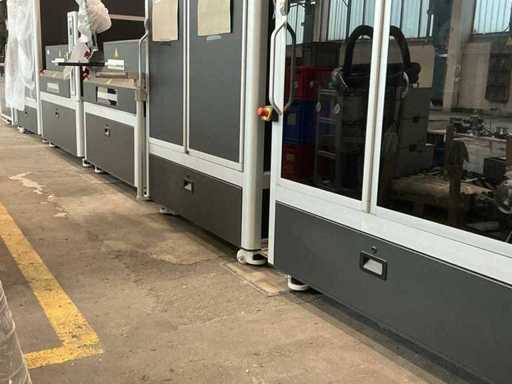

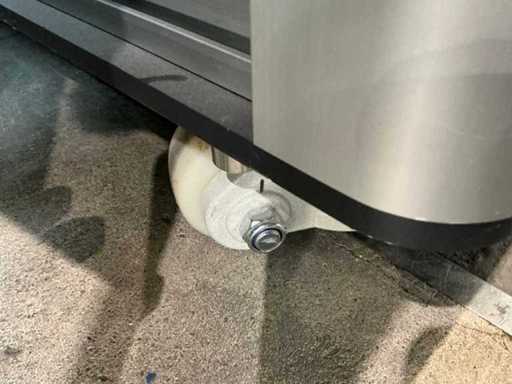

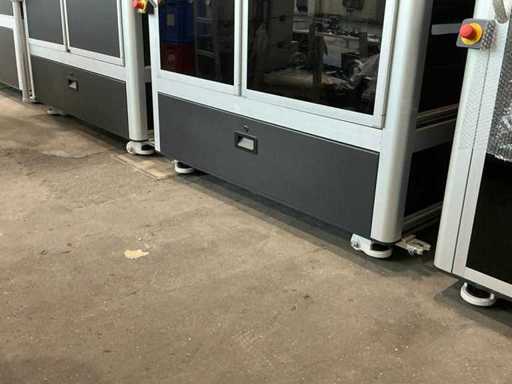

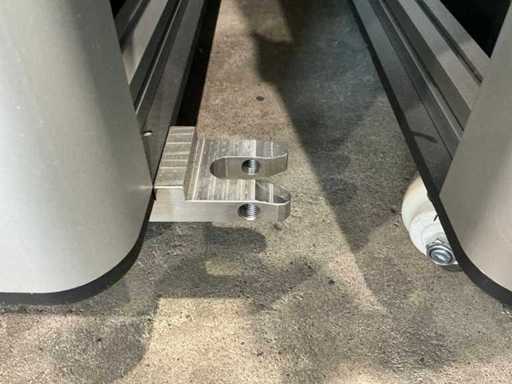

Transport dimensions: approx. 11 m long, 2.20 m wide, 2.60 m high, modules are equipped with rollers and hoes, The rollers allow easy movement of the heavy equipment, while the integrated machine feet provide stability
Weight: 10,150 Kg
Applications: Unwinding of the foil material (foil thickness: 50-200 - foil width: 200-600 mm, wet inspection on both sides by means of spray nozzles, drying of the nose by means of IR radiation
Material: continuous material (metal foil, plastic foil), consisting of spray coating, drying oven, two laser modules (2x1kW IPG laser) and process technology
Including: 2 x decoiler/recoiler, year of manufacture: 2024, type: SRA1000-505D-SP, weight: 390 kg
2 x control panels-Dell and Beckhof
IR control, type. CX 40 with nominal power 40 kW, connected load 40 kVA-3/N/PE - AC 50 Hz-400 V
Transport dimensions: approx. 11 m long, 2.20 m wide, 2.60 m high, modules are equipped with rollers and hoes, The rollers allow easy movement of the heavy equipment, while the integrated machine feet provide stability
Weight: 10,150 Kg
Observații
As good as new, few production hours of use
Note: Dismantled, Loading ready, Shipping possible only within Germany, Dismantling by buyer, Loading by seller
Due to the complexity of the production line, it is recommended to inspect the item during the bidding process to avoid errors during disassembly and transport.
Note: Dismantled, Loading ready, Shipping possible only within Germany, Dismantling by buyer, Loading by seller
Due to the complexity of the production line, it is recommended to inspect the item during the bidding process to avoid errors during disassembly and transport.
