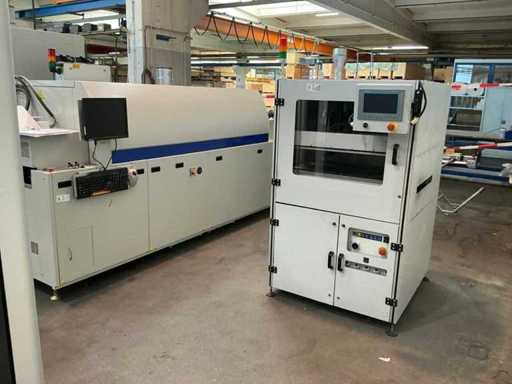

Fully automated coating system for individual components (printed circuit boards, bipolar plates or similar)
- Oferta curentă
- Stare
Suma totală a ofertei
Vedeți detaliile totale
Suma totală a ofertei
Vedeți detaliile totale
Suma maximă a ofertei
Vedeți detaliile totale
Suma maximă a ofertei
Vedeți detaliile totale
Specificațiile lotului
- Cantitate
- 1
- Marjă
- Nu
- Manual prezent
- Da
- Condiții de livrare
- Încărcat pe camion
Descriere
Functions: For individual components (printed circuit boards, bipolar flat straightening or comparable applications), consisting of a spray coating system, a drying oven, 1 x laser module and the corresponding process technology

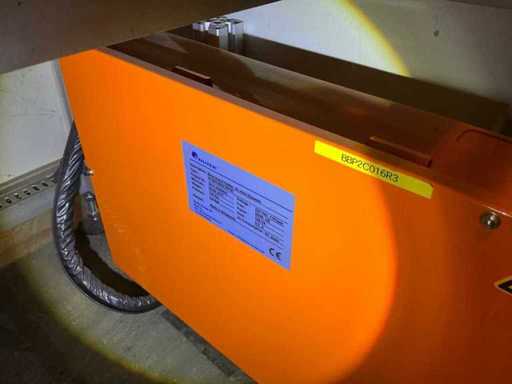

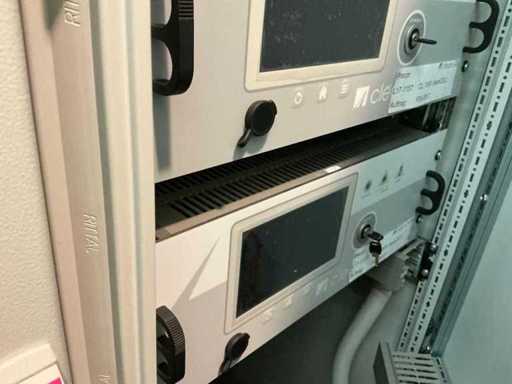

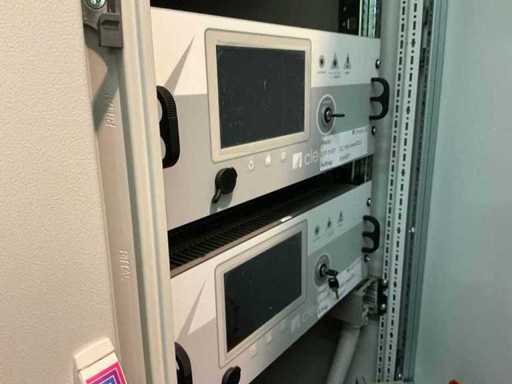

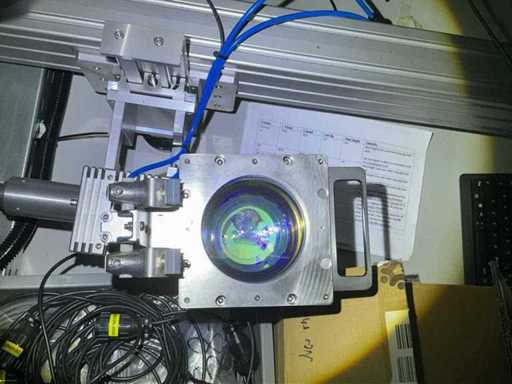

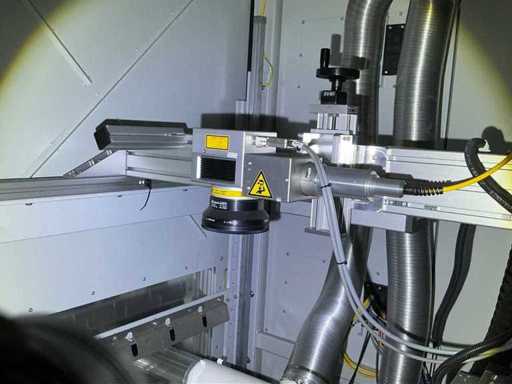

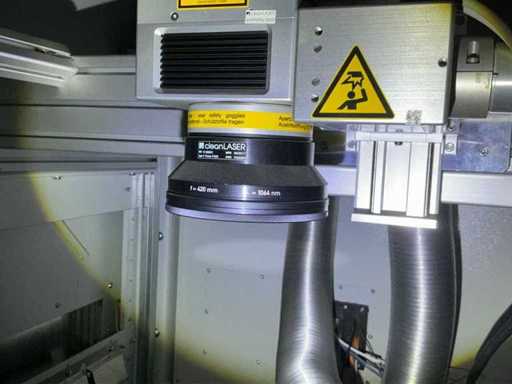

Module: 1 x laser system

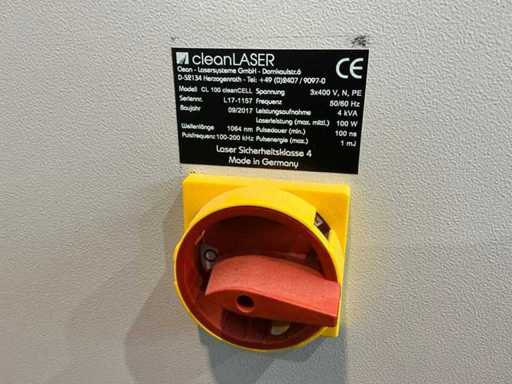

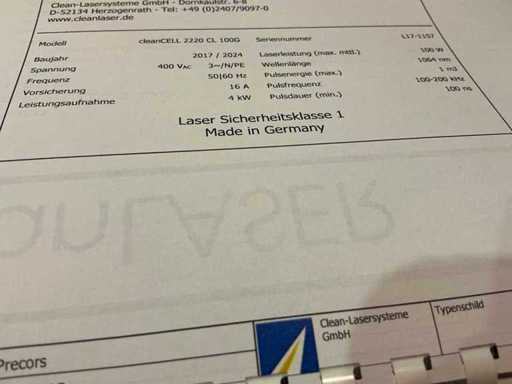

Manufacturer: cleanLASER Clean-Lasersysteme GmbH, Model: CL 100 cleanCELL, Year of construction: 09/2017
Supply voltage: 3 × 400 V, N, PE
Frequency: 50/60 Hz
Power consumption: 4 kVA
Maximum average laser power: 100 W
Wavelength: 1064 nm
Minimum pulse duration: 100 ns
Pulse rate: 100–200 kHz
Maximum pulse energy: 1 mJ
Laser safety class: Class 4
Made in Germany

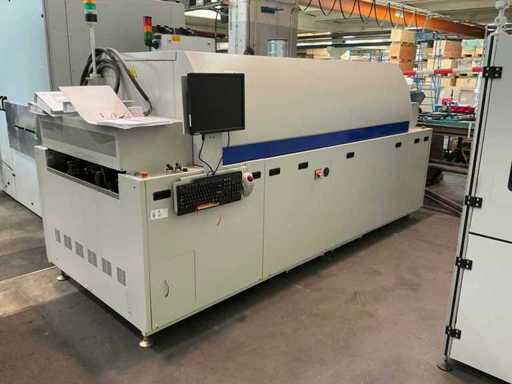

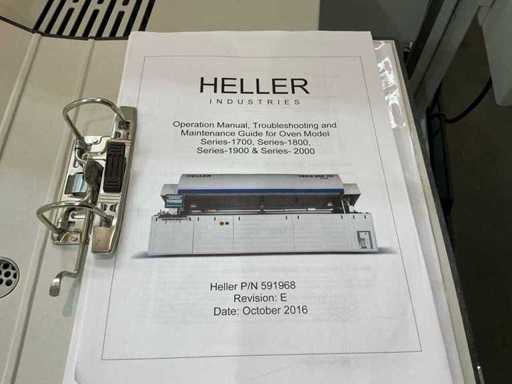

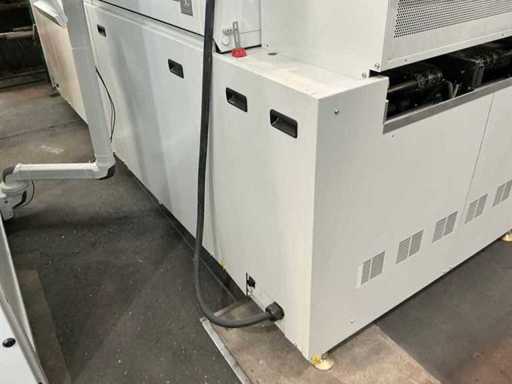

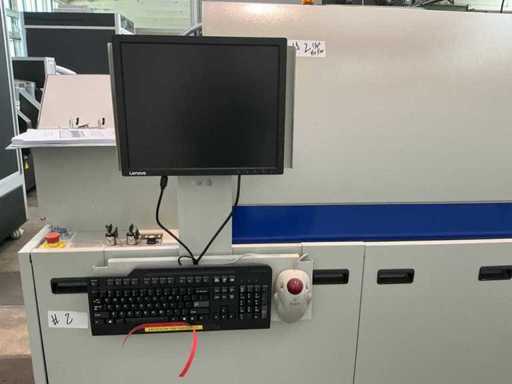

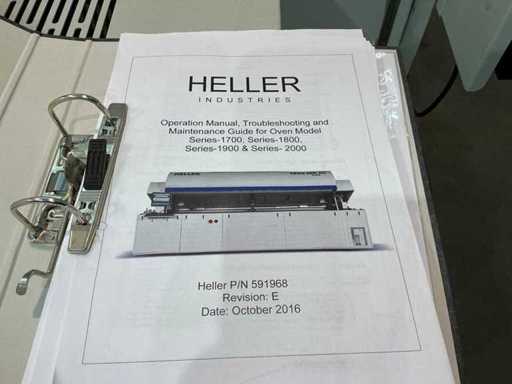

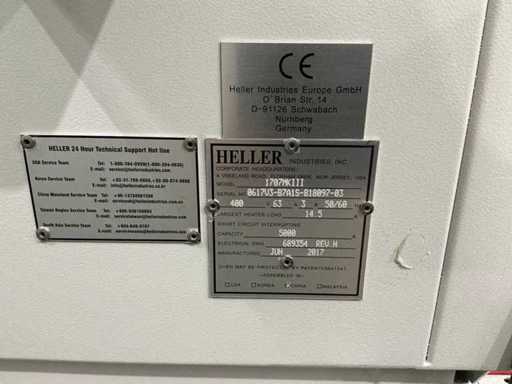

1x Machine model: 1700
series furnace Part Number (P/N): 591968
Revision: E
Issue Date: October 2016

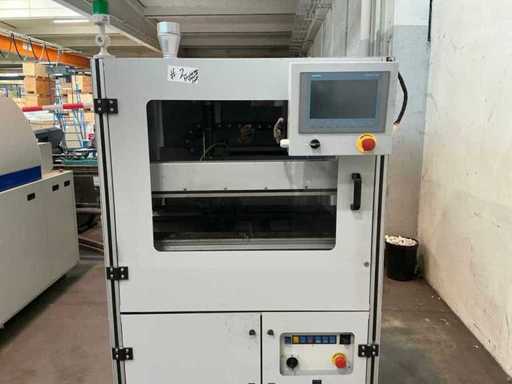

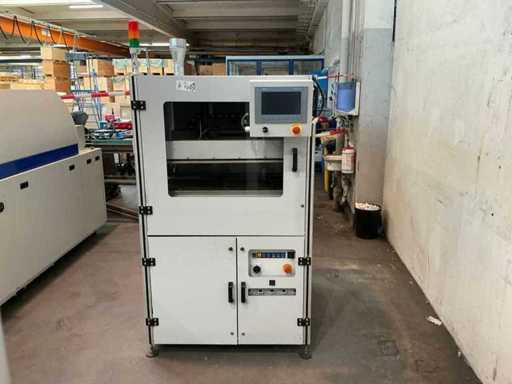

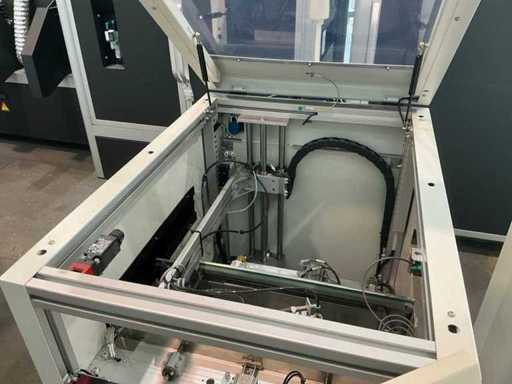

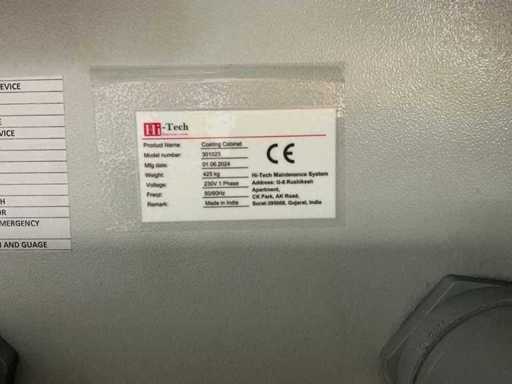

1 x Spray Coating Machine Manufacturer: Hi-Tech Maintenance System
Product: Coating Cabinet
Model Number: 301023
Date of manufacture: 01/06/2024
Weight: 425 kg
Supply voltage: 230 V, 1 phase
Frequency: 50/60 Hz
CE marking: Yes

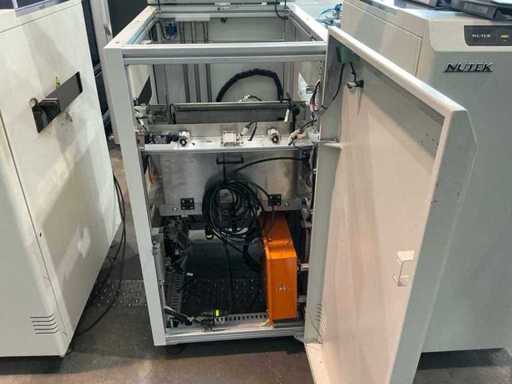

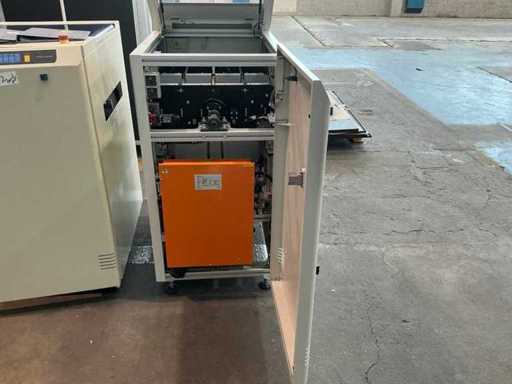

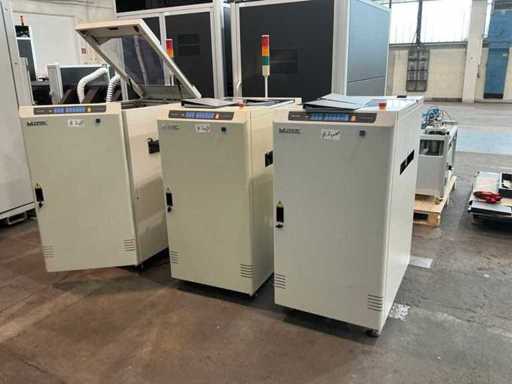

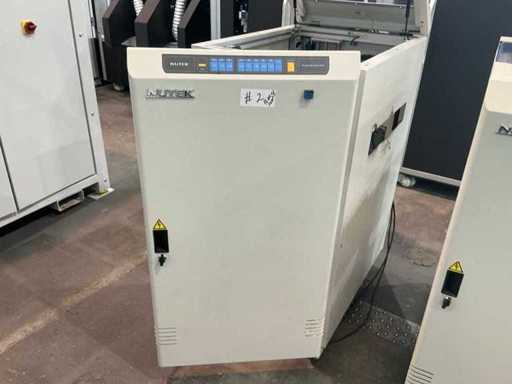

2 x Manufacturer: NUTEK
Machine Type: PCB Loader, XL Size (Bypass)
Type: NTMX10EXLBF1(S)
Project number: 3017234401
Date of manufacture: 06.09.2017
Weight: 140 kg
Compressed air: 4–6 bar
Supply voltage: 230 V AC, 1 phase
Frequency: 50/60 Hz
Power consumption: 150 VA
Current consumption: 0.7 A
Compressed air consumption: 5.1 l/min

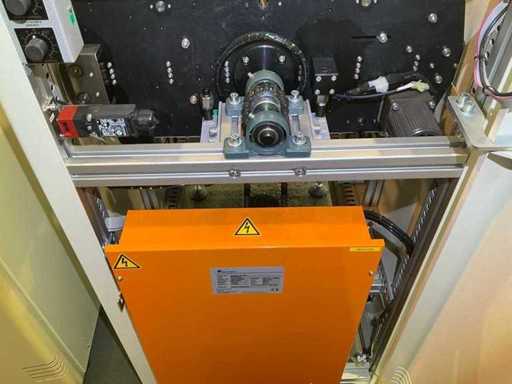

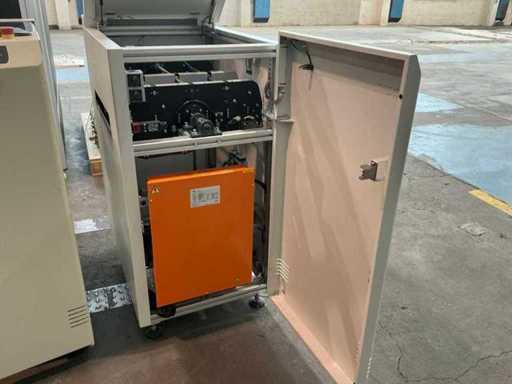

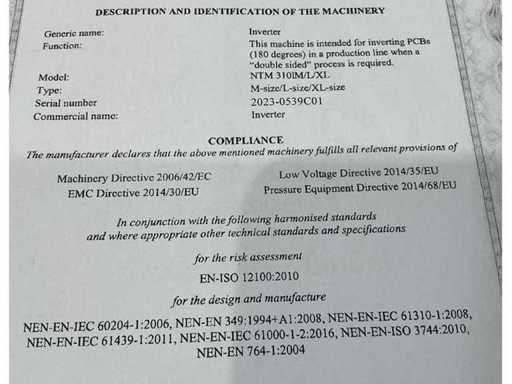

1 x Machine type: Inverter, XL-size
Type: NTM310XL
Supply voltage: 230 V AC, 1 phase
Compressed air: 4–6 bar
Project number: 2023-0539C01
Weight: 150 Kg
Transport dimensions: approx. 3000 mm hoste point, longest point approx. 4500 mm.

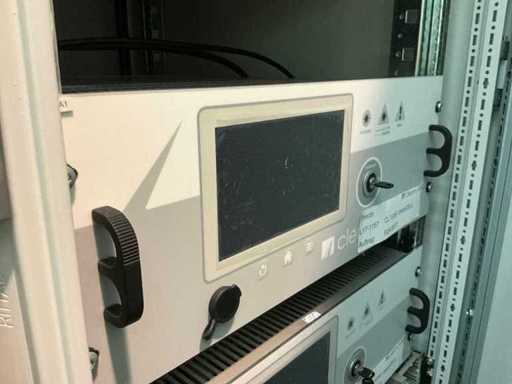

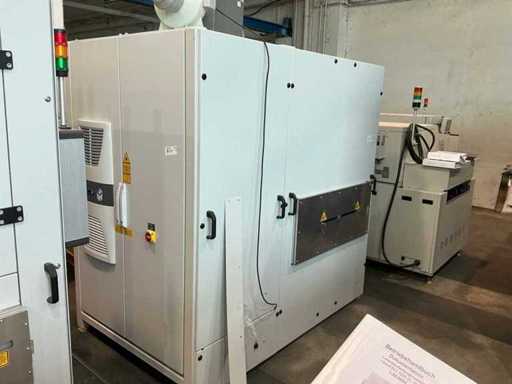

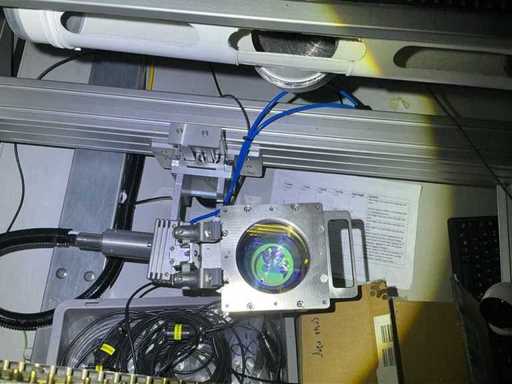

Module: 1 x laser system
Manufacturer: cleanLASER Clean-Lasersysteme GmbH, Model: CL 100 cleanCELL, Year of construction: 09/2017
Supply voltage: 3 × 400 V, N, PE
Frequency: 50/60 Hz
Power consumption: 4 kVA
Maximum average laser power: 100 W
Wavelength: 1064 nm
Minimum pulse duration: 100 ns
Pulse rate: 100–200 kHz
Maximum pulse energy: 1 mJ
Laser safety class: Class 4
Made in Germany

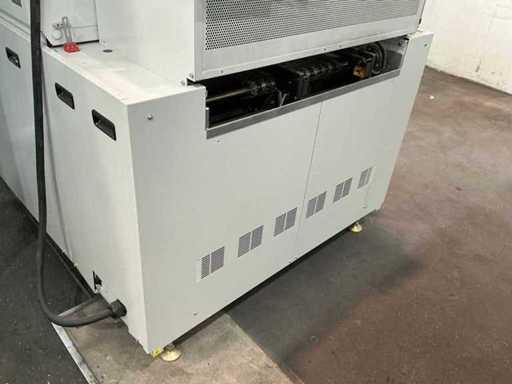

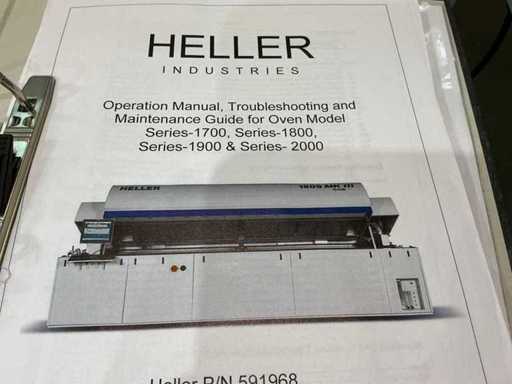

1x Machine model: 1700
series furnace Part Number (P/N): 591968
Revision: E
Issue Date: October 2016
1 x Spray Coating Machine Manufacturer: Hi-Tech Maintenance System
Product: Coating Cabinet
Model Number: 301023
Date of manufacture: 01/06/2024
Weight: 425 kg
Supply voltage: 230 V, 1 phase
Frequency: 50/60 Hz
CE marking: Yes

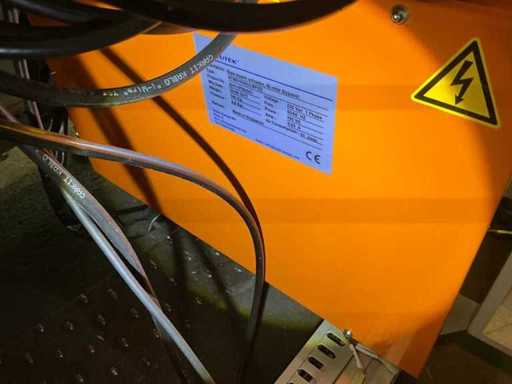

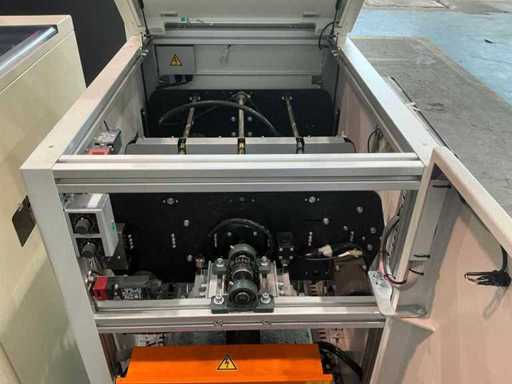

2 x Manufacturer: NUTEK
Machine Type: PCB Loader, XL Size (Bypass)
Type: NTMX10EXLBF1(S)
Project number: 3017234401
Date of manufacture: 06.09.2017
Weight: 140 kg
Compressed air: 4–6 bar
Supply voltage: 230 V AC, 1 phase
Frequency: 50/60 Hz
Power consumption: 150 VA
Current consumption: 0.7 A
Compressed air consumption: 5.1 l/min
1 x Machine type: Inverter, XL-size
Type: NTM310XL
Supply voltage: 230 V AC, 1 phase
Compressed air: 4–6 bar
Project number: 2023-0539C01
Weight: 150 Kg
Transport dimensions: approx. 3000 mm hoste point, longest point approx. 4500 mm.
Observații
Used, Few production hours Use
Note: Dismantled, Ready to be loaded, Shipping possible only within Germany, Dismantling by buyer, Loading by seller
Note: Due to the complexity of the production line, it is recommended to inspect the item during the bidding process to avoid errors during disassembly and transport.
Note: Dismantled, Ready to be loaded, Shipping possible only within Germany, Dismantling by buyer, Loading by seller
Note: Due to the complexity of the production line, it is recommended to inspect the item during the bidding process to avoid errors during disassembly and transport.
