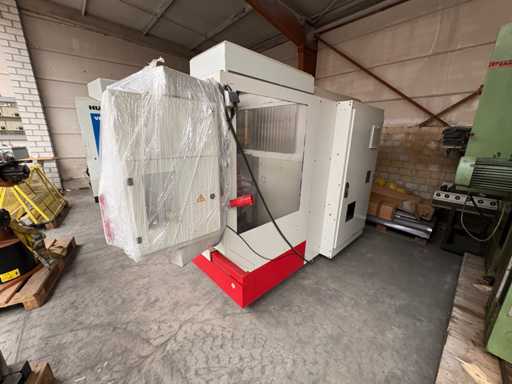

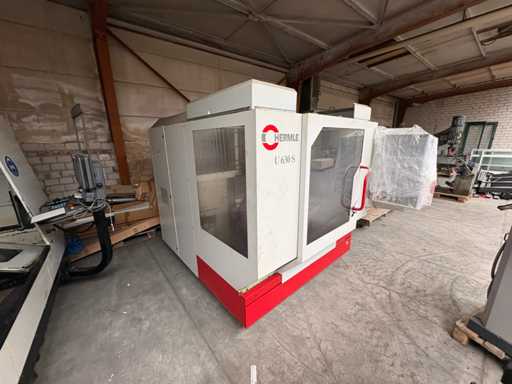

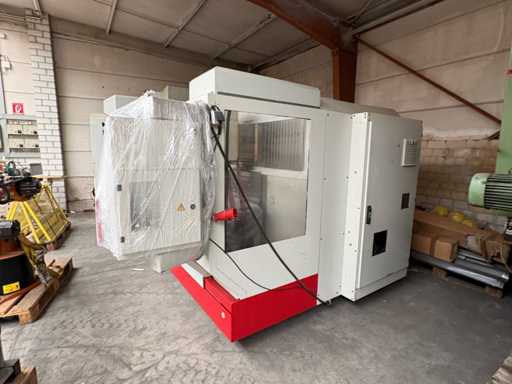

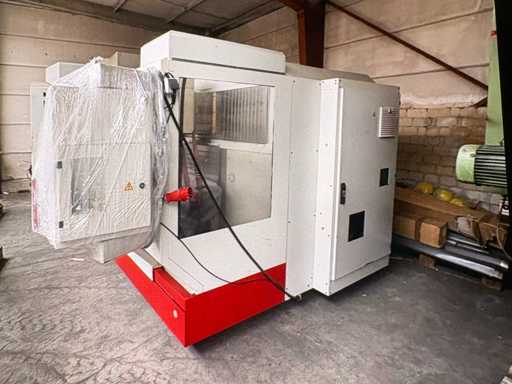

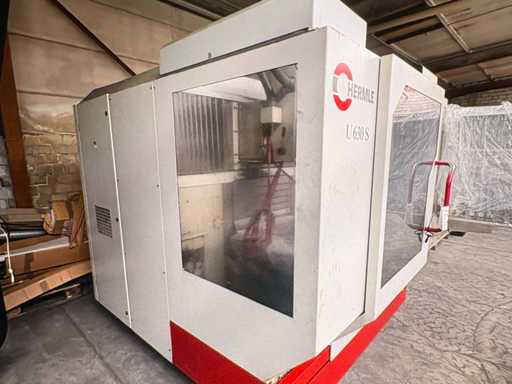

HERMLE U 630 S CNC milling machine

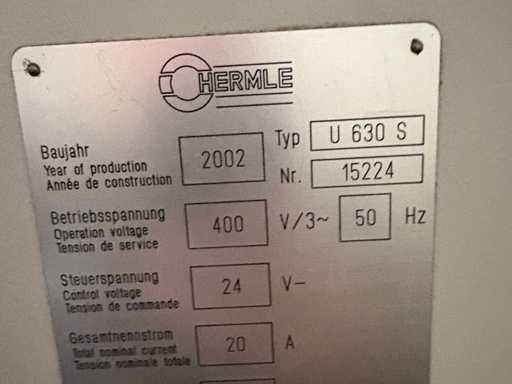

Manufacturer / model: Hermle U 630 S (year 2002)
Type: Vertical CNC Machining Center, Fully Encapsulated with Safety Doors
Weight: approx. 4,500 kg

Electrical data
Operating voltage: 400 V / 3~ / 50 Hz
Total current: 20 A
Total power: 14 kVA
Control voltage: 24 V

Workspace
Travel distances: X = 630 mm, Y = 500 mm, Z = 500 mm

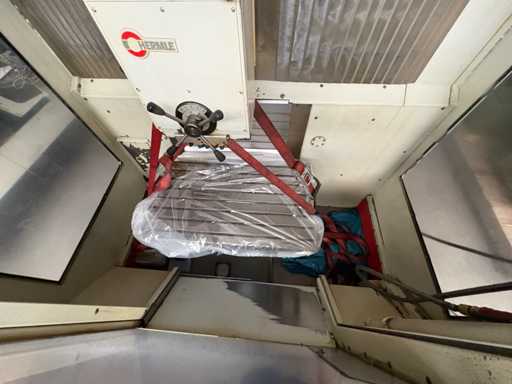

Table size: approx. 800 × 500 mm
Table load: up to 600 kg

Spindle
Motor spindle, vertical
Speed: up to 12,000 rpm (depending on model)
Power: approx. 15–20 kW
Tool holder: SK40 or HSK-A63

Tool magazine
Capacity: approx. 20–30 tools
Tool change time: 4-6 seconds

Accuracy
Positioning accuracy: ± 0.005 mm
Repeatability: ± 0.003 mm

Equipment
Integrated
coolant system Optional chip conveyor
Control: Heidenhain TNC (e.g. 426/430/530)

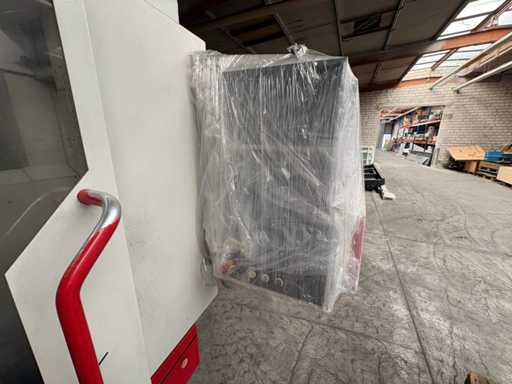

Operation via screen, keyboard and handwheel

Application
Universal 3-axis machining center for metalworking, tool and fixture construction as well as series production.
Precise, reliable and robust – ideal for small to medium-sized workpieces.
