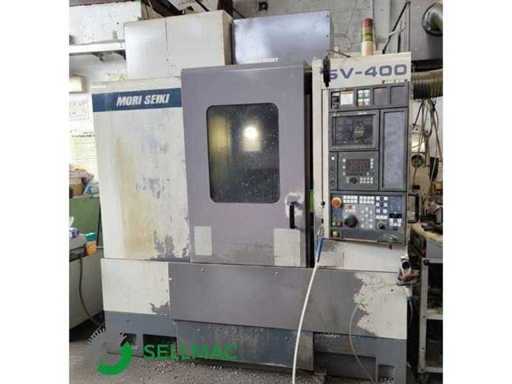

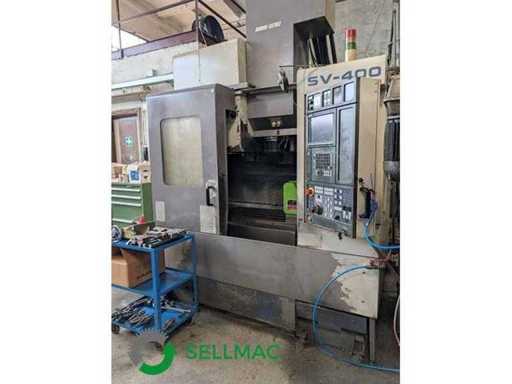

MORI SEIKI SV 400 VERTICAL MACHINING CENTER YEAR 1998

Table dimensions: 900 x 500 mm
X-axis travel (longitudinal): 600 mm
Y-axis travel (transverse): 430 mm
Z-axis travel (vertical): 460 mm
Spindle-table nose distance: 150 - 610 mm
Maximum permissible load on the table: 500 kg
Table configuration: 4 T-slots (18 mm x 100 mm center distance)

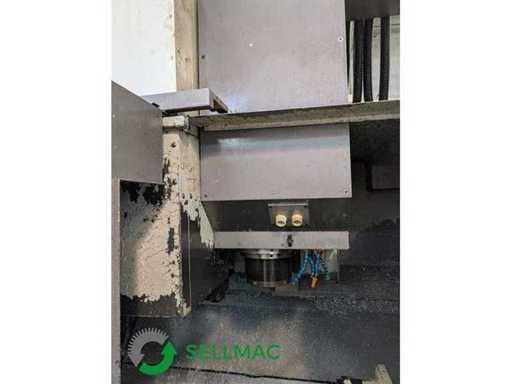

Spindle attachment: BT 40
Maximum speed: 12,000 rpm
Spindle motor power: 22 / 18.5 kW
Front bearing inner diameter: 85 mm
Number of tools in stock: 30 stations
Attachment type: BT 40
Max. tool diameter (adjacent): 80 mm
Max. tool diameter (non-adjacent): 125 mm
Max. tool length: 300 mm
Max. tool weight: 8 kg
Tool change time (chip-to-chip): 3.2 seconds
Fast feeds (X, Y, Z): 32,000 mm/min
Maximum working feed: 16,000 mm/min
Axis motor power (X/Y): 2.1 kW
Z axis motor power: 4.4 kW

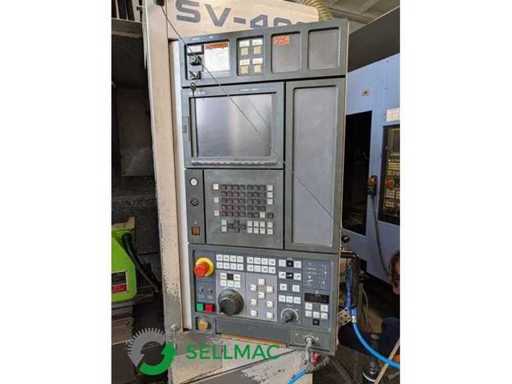

Numerical Control: MORI-FANUC (Models MSC-518 / MSC-501)
Memory: 320 meters
Functions: Helical Interpolation, Cutting Force Control (Power Monitor)
Specific Accessories
High Pressure Refrigeration: 50 bar system through the center of the tool.

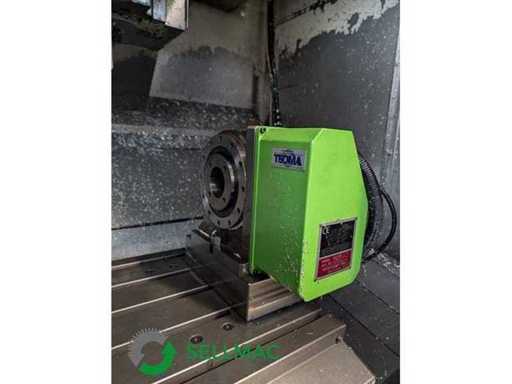

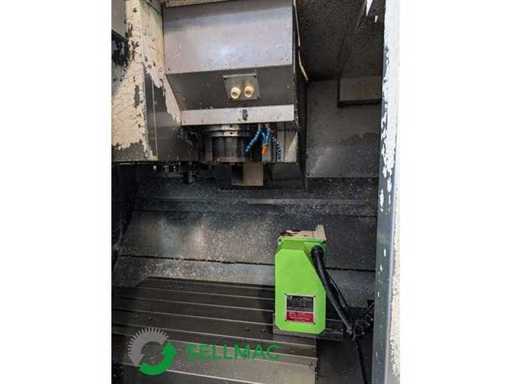

4th Axis: Tsudakoma rotary table mod. RN-150R with 200 mm sanding pad and tailstock.
Chip management: N. 2 chip conveyors with rear exit.
Air blow cleaning parts.
Integral fairing and end-of-cycle lamp.
Interface: RS 232 output for connecting external peripherals.

All technical data shown are indicative and may be changed without notice and therefore should not be considered binding
