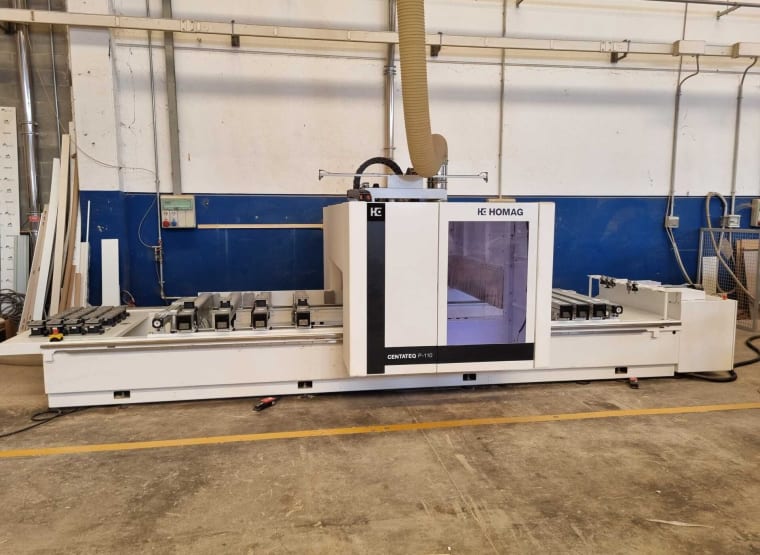

Многооперационный станок с ЧПУ (деревообработка) HOMAG CENTATEQ P-110

ATTENTION!
TOOLS NOT INCLUDED
AVAILABLE FROM 03/07/2023

Table size 4200x1250 mm
Max. working size 4200x1575 mm
2 vacuum pumps 63/76 m3/h

10KW AIR-COOLED SPINDLE

• HSK 63 attachment
• Spindle speed 1500 - 24000 rpm
• Max. power 10 kW
• C-axis 360°

VERTICAL BORING HEAD V17 HIGH SPEED 7500

• 17 vertical spindles
• Max. drilling depth 38 mm
• Max. drilling diameter 35 mm
• Distance between spindles 32 mm
• Speed 1500-7500 rpm

SCORING UNIT 0°/90°

• Blade inclination 0°/90°
• Max. cutting depth 30 mm
• Blade diameter 125 mm
• Max. blade thickness 8 mm

HORIZONTAL BORING HEAD H6X

• 6 horizontal spindles on X axis
• Max. drilling depth 38 mm
• Max. drilling diameter 20 mm
• Speed 1500-7500 rpm

• 4 horizontal spindles on Y-axis
• Max. drilling depth 38 mm
• Max. drilling diameter 20 mm
• Speed 1500-7500 rpm

TOOL CHANGER 14 POSITIONS

• Max. tool weight 6 kg
• Max. tool diameter 130 mm
• Tool change time 14 - 19 sec

LINEAR TOOL CHANGER 10 POSITIONS

• Max. tool weight 6 kg
• Max. tool length 295 mm
• Max. tool diameter 260 mm
