Dražba Machines and Accessories for Metal Processing
HBM BF 30 DRO big drilling and milling machine
Dražba je končana.
Dražba je končana
Odkrijte podobne izdelke, ki so na voljo.
Podrobnosti stroja
- Ime
- HBM BF 30 DRO big drilling and milling machine
- Številka izdelka
- 807646
- Proizvajalec
- HBM
- Model / Vrsta
- BF 30 DRO big
- Leto izdelave
- ni znano
- Izdelek na voljo od
- immediately
- Kakovost izdelka
- nikoli rabljeno/novo
- Lokacija
-
Nemčija, 46342 Velen-Ramsdorf
- Prikaži na zemljevidu
- Vsi izdelki na tej lokaciji
Cena in ugodnosti
- 100.00 €
- Cena prevoza
- ne vsebuje
- Pogoji dostave
- FCA Velen-Ramsdorf, naloženo na dostavno vozilo
- Pogoji plačila
- 100% plačilo pred prevzemom
- Varščina
Tehnične podrobnosti
- Približne mere
- 750 x 1,050 x 1,300 mm
- Približna teža
- 230 kg
Opis izdelka

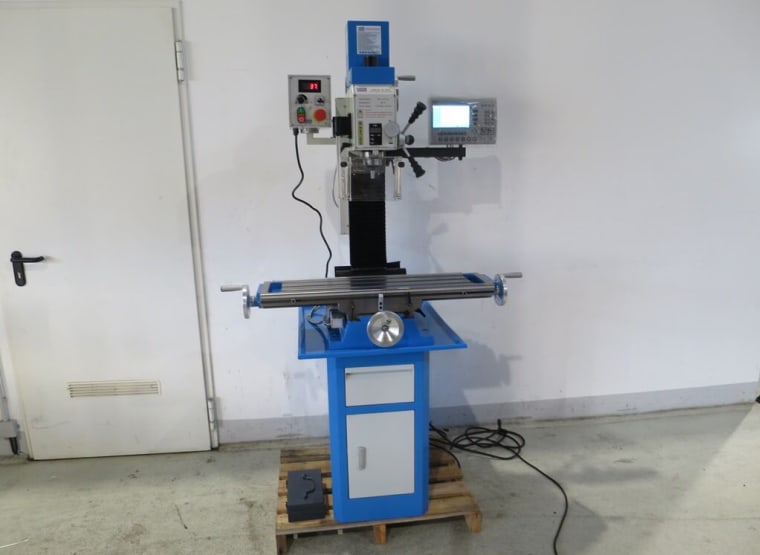

Drilling and milling machine with large table
Digital display SINO 3-axis.
Digital display quill stroke.
Powerful 2-speed motor.
Left/Right switch
Pan head left/right 90°
Recording MC 3 - B16.
Drill chuck 3 - 16 mm.
spindle protection.
incl. tool box with various tools
Drilling capacity in steel 30 mm
projection 200 mm
Drill stroke 70 mm
Capacity end mill 16 mm
Spindle mount MK3
Spindle speeds 50 - 3000 rpm
Table adjustment across 565 mm
Table adjustment longitudinal 220 mm
Table clamping area 840 x 210 mm
Connection voltage 400 V
max. distance between work table and spindle nose max. 470 mm
Total power requirement 1.1 kW
Machine weight approx. 230 kg
Space requirement approx. 0.75 x 1.05 x 1.3 m
Digital display SINO 3-axis.
Digital display quill stroke.
Powerful 2-speed motor.
Left/Right switch
Pan head left/right 90°
Recording MC 3 - B16.
Drill chuck 3 - 16 mm.
spindle protection.
incl. tool box with various tools
Drilling capacity in steel 30 mm
projection 200 mm
Drill stroke 70 mm
Capacity end mill 16 mm
Spindle mount MK3
Spindle speeds 50 - 3000 rpm
Table adjustment across 565 mm
Table adjustment longitudinal 220 mm
Table clamping area 840 x 210 mm
Connection voltage 400 V
max. distance between work table and spindle nose max. 470 mm
Total power requirement 1.1 kW
Machine weight approx. 230 kg
Space requirement approx. 0.75 x 1.05 x 1.3 m
Samodejni prevod
Podrobnosti dražbe
- Ime dražbe
- Machines and Accessories for Metal Processing
- serijska št.
- 336
- Dokumenti
- Posebni pogoji dražbe
- Pregled
-
Sreda, 15.03.2023, od 09:00 Ura do 16:00 Ura
Viewing by prior appointment only!
46342 Velen
Germany
Address on request only!
- Prevzem
-
Ponedeljek, 20.03.2023 do
Četrtek, 23.03.2023, od 09:00 Ura do 15:00 Ura
Ponedeljek, 27.03.2023 do
Četrtek, 30.03.2023, od 09:00 Ura do 15:00 Ura
