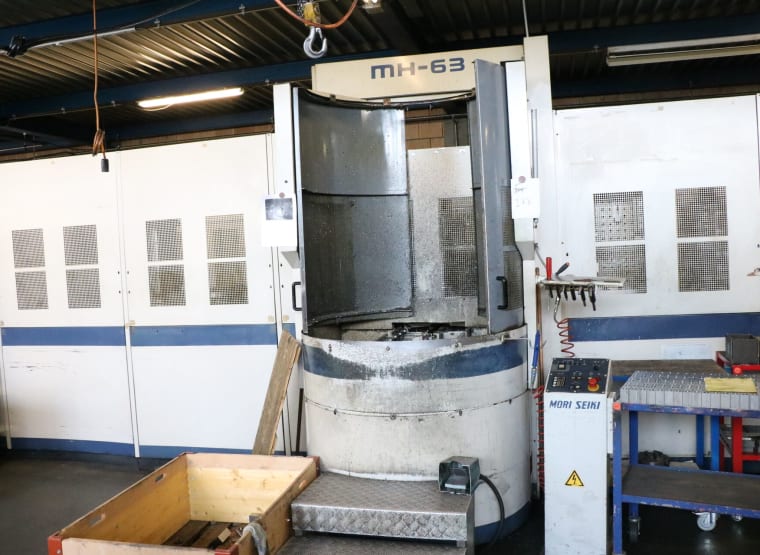

MORI SEIKI MH 63 Vodoraven obdelovalni center

With pallet station and FANUC 16 M-B CNC control, additional equipment Lock Ahead function for high feed rates
Spiral interpolation
Program memory 256 K (46 M)
400 pairs of tool offsets
Tool magazine with 180 tools
Automatic measuring system with sensors for workpiece and tool measurement (breakage monitoring)
Metal contact system
additional chip conveyor
High-pressure coolant unit 30 bar
Spindle speed 13000 rpm
Multiple pallet magazine with pallet loading station
Control and interface
Changeover device incl. full shuttering with doors
Loading station and SUVA safety device
Pallet size 630 mm
Number of pallet spaces 13 (12 + 1)
Pallet weight 330 kg
Permissible workpiece weight approx. 1500 kg
Travel X 1000 mm, Y 850 mm, Z 920 mm
Distance table to spindle 50 to 900 mm
Work table 630 x 630 mm
Spindle speed 130 to 13000 rpm
ISO 50 tool holders
Feed speeds
Rapid traverse 20000 mm/min
Feed rate 1 to 5000 mm/min
Tool changer with 180 tools
max. diameter 120 mm
max. diameter without neighbouring tools 300 mm
max. tool length 500 mm
max. tool weight 30 kg
Spindle motor 30 kW at 30 min 26 kW constant
with chip conveyor, Belt filter, Coolant pump , Transformer switch cabinet cooling.

The machine is sold without tool holders! Prikaz prevoda
