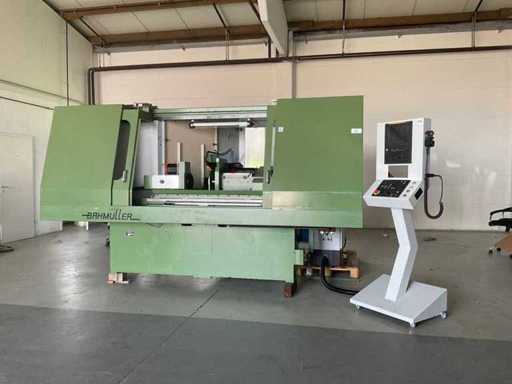

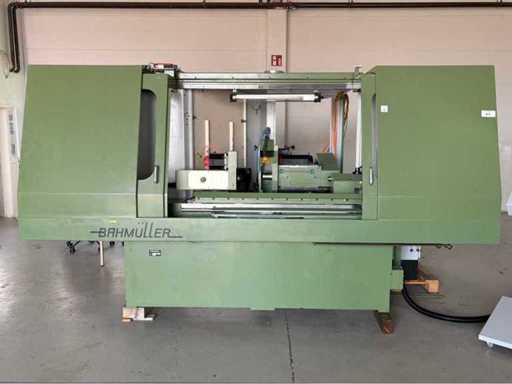

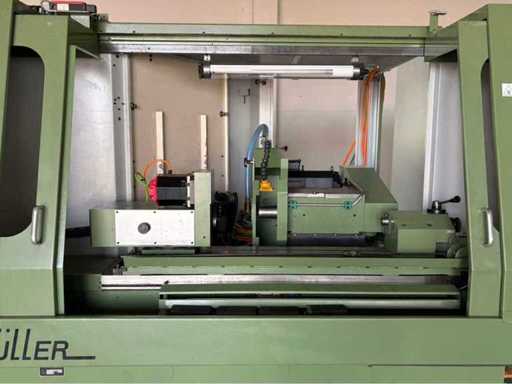

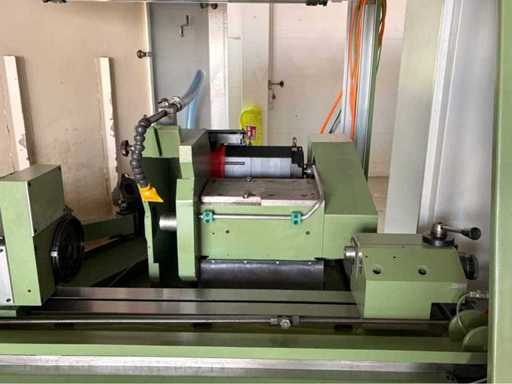

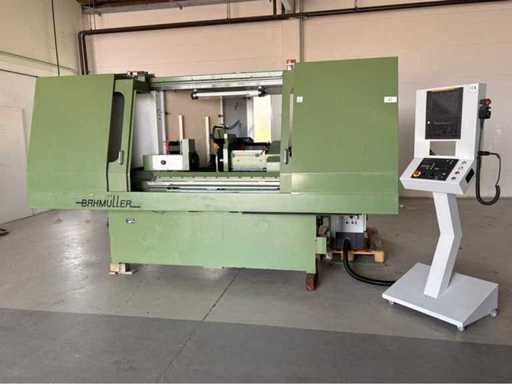

1990 BahnMüller ASP 650 - three-axis CNC rotary finishing machine overhauled
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- BahnMüller
- Type
- ASP 650
- Year of build
- 1990
- Serial number
- 120415
- CNC
- Yes
- Digital display
- Yes
- Engine power (kW)
- 20kW
- Electric connection
- 400V
- Machine weight
- 4400kg
- Terms of delivery
- Loaded on truck
Description
Equipment

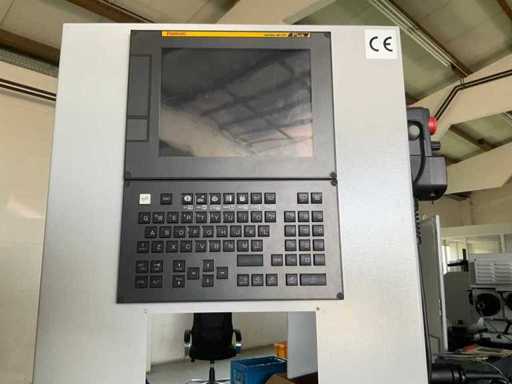

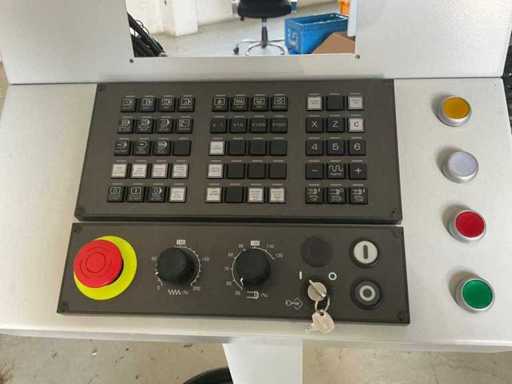

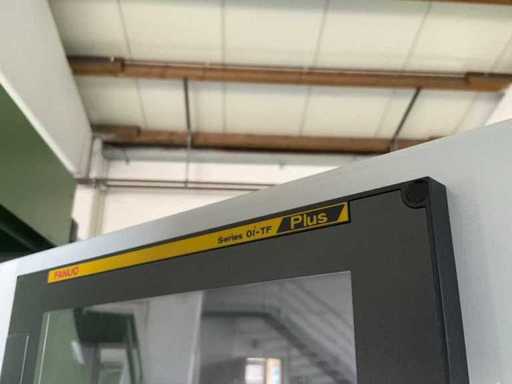

RETROFIT with new FANUC CNC Type: Oi-TF Plus
Proven mechanics combined with modern CNC control
Note: Completely overhauled on 2025 with (FlexiGrind) and new ball screws
Technical data:
Center width: 650 mm
Center height: 125 mm

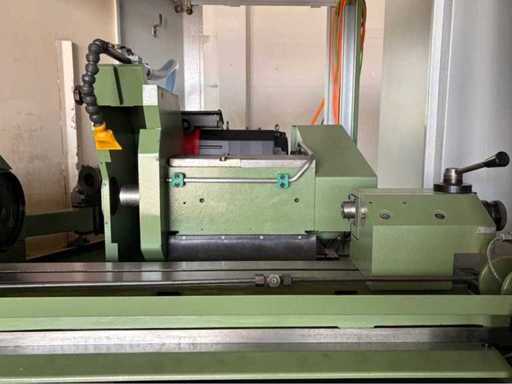

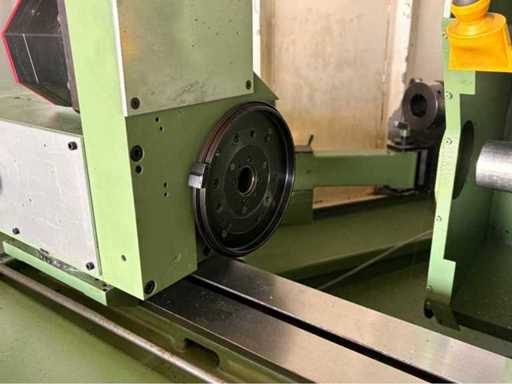

Workpiece headstock: MK 4

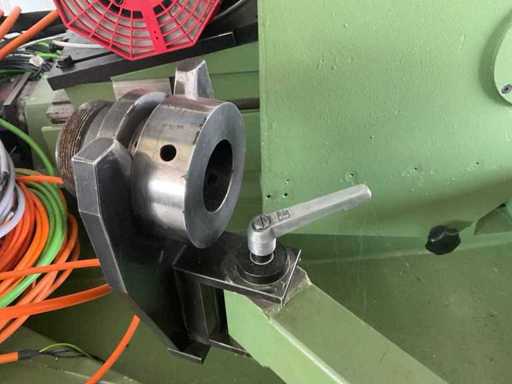

Tailstock: MK 3
Grinding wheel diameter up to 500 mm
Machine weight: approx. 3200 Kg plus approx. 1200 Kg (control cabinet
Basic equipment of the machine: Axes: X-Z- C

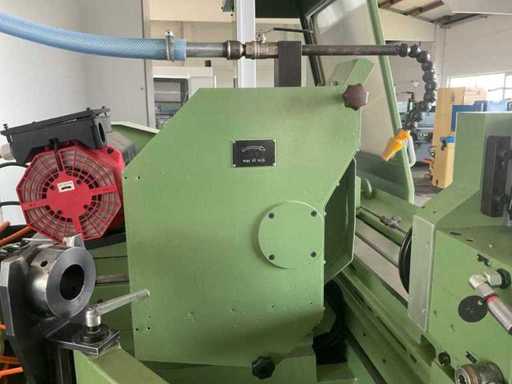

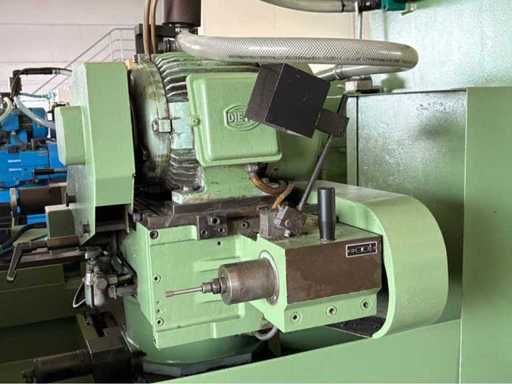

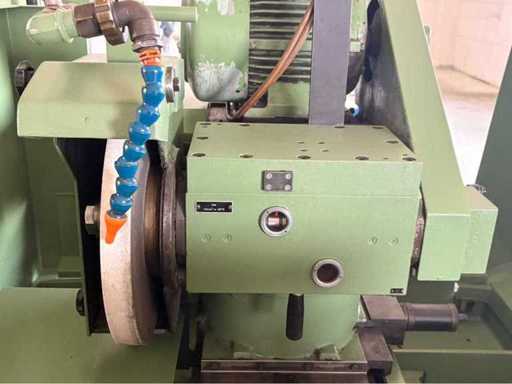

Grinding headstock: Asyncron motor Fanuc 7.5 KW
Constant grinding wheel circumferential speed: up to 50 m/s
Cutting speed pre-selectable, automatic readjustment after dressing

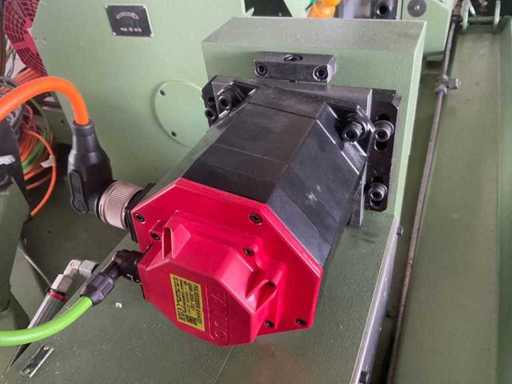

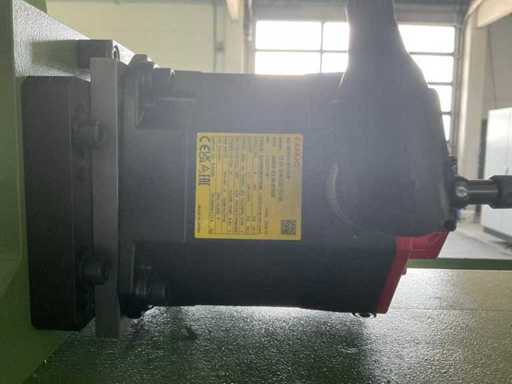

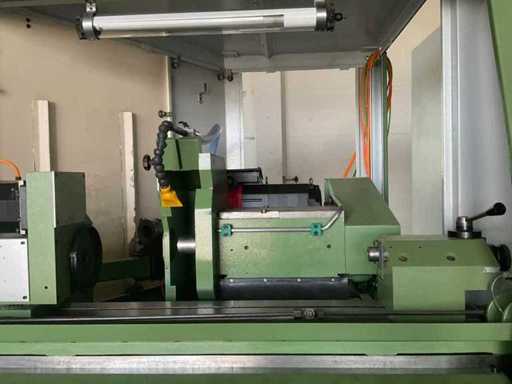

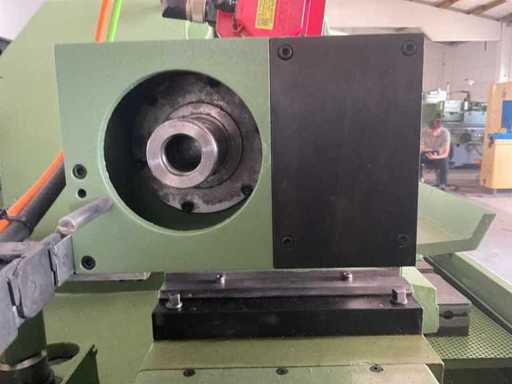

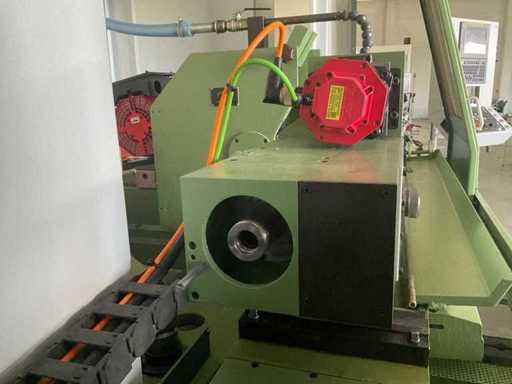

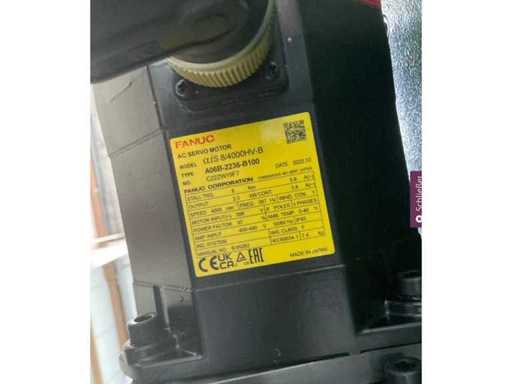

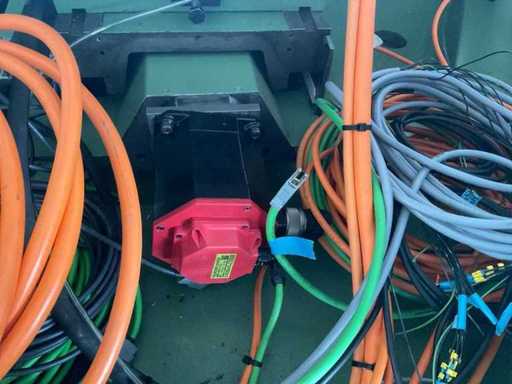

Workpiece headstock: with Fanuc servo motor
Speed range: 0-1000 rpm

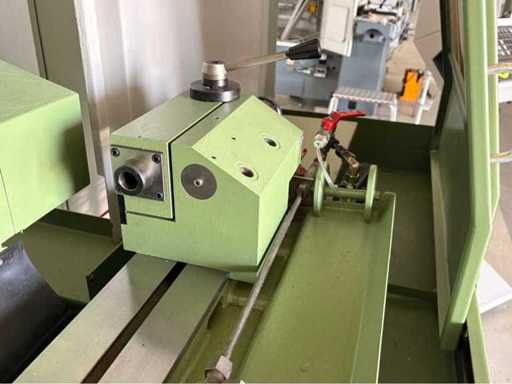

Tailstock quill stroke: 30 mm
Tailstock: MK3 with fine adjustment
CNC control: Fanuc grooving External longitudinal grinding External - Surface grinding Outside

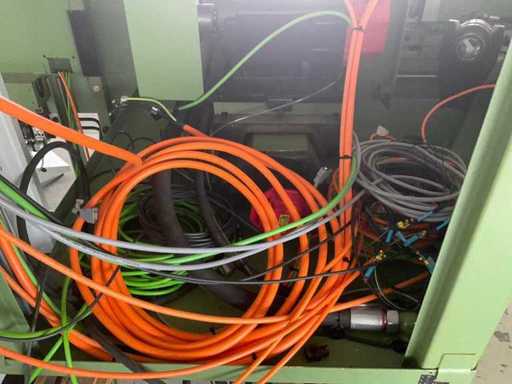

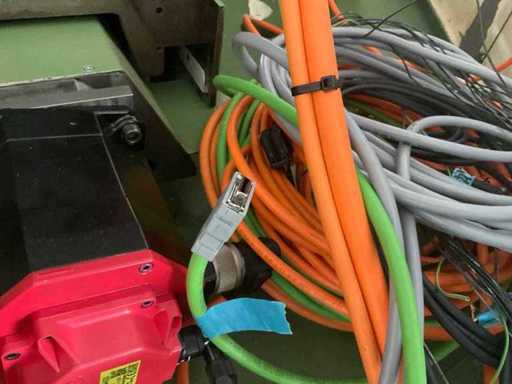

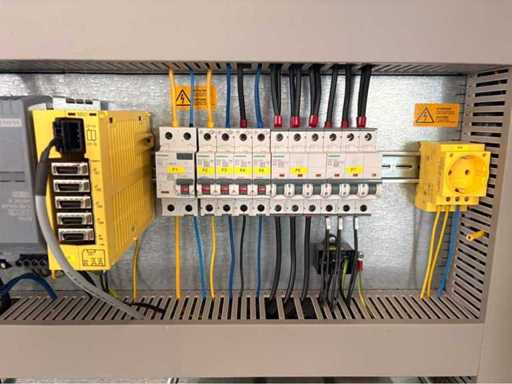

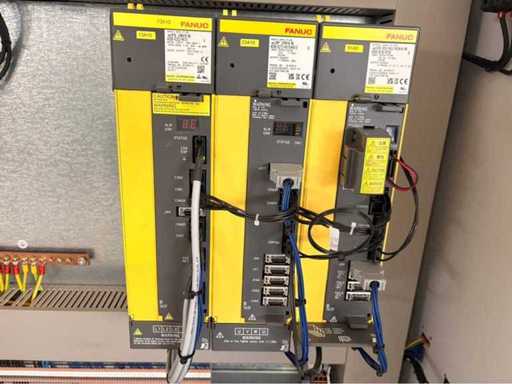

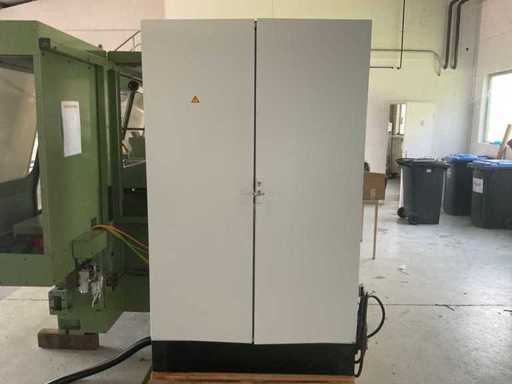

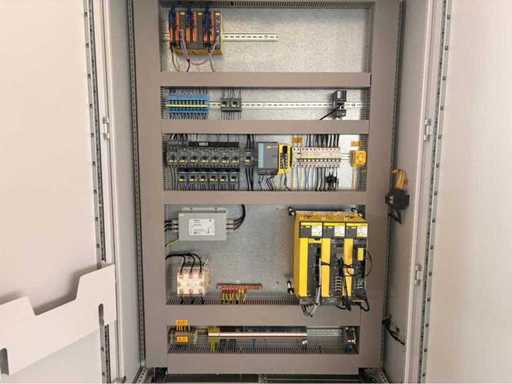

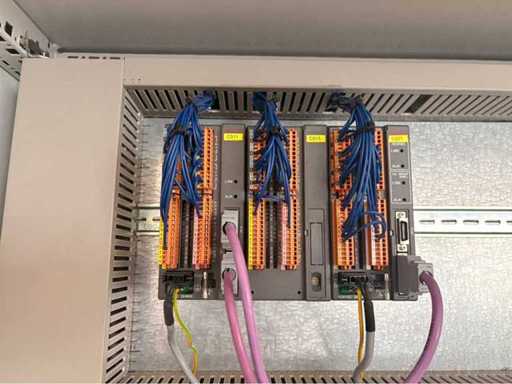

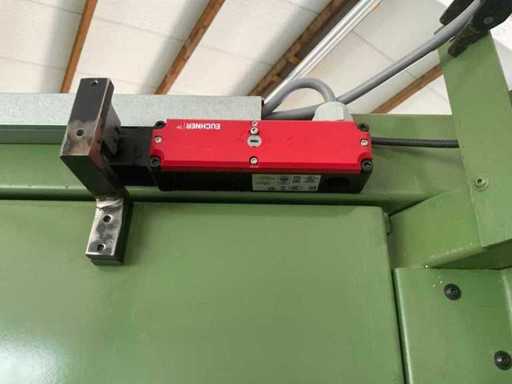

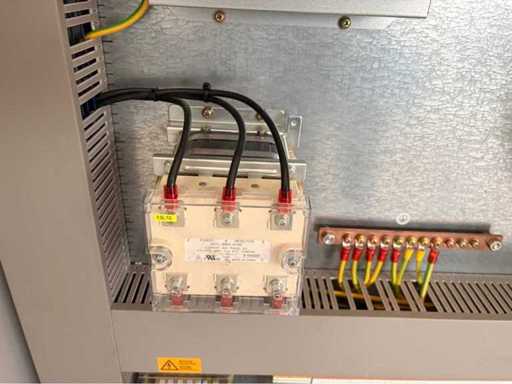

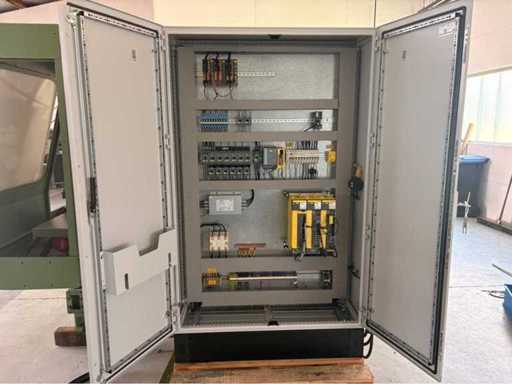

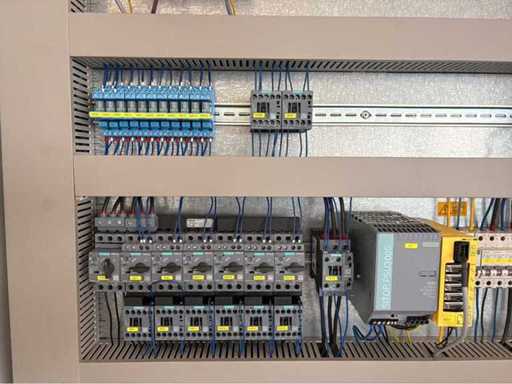

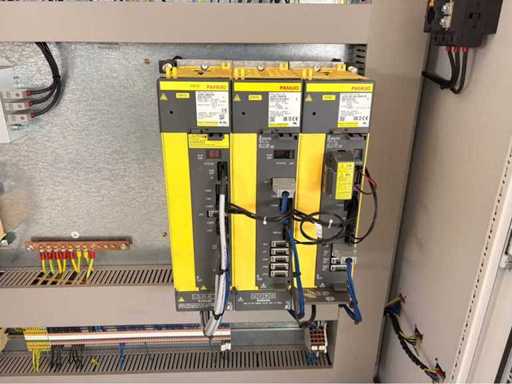

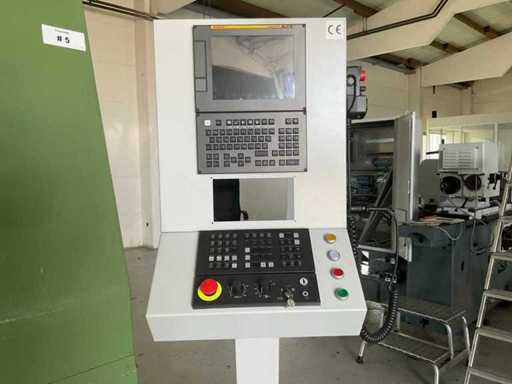

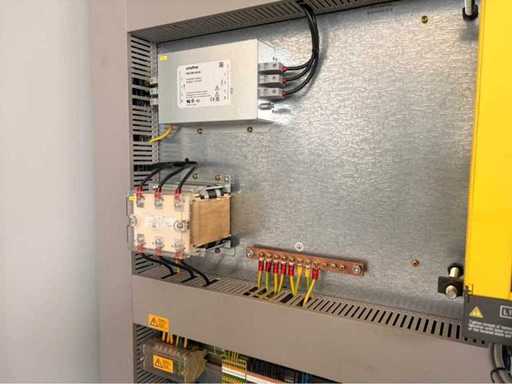

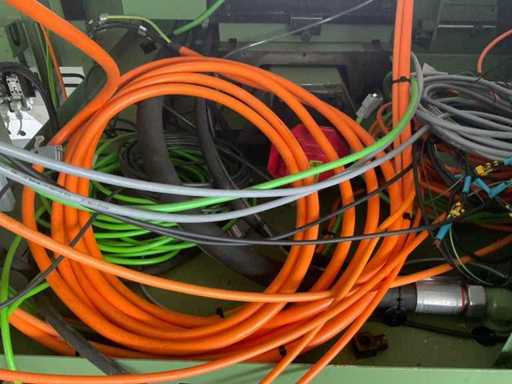

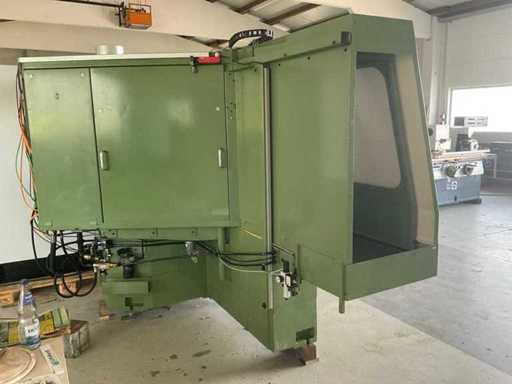

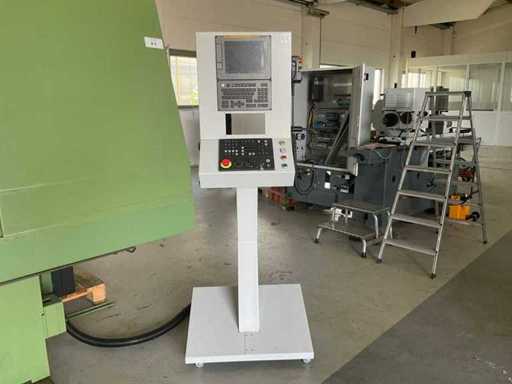

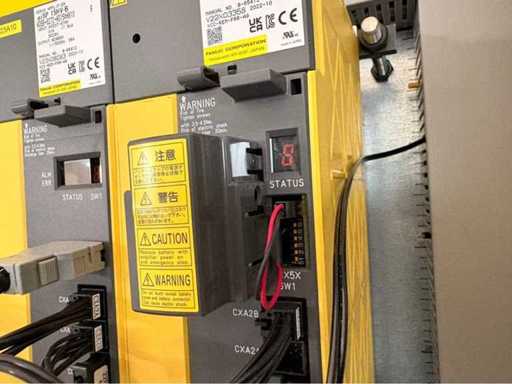

CNC control: Fanuc (FlexiGrind Controlkit) with new control cabinet, motors, cables, new Final drives: Fanuc servo, full-room cladding with generous workpiece change door and maintenance door
Dimensions (L x W x H) approx. 2900 x 1900 x 1950 mm
Disc diameter: up to 500 x 80 mm
Disc arrangement: left Axes: X, Z, C
Grinding spindle motor: 7.5 KW
RETROFIT with new FANUC CNC Type: Oi-TF Plus
Proven mechanics combined with modern CNC control
Note: Completely overhauled on 2025 with (FlexiGrind) and new ball screws
Technical data:
Center width: 650 mm
Center height: 125 mm
Workpiece headstock: MK 4
Tailstock: MK 3
Grinding wheel diameter up to 500 mm
Machine weight: approx. 3200 Kg plus approx. 1200 Kg (control cabinet
Basic equipment of the machine: Axes: X-Z- C
Grinding headstock: Asyncron motor Fanuc 7.5 KW
Constant grinding wheel circumferential speed: up to 50 m/s
Cutting speed pre-selectable, automatic readjustment after dressing
Workpiece headstock: with Fanuc servo motor
Speed range: 0-1000 rpm
Tailstock quill stroke: 30 mm
Tailstock: MK3 with fine adjustment
CNC control: Fanuc grooving External longitudinal grinding External - Surface grinding Outside
CNC control: Fanuc (FlexiGrind Controlkit) with new control cabinet, motors, cables, new Final drives: Fanuc servo, full-room cladding with generous workpiece change door and maintenance door
Dimensions (L x W x H) approx. 2900 x 1900 x 1950 mm
Disc diameter: up to 500 x 80 mm
Disc arrangement: left Axes: X, Z, C
Grinding spindle motor: 7.5 KW
Remarks
Function not checked

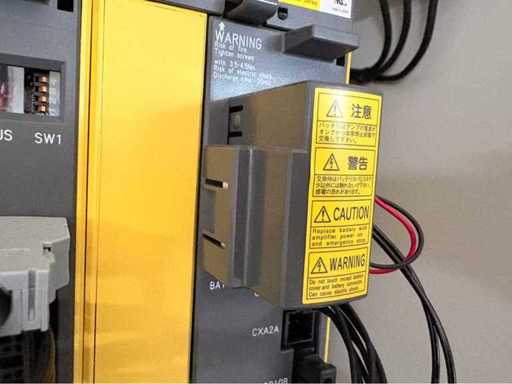

Error message displayed when Fanuc battery
is displayed Note: Recommendation. Axis fine adjustment still has to be carried out
, inspection desired.
Error message displayed when Fanuc battery
is displayed Note: Recommendation. Axis fine adjustment still has to be carried out
, inspection desired.
