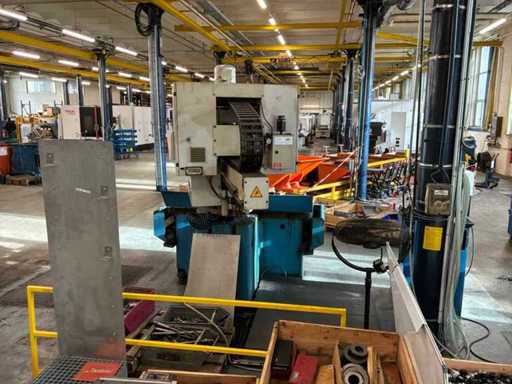

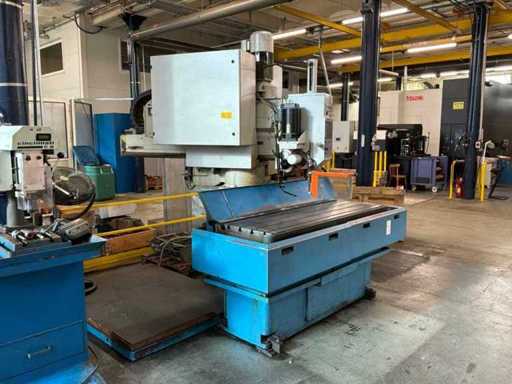

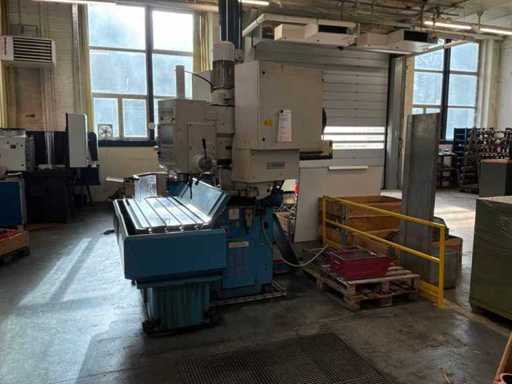

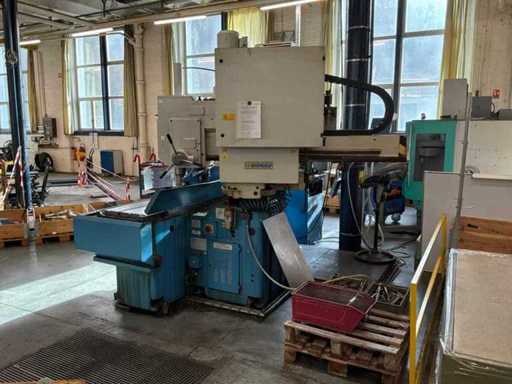

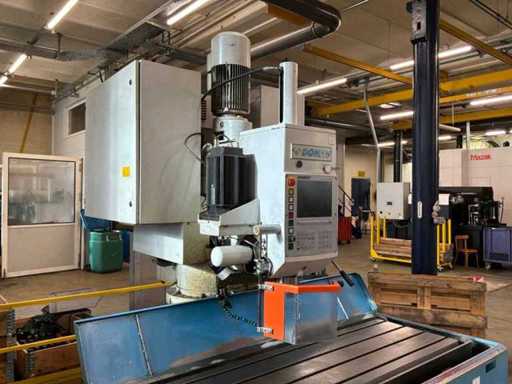

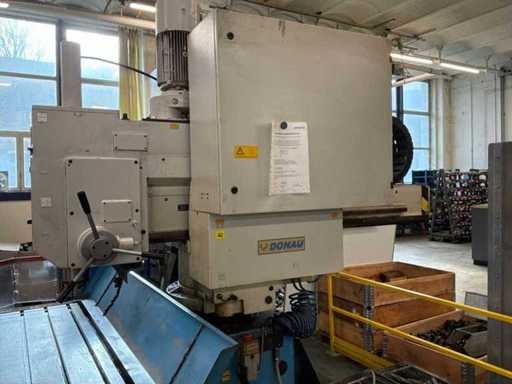

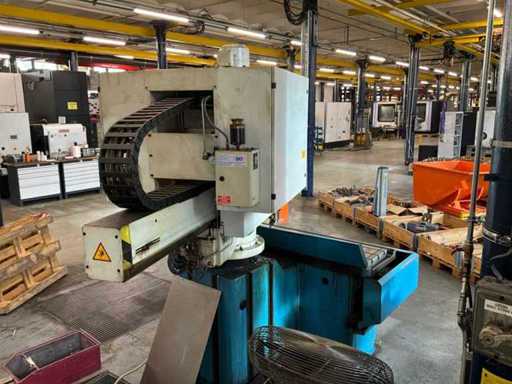

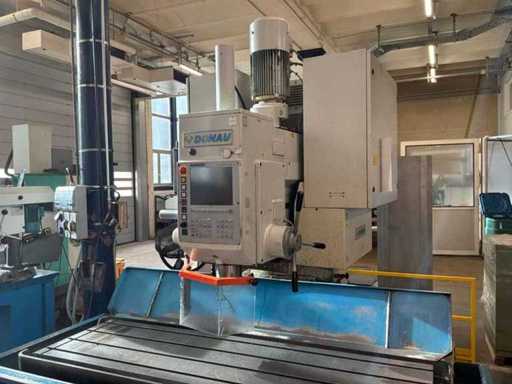

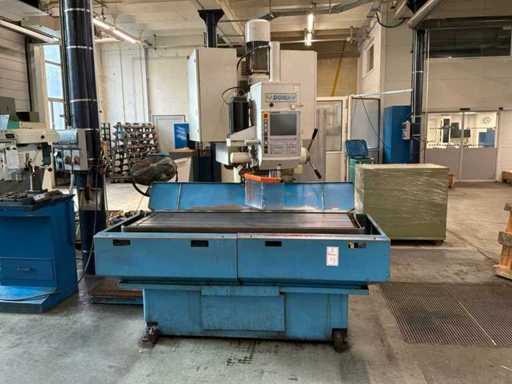

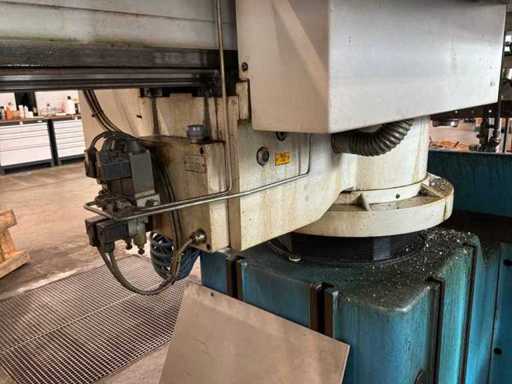

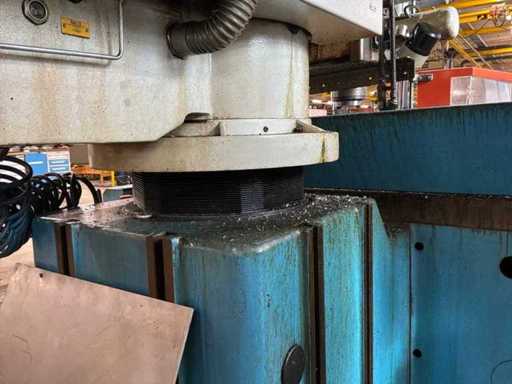

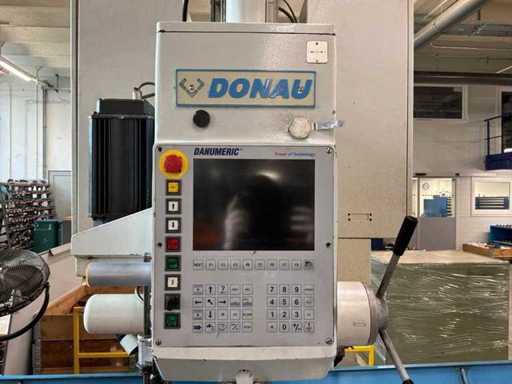

2000 DONAU Danumeric 440 CNC Radial Drill Press
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- DONAU
- Type
- Danumeric 440
- Year of build
- 2000

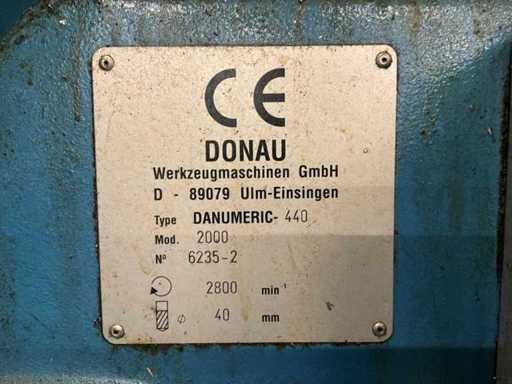

- Serial number
- 6235-2
- Drilling capacity
- 50mm
- Spindle speed from n=
- 2800rpm

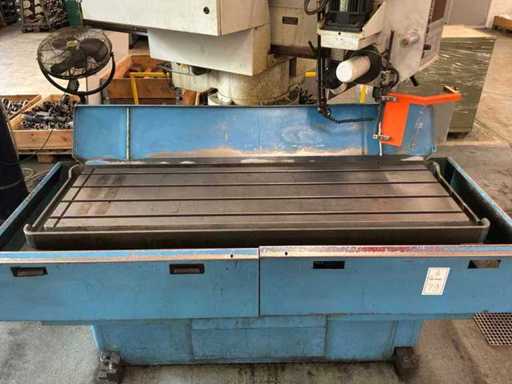

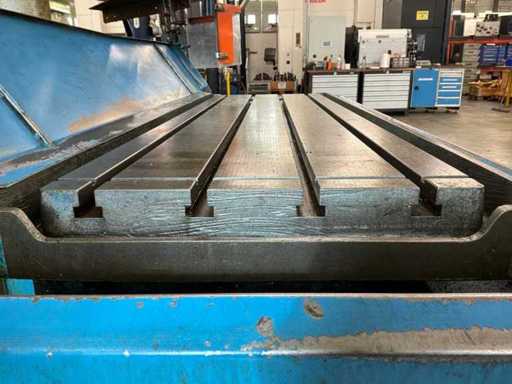

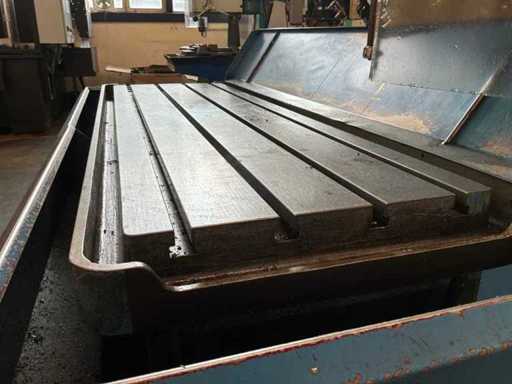

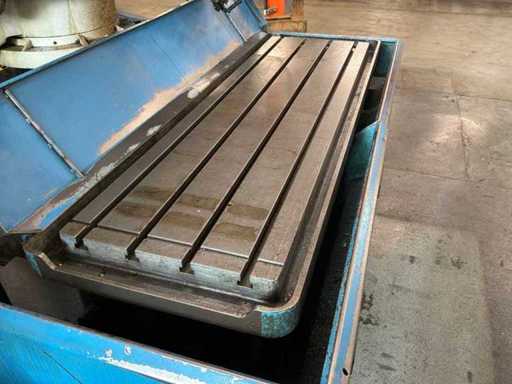

- Table size l
- 1650mm
- Table size w
- 500mm

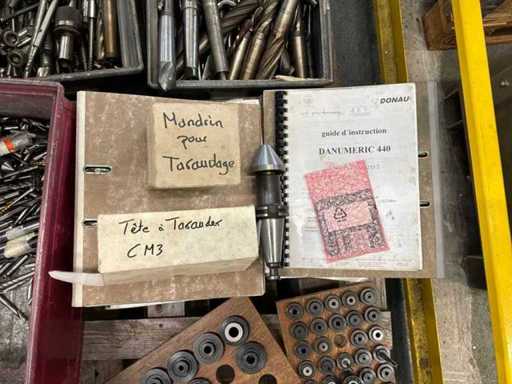

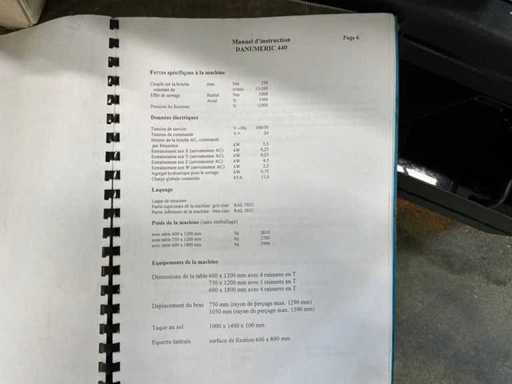

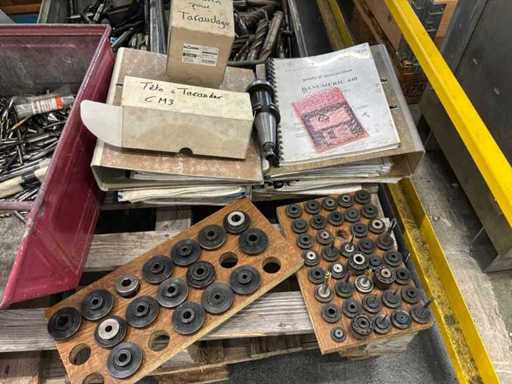

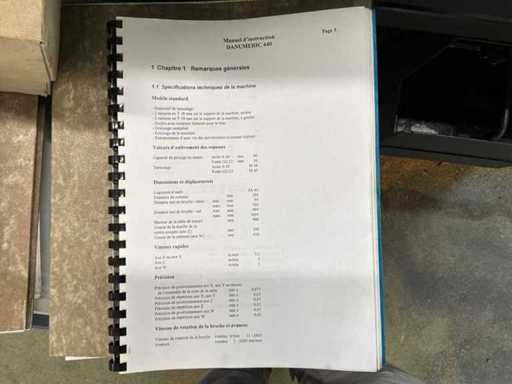

- Manual present
- Yes
- Dimension l
- 3000mm
- Dimension w
- 2800mm
- Dimension h
- 2600mm
- Terms of delivery
- Loaded on truck
Description
Data Sheet — DANUMERIC 440
| Drilling (A60 steel) | 40 mm |
|---|---|
| Drilling (GG22 cast iron) | 50 mm |
| Threading A60 Steel: M36 · Cast Iron GG22: M45 | |

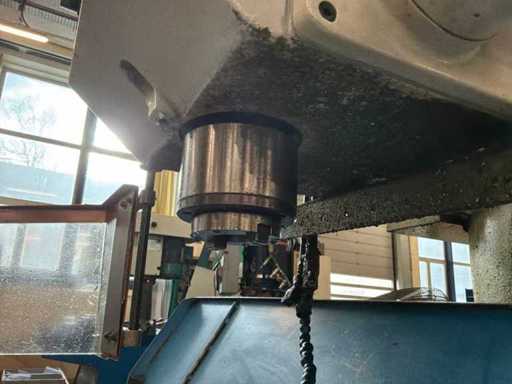

| Cone Spindle | SA 40 |
| Distance from spindle nose to table | 95 – 705 mm |
| Nose-spindle-to-ground distance | 995 – 1605 mm |
| Maximum table height | 900 mm |
| Z strokes | (sleeve) 200 mm · W 410 mm |
| Fast X | /Y speeds 7.5 m/min · Z 5 m/min · W 3 m/min |
| Precision | Pos. X/Y ±0.075 mm · Rep. ±0.03 mm · Z pos. ±0.05 mm |
| Spindle / feeds | 15–2800 rpm · 5–2000 mm/min |
| Max torque spindle | 250 Nm |
| Radial 5000 N forces · Axial 5500 N · Sleeve 12000 N | |
| Power supply / load | 400 V/50Hz · 24V control · 13 kVA Charging |

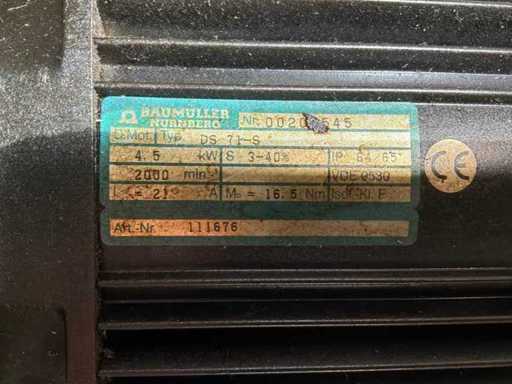

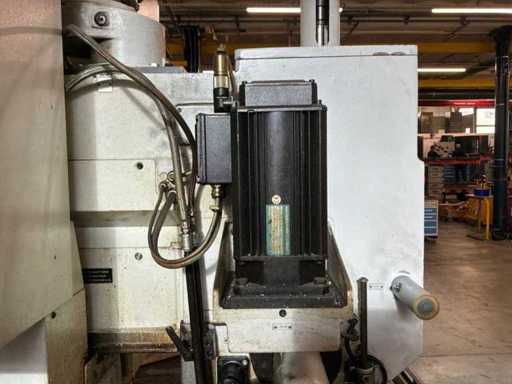

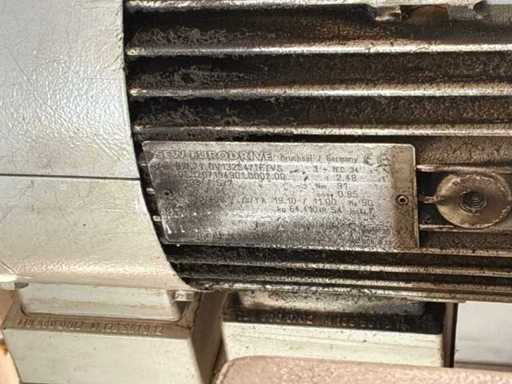

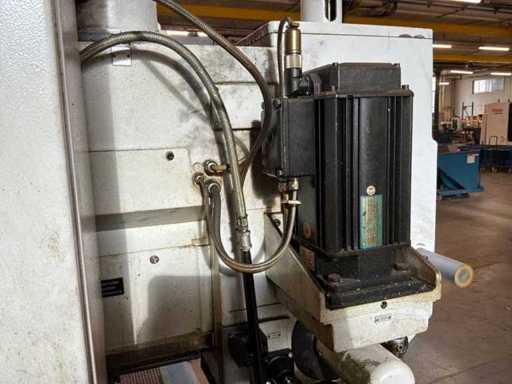

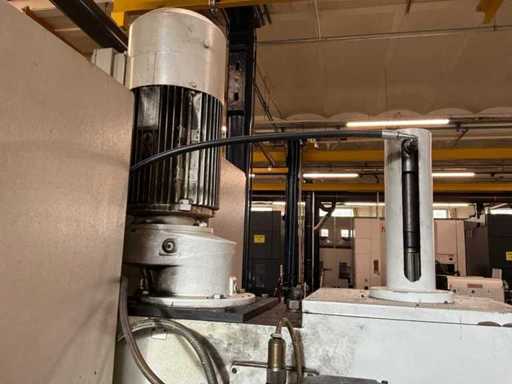

| Motors (kW) | Spindle 5.5 · X 0.25 · Y 0.25 · Z 4.5 · W 2.5 |
| Weight (depending on table) | 2610 / 2700 / 2900 kg |

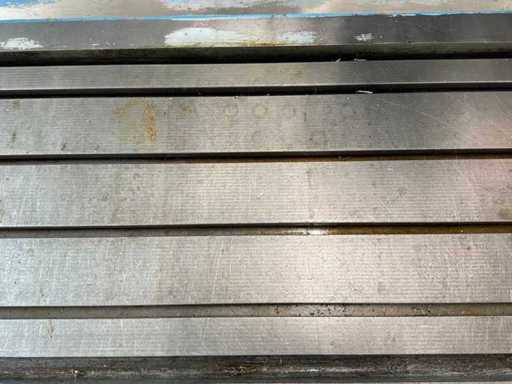

| Tables / dimensions | 600×1200 · 750×1200 · 600×1800 mm |
Additional details
The dimensions and weights shown for each batch are provided as a guide and correspond to the current (assembled) condition of the equipment.
Disassembly, handling or packaging can change these values and impact transport conditions.
Prior to any transport booking, buyers are asked to check the actual specifications of the lots directly with the seller or the dismantling company to ensure proper organisation.
Pick-ups will be made after full payment of the invoice and only by appointment.
