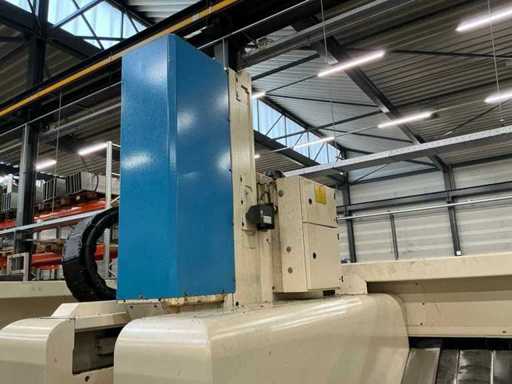

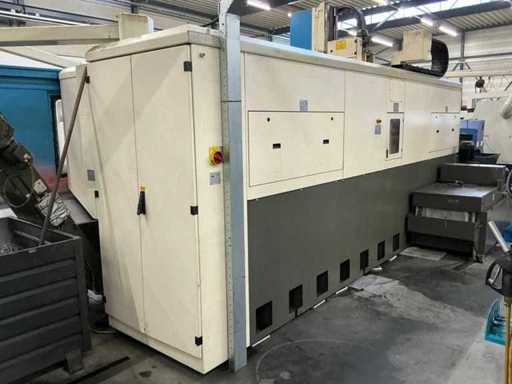

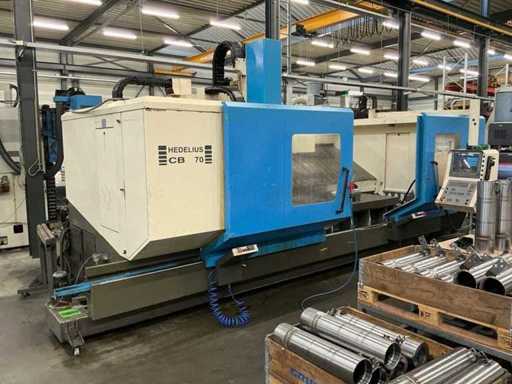

2000 Hedelius CB70-3200 Bed milling machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Hedelius
- Type
- CB70-3200
- Year of build
- 2000

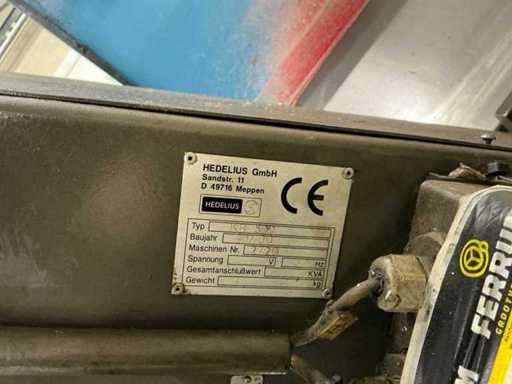

- Serial number
- 003057
- Travel x-axis
- 3200mm
- Travel y-axis
- 720mm
- Travel z-axis
- 600mm
- Speed from n=
- 30rpm
- Speed till n=
- 8000rpm
- T-slot fixture table size L
- 125mm
- T-slot fixture table size W
- 18mm
- Workpiece weight max.
- 3000kg
- Coolant pump
- Yes
- Engine power (kW)
- 50kW
- Electric connection
- 380V
- Machine weight
- 14000kg
Description

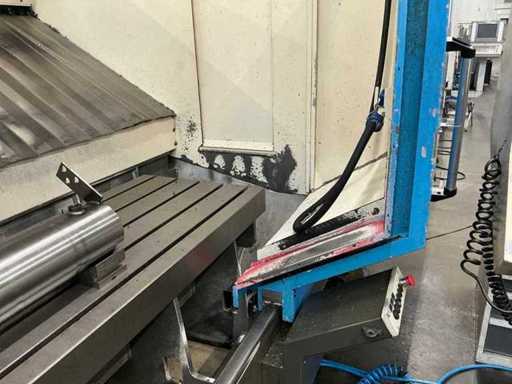

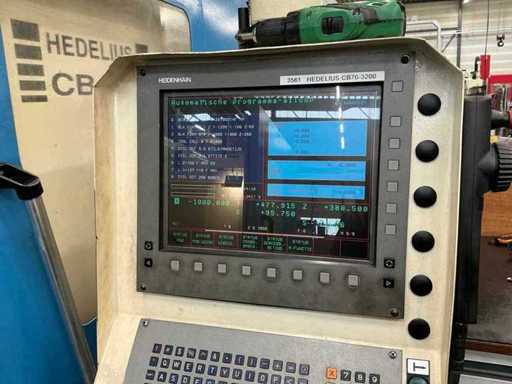

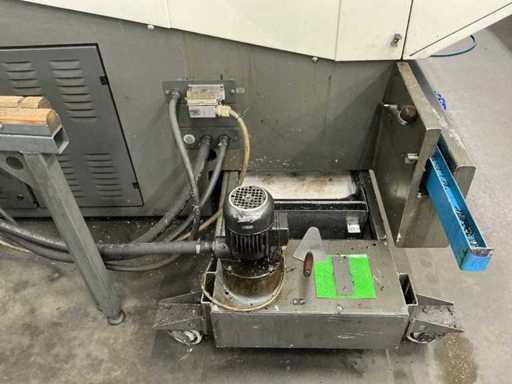

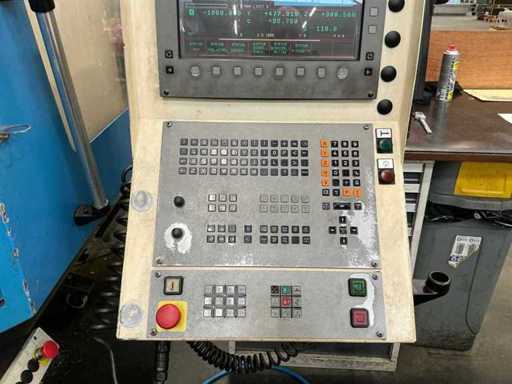

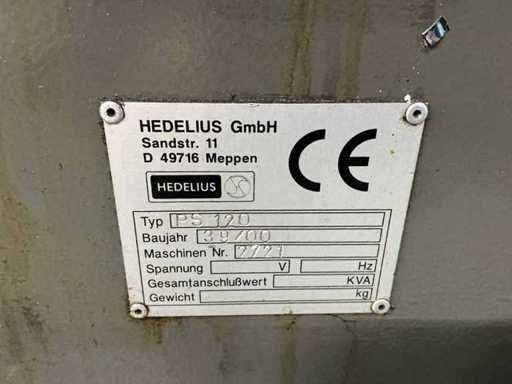

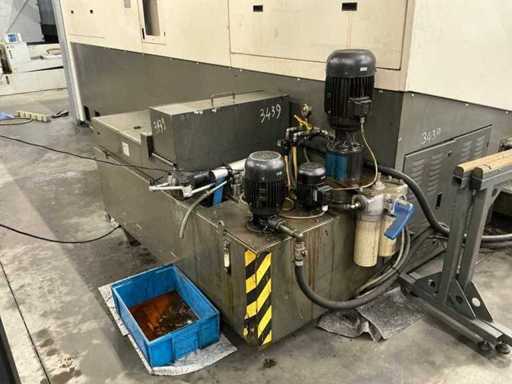

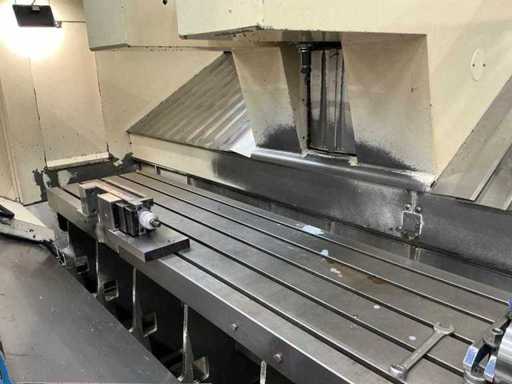

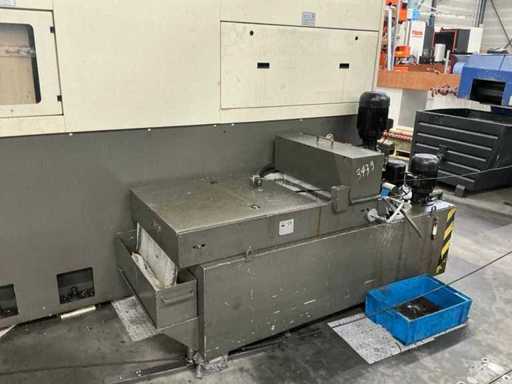

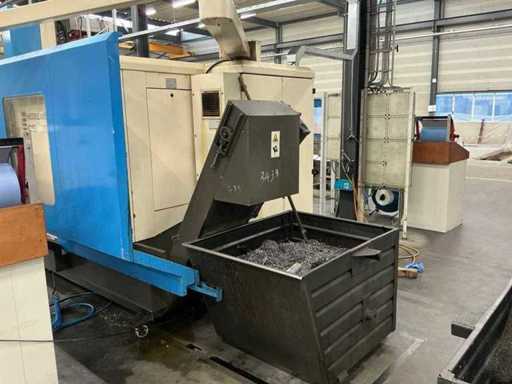

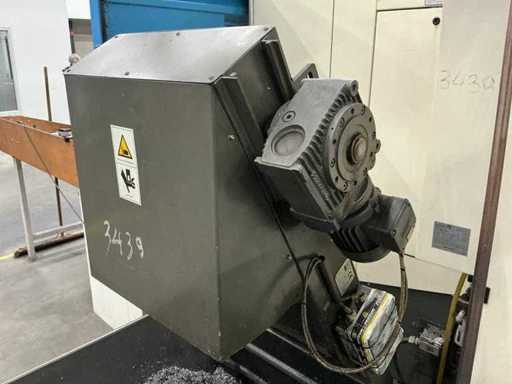

Equipped with: type CB 70 - 3200, year of construction: 2000, CNC, control Heidenhain TNC, dimensions: 7200 x 3400 x 3100 mm (length x width x height), X-travel: 3200 mm, Y-travel: 720 mm, Z-travel: 600 mm, table height: 900 mm, number of T-slots: 5, max. Workpiece weight: 3000 kg, max. Tool length: 330 mm, clamping area: 3900 x 650 mm, T-slot width: 18 mm, T-slot distance: 125 mm, spindle speed: 30 - 8000 rpm, max. torque: 102 x 240 Nm, feed rates X/Y/Z axis: 30000 mm/min, rapid displacement X/Y/Z: 30 / 30 / 30 mm/min, total power requirement: 50 kW, filter installation PS 120, year of construction 2000, Hedelius KB500 chip conveyor.
Remarks
The machine can be viewed working by appointment.
Additional details
The collection of the purchased goods is done as follows:
After receiving your payment, the seller will contact you to make a pick-up appointment. You will then receive the exact address.
The city and province where the plots are located is indicated with the plot.
The minimum age for visiting the collection days is 18 years. Visitors must be able to identify themselves.
There is no right of withdrawal. See the Auction Terms and Conditions for more information.
No viewing day will be organized for this auction.
For each lot, an administration fee of € 100 will be charged.
Video

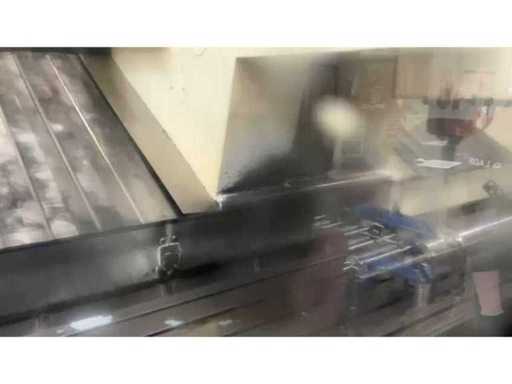

See the details and take a closer look at the item in this video.
