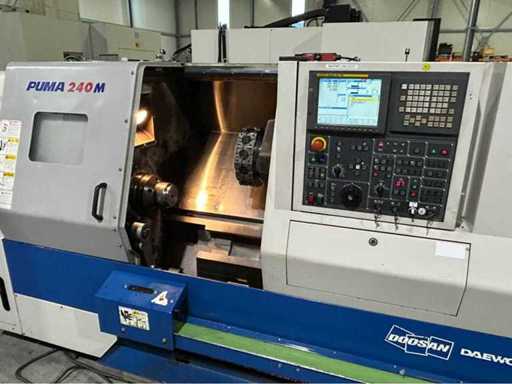

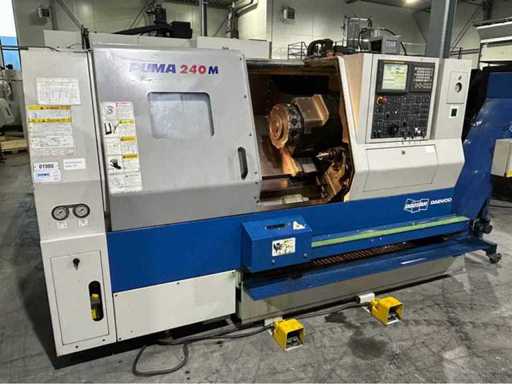

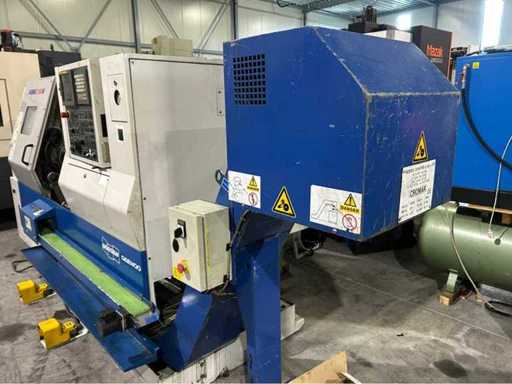

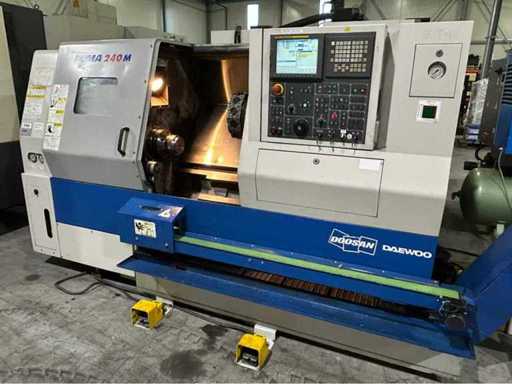

2006 Doosan Puma 240M CNC lathe
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Doosan
- Type
- Puma 240M
- Year of build
- 2006

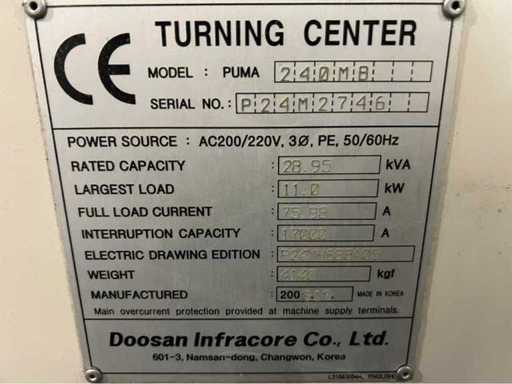

- Serial number
- P24M2746
- Turning Ø
- 300mm
- Turning length
- 513mm
- Spindle boring Ø
- 65mm
- Speed till n=
- 4500rpm
- Number of tool changer stations
- 12

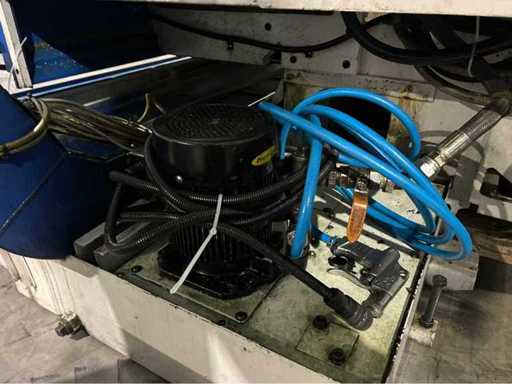

- Coolant pump
- Yes
- Chip conveyor
- Yes

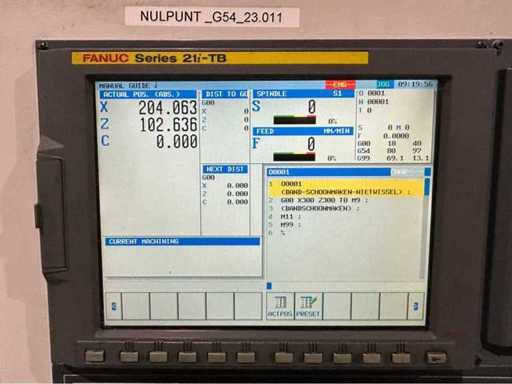

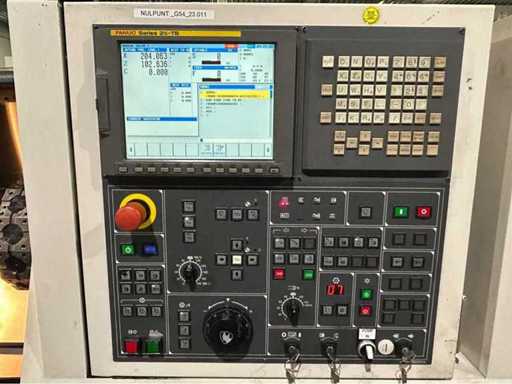

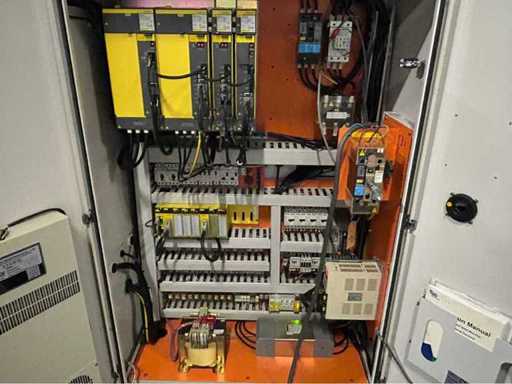

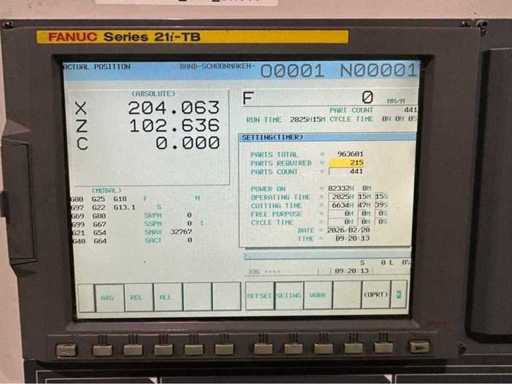

- CNC control, brand, type

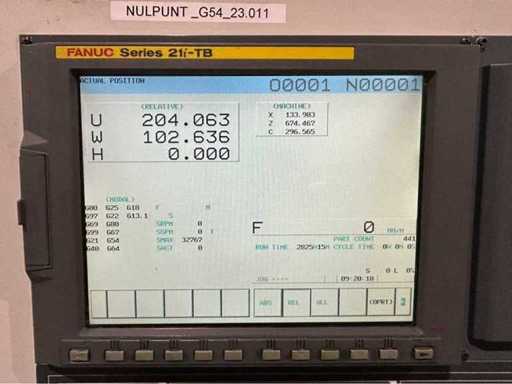

- Fanuc Series 21i-TB
- Engine power (kW)
- 18.5kW
- Electric connection
- 400V
- Manual present
- Yes
- Machine weight
- 4140kg
- Dimension l
- 4350mm
- Dimension w
- 1600mm
- Dimension h
- 1740mm
Description
Capacity:
Swing over bed: 550mm
Swing over saddle: 390mm
Max. Turning diameter: 300mm
Max. Turning length: 513mm
Bar working diameter: 65mm
Travels:
X-axis: 205mm
Z-axis: 580mm

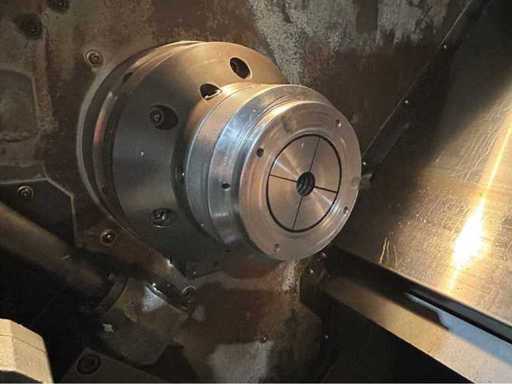

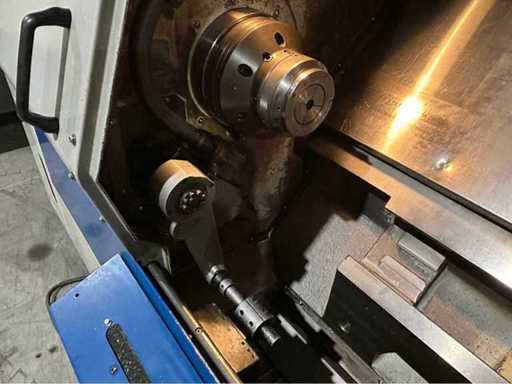

Main spindle:
Spindle speed: 4500rpm
Spindle nose: A2#6
Spindle bearing diameter: 110mm
Spindle through hole: 76mm
C-axis indexing: 0,001°

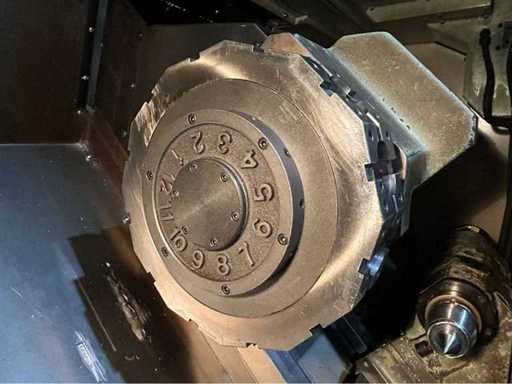

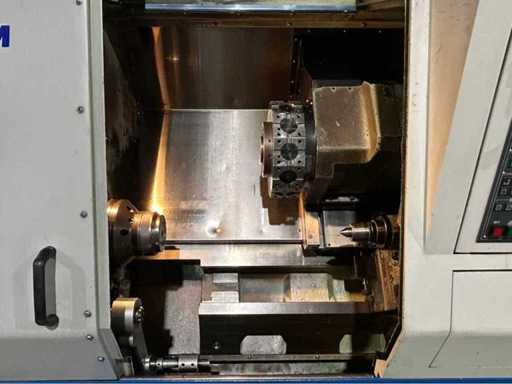

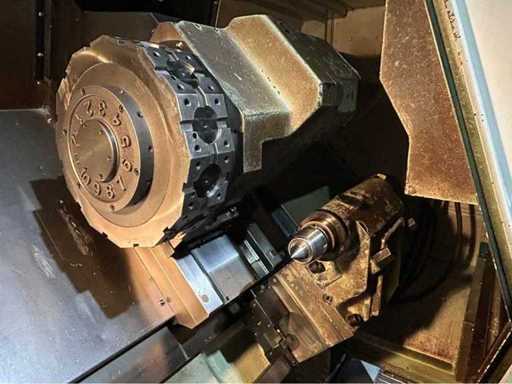

Turret:
Positions on turret: 12
OD size: 25mm
Boring bar diameter: 40mm
Indexing time: 0,15cm
Rotary tool spindle speed: 5000rpm

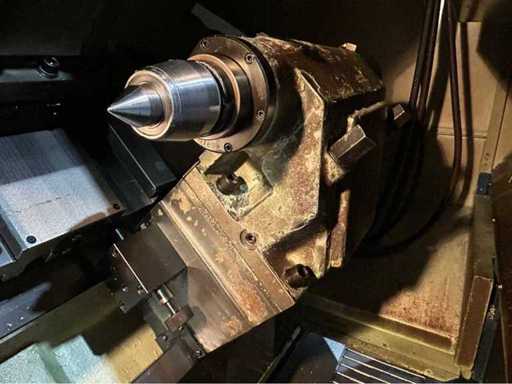

Tailstock:
Quill diameter: 75mm
Quill bore taper: MT#4
Quill travel: 80mm
Machine is equipped with:

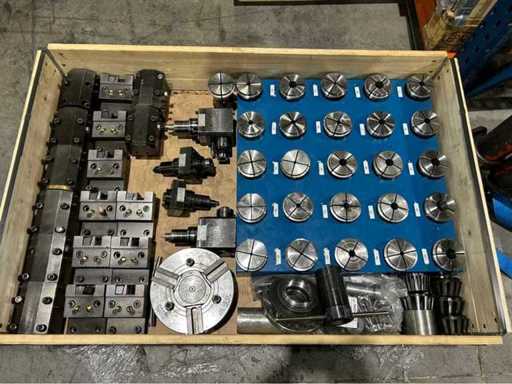

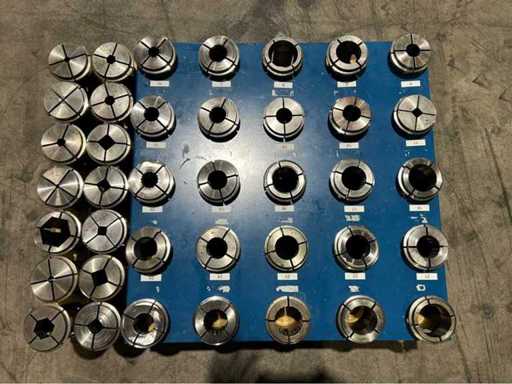

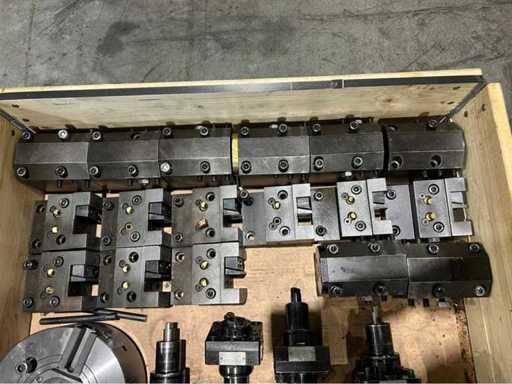

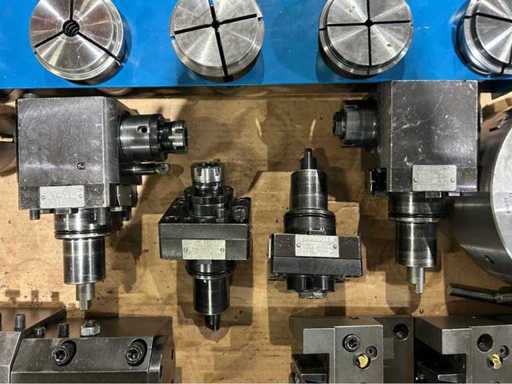

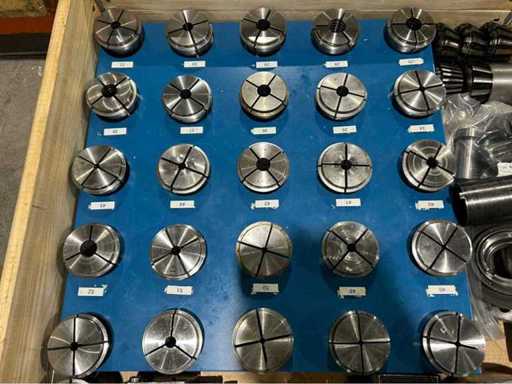

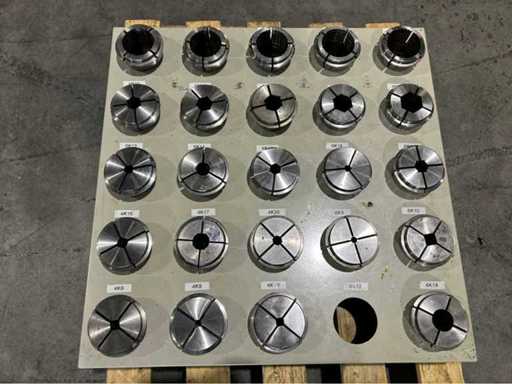

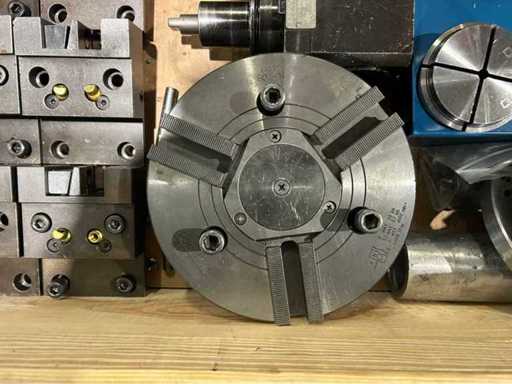

- lots of tooling ( see last pictures )
- tool setter
- part catcher
- part conveyor
- chip conveyor
Remarks
Please note: Machines without accessories, unless explicitly stated.
Machine quality not tested. To be sure what's included, ask in advance or come to the viewing day!
