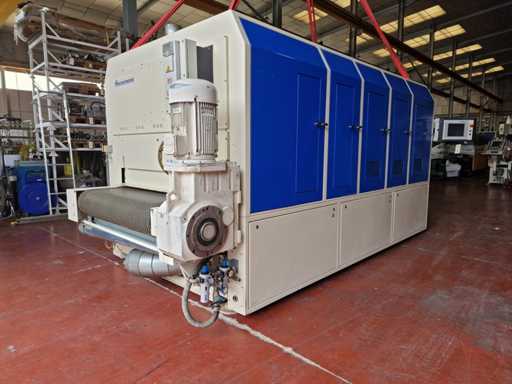

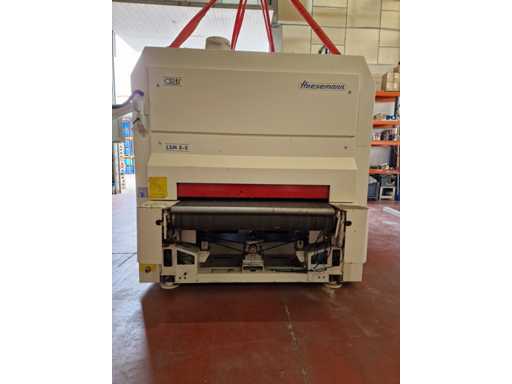

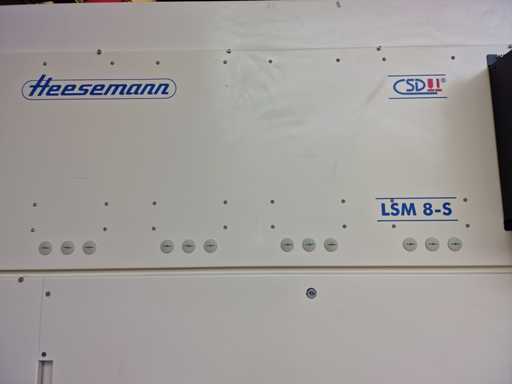

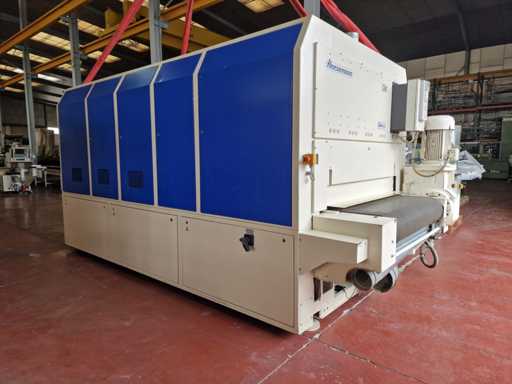

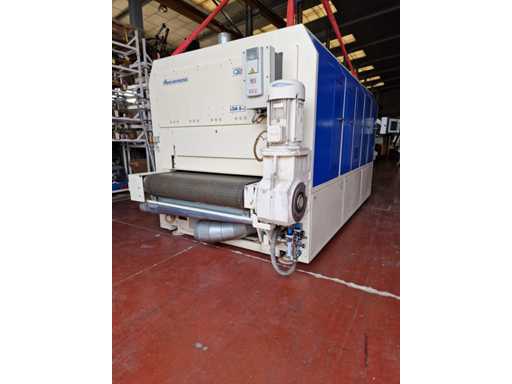

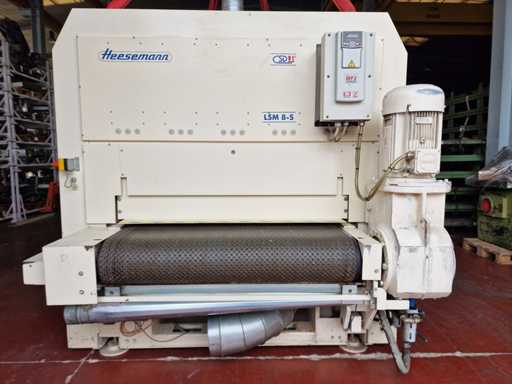

2007 HEESEMANN LSM 8 S Calibrating Sander
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No

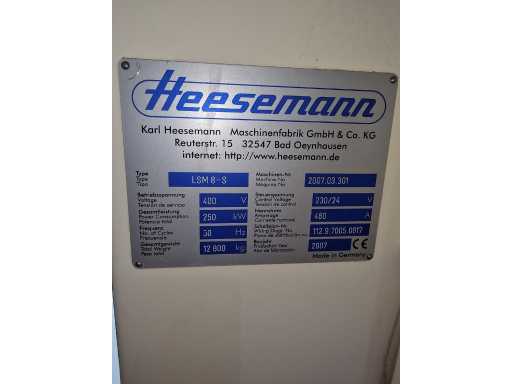

- Brand
- HEESEMANN
- Type
- LSM 8 S
- Year of build
- 2007
- Serial number
- 2007.03.301
- Working width
- 1300mm
- Sanding heigth max.
- 160mm
- Feed rate
- 5-25m/min
- Electric connection
- 380V
- Manual present
- Yes
- Machine weight
- 12800kg
- Dimension l
- 5020mm
- Dimension w
- 2350mm
- Dimension h
- 2450mm
- Terms of delivery
- Loaded on truck
Description
- Total installed power 250 KW.

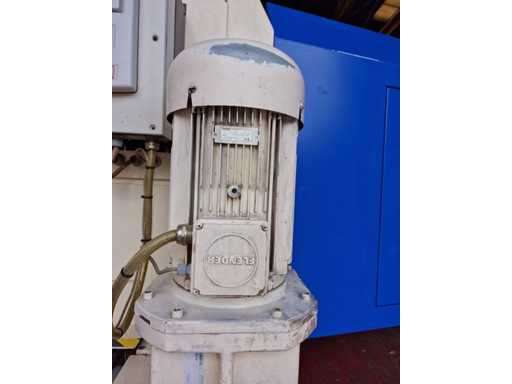

- Motorized height positioning.

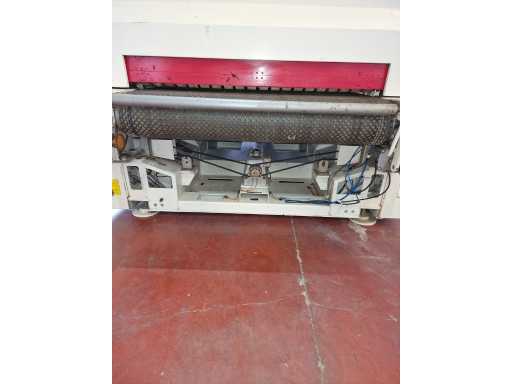

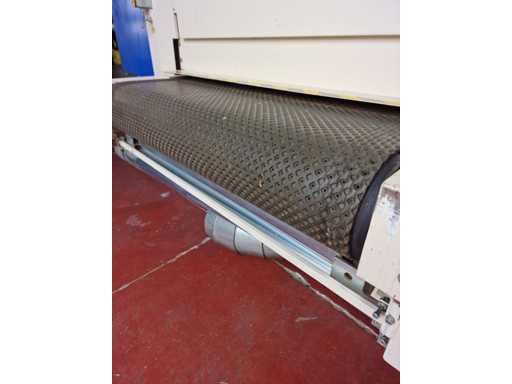

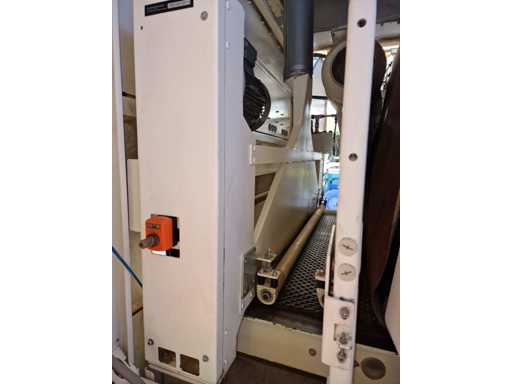

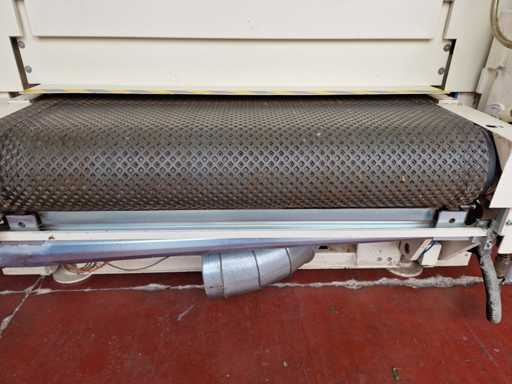

- Transport table with vacuum, 15 KW depressor.
- Variable feed speed from 5 m/min to 25 m/min.

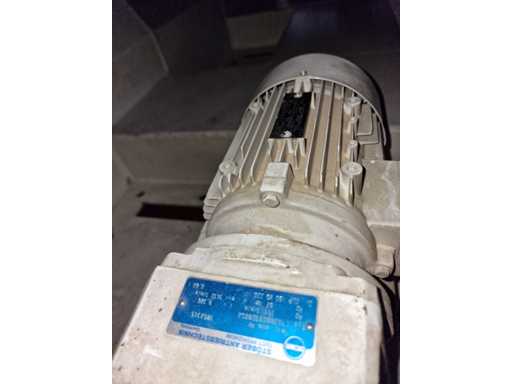

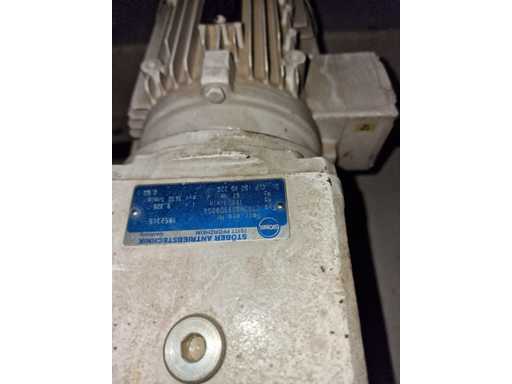

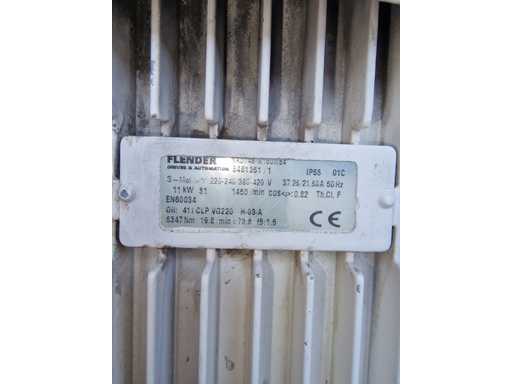

- 11 KW advance motor.
- Workpiece detection device: provides the machine control system with information about the shape and size of the workpieces to be processed as well as their position on the conveyor belt.

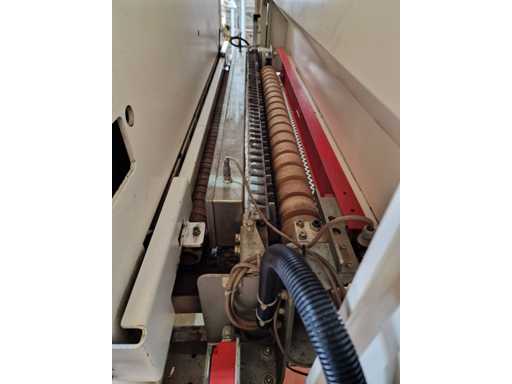

- Group 1: grooved steel gauging roller, 55 KW motor.
- Group 2: grooved steel gauging roller, 55 KW motor.
- Group 3: grooved steel gauging roller, 55 KW motor.

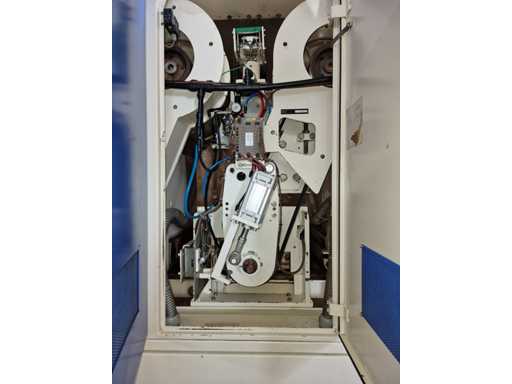

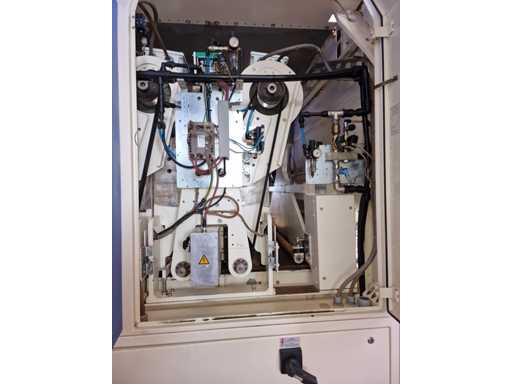

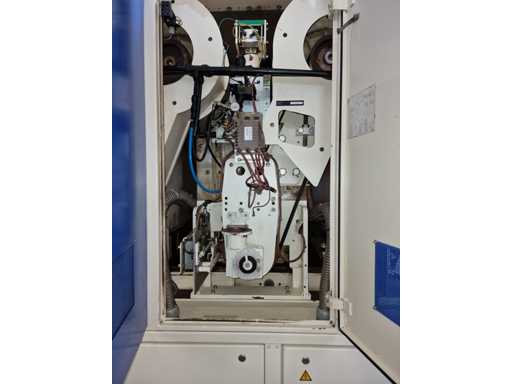

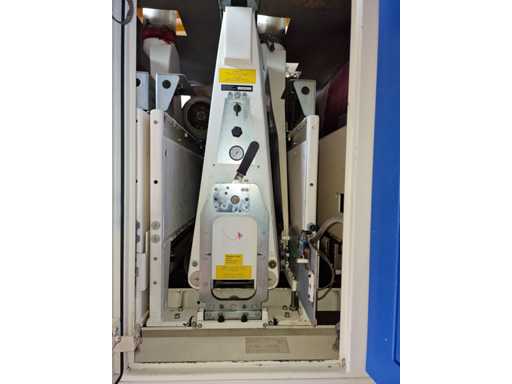

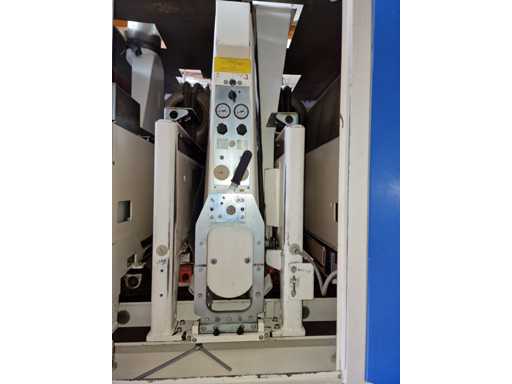

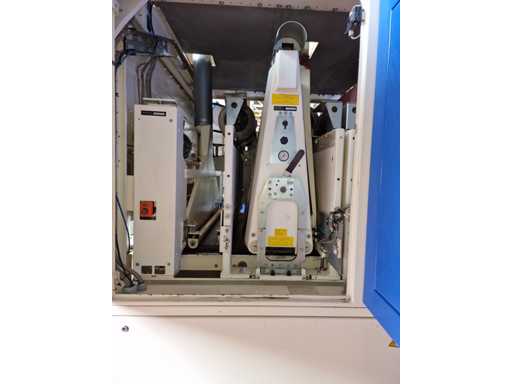

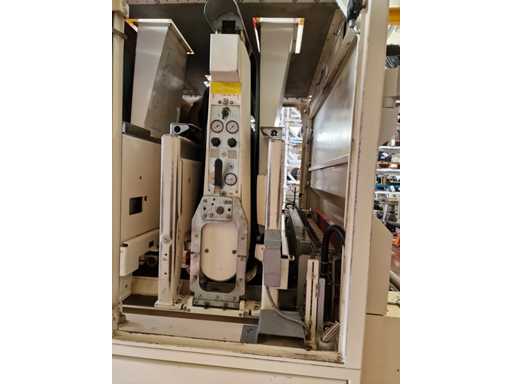

- Group 4: longitudinal sanding unit with CSD pressure system, belt dimensions 2620 x 1350 mm, 16.50 KW motor.
- Group 5: longitudinal sanding unit with CSD pressure system, belt dimensions 2620 x 1350 mm, 16.50 KW motor.
- Group 6: cleaning brush, 1.50 KW motor.

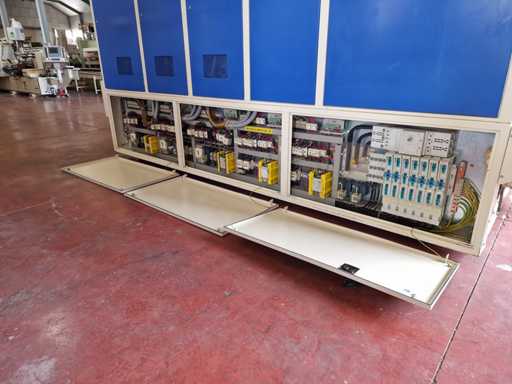

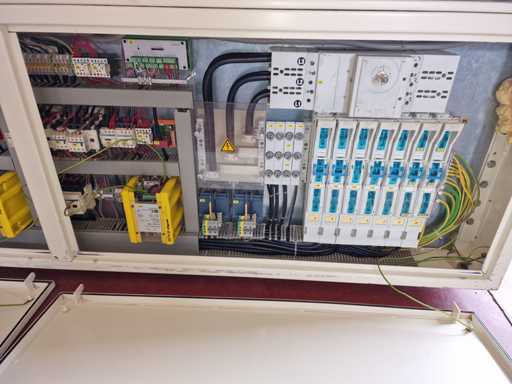

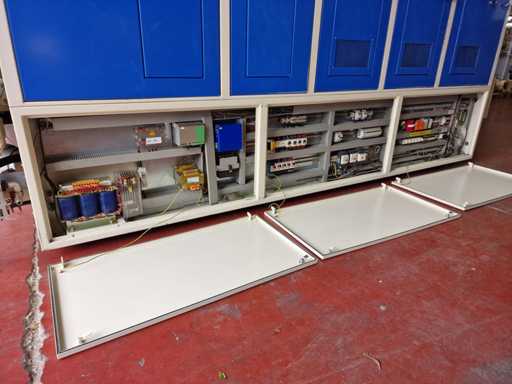

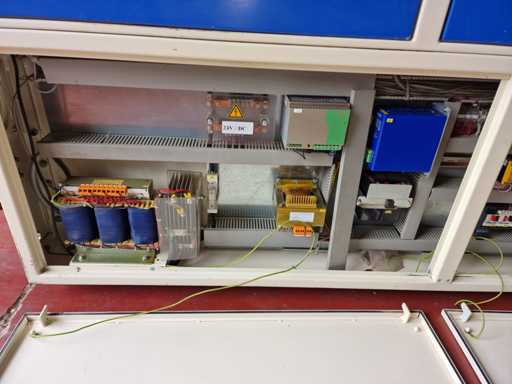

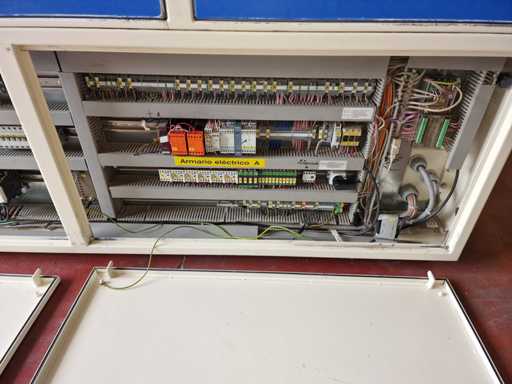

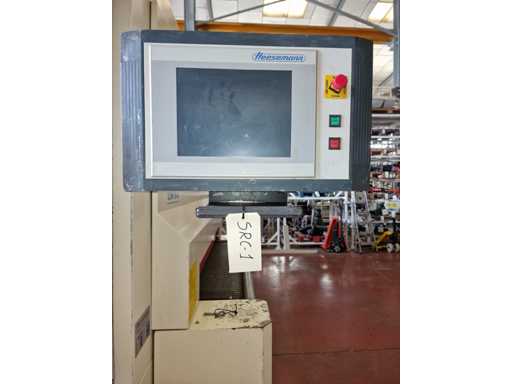

- PC Control with touch screen.
- Operating conditions of this machine: unchecked.
- This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs.
- Motorized height positioning.
- Transport table with vacuum, 15 KW depressor.
- Variable feed speed from 5 m/min to 25 m/min.
- 11 KW advance motor.
- Workpiece detection device: provides the machine control system with information about the shape and size of the workpieces to be processed as well as their position on the conveyor belt.
- Group 1: grooved steel gauging roller, 55 KW motor.
- Group 2: grooved steel gauging roller, 55 KW motor.
- Group 3: grooved steel gauging roller, 55 KW motor.
- Group 4: longitudinal sanding unit with CSD pressure system, belt dimensions 2620 x 1350 mm, 16.50 KW motor.
- Group 5: longitudinal sanding unit with CSD pressure system, belt dimensions 2620 x 1350 mm, 16.50 KW motor.
- Group 6: cleaning brush, 1.50 KW motor.
- PC Control with touch screen.
- Operating conditions of this machine: unchecked.
- This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs.
Additional details
All items are sold as used and unchecked.
For more detailed information, please refer to the auction terms and conditions.
Contact for technical inquiries and appointment request for visits:
Emilio Sobrado
Email: e.sobrado@tbauctions.com
Pick-up is only possible on the following dates and by appointment: from 20.10.2025 to 24.10.2025 from 9:00 a.m. to 1:00 p.m. and from 3:30 p.m. to 6:00 p.m.
