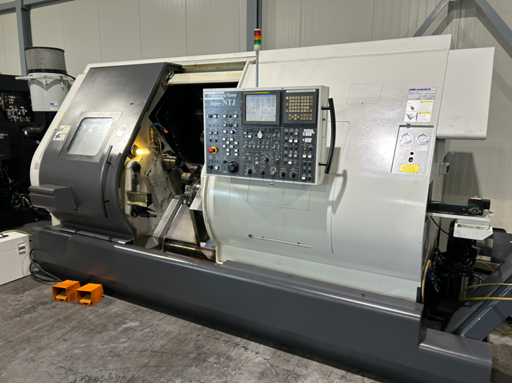

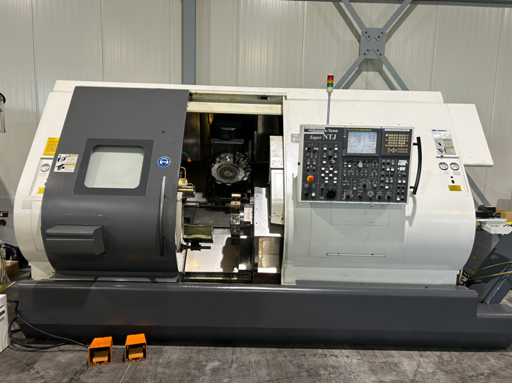

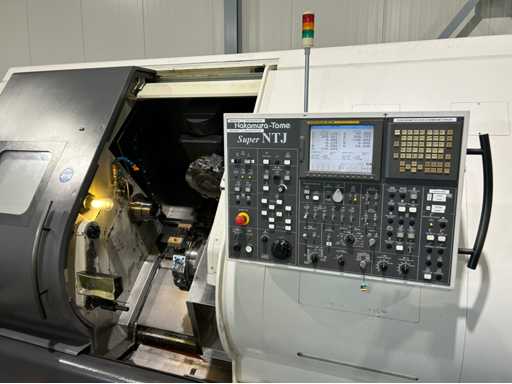

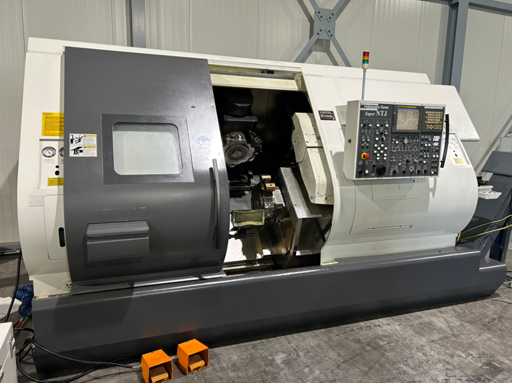

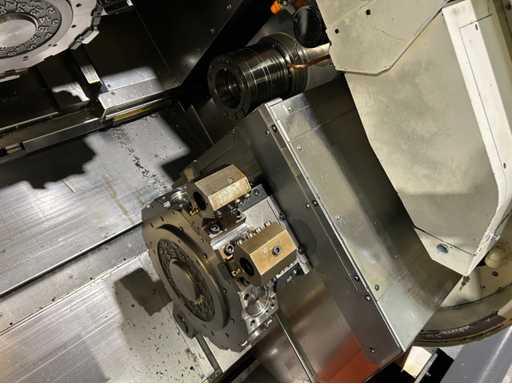

2007 Nakamura Super NTJ CNC lathe
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Nakamura
- Type
- Super NTJ
- Year of build
- 2007
- Serial number

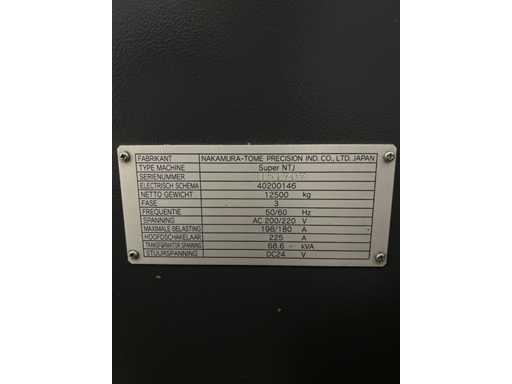

- B151707
- Turning Ø
- 190mm
- Turning length
- 620mm
- Spindle boring Ø
- 80mm
- Speed from n=
- 1rpm
- Speed till n=
- 4500rpm
- Number of tool changer stations
- 24

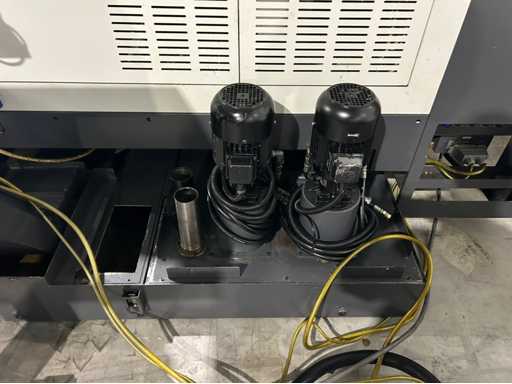

- Coolant pump
- Yes

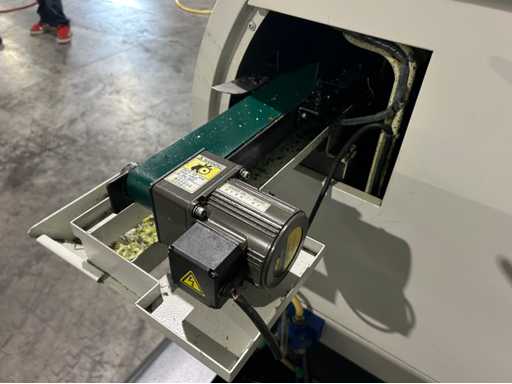

- Chip conveyor
- Yes
- CNC control, brand, type
- Fanuc 18i-TB
- Engine power (kW)
- 18.5kW
- Electric connection
- 400V
- Manual present
- Yes
- Machine weight
- 12500kg
- Dimension l
- 5100mm
- Dimension w
- 2450mm
- Dimension h
- 2250mm
Description

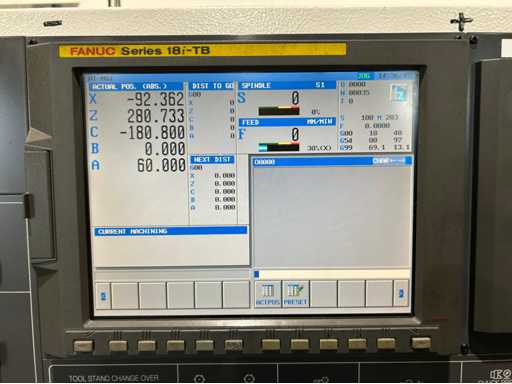

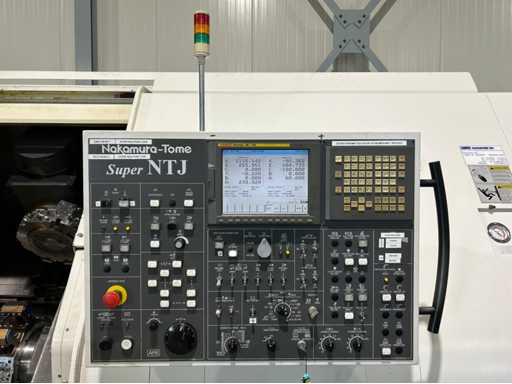

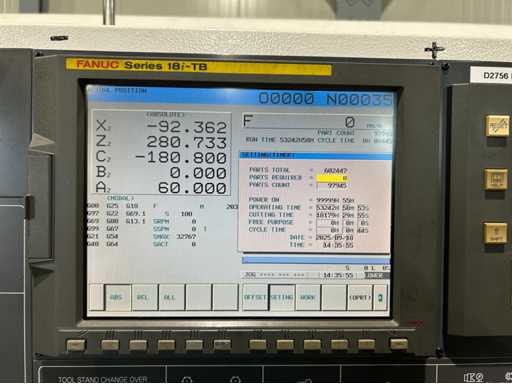

Control: Fanuc 18 iTB
Max. turning diameter: 190 mm
Max. turning length: 620 mm
Greatest: pass round over bed: 190mm
Swing dia. over traverse guideway: 190mm
Standard turning diameter: 170mm
Max. distance between spindles: 970mm

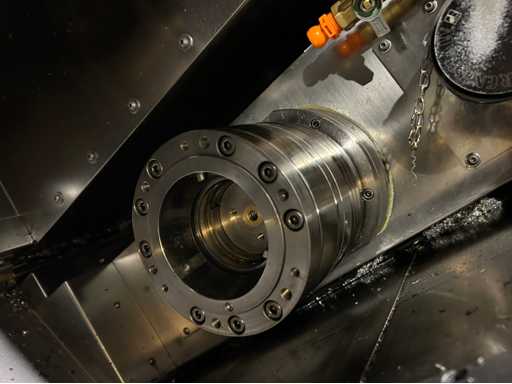

Main spindle:
- Max. spindle speed: 4.500rpm
- Power capacity - main spindel: 18,5 / 15 kW
- Spindle bearing diameter: 110mm
- Spindle bore: 80mm
- Max. bar capacity: 65mm
- Spindle nose: A2-6
- Max. chucking diameter: 165mm
- C-Axis 0,001 °

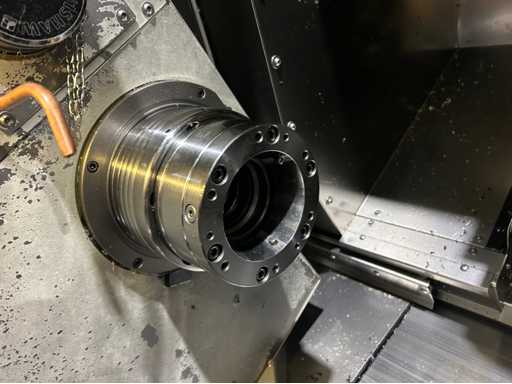

Subspindle:
- max. spindle speed: 5000rpm
- power capacity - Sub spindle 11 / 7,5 kW
- spindle bearing diameter: 90mm
- spindle bore: 63 mm
- max. bar capacity: 51mm
- spindle nose: A2-5
- max. chucking diameter: 165mm
- C-Axis: 0,001 °
- Traverses Subspindle: 760mm

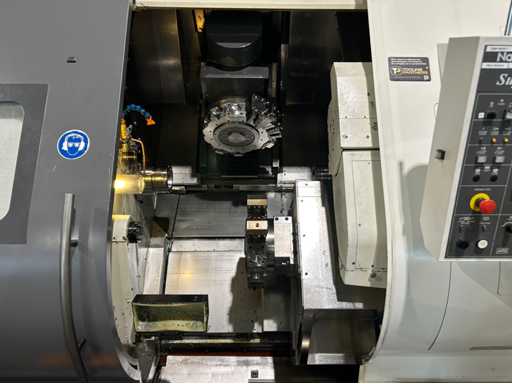

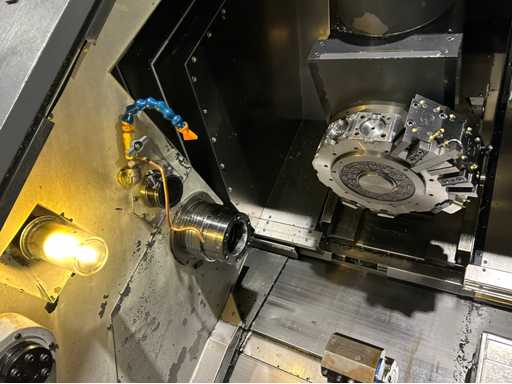

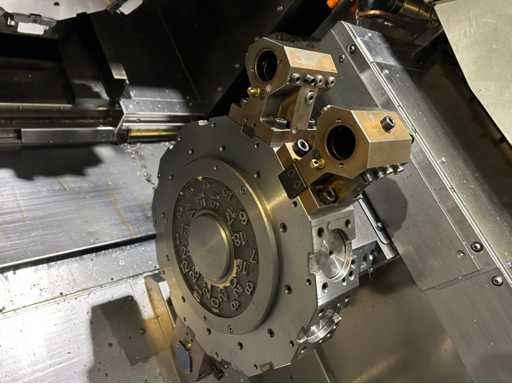

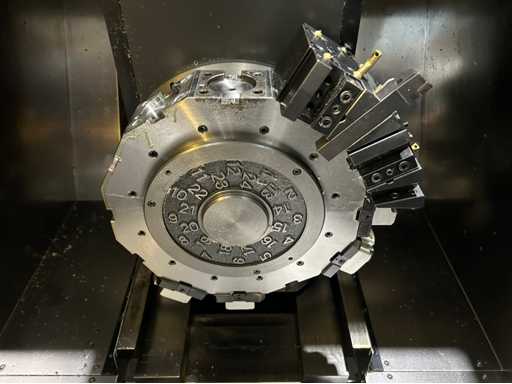

Upper Turret 1:
- number of toolpositions: (2x 12) 24 pos.
- Number of driven toolspositions: 12 pos
- Shank diameter: 25mm
- Drill shank diameter: 32mm
- switching time : 0,2 - 0,7 sec
- change-time chip to chip: 3,0 sec
- max. tool diameter: 80mm
- b - axis: (+91°/-91°) 182 °
indexing 1 °
- y-axis: (+45/-45) 90 mm
Lower Turret 2:
- number of toolpositions: (2x 12) 24 pos.
- Number of driven toolspositions: 12 pos.
- Shank diameter: 25mm
- Drill shank diameter: 32mm
- switching time: 0,2 - 0,7 sec
- change-time chip to chip: 3,0 sec
- max. tool diameter: 80 mm

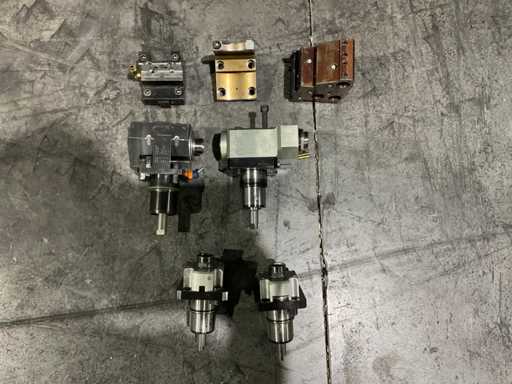

Tool actuation Turret:
- Spindle speed driven tool stations: 6.000rpm
- power capacity - driven tool-stations: 5,5 / 3,7 kW
- Number of driven toolspositions: 2x 12 pos.
- shaft diameter - max. of the bolts: 25mm / 32 mm
axis stroke:
- x-axis 1: 345 mm
- x-axis 2: 167,5 mm
- y-axis +/- 45 mm
- z-axis 1: 1.240 mm
- z-axis 2: 685 mm
- b-axis +/- 91 °
- C-Axis 1+2: 360 °
Additional details
Please note! The viewing day is on registration via aanmelden@troostwijkauctions.com.
The date of the viewing day is November 17 from 09:00 to 12:00.
The address of the plots at the Varsseveld location is: Sinderenseweg 45, 7051 HH Varsseveld.
The address of the plots at the Zutphen location is: Holtmede 2, 7207 BX Zutphen.
There is no right of withdrawal.
The minimum age for visiting the viewing and collection days is 18 years. Visitors must be able to identify themselves.
The lots are loaded by the seller on the transport you organize. The costs for this have been added to the bidding process.

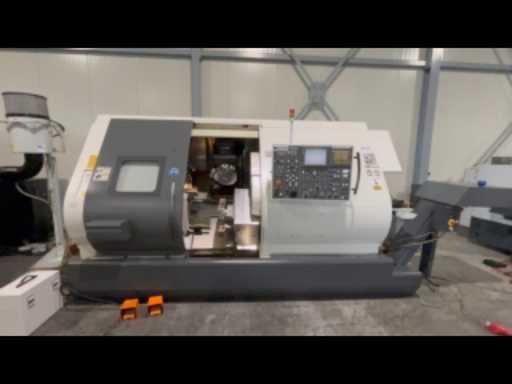

Video
