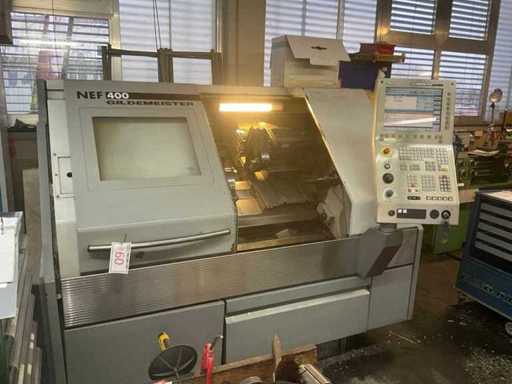

2008 GILDEMEISTER NEF 400 CNC lathe
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- GILDEMEISTER
- Type
- NEF 400
- Year of build
- 2008

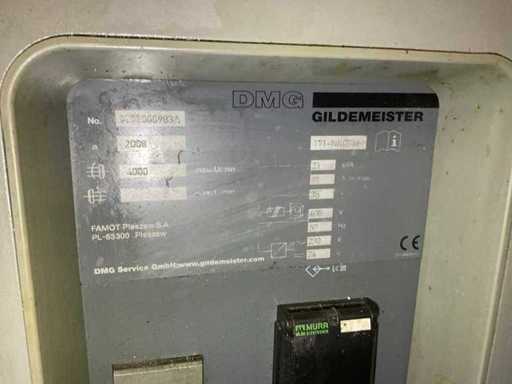

- Serial number
- 0171000903A
- Coolant pump
- Yes

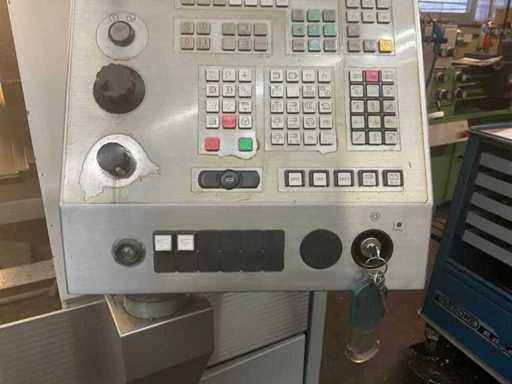

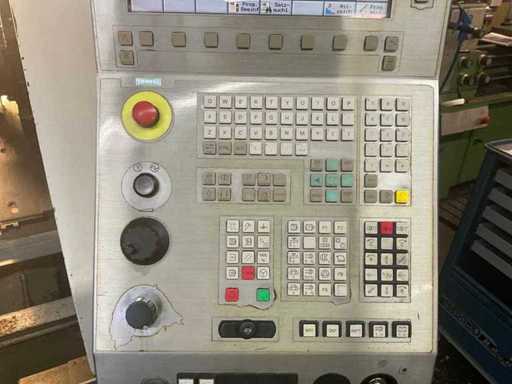

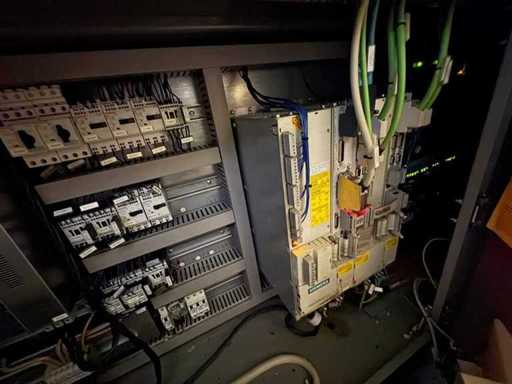

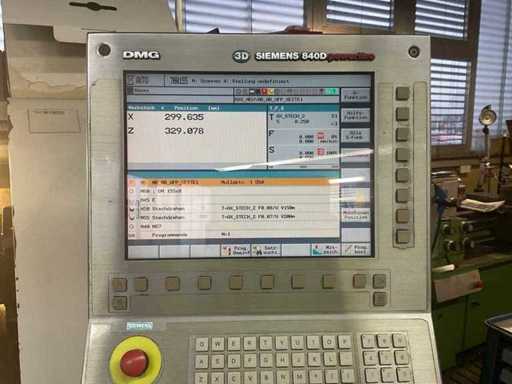

- CNC control, brand, type
- SIEMENS 840 D
- Hours on display
- 26402

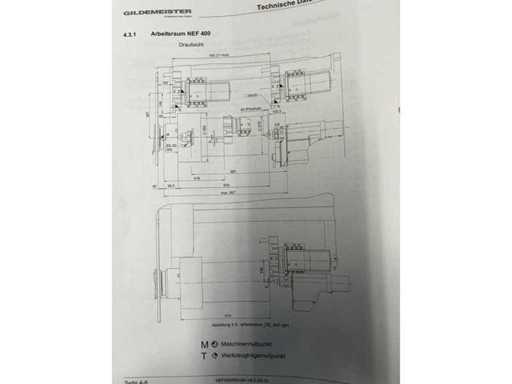

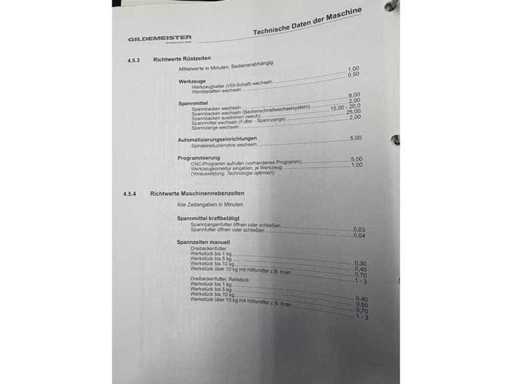

- Manual present
- Yes
- Dimension l
- 2150mm
- Dimension w
- 2150mm
- Dimension h
- 1700mm
- Terms of delivery
- Loaded on truck
Description

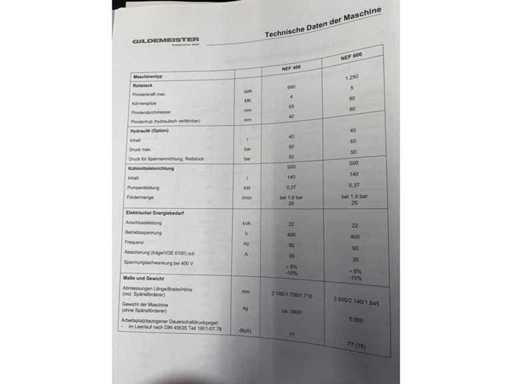

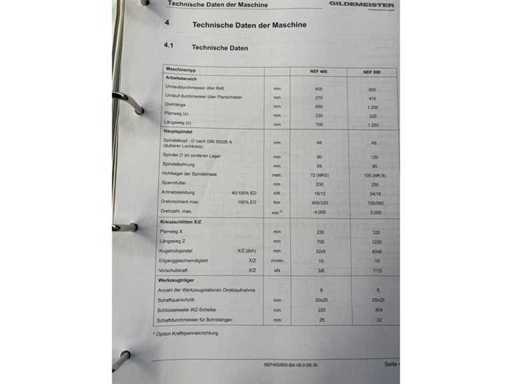

Technical data
Manufacturer: GILDEMEISTER Drehmaschinen GmbHModel: NEF 400
Machine Type: CNC Lathe
Circumferential diameter over bed: 400 mm
Circulation diameter over face slide: 270 mm
Turning length: 650 mm
Travel X: 220 mm
Travel Z: 700 mm
Spindle head: A6 (DIN 55026 A)
Spindle bore: 65 mm
Max. speed: 4,000 rpm⁻¹

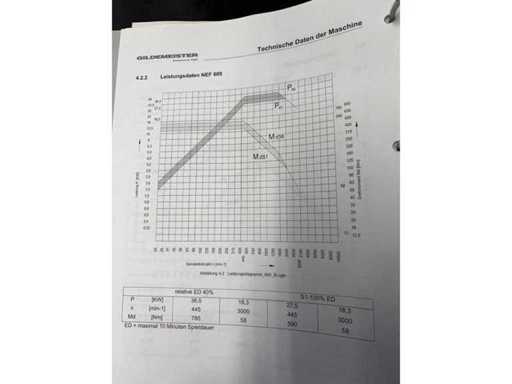

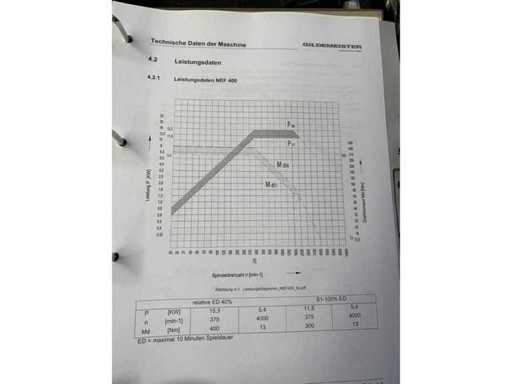

Drive power (40/100% DC): 15 / 12 kW
Tool stations: 8
Shaft cross-section: 20 x 20 mm

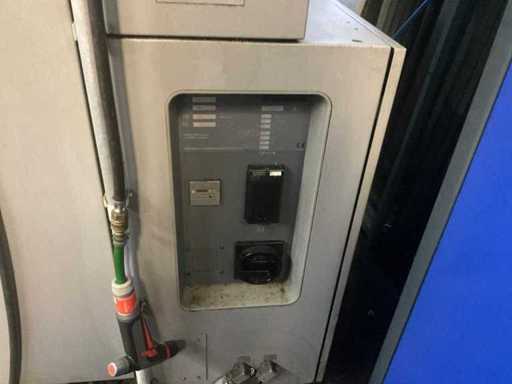

Operating voltage: 400 V / 50 Hz
Connected load: 22 kVA
Fuse: 35 A
Weight: approx. 2,800 kg
Configuration
Cross slide X/ZBall screws X/Z: 32 x 5 mm
Rapid traverse speed: 15 m/min
Tailstock with MK4
Coolant device (140 l)
Hydraulics (option)
Remarks

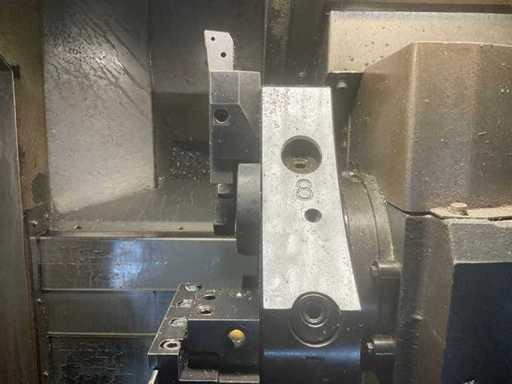

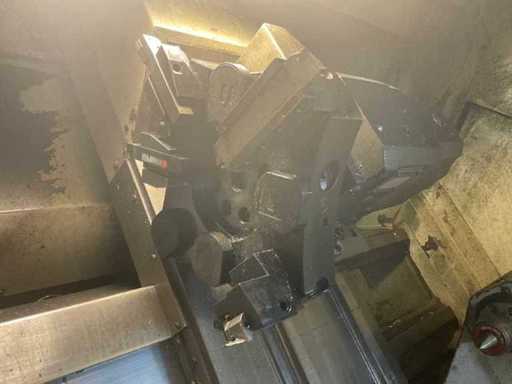

Used and untested, revolver about 1 year old
