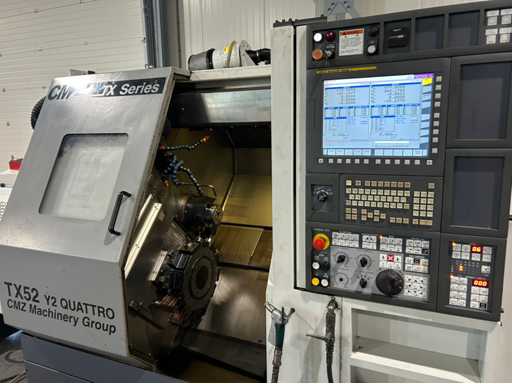

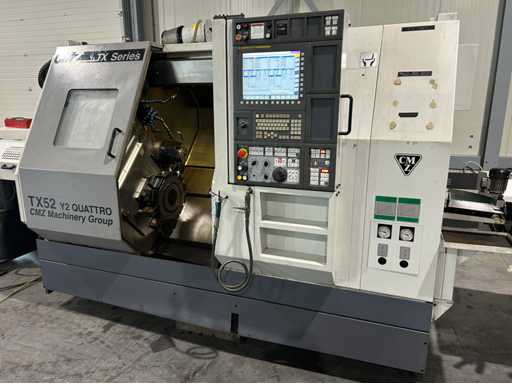

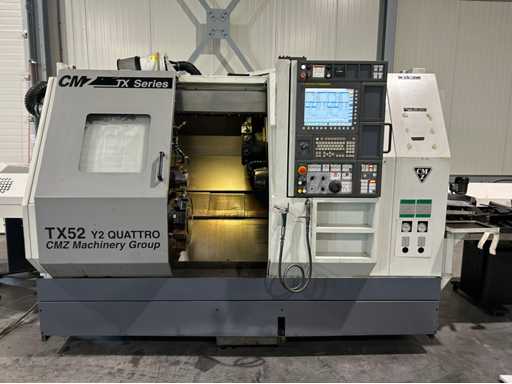

2012 CMZ TX52 Y2 Quattro CNC lathe
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- CMZ
- Type
- TX52 Y2 Quattro
- Year of build
- 2012
- Serial number
- 22
- Turning Ø
- 225mm
- Turning length
- 500mm
- Spindle boring Ø
- 51mm
- Speed from n=
- 1rpm
- Speed till n=
- 5000rpm
- Number of tool changer stations
- 24
- Coolant pump
- Yes
- Chip conveyor
- Yes

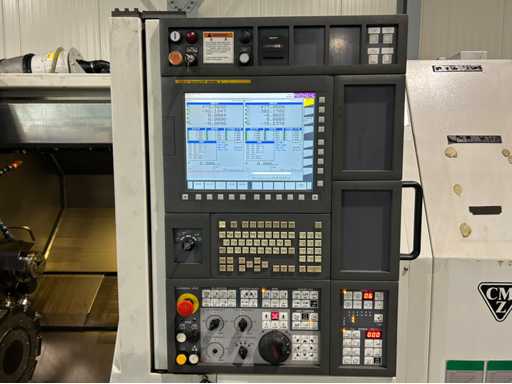

- CNC control, brand, type
- Fanuc Series 31i Model A
- Hours on display
- 7372
- Engine power (kW)
- 18kW
- Electric connection
- 400V
- Manual present
- Yes
- Machine weight
- 9200kg
- Dimension l
- 330mm
- Dimension w
- 2140mm
- Dimension h
- 2140mm
Description
Maximum turning diameter: 255mm
Maximum swing over carriage: 270mm

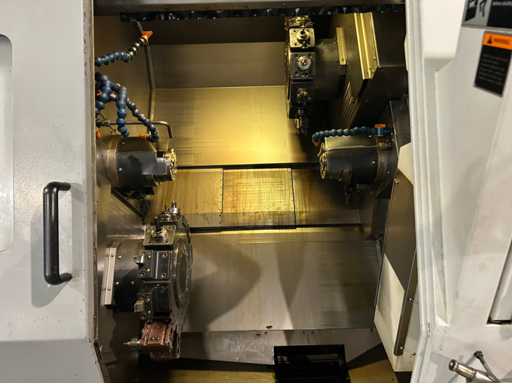

Distance between collet chucks: 647mm

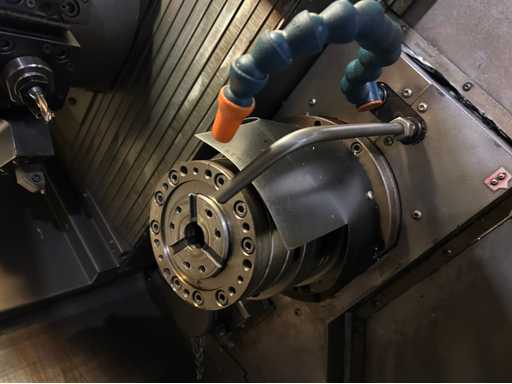

Inside diameter of left spindle: 52mm

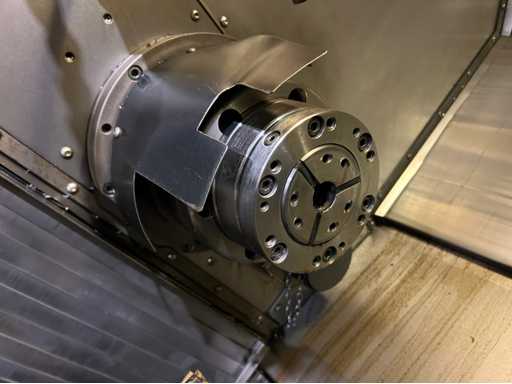

Inside diameter of right spindle: 52mm

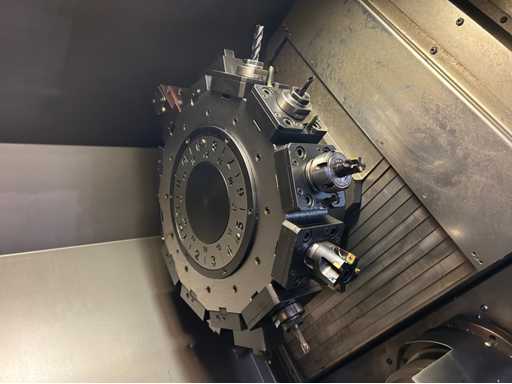

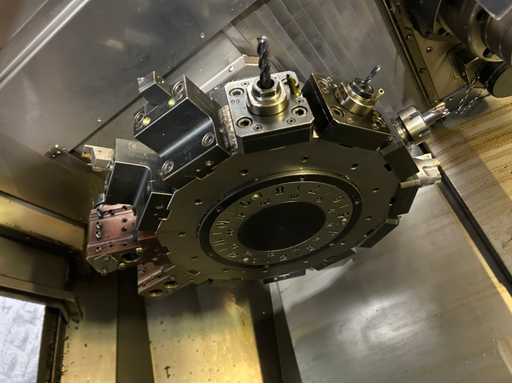

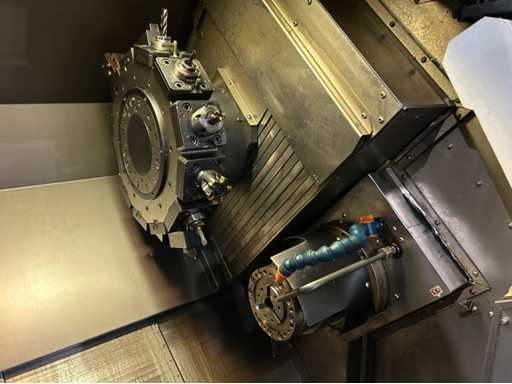

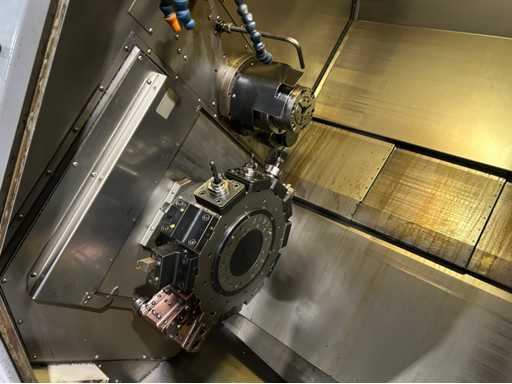

Strokes upper R turret XZY: 190/500/40mm
Strokes upper D turret XZY: 190/500/40mm
Stroke sub spindle: 635mm
DIMENSIONS APPOINTED IN THE SPECIFICATIONS IS JUST THE MACHINE!

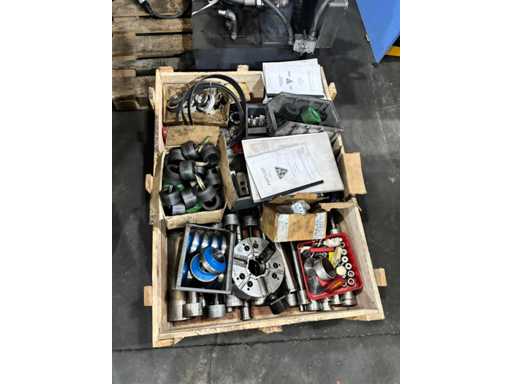

MAKE SURE THERE IS ENOUGH LOADING SPACE FOR ALL THE ACCESSORIES!
