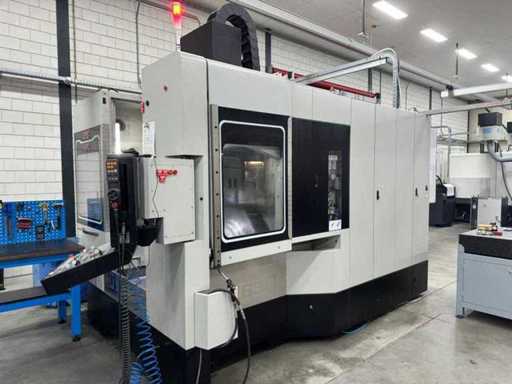

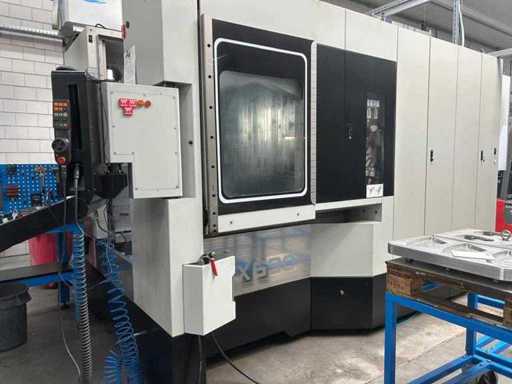

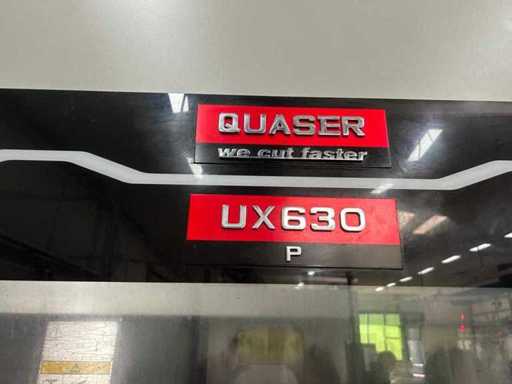

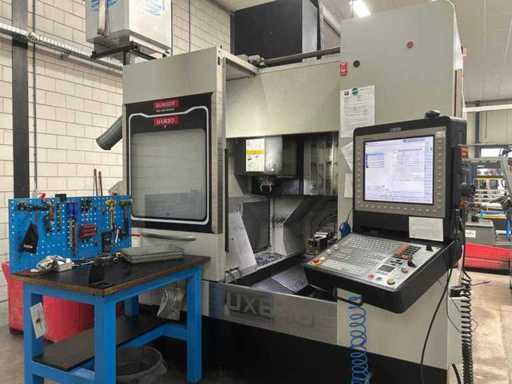

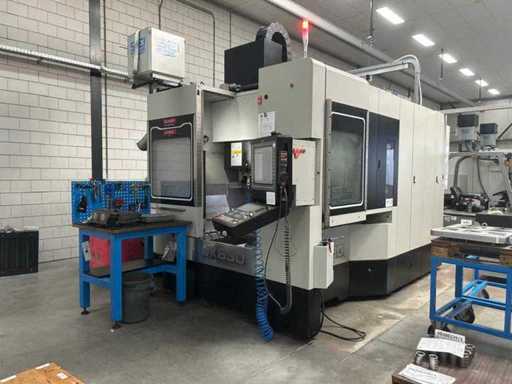

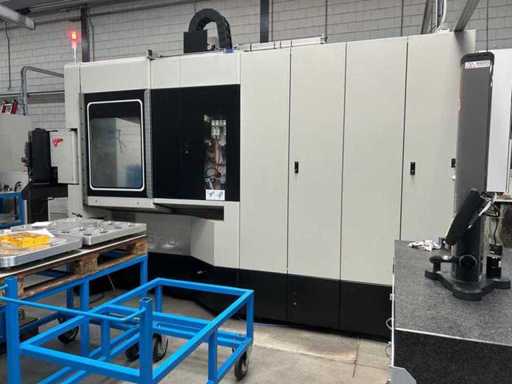

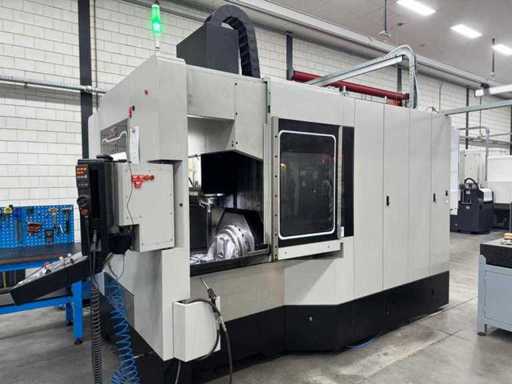

2020 Quaser UX630P CNC Universal machine centre
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Quaser
- Type
- UX630P
- Year of build
- 2020

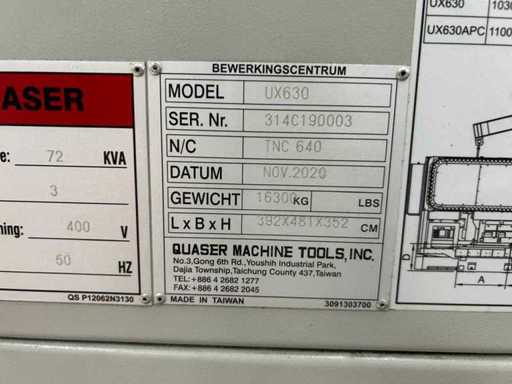

- Serial number
- 314C190003
- Taper iso
- HSK-A63
- Travel x-axis
- 900mm
- Travel y-axis
- 700mm
- Travel z-axis
- 610mm
- Speed till n=
- 15000rpm

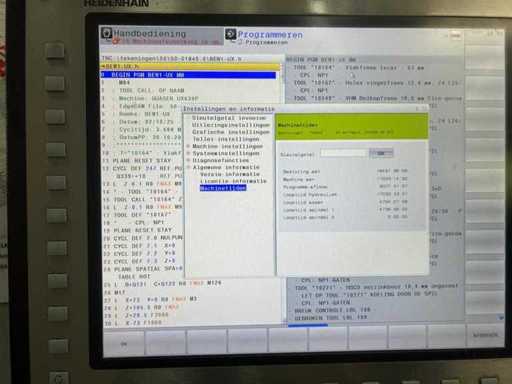

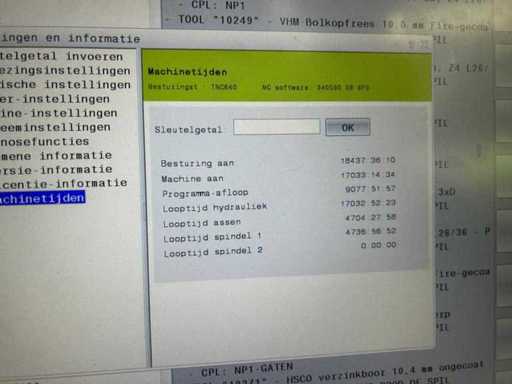

- Hours on display
- 4736
- CNC control, brand, type
- Heidenhain iTNC 640

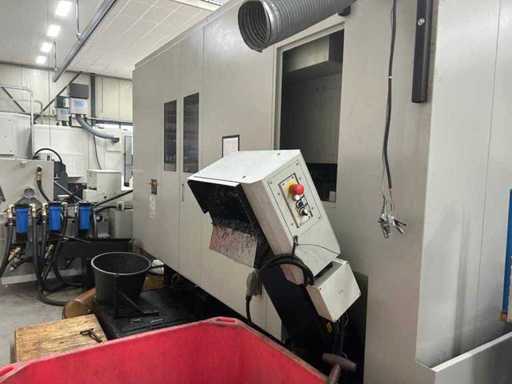

- Chip conveyor
- Yes
- Coolant pump
- Yes
- Workpiece weight max.
- 500kg
- T-slot fixture table size W
- 400mm
- T-slot fixture table size L
- 400mm
- -axis
- 5
- Engine power (kW)
- 51kW
- Electric connection
- 400V
- Total dimension Height
- 3520mm
- Total dimension L
- 4810mm
- Machine weight
- 16300kg
Description
5 axis simultaneous! Machine has low hours and costed €375.000!
Range:
X-axis: 900mm
Y-axis: 700mm
Z-axis: 610mm
B-axis: +120° ~ -120°
C-axis: 360°

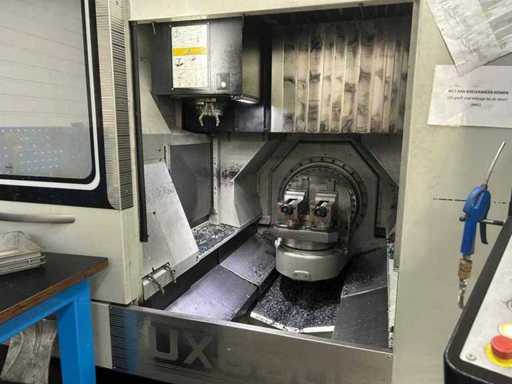

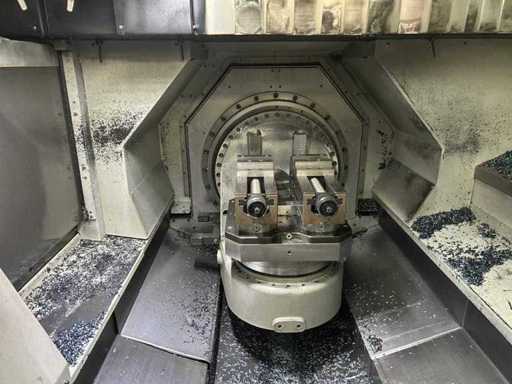

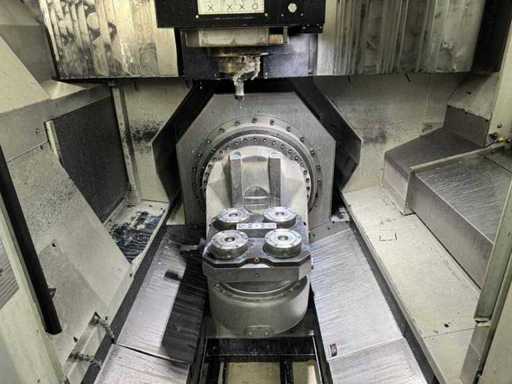

Rotary table:
Drive: direct drive build-in on both axes
Table size: 400mm x 400mm
Max. Workpiece size: ø630 x 540mm
Max. Table load: 500kg
Table to spindle nose: 60~670mm
Angular encoder: Heidenhain RCN (A- and C-axis)

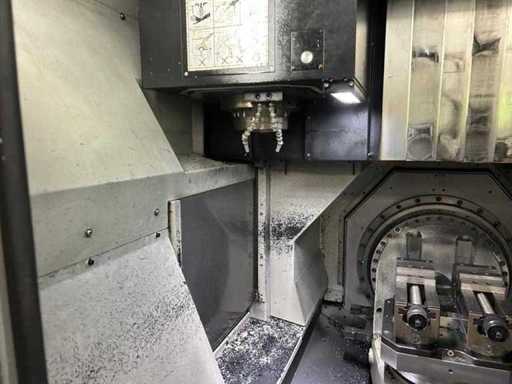

Spindle:
Type: HSTec HM-15A (Built-in motorized spindle)
Spindle taper: HSK-A63
Max. Spindle speed: 15.000rpm
Spindle power: 51 kW (S6-25%)
Max. Torque: 162Nm
Tool magazine:
Capacity: 90 positions
Max. Tool diameter: 76.2mm ( 125mm with adjacent positions empty)
Max. Tool length: 300mm

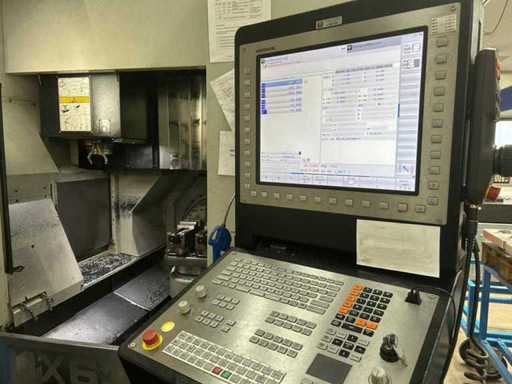

Control:
Manufacturer: Heidenhain
Model: TNC 640 with 19” touchscreen
Linear scales: Heidenhain (X, Y, Z axes)
Machine details:
Year of construction: 2020
Floor space: 4810 x 3920mm
Machine height: 3520mm
Machine is equipped with:

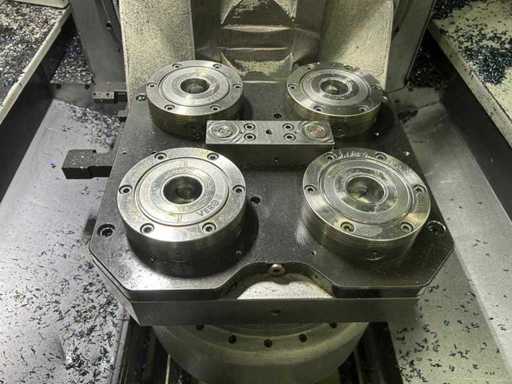

- Schrunk Vero-S zero-point clamping system, sub minut workpiece change over. Pallet ready.
- Renishaw infrared 3D workpiece probe + Blum laser tool measurement.

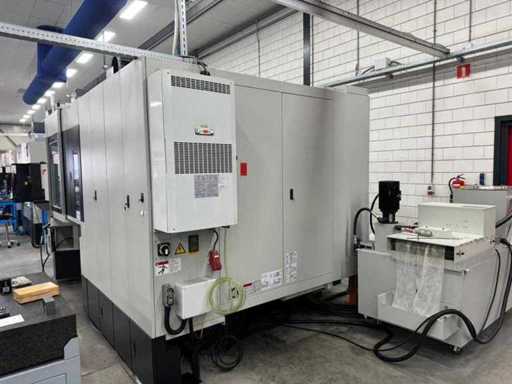

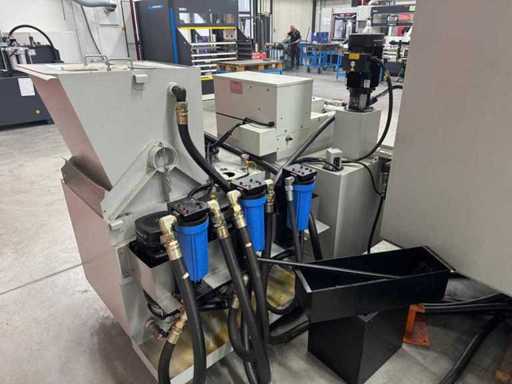

- Through-spindle coolant 20 Bar, water chiller, thermal compensation. Band filter system.
- Centrifugal air filter (CMC1500 J-SP)
- 4x compressed air connections in clamping table for zero-point clamping.
- Portable handwheel Heidenhain HR510
- Automatic lubrication system for X/Y/Z Linear guideways
- Heidenhain option Dynamic Collision Monitoring.
- Heidenhain Kinametics Opt incl. KKH calibration sphere.
- Heidenhain Load Adaptive Control
- Heidenhain option 2 (swivel/rotary table)
- heidenhain option 18 DNC Communication
- Airblow through spindle during machining
- Cooled ball screws
- BMO robot interface installed and programmed, existing automation directly connectable.
- Automatic front door.

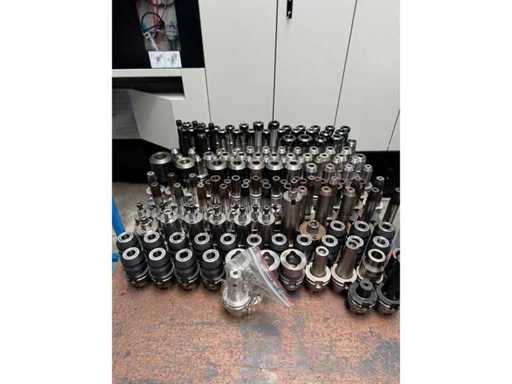

HSK-A63 Tooling as showed in picture included.
Remarks
Accessories and tooling are included if stated in the description!
Machine quality not tested!
Vices not included.
Additional details
Pick-up is by appointment: after the auction closes, you will be contacted to make a pick-up appointment.
The viewing day is on May 12 from 09:00 to 12:00 and can only be visited by appointment via: aanmelden@troostwijkauctions.com. The minimum age for visiting the viewing and collection days is 18 years. Visitors must be able to identify themselves.
The seller loads all lots onto the transport organized by the buyer. Costs will be charged for this, which are included in the bid amount.

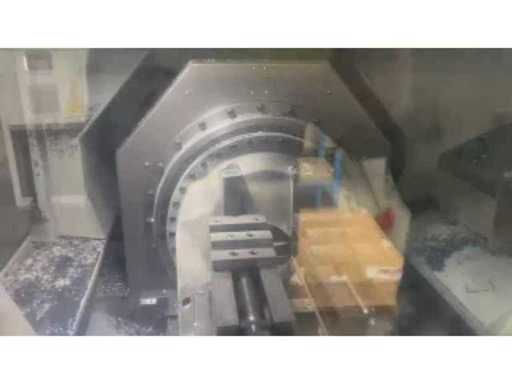

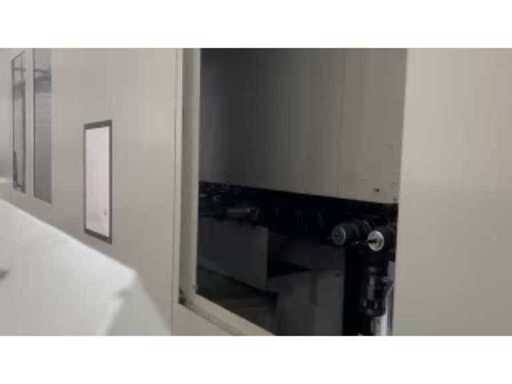

Video
