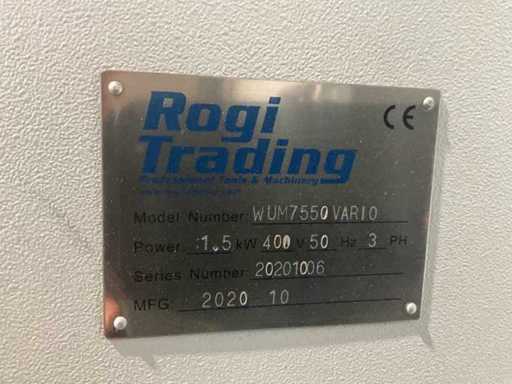

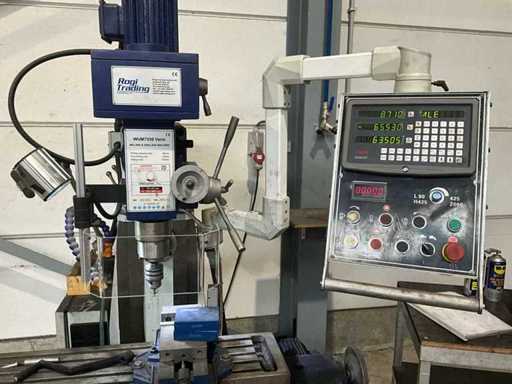

2020 Rogi Trading WUM7550 Vario NC milling and drilling machine - functional
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Rogi Trading
- Type
- WUM7550 Vario
- Year of build
- 2020
- Travel x-axis
- 700mm
- Travel y-axis
- 200mm
- Travel z-axis
- 400mm
- Taper iso
- IS040
- Speed from n=
- 90rpm
- Speed till n=
- 2000rpm
- T-slot fixture table size L
- 800mm
- T-slot fixture table size W
- 240mm
- Workpiece weight max.
- 150kg
- Coolant pump
- Yes
- Control, brand, type
- Delta MS300
- Engine power (kW)
- 1.5kW
- Electric connection
- 400V
- Machine weight
- 550kg
- Dimension l
- 1200mm
- Dimension w
- 1000mm
- Dimension h
- 1900mm
Description

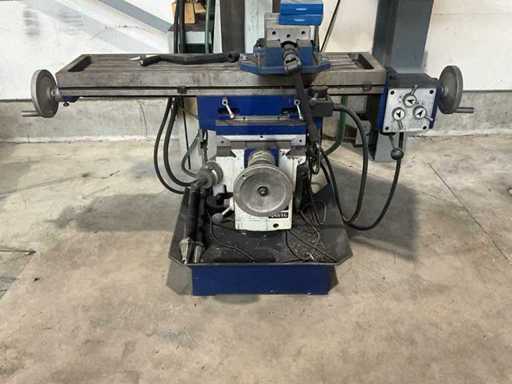

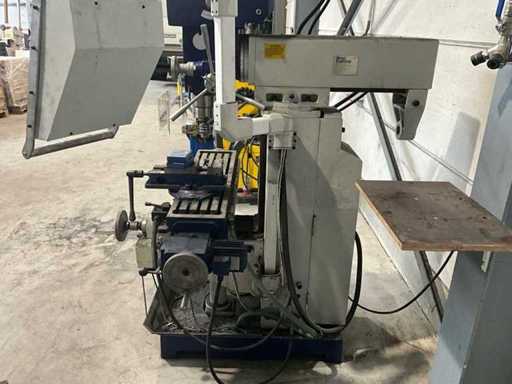

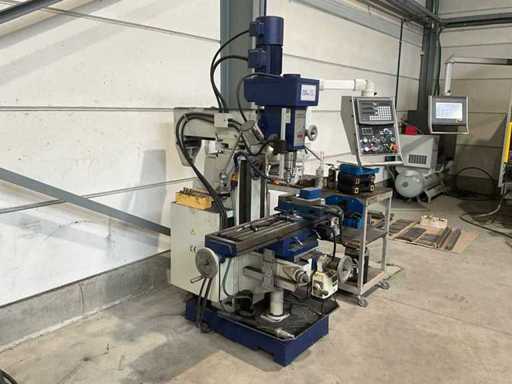

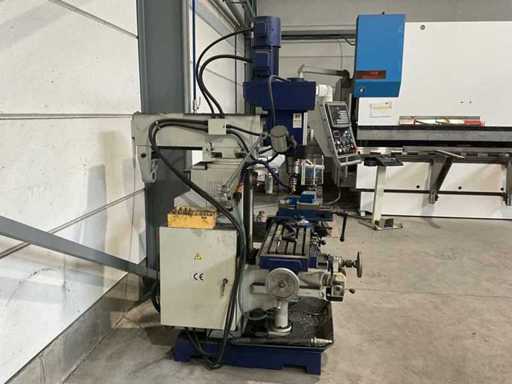

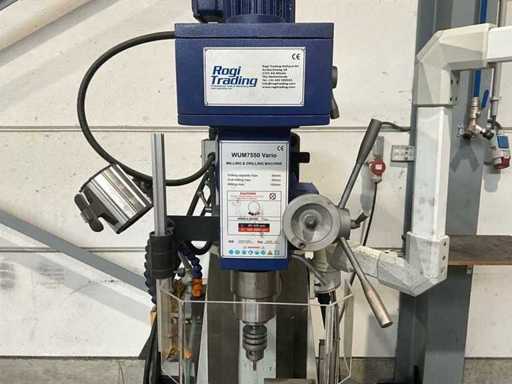

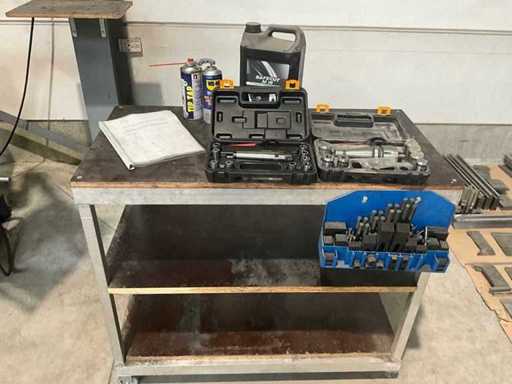

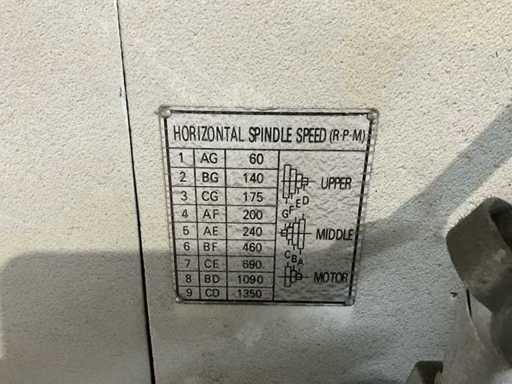

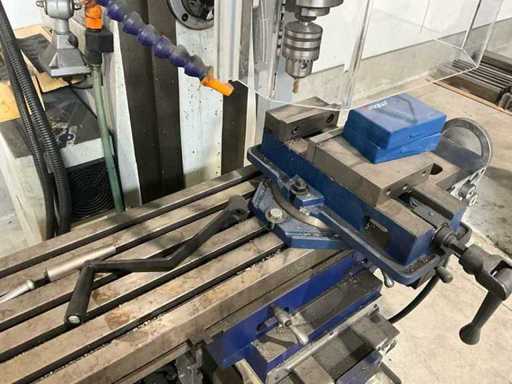

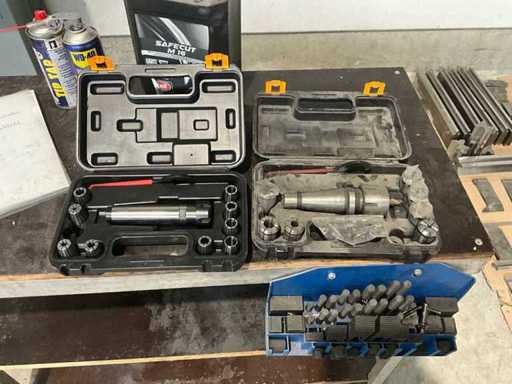

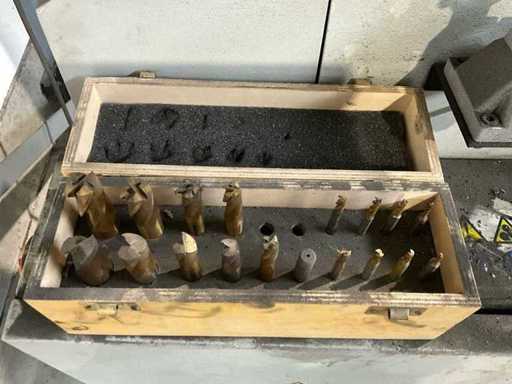

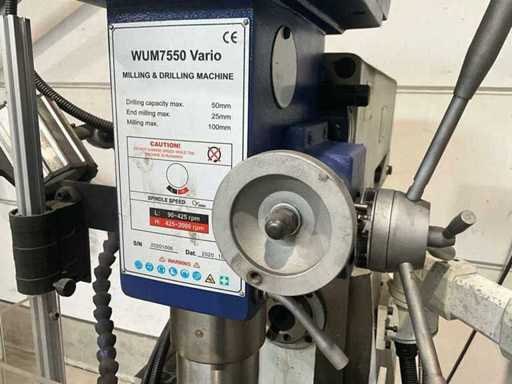

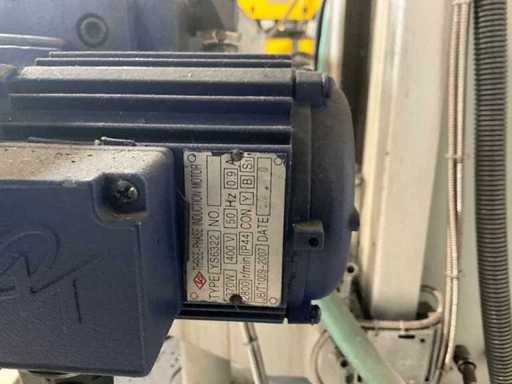

Complete working milling/drilling machine with digital readout and variable speed. Equipped with cooling installation, machine clamp and tools. Machine is functional and very little used, purchased March 2022 (invoice available) - including rolling work table with material in the photo - Drilling capacity steel 50 mm, Milling capacity steel 25 mm, Mantle milling capacity 100 mm, Horizontal motor 1.5 KW, Vertical motor 2.2 KW, Speed range horizontal milling spindle 60 ~ 1350 rpm, Speed range vertical milling spindle: variable 100 ~ 2000 rpm, Spindle holder ISO 40, Table 1000 x 240 mm- INCLUDING:

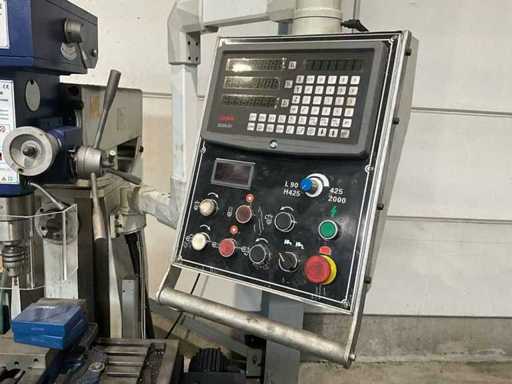

* 3-axis digital readout SINO

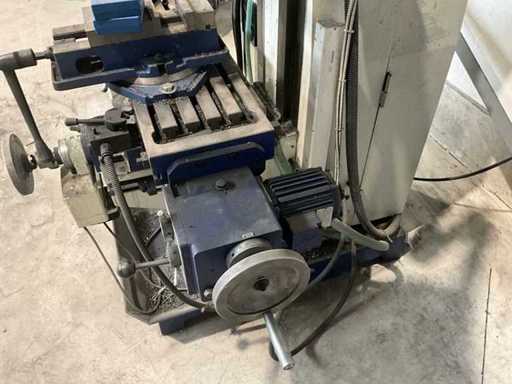

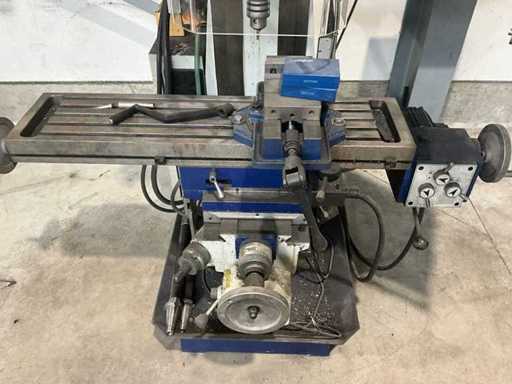

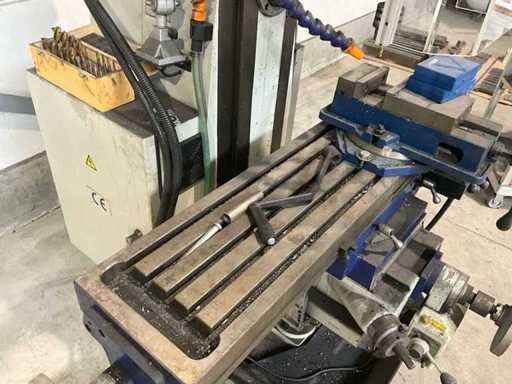

* Automatic longitudinal and transverse feed work table

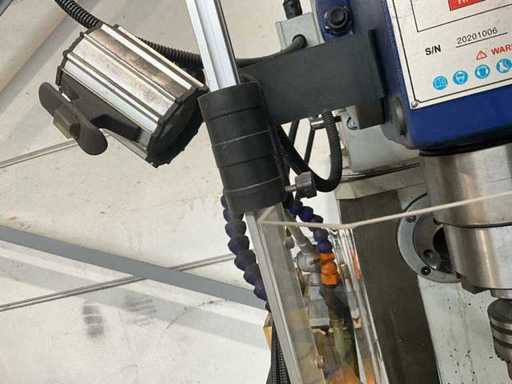

* LED lighting

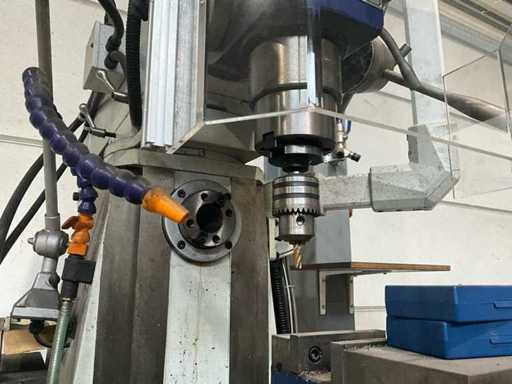

* Cooling system
* Deluxe control box
* Tilting milling head left/right 0 - 45 degrees
* Swivel worktable

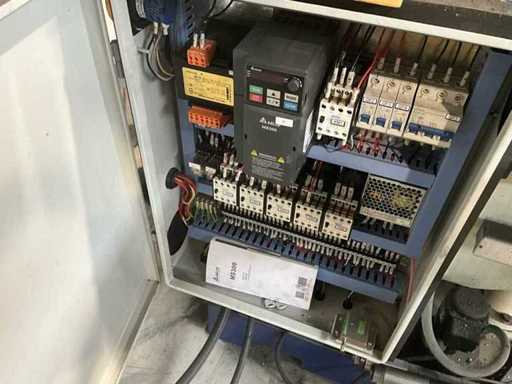

* DELTA frequency switch - immediately deployable!
